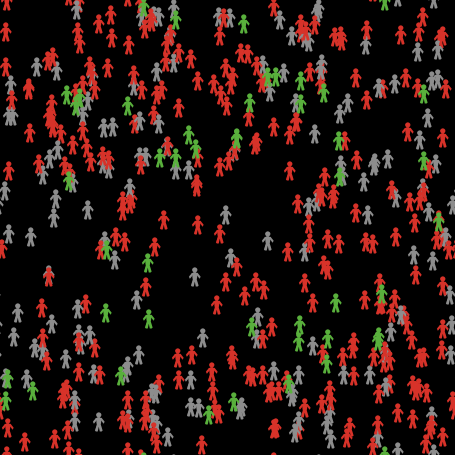

Virus preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

biology

Tagged by Reuven M. Lerner about 7 years ago

Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 690 times • Downloaded 30 times • Run 1 time
Download the 'Virus' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

This model simulates the transmission and perpetuation of a virus in a human population.

Ecological biologists have suggested a number of factors which may influence the survival of a directly transmitted virus within a population. (Yorke, et al. "Seasonality and the requirements for perpetuation and eradication of viruses in populations." Journal of Epidemiology, volume 109, pages 103-123)

HOW IT WORKS

The model is initialized with 150 people, of which 10 are infected. People move randomly about the world in one of three states: healthy but susceptible to infection (green), sick and infectious (red), and healthy and immune (gray). People may die of infection or old age. When the population dips below the environment's "carrying capacity" (set at 700 in this model) healthy people may reproduce healthy and susceptible offspring.

Some of these factors are summarized below with an explanation of how each one is treated in this model.

The density of the population

Population density affects how often infected, immune and susceptible individuals come into contact with each other. You can change the size of the initial population through the PEOPLE slider.

Population turnover

As individuals die, some who die will be infected, some will be susceptible and some will be immune. All the new individuals who are born, replacing those who die, will be susceptible. People may die from the virus, the chances of which are determined by the slider CHANCE-RECOVER, or they may die of old age. In this model, people die of old age at the age of approximately 27 years. Reproduction rate is constant in this model. Each turn, every healthy individual has a chance to reproduce. That chance is set so that each person will on average reproduce four times if they live 27 years.

Degree of immunity

If a person has been infected and recovered, how immune are they to the virus? We often assume that immunity lasts a lifetime and is assured, but in some cases immunity wears off in time and immunity might not be absolutely secure. Nonetheless, in this model, immunity does last forever and is secure.

Infectiousness (or transmissibility)

How easily does the virus spread? Some viruses with which we are familiar spread very easily. Some viruses spread from the smallest contact every time. Others (the HIV virus, which is responsible for AIDS, for example) require significant contact, perhaps many times, before the virus is transmitted. In this model, infectiousness is determined by a slider.

Duration of infectiousness

How long is a person infected before they either recover or die? This length of time is essentially the virus's window of opportunity for transmission to new hosts. In this model, duration of infectiousness is determined by a slider.

HOW TO USE IT

Each "tick" represents a week in the time scale of this model.

The INFECTIOUSNESS slider determines how great the chance is that virus transmission will occur when an infected person and susceptible person occupy the same patch. For instance, when the slider is set to 50, the virus will spread roughly once every two chance encounters.

The DURATION slider determines the percent of the average life-span (which is 1500 weeks, or approximately 27 years, in this model) that an infected person goes through before the infection ends in either death or recovery. Note that although zero is a slider possibility, it produces an infection of very short duration (approximately 2 weeks) not an infection with no duration at all.

The CHANCE-RECOVERY slider controls the likelihood that an infection will end in recovery/immunity. When this slider is set at zero, for instance, the infection is always deadly.

The SETUP button resets the graphics and plots and randomly distributes 140 green susceptible people and 10 red infected people (of randomly distributed ages). The GO button starts the simulation and the plotting function.

Three output monitors show the percent of the population that is infected, the percent that is immune, and the number of years that have passed. The plot shows (in their respective colors) the number of susceptible, infected, and immune people. It also shows the number of individuals in the total population in blue.

THINGS TO NOTICE

The factors controlled by the three sliders interact to influence how likely the virus is to thrive in this population. Notice that in all cases, these factors must create a balance in which an adequate number of potential hosts remain available to the virus and in which the virus can adequately access those hosts.

Often there will initially be an explosion of infection since no one in the population is immune and the population density is at its maximum. This approximates the initial "outbreak" of a viral infection in a population, one that often has devastating consequences for the humans concerned. Soon, however, the virus becomes less common as the population dynamics change. What ultimately happens to the virus is determined by the factors controlled the sliders.

Notice that viruses that are too successful at first (infecting almost everyone) may not survive in the long term. Since everyone infected generally dies or becomes immune as a result, the potential number of hosts is often limited. The exception to the above is when the DURATION slider is set so high that population turnover (reproduction) can keep up and provide new hosts.

THINGS TO TRY

Think about how different slider values might approximate the dynamics of real-life viruses. The famous Ebola virus in central Africa has a very short duration, a very high infectiousness value, and an extremely low recovery rate. For all the fear this virus has raised, how successful is it? Set the sliders appropriately and watch what happens.

The HIV virus which causes AIDS, has an extremely long duration, an extremely low recovery rate, but an extremely low infectiousness value. How does a virus with these slider values fare in this model?

EXTENDING THE MODEL

Add additional sliders controlling the carrying capacity of the world (how many people can be in the world at one time) and the average lifespan of the people.

Build a similar model simulating viral infection of a non-human host with very different reproductive rates, lifespans, and population densities.

Add a slider controlling how long immunity lasts so that immunity is not perfect or eternal.

RELATED MODELS

  • AIDS
  • Virus on a Network

HOW TO CITE

If you mention this model in a publication, we ask that you include these citations for the model itself and for the NetLogo software:

  • Wilensky, U. (1998). NetLogo Virus model. http://ccl.northwestern.edu/netlogo/models/Virus. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.
  • Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.

COPYRIGHT AND LICENSE

Copyright 1998 Uri Wilensky.

CC BY-NC-SA 3.0

This work is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-sa/3.0/ or send a letter to Creative Commons, 559 Nathan Abbott Way, Stanford, California 94305, USA.

Commercial licenses are also available. To inquire about commercial licenses, please contact Uri Wilensky at uri@northwestern.edu.

This model was created as part of the project: CONNECTED MATHEMATICS: MAKING SENSE OF COMPLEX PHENOMENA THROUGH BUILDING OBJECT-BASED PARALLEL MODELS (OBPML). The project gratefully acknowledges the support of the National Science Foundation (Applications of Advanced Technologies Program) -- grant numbers RED #9552950 and REC #9632612.

This model was converted to NetLogo as part of the projects: PARTICIPATORY SIMULATIONS: NETWORK-BASED DESIGN FOR SYSTEMS LEARNING IN CLASSROOMS and/or INTEGRATED SIMULATION AND MODELING ENVIRONMENT. The project gratefully acknowledges the support of the National Science Foundation (REPP & ROLE programs) -- grant numbers REC #9814682 and REC-0126227. Converted from StarLogoT to NetLogo, 2001.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

turtles-own
  [ sick?        ;; if true, the turtle is infectious
    immune?      ;; if true, the turtle can't be infected
    sick-count   ;; how long the turtle has been infectious
    age ]        ;; how many weeks old the turtle is

globals
[
  %infected            ;; what % of the population is infectious
  %immune              ;; what % of the population is immune
  lifespan             ;; the average lifespan of a turtle
  average-offspring    ;; the average number of offspring a turtle could have
  carrying-capacity    ;; the number of turtles that can be in the world at one time
]

;; The setup is divided into three subroutines

to setup
  clear-all
  setup-constants
  setup-turtles
  update-global-variables
  reset-ticks
end

;; We create a variable number of turtles of which 10 are infectious,
;; and distribute them randomly

to setup-turtles
  set-default-shape turtles "person"
  crt people
    [ setxy random-xcor random-ycor
      set age random lifespan
      set sick-count 0
      set immune? false
      set size 1.5  ;; easier to see
      get-healthy ]
  ask n-of 10 turtles
    [ get-sick ]
end

to get-sick ;; turtle procedure
  set sick? true
  set immune? false
  set color red
end

to get-healthy ;; turtle procedure
  set sick? false
  set immune? false
  set sick-count 0
  set color green
end

to become-immune ;; turtle procedure
  set sick? false
  set sick-count 0
  set immune? true
  set color gray
end

to setup-constants
  set lifespan 100
  set carrying-capacity 750
  set average-offspring 4
end

to go
  get-older
  move
  infect
  recover
  reproduce
  update-global-variables
  tick
end

to update-global-variables
  if count turtles > 0
  [
    set %infected (count turtles with [sick?]) / (count turtles) * 100
    set %immune (count turtles with [immune?]) / (count turtles) * 100
  ]
end

;;Turtle counting variables are advanced.

to get-older
  ask turtles
  [
    set age age + 1
    if sick?
      [ set sick-count (sick-count + 1) ]
    ;; Turtles die of old age once their age equals the
    ;; lifespan (set at 1500 in this model).
    if age > lifespan
      [ die ]
  ]
end

;;Turtles move about at random.

to move
  ask turtles
  [ rt random 100
    lt random 100
    fd 1 ]
end

;; If a turtle is sick, it infects other turtles on the same patch.
;; Immune turtles don't get sick.

to infect
  ask turtles with [sick?]
    [ ask other turtles-here with [ not immune? ]
        [ if (random-float 100) < infectiousness
            [ get-sick ] ] ]
end

;; Once the turtle has been sick long enough, it
;; either recovers (and becomes immune) or it dies.

to recover
   ask turtles with [sick?]
     [ if (random sick-count) > (lifespan * (duration / 100))  ;; If the turtle has survived past the virus' duration, then
         [ ifelse ((random-float 100) < chance-recover)        ;; either recover or die
             [ become-immune ]
             [ die ] ] ]
end

;; If there are less turtles than the carrying-capacity
;;  then turtles can reproduce.
;; The probability of reproduction depends on average number
;;  of offspring per life.  In this model it is 4 per life (e.g.
;;  4 per 100 weeks.  The chance, therefore, for a turtle to
;;  reproduce at any given turn is 0.04 (if the population
;;  is below carrying-capacity).

to reproduce
  ask turtles with [not sick?]
    [ if (count turtles) < carrying-capacity
         and (random lifespan) < average-offspring
       [ hatch 1
           [ set age 1
             lt 45 fd 1
             get-healthy ] ] ]
end


; Copyright 1998 Uri Wilensky.
; See Info tab for full copyright and license.
