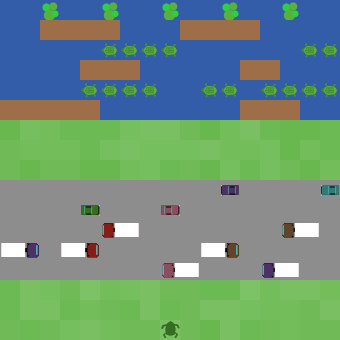

Frogger preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

game

Tagged by Reuven M. Lerner over 10 years ago

Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 908 times • Downloaded 73 times • Run 0 times
Download the 'Frogger' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

This model is based on the classic arcade game, Frogger. The object of the game is to get the frog, found at the bottom of the view, across the traffic and river to a safe lily pad on the other side.

HOW IT WORKS

There are two main obstacles to overcome, the road and the river. The road has cars and trucks moving at various speeds that are liable to run over the frog. Once you have crossed the road safely, you must overcome the danger lurking in the river. Unfortunately, you will die if you jump in the river, so you must keep moving towards the lily pads by jumping on the logs or sets of turtles moving back and forth in the river's current.

You must also avoid getting pushed off the edge by a log or turtle. In addition, in the later levels, some of the turtles will dive under water -- if you happen to be standing on them you will drown! Finally, you must also get across the board before the allotted amount of time runs out.

HOW TO USE IT

Buttons

  • NEW-GAME resets the game
  • START starts the game
  • The direction buttons (UP, DOWN, LEFT, RIGHT) will move your frog in that direction

Monitors

  • FROGS LEFT tells you how many remaining lives you have
  • LEVEL monitors the current level you are playing
  • TIME LEFT shows you how much time remains
  • FROG JUMPS tells you how many jumps you has taken

Sliders

  • START-LIVES will determine how many lives you will start with
  • START-TIME sets how much time you start out with
  • START-LEVEL is used to determine which level you will start on

Cast of characters:

  • Green frog: This is you.
  • Truck: Avoid at all costs. They are usually pretty slow.
  • Car: Avoid at all costs. They are usually fast.
  • Brown squares: This is a log. You need to jump onto these to get across the river.
  • Turtle: You need to jump onto these. Avoid ones that dive.
  • Green circles: These are lily pads. You want to get on these to win the level.
  • Blue squares: This is the river. You can't land on this.
  • Gray squares: This is the road. You can jump on this, but watch out for vehicles.

  • Green Patches: This is grass. You are pretty safe here.

THINGS TO TRY

See if you can get through all of the levels.

Try to beat your previous time.

Try to make as few jumps as possible in the time allotted.

Try to use as few lives as possible.

THINGS TO NOTICE

Determine how many jumps it would take to get across the board without obstacles.

Determine how many jumps it would take to get across the board with obstacles.

How does each of the two questions above relate to the time it takes you to complete a level?

If you take just as many jumps with obstacles as without, why does it take different durations of time to get across?

EXTENDING THE MODEL

Write your own levels by altering the code in the Code tab.

Add some bonuses or additional hazards.

Implement a scoring system.

Write a robot script that will move your frog automatically.

NETLOGO FEATURES

This model uses breeds to implement the different moving game pieces.

The every command is used to control the speed of the game.

The user-message command presents messages to the user.

mouse-down?, mouse-xcor, and mouse-ycor are used to detect and handle mouse clicks.

HOW TO CITE

If you mention this model in a publication, we ask that you include these citations for the model itself and for the NetLogo software:

  • Wilensky, U. (2002). NetLogo Frogger model. http://ccl.northwestern.edu/netlogo/models/Frogger. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.
  • Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.

COPYRIGHT AND LICENSE

Copyright 2002 Uri Wilensky.

CC BY-NC-SA 3.0

This work is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-sa/3.0/ or send a letter to Creative Commons, 559 Nathan Abbott Way, Stanford, California 94305, USA.

Commercial licenses are also available. To inquire about commercial licenses, please contact Uri Wilensky at uri@northwestern.edu.

This model was created as part of the projects: PARTICIPATORY SIMULATIONS: NETWORK-BASED DESIGN FOR SYSTEMS LEARNING IN CLASSROOMS and/or INTEGRATED SIMULATION AND MODELING ENVIRONMENT. The project gratefully acknowledges the support of the National Science Foundation (REPP & ROLE programs) -- grant numbers REC #9814682 and REC-0126227.

Comments and Questions

Click to Run Model

extensions [ sound ]

breed [ trucks truck ]
breed [ cars car ]
breed [ logs a-log ]
breed [ river-turtles river-turtle ]
breed [ pads pad ]
breed [ frogs frog ] ;; These are all the game pieces.

;;;;;;;;;;;;;;;
;; Variables ;;
;;;;;;;;;;;;;;;

globals [
  action            ;; Last button pressed. Prevent the player from moving the frog until the
                    ;; the game is running.  Checks the status of this button every loop.
  dead?             ;; True when no frog lives are left - used to stop the game
  lives             ;; Remaining lives
  level             ;; Current level
  jumps             ;; Current number of jumps
  time-left         ;; Time remaining
  pads-done         ;; Number of frogs that have successfully reached the pads
]

;; In NetLogo, all the breeds are "turtles".  This can be confusing because
;; there are also "turtles" in the game of Frogger -- they swim in the river.
;; To avoid confusion, we call those turtles "river-turtles".

turtles-own [
  speed            ;; The 'time' variable will be initialized to the value of 'speed' after the turtle moves
  time             ;; This keeps track of how many time loops have occurred since the turtle last moved.
                   ;; It actually counts down from 'speed' to zero.  Once it reaches zero, the turtle
                   ;; moves forward one space
]

river-turtles-own [
  dive?            ;; True when the turtle dives
]

;;;;;;;;;;;;;;;;;;;;;;;;
;;; Setup Procedures ;;;
;;;;;;;;;;;;;;;;;;;;;;;;

to startup            ;; Setup is the 'New Game' button, this will setup the game.
  setup
end

to setup              ;; Initializes the game
  ca
  set action 0
  set dead? false
  set lives start-lives
  set-default-shape frogs "frog"
  set-default-shape cars "car"
  set-default-shape logs "log"
  set-default-shape river-turtles "turtle"
  set level start-level
  next-level
end

to next-level        ;; This will call the appropriate level procedure, where the level is created
  draw-map
  if ( level = 1 )
    [ level-1 ]
  if ( level = 2 )
    [ level-2 ]
  if ( level = 3 )
    [ level-3 ]
  if ( level = 4 )
    [ level-4 ]
  if ( level = 5 )
    [ level-5 ]
  if ( level = 6 )
    [ user-message "Actually, that was the last level.\nPerhaps you should program some more :-)"
      set dead? true]
end

;; This will color the patches to make the grass, road, and river, and creates the frog.
;; The second line causes the grass to be various similar shades of green so it looks
;; more like real grass.

to draw-map
  cp ct
  ask patches
    [ set pcolor scale-color green ((random 500) + 5000) 0 9000 ]
  setup-pads
  ask patches with [pycor <= max-pycor and pycor >= 3]
    [ set pcolor blue ]
  ask patches with [pycor <= -1 and pycor >= -5]
    [ set pcolor gray ]
  set pads-done 0
  create-frogs 1
    [ set color 53
      reset-frog
    ]
end

;; Initializes the frog by setting it to the right patch and facing the right direction

to reset-frog
  setxy 0 min-pycor
  set heading 0
  set jumps 0
  set time-left start-time
end

;; Creates the five pads equally spaced at the top of the board.
;; The second line uses the modulus operation to determine which x-cor
;; is divisible by three.  This is an easy way to have a pad created every
;; three patches.

to setup-pads
  set-default-shape pads "pad"
  ask patches with [pycor = max-pycor and pxcor mod 3 = 0]
    [ sprout-pads 1 ]
end

to create-truck [ x y direction quickness ]   ;; Creates and initializes a truck
  let truckColor (random 13 + 1) * 10 + 3
  ask patches with [(pxcor = x or pxcor = (x + 1)) and pycor = y]
    [ sprout-trucks 1
        [ set color truckColor
          set heading direction
          set speed quickness
          set time speed
          ifelse ((pxcor = x) xor (direction = 90))
            [ set shape "truck" ]
            [ set shape "truck rear" ]
        ]
    ]
end

to create-car [x y direction quickness]     ;; Creates and initializes a car
  create-cars 1
    [ set color (random 13 + 1) * 10 + 3
      setxy x y
      set heading direction
      set speed quickness
      set time speed
    ]
end

;; Creates and initializes a log.

to create-log [x y leng quickness]
  ask patches with [pycor = y and pxcor >= x and pxcor < (x + leng)]
    [ sprout-logs 1
        [ set color brown
          set heading 90
          set speed quickness
          set time speed
        ]
    ]
end

to create-river-turtle [x y leng quickness]    ;; Creates and initializes a river-turtle
  ask patches with [pycor = y and pxcor >= x and pxcor < (x + leng)]
    [ sprout-river-turtles 1
        [ set heading 270
          set speed quickness
          set time speed
          set color 54
          set dive? false
        ]
    ]
end

to make-river-turtle-dive [num]    ;; Causes a random river-turtle(s) to dive underwater.
  repeat num
    [ ask one-of river-turtles with [not dive?]
        [ set dive? true ]
    ]
end


;;;;;;;;;;;;;;;;;;;;;;;;;;
;;; Runtime Procedures ;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;

to go            ;; The main procedure
  if dead?
    [ stop ]
  move
end

;; This is the time loop: every 0.1 seconds it decrements every turtle's 'time'
;; variable and check to see if it should move (when it reaches zero).  It then will
;; reset the 'time' if it is zero.  The logs and river-turtles need their own special
;; procedure to move since they "carry" the frog with them.

to move
  move-frog
  every 0.1
    [ ask turtles
        [ decrement-time ]
      ask turtles with [time = 0.0 and breed != frogs]
        [ set time speed
          ifelse (breed = logs)
            [ move-log ]
            [ ifelse (breed = river-turtles)
                [ move-river-turtle ]
                [ fd 1 ]
            ]
        ]
      check-frog
    ]
  display
end

;; This will decrement the 'time' for all non-frogs and it will decrement the 'time-left'
;; global variable.  The precision function is needed to verify there is only one decimal
;; place on the time variables.

to decrement-time
  ifelse (breed = frogs)
    [ set time-left precision (time-left - 0.1) 1 ]
    [ set time precision (time - 0.1) 1 ]
end

;;  Every time loop, we need to see what the frog's status is (dead, on a pad, etc..)
;;  First it will need to see if it is on a pad and make sure there are no other frogs there
;;  (by checking the shape of the the pad).  Then you need to check to see if the frog is in
;;  a space where he should die.  Finally, it checks to see if the level is complete.

to check-frog
  ask frogs
    [ if any? pads-here with [shape = "pad"]
        [ sound:play-drum "CRASH CYMBAL 2" 97
          ask pads-here
            [ set shape "frog"
              set heading 0
              set color 54
              set pads-done (pads-done + 1)
            ]
          reset-frog
        ]
      if ((any? trucks-here) or (any? cars-here) or (time-left <= 0) or
         ((pcolor = blue) and
          (count pads-here = 0) and
          (count logs-here = 0) and
          (count river-turtles-here with [not hidden?] = 0)))
        [ kill-frog ]
    ]
  if ( pads-done = 5 )
    [ set level (level + 1)
      set pads-done 0
      user-message (word "Congrats, all your frogs are safe!\nOn to level " level "...")
      next-level
    ]
end

to kill-frog        ;; This is called when the frog dies, checks if the game is over
  set lives (lives - 1)
  ifelse (lives = 0)
    [ user-message "Your frog died!\nYou have no more frogs!\nGAME OVER!"
      set dead? true
      die
    ]
    [ user-message (word "Your frog died!\nYou have " lives " frogs left.")
      reset-frog
    ]
end

;; This is a special procedure to move a log.  It needs to move any frogs that
;; are on top of it.

to move-log
  ask frogs-here
    [ if (pxcor != max-pxcor)
        [ set xcor xcor + 1 ]
    ]
  fd 1
end

;; This is a special procedure to move the river-turtles.  It needs to move any frogs that
;; are on top of it.

to move-river-turtle
  fd 1
  ask frogs-at 1 0
    [ set xcor xcor - 1
      if (xcor = max-pxcor)
        [ set xcor xcor + 1 ]
    ]
  dive-river-turtle
end

;; If a river-turtle has been instructed to dive, this procedure will implement that.
;; It will also cause it to splash and rise back up.  It uses a random numbers to
;; determine when it should dive and rise back up.  Theoritically, it will dive about
;; every eighth move and stay down for about five moves, but this isn't always the case
;; (the randomness is added for increasing the challenge of the game)

to dive-river-turtle
  if dive?
    [ ifelse (hidden? and random 5 = 1)
        [ show-turtle ]
        [ if ( shape = "splash" )
            [ set shape "turtle"
              hide-turtle
            ]
          if (shape = "turtle" and random 8 = 1)
            [ set shape "splash" ]
        ]
    ]
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;; Interface Procedures ;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to move-frog
  if (action != 0)
    [ if (action = 1)
        [ move-left ]
      if (action = 2)
        [ move-right ]
      if (action = 3)
        [ move-down ]
      if (action = 4)
        [ move-up ]
      sound:play-drum "LONG GUIRO" 50
      set action 0
    ]
end

to move-left
  ask frogs with [xcor != min-pxcor]
    [ set heading 270
      fd 1
      set jumps ( jumps + 1 )
    ]
  check-frog
end

to move-right
  ask frogs with [xcor != max-pxcor]
    [ set heading 90
      fd 1
      set jumps ( jumps + 1 )
    ]
  check-frog
end

to move-up
  ask frogs with [ycor != max-pycor]
    [ set heading 0
      fd 1
      set jumps ( jumps + 1 )
    ]
  check-frog
end

to move-down
  ask frogs with [ycor != min-pycor]
    [ set heading 180
      fd 1
      set jumps ( jumps + 1 )
    ]
  check-frog
end


;;;;;;;;;;;;;;
;;; Levels ;;;
;;;;;;;;;;;;;;

to level-1
  create-truck 5 -5 270 .9
  create-truck 0 -5 270 .9
  create-truck -8 -4 90 .9
  create-truck -5 -4 90 .9
  create-truck 2 -4 90 .9
  create-truck -3 -3 270 .8
  create-truck 6 -3 270 .8
  create-car 0 -2 90 .4
  create-car -4 -2 90 .4
  create-car 8 -1 270 .2
  create-car 3 -1 270 .2
  create-log 4 3 3 .6
  create-log -8 3 5 .6
  create-log 4 5 2 .7
  create-log -4 5 3 .7
  create-log 1 7 4 .3
  create-log -6 7 4 .3
  create-river-turtle 2 4 2 .4
  create-river-turtle -4 4 4 .4
  create-river-turtle 5 4 4 .4
  create-river-turtle -3 6 4 .5
  create-river-turtle 7 6 3 .5
end

to level-2
  create-truck 4 -5 270 .8
  create-truck -3 -5 270 .8
  create-truck 0 -4 90 .9
  create-truck -4 -4 90 .9
  create-truck -1 -3 270 .8
  create-truck 4 -3 270 .8
  create-truck -5 -3 270 .8
  create-car 0 -2 90 .2
  create-car -4 -2 90 .2
  create-car 8 -2 90 .2
  create-car 6 -1 270 .4
  create-car 2 -1 270 .4
  create-car -3 -1 270 .4
  create-car -6 -1 270 .4
  create-log 6 3 3 .6
  create-log -4 3 4 .6
  create-log 0 5 3 .3
  create-log -6 5 3 .3
  create-log 1 7 4 .5
  create-log 6 7 4 .5
  create-river-turtle 0 4 4 .3
  create-river-turtle 6 4 4 .3
  create-river-turtle 0 6 4 .4
  create-river-turtle 6 6 3 .4
  make-river-turtle-dive 1
end

to level-3
  create-truck -8 -5 270 .7
  create-truck -4 -5 270 .7
  create-truck 0 -5 270 .7
  create-truck -2 -4 90 .7
  create-truck 2 -4 90 .7
  create-truck -6 -4 90 .7
  create-truck -4 -3 270 .7
  create-truck 0 -3 270 .7
  create-truck 4 -3 270 .7
  create-car -3 -2 90 .2
  create-car -5 -2 90 .2
  create-car 5 -2 90 .2
  create-car 1 -2 90 .2
  create-car 0 -1 270 .3
  create-car 5 -1 270 .3
  create-car -7 -1 270 .3
  create-car -3 -1 270 .3
  create-log -6 3 4 .4
  create-log -2 5 3 .4
  create-log 5 5 3 .4
  create-log -4 7 2 .2
  create-log 0 7 2 .2
  create-log 4 7 2 .2
  create-river-turtle -4 4 4 .3
  create-river-turtle 5 4 4 .3
  create-river-turtle -1 6 3 .4
  create-river-turtle -8 6 3 .4
  make-river-turtle-dive 3
end

to level-4
  create-truck -8 -5 270 .5
  create-truck -2 -5 270 .5
  create-truck 6 -5 270 .5
  create-truck 4 -4 90 .6
  create-truck -1 -4 90 .6
  create-truck -6 -4 90 .6
  create-car -4 -3 270 .3
  create-car 0 -3 270 .3
  create-car 4 -3 270 .3
  create-car 7 -3 270 .3
  create-car -3 -2 90 .2
  create-car -5 -2 90 .2
  create-car 5 -2 90 .2
  create-car 1 -2 90 .2
  create-car 0 -1 270 .3
  create-car 5 -1 270 .3
  create-car -7 -1 270 .3
  create-car -3 -1 270 .3
  create-log -3 3 3 .3
  create-log -3 5 3 .3
  create-log -3 7 3 .3
  create-river-turtle -4 4 4 .3
  create-river-turtle 4 4 4 .3
  create-river-turtle -7 4 1 .3
  create-river-turtle -1 6 3 .4
  create-river-turtle -8 6 3 .4
  create-river-turtle 3 6 2 .4
  make-river-turtle-dive 4
end

to level-5
  create-car -4 -5 270 .3
  create-car 0 -5 270 .3
  create-car 4 -5 270 .3
  create-car 7 -5 270 .3
  create-car -3 -4 90 .2
  create-car -5 -4 90 .2
  create-car 5 -4 90 .2
  create-car 1 -4 90 .2
  create-car 8 -4 90 .2
  create-car -4 -3 270 .3
  create-car 0 -3 270 .3
  create-car 4 -3 270 .3
  create-car 7 -3 270 .3
  create-car -3 -2 90 .2
  create-car -5 -2 90 .2
  create-car 4 -2 90 .2
  create-car 1 -2 90 .2
  create-car 7 -2 90 .2
  create-car 0 -1 270 .3
  create-car 5 -1 270 .3
  create-car -7 -1 270 .3
  create-car -3 -1 270 .3
  create-log -5 3 2 .2
  create-log 0 5 2 .1
  create-log -5 7 2 .2
  create-river-turtle -4 4 2 .3
  create-river-turtle 4 4 3 .3
  create-river-turtle -7 4 2 .3
  create-river-turtle -1 6 2 .3
  create-river-turtle -8 6 2 .3
  create-river-turtle 3 6 3 .3
  make-river-turtle-dive 5
end


; Copyright 2002 Uri Wilensky.
; See Info tab for full copyright and license.

There are 10 versions of this model.

Uploaded by When Description Download
Uri Wilensky almost 11 years ago Updated to NetLogo 5.0.4 Download this version
Uri Wilensky over 11 years ago Updated version tag Download this version
Uri Wilensky over 11 years ago Updated to version from NetLogo 5.0.3 distribution Download this version
Uri Wilensky about 12 years ago Updated to NetLogo 5.0 Download this version
Uri Wilensky over 13 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 13 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 13 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 13 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky almost 14 years ago Model from NetLogo distribution Download this version
Uri Wilensky almost 14 years ago Frogger Download this version

Attached files

File Type Description Last updated
Frogger.png preview Preview for 'Frogger' almost 11 years ago, by Uri Wilensky Download

This model does not have any ancestors.

This model does not have any descendants.
