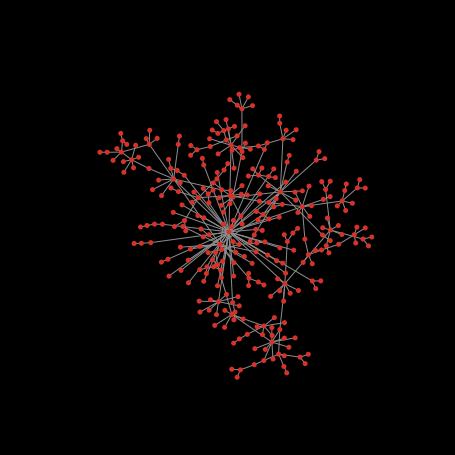

Preferential Attachment preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

networks

Tagged by Reuven M. Lerner about 5 years ago

Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 504 times • Downloaded 32 times • Run 2 times
Download the 'Preferential Attachment' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


## WHAT IS IT?

In some networks, a few "hubs" have lots of connections, while everybody else only has a few. This model shows one way such networks can arise.

Such networks can be found in a surprisingly large range of real world situations, ranging from the connections between websites to the collaborations between actors.

This model generates these networks by a process of "preferential attachment", in which new network members prefer to make a connection to the more popular existing members.

## HOW IT WORKS

The model starts with two nodes connected by an edge.

At each step, a new node is added. A new node picks an existing node to connect to randomly, but with some bias. More specifically, a node's chance of being selected is directly proportional to the number of connections it already has, or its "degree." This is the mechanism which is called "preferential attachment."

## HOW TO USE IT

Pressing the GO ONCE button adds one new node. To continuously add nodes, press GO.

The LAYOUT? switch controls whether or not the layout procedure is run. This procedure attempts to move the nodes around to make the structure of the network easier to see.

The PLOT? switch turns off the plots which speeds up the model.

The RESIZE-NODES button will make all of the nodes take on a size representative of their degree distribution. If you press it again the nodes will return to equal size.

If you want the model to run faster, you can turn off the LAYOUT? and PLOT? switches and/or freeze the view (using the on/off button in the control strip over the view). The LAYOUT? switch has the greatest effect on the speed of the model.

If you have LAYOUT? switched off, and then want the network to have a more appealing layout, press the REDO-LAYOUT button which will run the layout-step procedure until you press the button again. You can press REDO-LAYOUT at any time even if you had LAYOUT? switched on and it will try to make the network easier to see.

## THINGS TO NOTICE

The networks that result from running this model are often called "scale-free" or "power law" networks. These are networks in which the distribution of the number of connections of each node is not a normal distribution --- instead it follows what is a called a power law distribution. Power law distributions are different from normal distributions in that they do not have a peak at the average, and they are more likely to contain extreme values (see Albert & Barabási 2002 for a further description of the frequency and significance of scale-free networks). Barabási and Albert originally described this mechanism for creating networks, but there are other mechanisms of creating scale-free networks and so the networks created by the mechanism implemented in this model are referred to as Barabási scale-free networks.

You can see the degree distribution of the network in this model by looking at the plots. The top plot is a histogram of the degree of each node. The bottom plot shows the same data, but both axes are on a logarithmic scale. When degree distribution follows a power law, it appears as a straight line on the log-log plot. One simple way to think about power laws is that if there is one node with a degree distribution of 1000, then there will be ten nodes with a degree distribution of 100, and 100 nodes with a degree distribution of 10.

## THINGS TO TRY

Let the model run a little while. How many nodes are "hubs", that is, have many connections? How many have only a few? Does some low degree node ever become a hub? How often?

Turn off the LAYOUT? switch and freeze the view to speed up the model, then allow a large network to form. What is the shape of the histogram in the top plot? What do you see in log-log plot? Notice that the log-log plot is only a straight line for a limited range of values. Why is this? Does the degree to which the log-log plot resembles a straight line grow as you add more node to the network?

## EXTENDING THE MODEL

Assign an additional attribute to each node. Make the probability of attachment depend on this new attribute as well as on degree. (A bias slider could control how much the attribute influences the decision.)

Can the layout algorithm be improved? Perhaps nodes from different hubs could repel each other more strongly than nodes from the same hub, in order to encourage the hubs to be physically separate in the layout.

## NETWORK CONCEPTS

There are many ways to graphically display networks. This model uses a common "spring" method where the movement of a node at each time step is the net result of "spring" forces that pulls connected nodes together and repulsion forces that push all the nodes away from each other. This code is in the `layout-step` procedure. You can force this code to execute any time by pressing the REDO LAYOUT button, and pressing it again when you are happy with the layout.

## NETLOGO FEATURES

Nodes are turtle agents and edges are link agents. The `layout-spring` primitive places the nodes, as if the edges are springs and the nodes are repelling each other.

## RELATED MODELS

See other models in the Networks section of the Models Library, such as Giant Component.

See also Network Example, in the Code Examples section.

## CREDITS AND REFERENCES

This model is based on:

Albert-László Barabási. Linked: The New Science of Networks, Perseus Publishing, Cambridge, Massachusetts, pages 79-92.

For a more technical treatment, see:

Albert-László Barabási & Reka Albert. Emergence of Scaling in Random Networks, Science, Vol 286, Issue 5439, 15 October 1999, pages 509-512.

Barabási's webpage has additional information at: http://www.nd.edu/~alb/

The layout algorithm is based on the Fruchterman-Reingold layout algorithm. More information about this algorithm can be obtained at: http://citeseer.ist.psu.edu/fruchterman91graph.html.

For a model similar to the one described in the first extension, please consult:

W. Brian Arthur, "Urban Systems and Historical Path-Dependence", Chapt. 4 in Urban systems and Infrastructure, J. Ausubel and R. Herman (eds.), National Academy of Sciences, Washington, D.C., 1988.

## HOW TO CITE

If you mention this model in a publication, we ask that you include these citations for the model itself and for the NetLogo software:

* Wilensky, U. (2005). NetLogo Preferential Attachment model. http://ccl.northwestern.edu/netlogo/models/PreferentialAttachment. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.

* Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.

## COPYRIGHT AND LICENSE

Copyright 2005 Uri Wilensky.

![CC BY-NC-SA 3.0](http://i.creativecommons.org/l/by-nc-sa/3.0/88x31.png)

This work is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-sa/3.0/ or send a letter to Creative Commons, 559 Nathan Abbott Way, Stanford, California 94305, USA.

Commercial licenses are also available. To inquire about commercial licenses, please contact Uri Wilensky at uri@northwestern.edu.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;;;;;;;;;;;;;;;;;;;;;;;;
;;; Setup Procedures ;;;
;;;;;;;;;;;;;;;;;;;;;;;;

to setup
  clear-all
  set-default-shape turtles "circle"
  ;; make the initial network of two turtles and an edge
  make-node nobody        ;; first node, unattached
  make-node turtle 0      ;; second node, attached to first node
  reset-ticks
end

;;;;;;;;;;;;;;;;;;;;;;;
;;; Main Procedures ;;;
;;;;;;;;;;;;;;;;;;;;;;;

to go
  ;; new edge is green, old edges are gray
  ask links [ set color gray ]
  make-node find-partner         ;; find partner & use it as attachment
                                 ;; point for new node
  tick
  if layout? [ layout ]
end

;; used for creating a new node

to make-node [old-node]
  crt 1
  [
    set color red
    if old-node != nobody
      [ create-link-with old-node [ set color green ]
        ;; position the new node near its partner
        move-to old-node
        fd 8
      ]
  ]
end

;; This code is borrowed from Lottery Example (in the Code Examples
;; section of the Models Library).
;; The idea behind the code is a bit tricky to understand.
;; Basically we take the sum of the degrees (number of connections)
;; of the turtles, and that's how many "tickets" we have in our lottery.
;; Then we pick a random "ticket" (a random number).  Then we step
;; through the turtles to figure out which node holds the winning ticket.

to-report find-partner
  let total random-float sum [count link-neighbors] of turtles
  let partner nobody
  ask turtles
  [
    let nc count link-neighbors
    ;; if there's no winner yet...
    if partner = nobody
    [
      ifelse nc > total
        [ set partner self ]
        [ set total total - nc ]
    ]
  ]
  report partner
end

;;;;;;;;;;;;;;
;;; Layout ;;;
;;;;;;;;;;;;;;

;; resize-nodes, change back and forth from size based on degree to a size of 1

to resize-nodes
  ifelse all? turtles [size <= 1]
  [
    ;; a node is a circle with diameter determined by
    ;; the SIZE variable; using SQRT makes the circle's
    ;; area proportional to its degree
    ask turtles [ set size sqrt count link-neighbors ]
  ]
  [
    ask turtles [ set size 1 ]
  ]
end

to layout
  ;; the number 3 here is arbitrary; more repetitions slows down the
  ;; model, but too few gives poor layouts
  repeat 3 [
    ;; the more turtles we have to fit into the same amount of space,
    ;; the smaller the inputs to layout-spring we'll need to use
    let factor sqrt count turtles
    ;; numbers here are arbitrarily chosen for pleasing appearance
    layout-spring turtles links (1 / factor) (7 / factor) (1 / factor)
    display  ;; for smooth animation
  ]
  ;; don't bump the edges of the world
  let x-offset max [xcor] of turtles + min [xcor] of turtles
  let y-offset max [ycor] of turtles + min [ycor] of turtles
  ;; big jumps look funny, so only adjust a little each time
  set x-offset limit-magnitude x-offset 0.1
  set y-offset limit-magnitude y-offset 0.1
  ask turtles [ setxy (xcor - x-offset / 2) (ycor - y-offset / 2) ]
end

to-report limit-magnitude [number limit]
  if number > limit [ report limit ]
  if number < (- limit) [ report (- limit) ]
  report number
end


; Copyright 2005 Uri Wilensky.
; See Info tab for full copyright and license.
