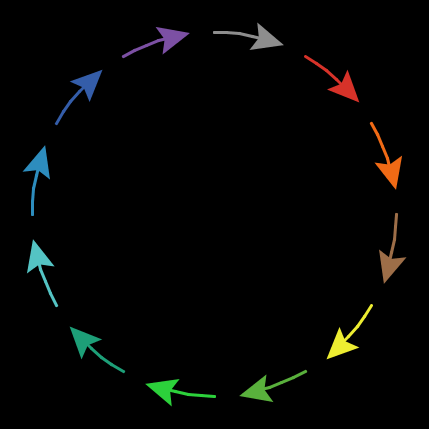

Circular Path Example preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

code example

Tagged by Reuven M. Lerner about 11 years ago

Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 1019 times • Downloaded 79 times • Run 2 times
Download the 'Circular Path Example' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Click to Run Model

globals [radius]

to setup
  clear-all
  set radius max-pxcor - 2
  ;; make 12 turtles, equally spaced in heading
  create-ordered-turtles 12 [
    ;; move to edge of circle
    fd radius
    ;; turn to face clockwise
    rt 90
    ;; bigger turtles are easier to see
    set size 3
    ;; thicker line is easier to see
    set pen-size 3
    ;; leave a trail
    pen-down
  ]
  reset-ticks
end

to go-distance
  ask turtles [ arc-forward-by-dist step-size ]
  tick
end

to go-angle
  ask turtles [ arc-forward-by-angle arc-angle ]
  tick
end

;; This is the core procedure.  It moves the turtle to the next point
;; on the circle, the given distance along the curve.

to arc-forward-by-dist [dist]  ;; turtle procedure
  ;; calculate how much of an angle we'll be turning through
  ;; (essentially converting radians to degrees)
  let theta dist * 180 / (pi * radius)
  ;; turn to face the next point we're going to
  rt theta / 2
  ;; go there
  fd dist
  ;; turn to face tangent to the circle
  rt theta / 2
end

to arc-forward-by-angle [angle]
  ;; turn to face the next point we're going to
  rt angle / 2
  ;; calculate the distance we'll have to move forward
  ;; in order to stay on the circle. Go there.
  fd 2 * radius * sin (angle / 2)
  ;; turn to face tangent to the circle
  rt angle / 2
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
