Network Import Example

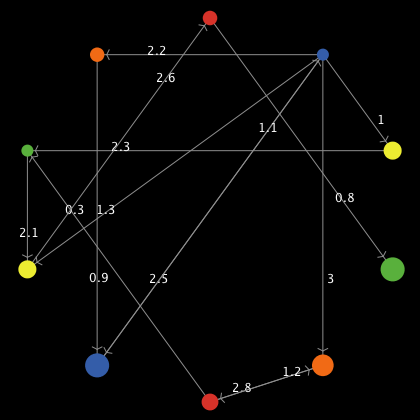

Network Import Example preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

(This model has yet to be categorized with any tags)
Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 979 times • Downloaded 63 times • Run 5 times
Download the 'Network Import Example' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Click to Run Model

turtles-own [node-id]

links-own [strength]

globals [links-list]

to import-network
  clear-all
  set-default-shape turtles "circle"
  import-attributes
  layout-circle (sort turtles) (max-pxcor - 1)
  import-links
end

;; This procedure reads in a files that contains node-specific attributes
;; including an unique identification number

to import-attributes
  ;; This opens the file, so we can use it.
  file-open "attributes.txt"
  ;; Read in all the data in the file
  ;; data on the line is in this order:
  ;; node-id attribute1 attribute2
  while [not file-at-end?]
  [
    ;; this reads a single line into a three-item list
    let items read-from-string (word "[" file-read-line "]")
    crt 1 [
      set node-id item 0 items
      set size    item 1 items
      set color   item 2 items
    ]
  ]
  file-close
end

;; This procedure reads in a file that contains all the links
;; The file is simply 3 columns separated by spaces.  In this
;; example, the links are directed.  The first column contains
;; the node-id of the node originating the link.  The second
;; column the node-id of the node on the other end of the link.
;; The third column is the strength of the link.

to import-links
  ;; This opens the file, so we can use it.
  file-open "links.txt"
  ;; Read in all the data in the file
  while [not file-at-end?]
  [
    ;; this reads a single line into a three-item list
    let items read-from-string (word "[" file-read-line "]")
    ask get-node (item 0 items)
    [
      create-link-to get-node (item 1 items)
        [ set label item 2 items ]
    ]
  ]
  file-close
end

;; Helper procedure for looking up a node by node-id.

to-report get-node [id]
  report one-of turtles with [node-id = id]
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
