Lattice-Walking Turtles Example

1 collaborator

Uri Wilensky (Author)

WHAT IS IT?

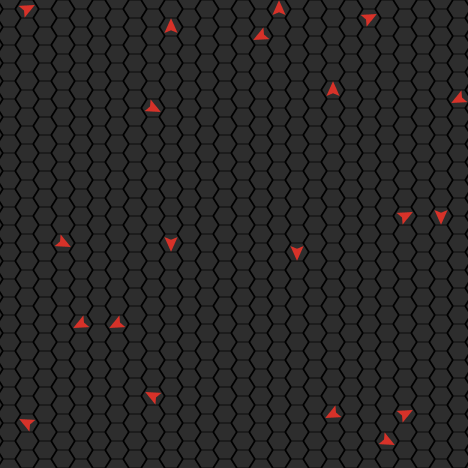

This example demonstrates how to create a hexagonal grid for turtles to walk around on using links.

HOW IT WORKS

In order for the hexagons along the edges of the world to connect up with the hexagons on the opposite edges in the expected way, the size of the grid must be even in both dimensions. Therefore we use a world where the origin patch (0,0) is located in the corner rather in the center, since even-dimensioned worlds have no center patch.

THINGS TO TRY

If you do:

  ask walkers [ pen-down ]

Notice that the lines the walkers draw appear behind the hexagons, because the hexagons are turtles. If you want the lines to be drawn on top of the hexagons, you need to transfer the hexagons to the drawing layer and hide the hexagon turtles, like this:

  ask nodes [ stamp  hide-turtle ]

On the computers we tested, this also makes the model run faster since the hexagons don't need to be redrawn individually every time the view is updated. Later, if you want to clear the drawing and redraw the hexagons, do:

  clear-drawing  ask nodes [ stamp ]

RELATED MODELS

Link-Walking Turtles Example

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [nodes node]
breed [walkers walker]

walkers-own [location]  ;; holds a node

to setup
  clear-all
  set-default-shape nodes "hex"
  ;; create a hex grid of nodes
  ask patches
  [ sprout-nodes 1
    [ set color gray - 3.5 ;; dark gray
      set size 1.2
      ;; shift even columns down
      if pxcor mod 2 = 0
      [ set ycor ycor - 0.5 ] ] ]
  ;; connect the nodes to make a lattice
  ask nodes
  [ ifelse pxcor mod 2 = 0
      [ create-links-with nodes-on patches at-points [[0 1] [1 0] [1 -1]] ]
      [ create-links-with nodes-on patches at-points [[0 1] [1 1] [1 0]] ] ]
  ask links [ hide-link ]
  ;; put some "walker" turtles on the lattice
  create-walkers 20 [
    set color red
    set location one-of nodes
    move-to location
  ]
  reset-ticks
end

to go
  ask walkers [
    set-location one-of [link-neighbors] of location
  ]
  tick
end

to set-location [new-location]  ;; walker procedure
  set location new-location
  face new-location  ;; not strictly necessary, but improves the visuals a bit
  move-to new-location
end
