Communication-T-T Example

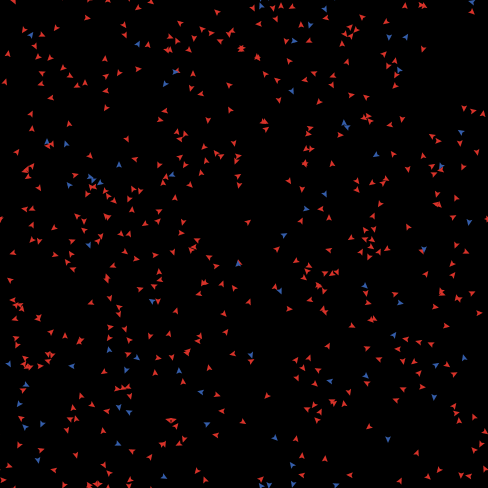

Communication-T-T Example preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

code example

Tagged by Reuven M. Lerner almost 12 years ago

Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 803 times • Downloaded 87 times • Run 1 time
Download the 'Communication-T-T Example' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Click to Run Model

turtles-own [
  message?      ;; true or false: has this turtle gotten the message yet?
]

to setup
  clear-all
  crt 500 [
    set message? false
    setxy random-xcor random-ycor
  ]
  ask one-of turtles [ set message? true ]   ;; give the message to one of the turtles
  ask turtles [ recolor ]
  reset-ticks
end

to go
  ask turtles [ move ]
  ask turtles [ communicate ]
  ask turtles [ recolor ]
  tick
end

;; move randomly

to move  ;; turtle procedure
  fd random 4
  ;; turn a random amount between -40 and 40 degrees,
  ;; keeping the average turn at 0
  rt random 40
  lt random 40
end

;; the core procedure!

to communicate  ;; turtle procedure
  if any? other turtles-here with [message?]
    [ set message? true ]
end

; color turtles with message red, and those without message blue

to recolor  ;; turtle procedure
  ifelse message?
    [ set color red ]
    [ set color blue ]
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
