Link Breeds Example

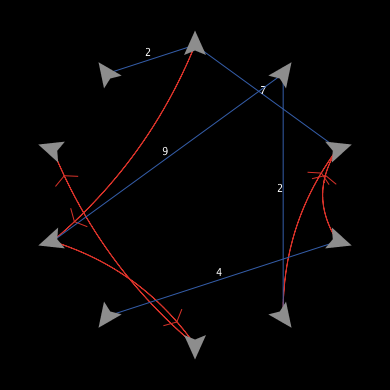

Link Breeds Example preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

code example

Tagged by Reuven M. Lerner over 4 years ago

Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 996 times • Downloaded 134 times • Run 2 times
Download the 'Link Breeds Example' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;; every link breed must be declared as either directed or undirected
directed-link-breed [red-links red-link]
undirected-link-breed [blue-links blue-link]

blue-links-own [ weight ]  ;; link breeds can own variables just like turtle breeds

to setup
  clear-all
  create-ordered-turtles 10 [
    fd 5
    set color gray
  ]
  ask n-of 5 turtles [
    ;; create--with is used to make undirected links
    create-blue-link-with one-of other turtles [
      set color blue
      set weight random 10
      set label weight
    ]
  ]
  ;; different breeds can have different default shapes
  set-default-shape red-links "curved link"
  ask n-of 5 turtles [
    ;; create--to/from are used to make directed links
    create-red-link-to one-of other turtles [
      set color red
    ]
  ]
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
