File Output Example

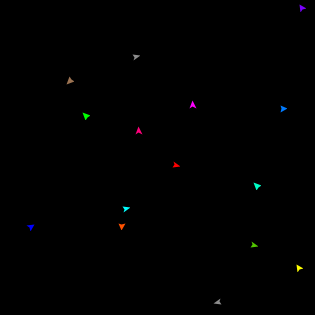

File Output Example preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

code example

Tagged by Reuven M. Lerner over 5 years ago

Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 1607 times • Downloaded 79 times • Run 0 times
Download the 'File Output Example' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Click to Run Model

turtles-own [ value ]     ;; This is some phony turtle variable

;; This procedure creates 15 random turtles and opens a file dictated
;; by the user.  It will erase any pre-existing file.

to setup
  clear-all
  crt 15
  [
    setxy random-xcor random-ycor
    set value 5
  ]
  let file user-new-file
  ;; We check to make sure we actually got a string just in case
  ;; the user hits the cancel button.
  if is-string? file
  [
    ;; If the file already exists, we begin by deleting it, otherwise
    ;; new data would be appended to the old contents.
    if file-exists? file
      [ file-delete file ]
    file-open file
    ;; record the initial turtle data
    write-to-file
  ]
end

;; This procedure makes the turtles move randomly.  It also changes their internal
;; variable by random +/- 1.  We report the patch coordinates and their internal variable
;; to the file.  To view the file, hit the file-close button and open it with a text
;; editor.

to go
  ask turtles
  [
    lt random 360
    fd 1 + random 4
    set value value + random 3
  ]
  tick
  write-to-file
end

to write-to-file
  file-print (word "---------- Tick Number: " ticks "-----------")
  ;; use SORT so the turtles print their data in order by who number,
  ;; rather than in random order
  foreach sort turtles [
    ask ? [
      file-print (word self ": pxcor: " pxcor " pycor: " pycor " value: " value)
    ]
  ]
  file-print ""  ;; blank line
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
