WHAT IS IT?

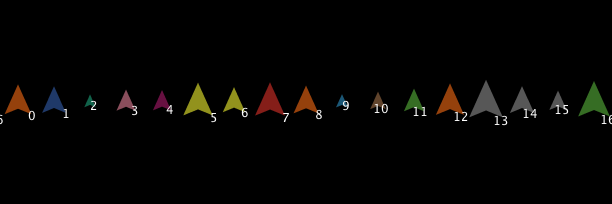

Agentsets in NetLogo are always in random order. This code example demonstrates that visually. It also shows how to make the turtles execute in a particular order if you want.
NETLOGO FEATURES
sort
and sort-by
are used to specify ordering.
View updates are set to "continuous", so when you slow the model down far enough you can see the turtles moving one at a time.
Comments and Questions
Click to Run Model
to setup clear-all create-turtles floor (world-width / 3) [ set xcor 1 + who * 3 ;; space out the turtles in order by who number set color color - 2 ;; darker set size 1 + random-float 3 set heading 0 set label who ] reset-ticks end ;;; three different version of GO to go-random ask turtles [ fd 1 ] tick end to go-by-who-number foreach sort turtles [ ask ? [ fd 1 ] ] tick end to go-by-size foreach sort-by [[size] of ?1 > [size] of ?2] turtles [ ask ? [ fd 1 ] ] end ; Public Domain: ; To the extent possible under law, Uri Wilensky has waived all ; copyright and related or neighboring rights to this model.
