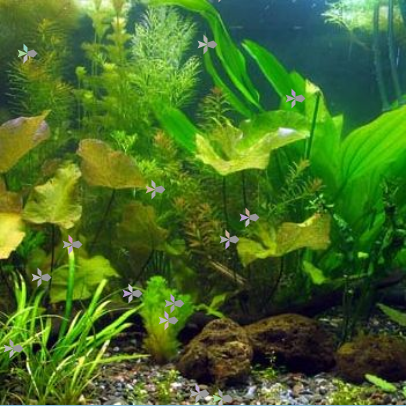

Guppy Spots preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

biology

Tagged by Reuven M. Lerner over 7 years ago

evolution

Tagged by Reuven M. Lerner over 7 years ago

hubnet

Tagged by Reuven M. Lerner over 7 years ago

Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0beta5 • Viewed 570 times • Downloaded 37 times • Run 0 times
Download the 'Guppy Spots' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

This selection model shows how sexual attraction and predation change the coloration and patterns in guppy's population.

If you have not seen guppies you can see some at the "Sex and the Single Guppy" webpage:
http://www.pbs.org/wgbh/evolution/sex/guppy/low_bandwidth.html

When you run the model, you can either play the role of a predator or the role of a mate.

As a predator, you will probably notice the more brightly colored guppy males. In other words, the more colored the guppy is, the more likely he will be seen by you, the predator. In this model, (as happens in the wild in streams where predators are plentiful), male guppies become increasingly drab over generations, pushed by predation pressure toward greater camouflage.

You can notice that many guppies are very colorful, have garish patterns and large tails, even if it makes them more noticeable to predators. You might ask yourself: Why doesn't a guppy remain camouflaged and discreet in order to avoid the detection by a predator?

The answer lies in the fact that guppies are driven by more than only a survival instinct. Guppies also desire to reproduce with other guppies and to do this they must be noticed by their mates. The "flashier" a male guppy is, the likelier a female guppy will choose him as a mate, passing his genes to the next generation. This is sexual selection at work, and it is the force that drives guppy's coloration toward conspicuousness just as hard as predation pushes coloration toward drabness.

Thus as a mate, you will again probably notice the more brightly colored guppy males.
When you click on a colorful mate, he will hatch an offspring, which will likely create another colorful guppy and guppies will increasingly become colorful over generations, pushed by breeding pressure.

Quoting from "Sex and the Single Guppy" [2]:
There may be several evolutionary reasons why female guppies prefer flashy males. On the most basic level, the male with the biggest, brightest tail spot announces most loudly, "Hey, I'm over here" to any female it can see. Flashy colors are simply easier to locate. However, there is also research to suggest that bright colors serve as an indicator of good genes in the way the strong physique of a human athlete is a direct indicator of that individual's health and vitality. Or, bright coloration may signal to a potential mate that he's got something else going for him. After all, he's been able to survive the very handicap -- conspicuousness to predators -- that his flashiness creates.

Whatever the reasons, it is clear from the research of Endler and other evolutionary biologists that male guppies live in the crossfire between their enemies and their would-be mates, with the opposing forces of predation and sexual selection forever pushing the guppy coloration in opposite directions.

HOW IT WORKS

You can assume either the role of a predator or the role of a mate.

When GO is pressed, if you are a predator you should try to click on the guppies, as fast as you can, in order to eat them. Each time you click on a guppy it will be removed from the guppy population. At that point, another guppy in the population will hatch an offspring to replace the one that was caught (keeping the population of guppies constant).

If you are a mate (a female guppy), you should try to click on the guppies as fast as you can (they are all males). When you click on a guppy that is old enough to mate, he will hatch an offspring. When the population of guppies exceeds the capacity, a random guppy will be removed.

Each new guppy may undergo small mutations in its genetics for each of its three fins. These mutations will results in changes in the size and the three pigments that make up the color of each fin.

Predators prey on the most brightly colored or patterned individuals more often than the less colored ones since they are easier to spot and eliminate them from the gene pool. Thus, predators cause guppy populations to remain relatively drab (with respect to colors and patterns of the environment they live in).

However, guppies looking for a mate exert the opposite selection. Relatively drab guppies are hard to find and mate with, while guppies with garish colors and patterns are easier to find and mate with. As these guppies reproduce, the frequency of their genes increases in the gene pool.

Guppy populations are evolving to match, and/or stand out, from their environment depending on which of the selective pressures are stronger.

HOW TO USE IT

To run the activity press the GO button. To start the activity over with the same group of students stop the GO button by pressing it again, press the SETUP button, and press GO again. To run the activity with a new group of students press the RESET button in the Control Center.

Buttons:
SETUP - Clears the world and populates the world with fish. All players are set to initial values.
GO - Runs the simulation, students can login and start eating, or mating with the fish population.
CHANGE BACKGROUND - loads the image selected in the BACKGROUND chooser into the drawing.
CLEAR BACKGROUND - erases the drawing so the patches show through.

Sliders:
FISH-SPEED-SCALE - controls how quickly the fish move around the world
CARRYING-CAPACITY - the simulation will automatically keep CARRYING-CAPACITY fish in the world at all times. If there are too many fish it will randomly kill some, however, if there are too few fish, a random fish already will automatically be reproduced. Note that CARRYING-CAPACITY will only be active when the ENFORCE-CAPACITY? switch is in the "on" position.
MIN-AGE-REPRODUCTION - The minimum amount of time before a fish can reproduce after it is born and since the last time it reproduced.
BACKGROUND-COLOR - the value of the color of the background (patches), which is only visible when there is no image loaded in the drawing.

Switches:
ENFORCE-CAPACITY? - When it is on, the simulation automatically maintains number of fish in the world at CARRYING-CAPACITY.
SHOW-AGE? - When it is on, set the label of each fish to its age.
ROCK-SHELTERS? - When it is on, a rock shelter is placed on top of the world, as new fish are born they emerge from the rocks rather than appearing where its parent was at the time of reproduction.

Monitors:
FISH - The number of fish in the world.
MATES - The number of students logged in as mates.
PREDATORS - The number of students logged in as predators.
MATES-LEADER - The name of the student (or indication of a tie) with the highest number of mates found.
PREDATOR-LEADER - The name of the student (or indication of a tie) with the highest number of prey found.
MATES-FOUND - The number of mates found by the leader.
PREY-FOUND - The number of prey found by the leader.
TOTAL-MATES-FOUND - The number of mates found by all mates.
TOTAL-PREY-FOUND - The number of prey found by all predators.

Choosers:
BACKGROUND - Select the name of the background image to use in the world.
PLAYER-ROLES - Select the type of game to play so you can explore the affects of the two forces (mates and predators) separately and in competition with each other.

Plots:
FOUND V TIME - The number of fish found by both predators and mates over time.

Global variables in the procedures to change:
WANDER-ANGLE - The amount that the fish will wiggle when they move around the world.
MAX-COLOR-MUTATION-STEP - the maximum amount that a color gene can change by in one step
CHANCE-MUTATE-COLOR - The percent chance the fish parts will slightly change color when reproduced
CHANCE-MUTATE-SIZE - The percent chance the fish parts will slightly change size when reproduced
MAX-FISH-SIZE - A limit on the size fish can grow to, to keep the simulation reasonable
MAX-SIZE-MUTATION-STEP - the maximum amount that a size gene can change by in one step

THINGS TO TRY

Select ALL MATES in the PLAYER-ROLES chooser, run the activity notice the results, Are the fish very colorful or are they drab?

Do the same with ALL PREDATORS and MATES V PREDATORS, which force wins out in the end?

Try different backgrounds to see if the drab color of the guppies becomes closer to the common objects in the background (backlit seawater, rocky bottoms, green plants, etc.)

Try to run the model without using a backdrop, instead adjust the color of the patches using the BACKGROUND-COLOR slider.

EXTENDING THE MODEL

It can sometimes be difficult to click on the fish because catching fish is dependent on patch boundaries, change it so it uses in-radius instead.

NETLOGO FEATURES

This model uses import-drawing to load high resolution backdrops into the drawing layer. However, the fish do not directly interact with the background; it only affects how the users see the world.

RELATED MODELS

Bug Hunt Pursuit
Peppered Moths

CREDITS AND REFERENCES

[1] Inspired by Sex and the Single Guppy http://www.pbs.org/wgbh/evolution/sex/guppy/low_bandwidth.html
[2] Sex and the Single Guppy. Conclusion: Exhibitionism Explained http://www.pbs.org/wgbh/evolution/sex/guppy/conclusion.html

HOW TO CITE

If you mention this model in a publication, we ask that you include these citations for the model itself and for the NetLogo software:

  • Novak, M. and Wilensky, U. (2006). NetLogo HubNet Guppy Spots model. http://ccl.northwestern.edu/netlogo/models/HubNetGuppySpots. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.
  • Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.

COPYRIGHT AND LICENSE

Copyright 2006 Uri Wilensky.

CC BY-NC-SA 3.0

This work is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-sa/3.0/ or send a letter to Creative Commons, 559 Nathan Abbott Way, Stanford, California 94305, USA.

Commercial licenses are also available. To inquire about commercial licenses, please contact Uri Wilensky at uri@northwestern.edu.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals
[
  ;; used to keep score
  mate-leader
  mates-found
  predator-leader
  prey-found
  total-mates-found
  total-prey-found

  ;; used for different aspects of the appearance
  wander-angle
  old-show-age?

  ;; used to mutate the colors of the fish
  min-size
  max-size
  chance-mutate-color
  chance-mutate-size
  max-fish-size
  max-size-mutation-step
  max-color-mutation-step
]

breed [ fish a-fish ]
breed [ fish-parts fish-part ]
breed [ rocks rock ]
breed [ players player ]

players-own [user-name found attempts role]

;; gene-frequencies are used to determine the color of the fish
;; (or fish parts). When fish reproduce the gene-frequencies
;; will mutate making a slightly different color
fish-own [
    red-pigment-gene-frequency
    blue-pigment-gene-frequency
    green-pigment-gene-frequency
    age      ;; fish cannot reproduce until they have reached MIN-AGE-REPRODUCTION
    reproduce?
    eaten?
    my-parts ;; agentset including tail and fins for easy access
  ]

fish-parts-own [
  owned-by    ;; parent fish
  body-part   ;; which part of the body this turtle displays (tail, top or bottom fins)
  red-pigment-gene-frequency
  blue-pigment-gene-frequency
  green-pigment-gene-frequency
]


;;;;;;;;;;;;;;;;;;;
;; Setup Procedures
;;;;;;;;;;;;;;;;;;;

to startup
  hubnet-reset
  init-globals
  setup-environment
  make-initial-fish
end

;; set constants once at the very beginning.

to init-globals
  set wander-angle 40
  set chance-mutate-color 20
  set chance-mutate-size 20
  set max-fish-size 3
  set min-size 1
  set max-size 5
  set max-size-mutation-step 1
  set max-color-mutation-step 50
end

;; reset the fish, predators, and mates
;; to their initial conditions to start
;; the simulation over

to setup
  reset-ticks
  ask fish [ die ]
  ask fish-parts [ die ]
  ask rocks  [ die ]
  clear-all-plots
  init-globals
  setup-environment
  make-initial-fish
  ask players
  [
    init-player-variables
    update-player
  ]
end

to setup-environment
  ask patches [ set pcolor background-color ]
  if (rock-shelters?)
  [
    create-rocks 1 [
      set size world-width
      set color (brown - 3)
      set shape "rocks"
    ]
  ]
 import-drawing background
end

;; each fish consists of several turtles, one for the body
;; one for the tail, and one for each of the fins
;; so the colors can vary separately

to make-initial-fish
  create-fish carrying-capacity [
    set shape "fish-body"
    assign-initial-body-genotype-and-phenotype
    setxy random-xcor random-ycor
    set size (max-fish-size / 2)
    assign-initial-fish-parts
    set age 0
    set eaten? false
    set reproduce? false
    if show-age?
    [
      set label-color red
      set label (word age "      ")
    ]
  ]
end

to assign-initial-body-genotype-and-phenotype
   set red-pigment-gene-frequency 150
   set blue-pigment-gene-frequency 150
   set green-pigment-gene-frequency 150
   set-phenotype-color
end

;; make the fish parts and
;; use the my-part turtle variable to
;; have a quick reference to the turtles
;; that make up the tail and fins.

to assign-initial-fish-parts
  hatch-fish-part "top"
  hatch-fish-part "bottom"
  hatch-fish-part "tail"
  set my-parts fish-parts with [ owned-by = myself ]
end

to hatch-fish-part [name]
  hatch-fish-parts 1 [
    set body-part name
    set owned-by myself
    set shape word "fish-" name
    assign-initial-part-genotype-and-phenotype
  ]
end

to assign-initial-part-genotype-and-phenotype
  set red-pigment-gene-frequency (red-pigment-gene-frequency  + random-float 20)
  set green-pigment-gene-frequency (green-pigment-gene-frequency  + random-float 20)
  set blue-pigment-gene-frequency (blue-pigment-gene-frequency  + random-float 20)
  set-phenotype-color
end

;; convert the genetic representation of gene frequency
;; into a phenotype using the rgb primitive

to set-phenotype-color  ;; turtle procedure
  set color rgb red-pigment-gene-frequency
                green-pigment-gene-frequency
                blue-pigment-gene-frequency
end

to toggle-labels
  ;; only change the labels when the switch is
  ;; changed so they don't flicker and slow the
  ;; model down.
  if old-show-age? != show-age?
  [
    ask fish [
      ifelse show-age?
      [
        set label-color red
        set label (word age "      ") ;; add spaces at the end to the label is shifted to the left a bit
      ]
      [
        set label ""
      ]
    ]
    set old-show-age? show-age?
  ]
end

;; the rock shelter is used to hide newborn
;; fish so they don't clump up too much.

to make-rock-shelter
  ;; keep the existence of the rock shelters in
  ;; sync with the switch.
  if rock-shelters? and count rocks = 0
  [
    if (rock-shelters?)
     [
       create-rocks 1 [
         set size world-width
         set color ( brown - 3)
         set shape "rocks"
       ]
     ]
  ]
  if not rock-shelters? and count rocks > 0
  [ ask rocks [ die ] ]
end

;;;;;;;;;;;;;;;;;;;;;
;; Runtime Procedures
;;;;;;;;;;;;;;;;;;;;;

to go
  ask fish [ set age age + 1 ]
  ask fish [ move-fish ]
  ask fish [ update-fish ]

  ;; keep the world in a state consistent
  ;; with the model settings
  toggle-labels
  make-rock-shelter
  enforce-capacity

  every 0.01 [ listen-clients ]
  tick
  update-plots
end

to move-fish ;; fish procedure
  let move-right random wander-angle
  let move-left  random wander-angle
  let move-forward 0

  ;; fish-speed-scale slows down or speeds up fish
  ;; to make the game more playable without slowing
  ;; down the entire model.
  ifelse (count fish <= 50)
  [ set move-forward fish-speed-scale * 0.001 * (count fish) ]
  [ set move-forward fish-speed-scale * 0.001 * 50 ]

  ;; move myself and my fins and tail.
  ask my-parts
  [
    right move-right
    left move-left
    fd move-forward
  ]
  right move-right
  left move-left
  fd move-forward
end

to update-fish ;; fish procedure
  ;; remove fish that are tagged to die
  ;; and all associated parts
  if eaten?
  [
    ask my-parts [ die ]
    die
  ]

 ;; reproduce fish that are tagged to reproduce
 if reproduce?
 [
    make-one-offspring
    set age 0
    set reproduce? false
 ]
end

to enforce-capacity
 ;; keeps the world population
 ;; constant so there is no population
 ;; boom or bust.
 if enforce-capacity? [
   if count fish > 0
   [
     while [ count fish < carrying-capacity ]
       [ reproduce-fish ]
     while [ count fish with [ eaten? = false ]  > carrying-capacity ]
       [ eat-one-random-fish ]
   ]
 ]
end

to eat-one-random-fish
  ask one-of fish [ set eaten? true ]
end

to reproduce-fish
  ask one-of fish [
    make-one-offspring
    set age 0
  ]
end

to make-one-offspring ;; fish procedure
  set age 0
  hatch 1
  [
    set reproduce? false
    make-offspring-parts myself
  ]
end

to make-offspring-parts [parent] ;; fish procedure
  let baby-xcor random-pxcor
  let baby-ycor (1 + min-pycor)

  if rock-shelters? [
    setxy baby-xcor baby-ycor
    set heading 0
  ]

  ;; keep track of the fish that is hatching the parts
  ;; because we get double perspective change below and
  ;; we can't get back to the parent fish.
  let owner self

  ask [my-parts] of parent  [
    hatch 1 [
     set owned-by owner
     set red-pigment-gene-frequency color-mutation red-pigment-gene-frequency
     set green-pigment-gene-frequency color-mutation green-pigment-gene-frequency
     set blue-pigment-gene-frequency color-mutation blue-pigment-gene-frequency
     set-phenotype-color
     size-mutation
     if rock-shelters?
     [
       setxy baby-xcor baby-ycor
       set heading 0
     ]
    ]
   ]

   set my-parts fish-parts with [ owned-by = myself ]
end

;; everytime a predator or mate catches a fish update
;; his found variable and the totals for that role

to update-found-stats
  ask players with [ user-name = hubnet-message-source ]
  [
    set found found + 1
    if role = "predator"
    [ set total-prey-found total-prey-found + 1 ]
    if role = "mate"
    [ set total-mates-found total-mates-found + 1 ]
  ]
end

;; update the stats for the leaders in the game

to update-mate-leaders
  let mates players with [ role = "mate" ]
  let leaders mates with-max [ found ]

  ifelse count leaders > 1
  [ set mate-leader (word count leaders "-way tie") ]
  [ set mate-leader [user-name] of one-of leaders ]
  set mates-found [found] of one-of leaders
end

to update-predator-leaders
  let predators players with [ role = "predator" ]
  let leaders predators with-max [ found ]

  ifelse count leaders > 1
  [ set predator-leader (word count leaders "-way tie") ]
  [ set predator-leader [user-name] of one-of leaders ]
  set prey-found [found] of one-of leaders
end

;; extract the coordinates of the mouse event
;; on client, find any fish on that location
;; and mark them for reproduction or eating

to select-fish
  let owner nobody
  let clicked-xcor  (round item 0 hubnet-message)
  let clicked-ycor  (round item 1 hubnet-message)
  let this-players-role ""

  let fishies-here fish-on patch clicked-xcor clicked-ycor

  ask players with [user-name = hubnet-message-source]
  [
    set attempts attempts + 1
    if any? fishies-here [
      update-found-stats
      ;; predators or mates only get one of the fish here
      ;; each time they click.
      ask one-of fishies-here [
        ifelse [role] of myself = "mate"
        [ if age > min-age-reproduction
          [ set reproduce? true ] ]
        [ set eaten? true ]
      ]
      update-leader-stats

      ;; every time any player finds a fish update the
      ;; monitors on all the players with the same
      ;; role, so the leader stats don't get out of date
      ;; if they don't click for awhile
      ask players with [ role = [role] of myself ]
        [ update-player ]
    ]
  ]
end

;; mutate the size, don't let the size go outside
;; the range min-size - max-size

to size-mutation
  if random 100 < chance-mutate-size
  [
    set size size + random-float max-size-mutation-step
    if size < min-size
      [ set size min-size ]
    if size > max-size
      [ set size max-size ]
  ]
end

;; mutate the color but don't let it mutate
;; outside the random 1 - 10

to-report color-mutation [gene-frequency]
  let mutation (random (max-color-mutation-step * 2)) - max-color-mutation-step
  if random 100 < chance-mutate-color [
    set gene-frequency gene-frequency + mutation
  ]
  if gene-frequency < 0
    [ set gene-frequency 0 ]
  if gene-frequency > 255
    [ set gene-frequency 255 ]
   report gene-frequency
end

to update-leader-stats
  if any? players with [role = "mate"]
  [ update-mate-leaders ]
  if any? players with [role = "predator"]
  [ update-predator-leaders ]
end

;;
;; HubNet Procedures
;;

to listen-clients
  while [hubnet-message-waiting?]
  [
    hubnet-fetch-message
    ifelse hubnet-enter-message?
    [ add-player ]
    [
      ifelse hubnet-exit-message?
      [ remove-player ]
      [
        if hubnet-message-tag = "View"
        [ select-fish ]
      ]
    ]
  ]
end

;; report name of the leader of a players group

to-report my-leader ;; player procedure
  ifelse role = "mate"
  [ report mate-leader ]
  [ report predator-leader ]
end

to-report my-leaders-score ;; player procedure
  report max [ found ] of players with [ role = [role] of myself ]
end

;; update all the monitors that change on the clients

to update-player ;; player procedure
  hubnet-send user-name "Your role" role
  let max-found my-leaders-score
  hubnet-send user-name "Your leader" my-leader
  hubnet-send user-name "Leader found" max-found
  hubnet-send user-name "You found" found
  ifelse max-found = 0
  [ hubnet-send user-name "Success %"  100  ]
  [ hubnet-send user-name "Success %"  precision ((found / max-found) * 100)  2 ]
end

to add-player
  create-players 1
  [
    set user-name hubnet-message-source
    init-player-variables
    hubnet-send user-name "Your name" user-name
    update-player
  ]
end

;; initialize one player

to init-player-variables ;; player procedure
  set attempts 0
  set found 0
  if player-roles = "all predators"
  [ set role "predator" ]
  if player-roles = "all mates"
  [ set role "mate" ]
  if player-roles = "predators v. mates" [
    ifelse random 2 = 0
    [ set role "predator" ]
    [ set role "mate" ]
  ]
  set hidden? true
end

to remove-player
  ask players with [user-name = hubnet-message-source ]
    [ die ]
end


; Copyright 2006 Uri Wilensky.
; See Info tab for full copyright and license.

There are 12 versions of this model.

Uploaded by When Description Download
Uri Wilensky about 7 years ago Updated to NetLogo 5.0.4 Download this version
Uri Wilensky almost 8 years ago Updated version tag Download this version
Uri Wilensky almost 8 years ago Updated to version from NetLogo 5.0.3 distribution Download this version
Uri Wilensky over 8 years ago Updated to NetLogo 5.0 Download this version
Uri Wilensky about 10 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky about 10 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky about 10 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky about 10 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky about 10 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky about 10 years ago Model from NetLogo distribution Download this version
Uri Wilensky about 10 years ago Guppy Spots Download this version
Uri Wilensky about 10 years ago Guppy Spots Download this version

Attached files

File Type Description Last updated
Guppy Spots.png preview Preview for 'Guppy Spots' over 7 years ago, by Uri Wilensky Download

This model does not have any ancestors.

This model does not have any descendants.
