Move Towards Target Example

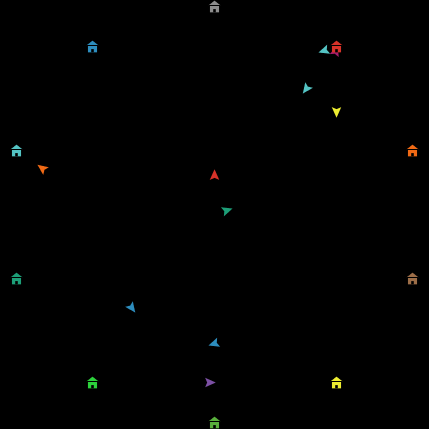

Move Towards Target Example preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by everyone
Model was written in NetLogo 5.0.4 • Viewed 1204 times • Downloaded 71 times • Run 7 times
Download the 'Move Towards Target Example' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [people person]
people-own [target]

breed [houses house]

to setup
  clear-all
  set-default-shape houses "house"

  ;; CREATE-ORDERED- distributes the houses evenly
  create-ordered-houses number-of-houses
    [ fd max-pxcor ]

  create-people number-of-people [
    setxy random-xcor random-ycor
    set target one-of houses
    face target
  ]
  reset-ticks
end

to go
  ask people [
    ;; if at target, choose a new random target
    if distance target = 0
      [ set target one-of houses
        face target ]
    ;; move towards target.  once the distance is less than 1,
    ;; use move-to to land exactly on the target.
    ifelse distance target < 1
      [ move-to target ]
      [ fd 1 ]
  ]
  tick
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
