Parking Space Simulation

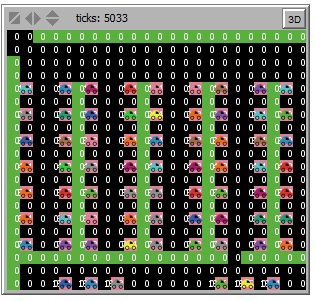

Parking Space Simulation preview image

This model is seeking new collaborators — would you please help?

1 collaborator

Mbig Marco Lucena (Author)

Tags

parking

Tagged by Marco Lucena almost 11 years ago

path finding

Tagged by Marco Lucena almost 11 years ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 5.0.3 • Viewed 1727 times • Downloaded 110 times • Run 0 times
Download the 'Parking Space Simulation' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

parameters explanation (Question)

can you please explane the role of each paramter in your model

Posted over 6 years ago

n is the car instance

n is the car instance

Posted over 6 years ago

parameter explanation

thank you for your answer And what about the parameters rate / fixedrate

Posted over 6 years ago

Click to Run Model

globals [pk revenue ]
turtles-own [gdist xdest ydest  parked start finish navval ]
patches-own [occupied navvalue closed]

to setup
  clear-all

  set stay (floor ( budget - fixedrate ) / rate ) * 60 + fixedstay


  ask patches with [pxcor = 16][set navvalue 0 set pcolor green]
  ask patches with [pycor = 16][set navvalue 0 set pcolor green]
  ask patches with [pxcor = -16][set navvalue 0 set pcolor green]
  ask patches with [pycor = -4][set navvalue 0 set pcolor green]

  if complexmap [
  ask patches with [pycor = -1 ][set navvalue 0 set pcolor green]
  ask patches with [pxcor = 1 and pycor = -1 ] [set pcolor black]

  ask patches with [pycor = -4][set navvalue 0 set pcolor green]
  ]



  ;corner
  ask patches with [pxcor = -15 and pycor = 16][set navvalue 0 set pcolor black]
  ask patches with [pxcor = -16 and pycor = 16][set navvalue 0 set pcolor black]
  ask patches with [pxcor = -16 and pycor = 15][set navvalue 0 set pcolor black]




  foreach [-16  -11  -6   -1 4 ][

     ask patches with [pxcor = ? and pycor < 13 and pycor > -1][set navvalue 0 set pcolor green]
  ]


let i 1


  foreach [12 10 8 6 4 2 0 ][
    ask patches with [pxcor = -15 and pycor = ?]
    [set pcolor pink set navvalue 100 * i + 1]
    set i i + 1
  ]

set i 1
foreach [  12 10 8 6 4 2 0 ][
    ask patches with [pxcor = -12 and pycor = ?]
    [set pcolor pink set navvalue 100 * i + 2]
    set i i + 1
  ]


set i 1
foreach [ 12 10 8 6 4 2 0 ][
    ask patches with [pxcor = -10 and pycor = ?]
    [set pcolor pink set navvalue 100 * i + 3]
    set i i + 1
  ]

set i 1
foreach [ 12 10 8 6 4 2 0 ][
    ask patches with [pxcor = -7 and pycor = ?]
    [set pcolor pink set navvalue 100 * i + 4]
    set i i + 1
  ]

set i 1
foreach [12 10 8 6 4 2 0 ][
    ask patches with [pxcor = -5 and pycor = ?]
    [set pcolor pink set navvalue 100 * i + 4]
    set i i + 1
  ]

set i 1
foreach [ 12 10 8 6 4 2 0 ][
    ask patches with [pxcor = -2 and pycor = ?]
    [set pcolor pink set navvalue 100 * i + 3]
    set i i + 1
  ]

set i 1
foreach [12 10 8 6 4 2 0 ][
    ask patches with [pxcor = 0 and pycor = ?]
    [set pcolor pink set navvalue 100 * i + 2]
    set i i + 1
  ]

set i 1
foreach [12 10 8 6 4 2 0 ][
    ask patches with [pxcor = 3 and pycor = ?]
    [set pcolor pink set navvalue 100 * i + 1]
    set i i + 1
  ]


set i 1
foreach [ 12 10 8 6 4 2 0 ][
    ask patches with [pxcor = 5 and pycor = ?]
    [set pcolor pink set navvalue 100 * i + 0]
    set i i + 1
  ]





ask patches with [pxcor = 9 and pycor < 13]
     [set pcolor green set navvalue 0]

set i 1
  foreach [-12 -10 -8 -6][
    ask patches with [pycor = -3 and pxcor = ?]
    [set pcolor pink set navvalue 1910 + i]
    set i i + 1
  ]



  foreach [4 2 0][
    ask patches with [pycor = -3 and pxcor = ?]
    [set pcolor pink set navvalue 1900 + i]
    set i i + 1
  ]
  ask turtles [die]
  ask patches [set plabel round navvalue]
  reset-ticks
end

to arrive
  let interval 1 / ( 2 ^ (8 * rate / 60) - 1 )

  if ( int (ticks / 30) mod int (1 / interval) = 0) [
   if count turtles < 70[
     create-turtles 1 [setxy -16 16 set gdist 0 set shape "car" ]
     ask patches with [pcolor = black][ set closed 0]
     ask patches with [pcolor = orange] [set pcolor black set navvalue 0]
    ]

    foreach sort turtles with [xcor = -16 and ycor = 16]
     [
        if count turtles <= 70[
        go ?
      ]
     ]
  ]
end

to parkall


  reset-ticks
  while [ticks / 30 <= operatingtime ] [

        arrive

        foreach sort turtles with [ start + stay * 30 <= ticks and navval > 0] [


        ask ? [

                 ifelse ticks >=  stay * 30 + start

                    [
                      set finish ticks set xdest 6 set ydest 15 set gdist 0 set parked 0
                      ask patch xcor ycor [set occupied 0 set closed 0 ]

                      let len (finish - fixedstay * 30 - start)
                      set revenue revenue +  len * rate / 1800 + fixedrate
                      print "REVENUE: " show revenue
                      print "TIME: " show len ]


                      [
                         if ticks - start > 1 [
                            set revenue  revenue + fixedrate
                         ]

                      ]

            ]

            set pk 0
            while [pk != 1][

             create-track2 ?

            ]

        ask ? [die]
        ask patch 6 15 [set occupied 0 set pcolor black]

          ifelse (count turtles with [parked = 1 ] < 1 * 70 ) and ticks / 30 <= operatingtime [
            arrive
          ][
                 if random-float 1 < 0.1 [arrive]
          ]
        ]

        if ticks / 30 >= operatingtime [

          leave-all

        ]



    tick
  ]
end

to go [ i ]








     ask i [
        print "Turtle Number : "
        ;show i
        set pk parked
        set start ticks

     ]

     while [pk != 1][
         dest i
         create-track2 i

     ]
end

to dest [ n ]
  let nav []
  let destx []
  let desty []

  ask n [

  foreach sort patches with [pcolor = pink and occupied != 1][
    ask ? [

     set nav lput navvalue nav
     set destx lput pxcor destx
     set desty lput pycor desty

     ]
   ]

  let mmax max nav
  ;print "Maximum distance"
  ;print mmax
  let mpos position mmax nav
   set navval mmax
   set xdest item mpos destx
   set ydest item mpos desty
   facexy xdest ydest
  print "XY DEST"
  print xdest
  print ydest

  ]
end

to create-track2 [n]

    ask n [

    let mytdist []

    let ggdist gdist
    let gdestx xdest
    let gdesty ydest




                   let prvx xcor
                   let prvy ycor

              show xdest
              show ydest
      let xc []
      let yc []
      let mygdist []
      let myncount []
      let xpos 0
      let ypos 0
      let nc 0
      let nc3 0
      let mxt []
      ;let nc1 0


      ;if gdist < 10 [
      ;    ask patch-ahead 1 [ if pcolor = green [set nc1 1]]
      ;]


      ask neighbors with [closed != 1 and ((pcolor = black) or (pxcor = gdestx and pycor = gdesty and occupied != 1))] [
      ;ask neighbors with [closed != 1 and pcolor != green ] [
      ;and ((pcolor = black ) or (pxcor = gdestx and pycor = gdesty and occupied != 1))] [
        if occupied != 1 [
          set mxt lput navvalue mxt
         let nc1 count neighbors with [pcolor = green]
         let nc2 count neighbors with [pcolor = pink and occupied = 0]
         set nc3 count neighbors with [pxcor = gdestx and pycor = gdesty]
         set nc nc1 + nc2 - nc3
         let pxc pxcor
         let pyc pycor

         set xpos pxc
         set ypos pyc




         if nc < 5 or (pxcor =  gdestx and pycor = gdesty) [
            ifelse pcolor = black [
               ;set mytdist lput (ggdist + (dist pxcor pycor gdestx gdesty) + (dist pxcor pycor prvx prvy ) + navvalue * 5 ) mytdist
               set mytdist lput (ggdist + (distancexy gdestx gdesty) + (dist pxcor pycor prvx prvy ) + navvalue * 5 ) mytdist
            ][
            set mytdist lput (ggdist + (dist pxcor pycor prvx prvy ) ) mytdist
            ]

            ;set mygdist lput (ggdist + (dist pxcor pycor gdestx gdesty) + (dist pxcor pycor prvx prvy ) ) mygdist
            set mygdist lput (ggdist + (dist pxcor pycor prvx prvy ) ) mygdist
            let xcoord pxcor
            set xc lput xcoord xc
            let ycoord pycor
            set yc lput ycoord yc
            print "NEIGHBORS"
            show pxcor
            show pycor
            set myncount lput count neighbors myncount



         ]










        ]
      ]

      if length myncount < 1 or max mxt >= 2 [

         ask patches with [closed = 1 and pcolor = orange] [set closed 0 set pcolor black]

      ]


      if length mytdist > 0 [

         let mx min mytdist
         let px position mx mytdist
         ;let nc position mx myncount
         set xpos item px xc
         set ypos item px yc
         set xcor item px xc
         set ycor item px yc
         ask patches with [pcolor = black and pxcor = xpos and pycor = ypos] [set navvalue navvalue + 1]

         set gdist item px mygdist
         print "Current Path: "
         show xpos
         show ypos




        if xcor = gdestx and ycor = gdesty [
           set parked 1
           set pk parked

        ]

        ifelse parked = 1 [
           ask patch xpos ypos [set occupied 1 set closed 1  ]
           ask patches with [pcolor = orange] [set pcolor black]
           ask patches with [pcolor = black] [set closed 0 set navvalue 0 set plabel navvalue show plabel]
           ask patch xpos ypos [set pcolor pink ]
           print "Closed!!!"
         ][
            ask patch xpos ypos [set closed 1 set pcolor orange set plabel navvalue show plabel  ]
         ]

      ]




    ]
tick
end

to leave [n]

  ask n [set finish ticks set xdest 6 set ydest 15 set gdist 0 set parked 0 ask patch xcor ycor [set occupied 0 set closed 0 ]

     ask patch xcor ycor [set occupied 0 set closed 0 ]
                 ifelse finish >=  fixedstay + start
                    [set revenue revenue +  (finish - (fixedstay * 30) - start) * rate / 1800 + fixedrate print "REVENUE: " show revenue]
                    [
                      if ticks - start > 1 [
                         set revenue  revenue + fixedrate
                      ]

                     ]
  ]

  set pk 0



  while [pk != 1][

         create-track2 n

     ]
  ask n [die]
  ask patch 6 15 [set occupied 0 set pcolor black]
end

to leave-all

  foreach sort turtles with [ parked = 1] [
    leave ?
  ]
end

to-report dist [a b c d ]

  report abs(a - c) + abs( b - d)
end
