Calculate integral by Monte Carlo method

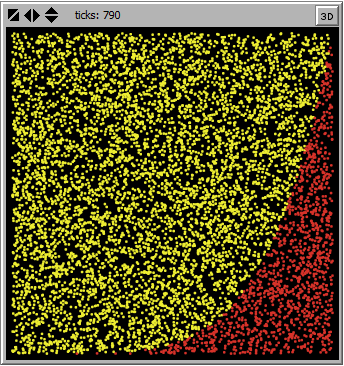

Calculate integral by Monte Carlo method preview image

1 collaborator

Default-person Do Trong Thanh (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 5.0.4 • Viewed 504 times • Downloaded 48 times • Run 0 times
Download the 'Calculate integral by Monte Carlo method' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

(a general understanding of what the model is trying to show or explain)

HOW IT WORKS

(what rules the agents use to create the overall behavior of the model)

HOW TO USE IT

(how to use the model, including a description of each of the items in the Interface tab)

THINGS TO NOTICE

(suggested things for the user to notice while running the model)

THINGS TO TRY

(suggested things for the user to try to do (move sliders, switches, etc.) with the model)

EXTENDING THE MODEL

(suggested things to add or change in the Code tab to make the model more complicated, detailed, accurate, etc.)

NETLOGO FEATURES

(interesting or unusual features of NetLogo that the model uses, particularly in the Code tab; or where workarounds were needed for missing features)

RELATED MODELS

(models in the NetLogo Models Library and elsewhere which are of related interest)

CREDITS AND REFERENCES

(a reference to the model's URL on the web if it has one, as well as any other necessary credits, citations, and links)

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; variable declarations ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;

globals
[
  value-integral
  approx-integral
  scale-factor
]

;;;;;;;;;;;;;;;;;;;;;;
;; setup procedures ;;
;;;;;;;;;;;;;;;;;;;;;;

to setup
  clear-all
  set scale-factor 25
  resize-world 0 scale-factor 0 scale-factor
  set-default-shape turtles "dot"
  reset-ticks
  if (function = "y = x^5")
  [
    set value-integral 1 / 6
  ]
  if (function = "y = (cos x)^2")
  [
    set value-integral 0.7273243567
  ]
  if (function = "y = (sin (1/x))^2")
  [
    set value-integral 0.6734567683
  ]
end

to-report scale [ x ]
  report (x / scale-factor)
end

to-report degree [ x ]
  report (x * 180 / pi)
end

to-report value-function [ x ]
  if (function = "y = x^5")
  [
    report (scale x) * (scale x) * (scale x) * (scale x) * (scale x)
  ]
  if (function = "y = (cos x)^2")
  [
    report (cos (degree (scale x))) * (cos (degree (scale x)))
  ]
  if (function = "y = (sin (1/x))^2")
  [
    report (sin (degree (1 / (scale x)))) * (sin (degree (1 / (scale x))))
  ]
end

;;;;;;;;;;;;;;;;;;;;;;;;
;; runtime procedures ;;
;;;;;;;;;;;;;;;;;;;;;;;;

to go
  create-turtles 10
  [
    set size 0.5
    setxy random-float scale-factor random-float scale-factor
    set color yellow
    if (ycor < scale-factor * (value-function xcor))
    [
      set color red
    ]
  ]
  set approx-integral (count turtles with [color = red]) / (count turtles)
  tick
end
