## The Mandelbrot Set

A [NetLogo] model by Rik Blok.

http://www.zoology.ubc.ca/~rikblok/wiki/doku.php?id=science:popmod:mandelbrot_set:start

Explore the Mandelbrot Set and these related fractals:

## Mappings

Each fractal is defined by a function in the complex plane. Starting with an initial value z=0, each point c in the plane is repeatedly iterated through the map, z → f(z,c). The mapping function is characterized by an exponent, d (d-multibrot-exp slider in the simulation), as follows:

• Mandelbrot: f(z,c) = z2 + c (same as Multibrot with d=2)
• Multibrot: f(z,c) = zd + c
• Mandelbar: f(z,c) = Conj(z)d + c
• Burning ship: f(z,c) = (|Re(z)| + i |Im(z)|)d + c

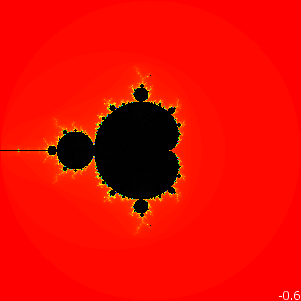

A point c is excluded from the set if the value z diverges after repeated iteration. In the simulation, excluded points are painted a color indicating how many iterations were required to decide they have diverged. Black points indicate undecided candidates that may belong to the set.

## Other implementations and examples

This implementation of the Mandelbrot set is neither fast nor beautiful -- it's just a proof of concept and a demonstration of how to code in [NetLogo]. If you're interested in the Mandelbrot set or similar fractals, check out these excellent pages:

Click to Run Model

```globals [
xmin ymin xmax ymax
was-mouse-down? was-mouse-xcor was-mouse-ycor
was-record-mov was-record-png
png-file-prefix png-file-index
was-multibrot-exp was-generalization
was-going
tick-last-change
max-detectable-period
was-zoom-power
]

patches-own [ x y real imag was-real was-imag]

to startup
clear-all
; defaults
set record-mov false set was-record-mov false
set record-png false set was-record-png false
set was-mouse-down? false
set was-going false
set jump-size 25
set mouse-zooms-in true
set max-detectable-period 3
set was-zoom-power 0
reset
; hint
output-print "Explore the Mandelbrot set\nand related fractals.\nPress go to get started."
end

to reset
; range
set xmin -2
set xmax  2
set ymin -2
set ymax  2
zoom
end

to zoom
if (movie-status != "No movie.") [ movie-grab-view ]
if (record-png) [
export-view ( word png-file-prefix " " was-zoom-power " " png-file-index ".png" )
set png-file-index png-file-index + 1
set was-zoom-power zoom-power
]
reset-ticks
set tick-last-change 20 * ticks-per-zoom ; don't auto-zoom for at least 20 ticks-per-zoom if all black
set was-multibrot-exp d-multibrot-exp
;  set was-conjugate conjugate
set was-generalization generalization
let xslope width  / ( max-pxcor - min-pxcor )
let yslope height / ( max-pycor - min-pycor )
set pcolor black
set x (pxcor - min-pxcor) * xslope + xmin
set y (pycor - min-pycor) * yslope + ymin
set real 0
set imag 0
set was-real []
set was-imag []
]
ask patch max-pxcor 4 [ set plabel zoom-power ]
end

to go
; check for changed parameters
if (not was-going) [
output-print "\nDrag the mouse to move or\npress the W/A/S/D keys."
output-print "Click to zoom or\npress the +/- keys."
set was-going true
]
if (d-multibrot-exp     != was-multibrot-exp    ) [
zoom
output-print "\nChange the multibrot\nexponent d, z->z^d+c."
]
if (generalization != was-generalization) [
zoom
output-print "\nChoose a generalization\nof the Mandelbrot set."
]
; check for changed record switches
if (record-png and not was-record-png) [
; start recording to png
ifelse (netlogo-applet?) [
output-print "\nSorry, can't record from applet."
set png-file-prefix false
][
set png-file-prefix user-new-file
]
ifelse (png-file-prefix != false) [
; strip file extension
set png-file-prefix remove ".PNG" png-file-prefix
set png-file-prefix remove ".png" png-file-prefix
set was-record-png true
set was-zoom-power zoom-power
output-print "\nStarted recording to png files."
][
; cancelled
set record-png false
]
]
if (record-mov and not was-record-mov) [
let mov-file false
ifelse (netlogo-applet?) [
output-print "\nSorry, can't record from applet."
][
set mov-file user-new-file
]
ifelse (mov-file != false) [
; strip file extension
set mov-file remove ".MOV" mov-file
set mov-file remove ".mov" mov-file
set mov-file word mov-file ".mov"
; start recording to mov
movie-start mov-file
set was-record-mov true
output-print "\nStarted recording to mov file."
][
; cancelled
set record-mov false
]
]
if (was-record-mov and not record-mov) [
; stop recording mov
if (movie-status != "No movie.") [ movie-close ]
output-print "\nStopped recording to mov file."
]
; check for mouse activity
if (mouse-down? and not was-mouse-down?) [
; mouse press
set was-mouse-down? true
set was-mouse-xcor mouse-xcor
set was-mouse-ycor mouse-ycor
]
; check for auto-zoom
if (was-mouse-down? and not mouse-down?) [
; mouse release
let xslope width  / ( max-pxcor - min-pxcor )
let yslope height / ( max-pycor - min-pycor )
if-else (mouse-xcor = was-mouse-xcor and mouse-ycor = was-mouse-ycor) [
; click, zoom centered on mouse
output-type "\nMouse click: zoom "
let xc (mouse-xcor - min-pxcor) * xslope + xmin
let yc (mouse-ycor - min-pycor) * yslope + ymin
ifelse mouse-zooms-in [
set xrad  width  * (1 - jump-size / 100) / 2
set yrad  height * (1 - jump-size / 100) / 2
output-type "in "
][
set xrad  width  / (1 - jump-size / 100) / 2
set yrad  height / (1 - jump-size / 100) / 2
output-type "out "
]
output-type jump-size output-print "%"
][
; drag
output-print "\nMouse drag: move"
let xshift (was-mouse-xcor - mouse-xcor) * xslope
let yshift (was-mouse-ycor - mouse-ycor) * yslope
set xmin xmin + xshift
set xmax xmax + xshift
set ymin ymin + yshift
set ymax ymax + yshift
]
set was-mouse-down? false
zoom
]

;  let hue ticks mod 256
;  let sat 255 - 20 * int ( ticks / 256 )
let slow-ticks 1.25 * ticks ^ 0.8 ; increases slower than ticks for large ticks
let hue slow-ticks mod 256
let sat 255 - int ( slow-ticks / 12.8 )
let conjugate      ( generalization = "Mandelbar, complex conjugate" )
let absolute-value ( generalization = "Burning ship, absolute value" )
let changes 0
ask patches with [pcolor = black] [
; iterate z_{n+1} = z_n^2 + (x + i y)
if (conjugate)      [ set imag ( - imag ) ]
if (absolute-value) [ set real abs real  set imag abs imag ]
let oldreal real
set real x + re-pow real    imag d-multibrot-exp ; Re(z_{n+1}) = x + Re(z_n^multibrot-exp)
set imag y + im-pow oldreal imag d-multibrot-exp ; Im(z_{n+1}) = x + Im(z_n^multibrot-exp)
ifelse (real * real + imag * imag) > 4 [
; diverges
set pcolor hsb hue sat 255
set changes changes + 1
][
; hasn't diverged.  Check if periodic
let period position real was-real
ifelse (period != false and period = position imag was-imag) [
set period period + 1 ; so not zero
set pcolor rgb period period period
; don't track changes here...makes run too long
; set changes changes + 1
][
; not periodic.  Add new (real, imag) to history
set was-real fput real was-real
set was-imag fput imag was-imag
while [length was-real > max-detectable-period] [
; trim
set was-real but-last was-real
set was-imag but-last was-imag
]
]
]
]
if (changes > 0) [
;    if (ticks > tick-last-change + 1) [ print ticks ]
set tick-last-change ticks
]
tick
end

to zoom-in
; zoom in by factor 1 - jump-size
let newwidth  width  * (1 - jump-size / 100)
let newheight height * (1 - jump-size / 100)
let xcrop ( width  - newwidth  ) / 2
let ycrop ( height - newheight ) / 2
set xmin xmin + xcrop
set xmax xmax - xcrop
set ymin ymin + ycrop
set ymax ymax - ycrop
output-type "\nZoom in " output-type jump-size output-print "%"
zoom
end

to zoom-out
; zoom in by factor 1 - jump-size
let newwidth  width  / (1 - jump-size / 100)
let newheight height / (1 - jump-size / 100)
let xcrop ( newwidth  - width  ) / 2
let ycrop ( newheight - height ) / 2
set xmin xmin - xcrop
set xmax xmax + xcrop
set ymin ymin - ycrop
set ymax ymax + ycrop
output-type "\nZoom out " output-type jump-size output-print "%"
zoom
end

to move-up
; shift by jump-size
let move jump-size / 100 * height
set ymin ymin + move
set ymax ymax + move
output-type "\nMove up " output-type jump-size output-print "%"
zoom
end

to move-left
; shift by jump-size
let move jump-size / 100 * width
set xmin xmin - move
set xmax xmax - move
output-type "\nMove left " output-type jump-size output-print "%"
zoom
end

to move-down
; shift by jump-size
let move jump-size / 100 * height
set ymin ymin - move
set ymax ymax - move
output-type "\nMove down " output-type jump-size output-print "%"
zoom
end

to move-right
; shift by jump-size
let move jump-size / 100 * width
set xmin xmin + move
set xmax xmax + move
output-type "\nMove right " output-type jump-size output-print "%"
zoom
end

to-report width
report xmax - xmin
end

to-report height
report ymax - ymin
end

to toggle-mouse-zoom
set mouse-zooms-in not mouse-zooms-in
output-type "\nMouse clicks now zoom " output-print ifelse-value (mouse-zooms-in) [ "in." ][ "out." ]
end

to-report re-pow [ zr zi d ]
; returns Re(z^d) = Re((zr + i zi)^d) via recursion.  Assumes d>=2 is an integer.
ifelse (d = 2) [
; Re(z^2) = zr^2 - zi^2
report zr * zr - zi * zi
][
; Re(z^d) = Re(z z^(d-1)) = zr Re(z^(d-1)) - zi Im(z^(d-1))
report zr * ( re-pow zr zi (d - 1)) - zi * ( im-pow zr zi (d - 1))
]
end

to-report im-pow [ zr zi d ]
; returns Im(z^d) = Im((zr + i zi)^d) via recursion.  Assumes d>=2 is an integer
ifelse (d = 2) [
; Im(z^2) = 2 zr zi
report 2.0 * zr * zi
][
; Im(z^d) = Im(z z^(d-1)) = zi Re(z^(d-1)) + zr Im(d^(n-1))
report zi * ( re-pow zr zi (d - 1)) + zr * ( im-pow zr zi (d - 1))
]
end

to coords
; report coordinates
output-print "center:"
output-type  "x = " output-print ( xmin + xmax ) / 2
output-type  "y = " output-print ( ymin + ymax ) / 2
let scale xmax - xmin
output-type  "scale = " output-print ifelse-value (scale <= 0) [ 0 ][ rel-precision scale 2 ]
end

to-report rel-precision [ number places ]
; like precision but only for mantissa
let pow floor log number 10
;  report ( 10 ^ pow ) * precision ( number / 10 ^ pow ) places
report ( word precision ( number / 10 ^ pow ) places "E" pow )
end

to zoom-every
if (ticks > ( tick-last-change + ticks-per-zoom ) ) [
ifelse mouse-zooms-in [
zoom-in
output-print "\nAutomatically zoomed in"
][
zoom-out
output-print "\nAutomatically zoomed out"
]
output-type "after " output-type ticks-per-zoom output-print " unchanged ticks."
]
end

to-report zoom-power
report precision ( 0 - log width 10 ) 2
end
```
