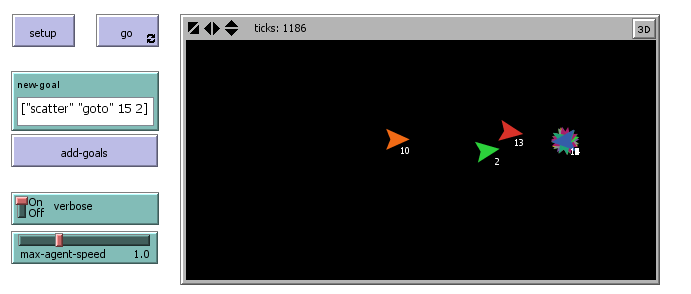

Agent goal-list demo preview image

1 collaborator

Ahdekker Anthony Dekker (Author)
Add Collaborator

Close

Tags

goals

Tagged by Anthony Dekker almost 11 years ago

lists

Tagged by Anthony Dekker almost 11 years ago

tutorials

Tagged by Anthony Dekker almost 11 years ago

Add New Tag

Close

Visible to everyone | Changeable by the author
Model was written in NetLogo 5.0.3 • Viewed 945 times • Downloaded 67 times • Run 0 times
Download the 'Agent goal-list demo' modelDownload this model • Embed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)

NETLOGO GOALS EXAMPLE

This example is explained in the tutorial at http://scientificgems.wordpress.com/2014/01/17/agent-goals-in-netlogo-a-list-tutorial/

RUNNING IT

Click SETUP to start. Clicking GO makes each agent execute this list of four goals:

[ "goto" 3 3 "meet" 7 "scatter" "meet" 0 ]

Use NEW-GOAL and ADD-GOALS to add entries on the end of the goal lists.

Comments and Questions

Explanation

This model is associated with a tutorial at http://scientificgems.wordpress.com/2014/01/17/agent-goals-in-netlogo-a-list-tutorial/

Posted almost 11 years ago

new model , want suggestion and guidance

I want to create a model in which there are two populations of customers and providers. customers can request for service and provider fulfill it by accepting request.

Posted almost 11 years ago

reply

Sana, I would tackle that with a global list of requests, which customers add to, and providers fulfil. The requests themselves can be lists, containing relevant details, including references to the customer agent, if needed.

Posted almost 11 years ago
Click to Run Model

turtles-own [
  id     ;; agent id number or name (usually a copy of "who")
  speed  ;; agent speed in cells per tick
  goal   ;; goal list
]

to setup
  clear-all
  crt 20 [ setxy random-xcor random-ycor
    set speed (0.1 + (random-float (max-agent-speed - 0.1)))
    set size 3
    set id who
    set goal [ "goto" 3 3 "meet" 7 "scatter" "meet" 0 ]
    set label id ]
  reset-ticks
end

to add-goals
  ask turtles [
    set goal (sentence goal (read-from-string new-goal))
    if (verbose) [ show (fput "goal =" goal) ]
  ]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; NetLogo code for obeying instructions ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to obey
  if (goal != []) [
    let kind (item 0 goal)
    if-else (kind = "goto") [ if (obey-goto (item 1 goal) (item 2 goal)) [ drop3-goal ] ] [
    if-else (kind = "meet") [ if (obey-meet (item 1 goal)) [ drop2-goal ] ] [
    if-else (kind = "scatter") [ obey-scatter ] [
    obey-unknown kind ] ] ] ]
end

to drop-goal
  set goal (bf goal)
end

to drop2-goal
  set goal (bf (bf goal))
end

to drop3-goal
  set goal (bf (bf (bf goal)))
end

to obey-unknown [ g ]
  show (list "unknown goal" g)
  drop-goal
end

to obey-scatter
  let new-x random-xcor
  let new-y random-ycor
  if (verbose) [ show (list "scattering to" new-x new-y) ]
  set goal (sentence (list "goto" new-x new-y) (bf goal))
end

to-report obey-goto [ x y ]  ;; obey "goto x y" command; report true when achieved
  let d (distancexy x y)
  if-else (d = 0)
    [ if (verbose) [ show (list "already at" x y) ]
      report true ]

    [ facexy x y
      if-else (d <= speed)
        [ setxy x y
          if (verbose) [ show (list "have reached" x y) ]
          report true ]

        [ fd speed
          report false ] ]
end

to-report obey-meet [ ag-id ]  ;; obey "meet agent" command; report true when achieved
  let him (one-of (turtles with [ id = ag-id ]))

  if-else (him = self)
    [ if (verbose) [ show (list "i am" him) ]
      report true ]

    [ face him
      let d (distance him)

      if-else (d <= speed)
        [ move-to him
          if (verbose) [ show (list "have met" him) ]
          report true ]

        [ fd speed
          report false ] ]
end

to go
  if (count (turtles with [ goal != []]) = 0) [ stop ]
  ask turtles [ obey ]
  tick
end
