Value Iteration in MDPs

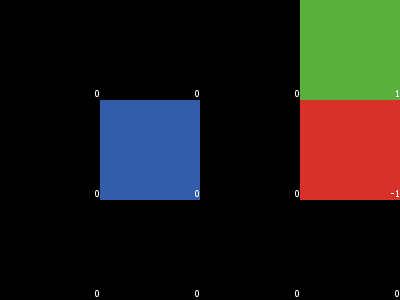

Value Iteration in MDPs preview image

1 collaborator

Default-person Larry Lin (Author)

Tags

mdp

Tagged by Marzieh Jahanbazi over 3 years ago

value iteration

Tagged by Marzieh Jahanbazi over 3 years ago

Visible to everyone | Changeable by everyone
Model was written in NetLogo 5.0.5 • Viewed 336 times • Downloaded 42 times • Run 0 times
Download the 'Value Iteration in MDPs' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals[patches-plabel-list]

to setup
  ca
  reset-ticks

  set patches-plabel-list []

  ask patches[set plabel 0]

  reset-patch-color
end

to go
  tick

  set patches-plabel-list []
  foreach[0 1 2 3][
    let s-pxcor ?
    foreach[0 1 2][
      let s-pycor ?

      set patches-plabel-list lput ([plabel] of patch s-pxcor s-pycor) patches-plabel-list
    ]
  ]

  ask patch 2 1[
    value-iteration
  ]

  reset-patch-color

  let checklist []

  foreach[0 1 2 3][
    let s-pxcor ?
    foreach[0 1 2][
      let s-pycor ?

      set checklist lput ([plabel] of patch s-pxcor s-pycor) checklist
    ]
  ]

  let difference-found false
  let i 0

  while[(difference-found = false) and (i < length checklist)][
    if((item i patches-plabel-list) != (item i checklist))[
      set difference-found true
    ]

    set i (i + 1)
  ]

  if(difference-found = false)[
    output-print "Equilibrium reached"
    stop
  ]
end

to value-iteration

  set pcolor yellow

  set plabel compute-plabel pxcor pycor

  ask neighbors4[

    if (pcolor = black)[
      value-iteration
    ]

  ]
end

to-report compute-plabel [input-pxcor input-pycor]
  let own-pxcor input-pxcor
  let own-pycor input-pycor
  let own-plabel [plabel] of patch own-pxcor own-pycor

  let north-plabel 0
  let south-plabel 0
  let east-plabel 0
  let west-plabel 0

  ifelse(patch own-pxcor (own-pycor + 1) = nobody) or ([pcolor] of patch own-pxcor (own-pycor + 1) = blue)[
    set north-plabel own-plabel
  ]
  [
    set north-plabel ([plabel] of patch own-pxcor (own-pycor + 1))
  ]

  ifelse(patch (own-pxcor + 1) own-pycor = nobody) or ([pcolor] of patch (own-pxcor + 1) own-pycor = blue)[
    set east-plabel own-plabel
  ]
  [
    set east-plabel ([plabel] of patch (own-pxcor + 1) own-pycor)
  ]

  ifelse(patch own-pxcor (own-pycor - 1) = nobody) or ([pcolor] of patch own-pxcor (own-pycor - 1) = blue)[
    set south-plabel own-plabel
  ]
  [
    set south-plabel ([plabel] of patch own-pxcor (own-pycor - 1))
  ]

  ifelse(patch (own-pxcor - 1) own-pycor = nobody) or ([pcolor] of patch (own-pxcor - 1) own-pycor = blue)[
    set west-plabel own-plabel
  ]
  [
    set west-plabel ([plabel] of patch (own-pxcor - 1) own-pycor)
  ]

  let max-label north-plabel
  let max-plabel-direction "north"

  if(east-plabel > max-label)[
    set max-label east-plabel
    set max-plabel-direction "east"
  ]

  if(south-plabel > max-label)[
    set max-label south-plabel
    set max-plabel-direction "south"
  ]

  if(west-plabel > max-label)[
    set max-label west-plabel
    set max-plabel-direction "west"
  ]

  if(max-plabel-direction = "north")[
    report precision ((0.8 * north-plabel) + (0.1 * east-plabel) + (0.1 * west-plabel) + R) 3
  ]
  if(max-plabel-direction = "east")[
    report precision ((0.8 * east-plabel) + (0.1 * north-plabel) + (0.1 * south-plabel) + R) 3
  ]
  if(max-plabel-direction = "south")[
    report precision ((0.8 * south-plabel) + (0.1 * east-plabel) + (0.1 * west-plabel) + R) 3
  ]
  if(max-plabel-direction = "west")[
    report precision ((0.8 * west-plabel) + (0.1 * north-plabel) + (0.1 * south-plabel) + R) 3
  ]
end

to reset-patch-color

  ask patches[set pcolor black]

  ask patch 1 1[set pcolor blue]

  ask patch 3 2[
    set pcolor green
    set plabel winning-state-value
  ]
  ask patch 3 1[
    set pcolor red
    set plabel losing-state-value
  ]
end
