Monte Carlo -self localization algorithm

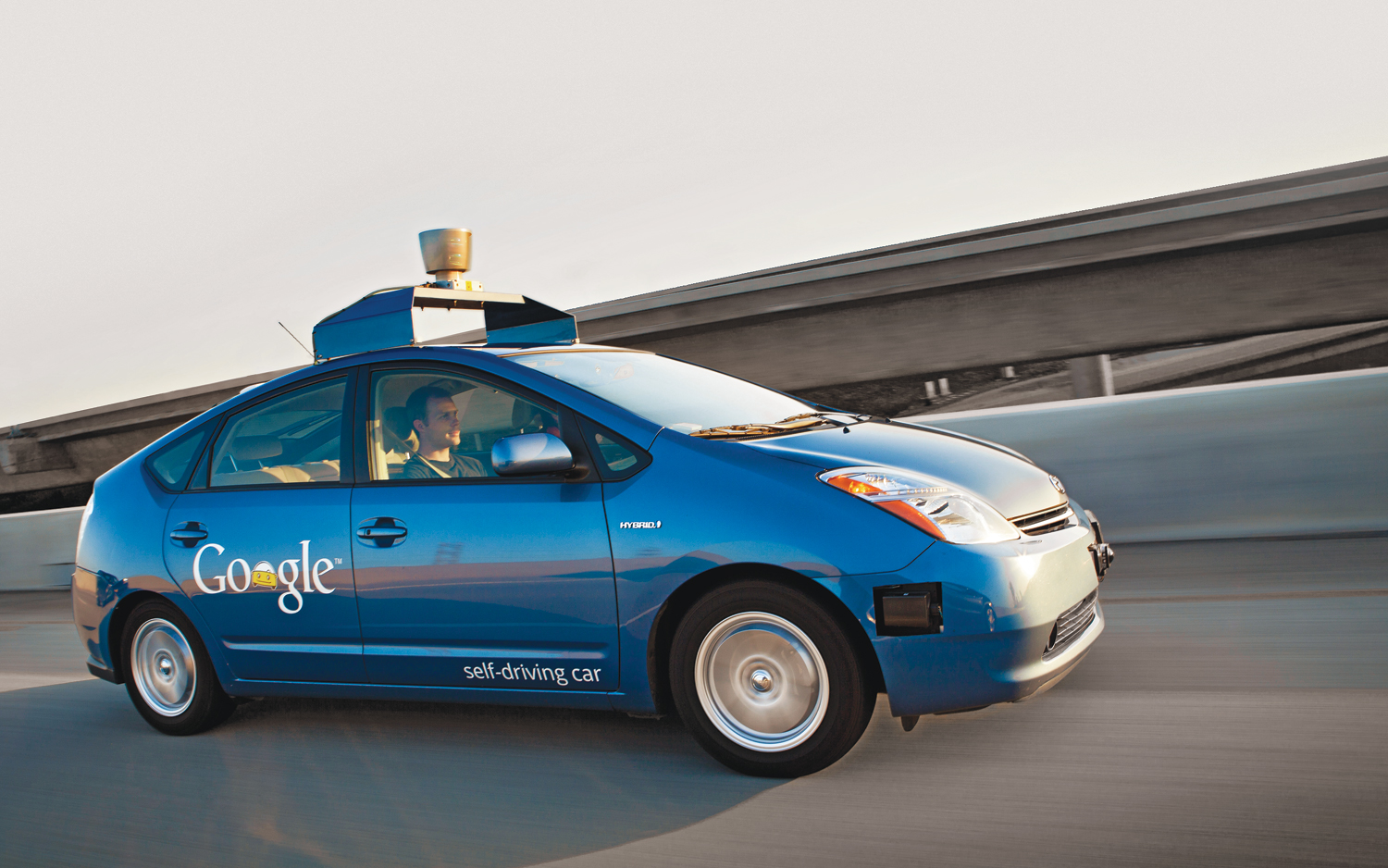

Monte Carlo -self localization algorithm preview image

1 collaborator

Default-person Joan Puig (Author)

Tags

car

Tagged by Joan Puig almost 6 years ago

control theory

Tagged by Joan Puig almost 6 years ago

google

Tagged by Joan Puig almost 6 years ago

robotics

Tagged by Joan Puig almost 6 years ago

self localiztion

Tagged by Joan Puig almost 6 years ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 5.0.5 • Viewed 324 times • Downloaded 16 times • Run 0 times
Download the 'Monte Carlo -self localization algorithm' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;Montecarlo-selflocalization algorithm

globals [TheColor myxcor myycor totalP sensor_color i1 i2 lastx lasty diffX diffY]

patches-own [p mycolor]
turtles-own []

to setup

clear-all

ask patches[set pcolor one-of[green yellow brown blue] set p 1 / count(patches) set totalP sum[p]of patches set mycolor pcolor]

ask one-of patches

[
  sprout 1[

    set shape "circle"
    set color red
    set size 0.8

  ]

]
end

to moveup

  ask turtles
  [
    set ycor ycor + 1
  ]
  ask patches
  [
    set p (move-right * [p] of patch-at 0 (- 1)) + (1 - move-right) * p
  ]
  sense
end

to movedown

  ask turtles
  [
    set ycor ycor - 1
  ]
  ask patches
  [
    set p (move-right * [p] of patch-at 0 1) + (1 - move-right) * p
  ]
  sense
end

to moveright

  ask turtles
  [
    set xcor xcor + 1
  ]
  ask patches
  [
    set p (move-right * [p] of patch-at (- 1) 0) + (1 - move-right) * p
  ]
  sense
end

to moveleft

  ask turtles
  [
    set xcor xcor - 1
  ]
  ask patches
  [
    set p (move-right * [p] of patch-at 1 0) + (1 - move-right) * p
  ]
  sense
end

to sense

  ;ask turtles with [color = white][set sensor_color [mycolor] of patch-ahead 0]
  ask turtles [ask patch-here [set sensor_color mycolor]]

  ask patches
  [
    ifelse mycolor = sensor_color
    [
      set p p * sensor-right
    ][
      set p p * (1 -  sensor-right)
    ]
  ]
  set totalP sum[p]of patches

  ask patches
  [
    set p p / totalP
  ]

  ask patches
  [
    set pcolor scale-color green p 0 light
  ]
end

to move


ask turtles
[
  set i1 one-of [0 1 -1]
  set i2 one-of [0 1 -1]

  set xcor xcor + i1
  set ycor ycor + i2
]

ask patches [set p (move-right * [p] of patch-at (- i1) (- i2) + (1 -  move-right) * p)]


  ask patches
  [
    set pcolor scale-color green p 0 light
  ]
end

to go

  move

  sense
end

to go1
  if mouse-down?
  [
    sense1
    move1

  ]
end

to s_color

  ask patches [set pcolor mycolor]
end

to move1



ask patch mouse-xcor mouse-ycor [set diffX (lastx - mouse-xcor) set diffY (lasty - mouse-ycor)]

ask patches [set p (move-right * [p] of patch-at (diffX) (diffY) + (1 -  move-right) * p)]

ask patch mouse-xcor mouse-ycor [set lastx mouse-xcor set lasty mouse-ycor]
end

to sense1

  ;ask turtles with [color = white][set sensor_color [mycolor] of patch-ahead 0]
  ask patch mouse-xcor mouse-ycor [set sensor_color mycolor]

  ask patches
  [
    ifelse mycolor = sensor_color
    [
      set p p * sensor-right
    ][
      set p p * (1 -  sensor-right)
    ]
  ]
  set totalP sum[p]of patches

  ask patches
  [
    set p p / totalP
  ]

  ask patches
  [
    set pcolor scale-color green p 0 light
  ]
end
