Hyporheic Exchange Model: Interface

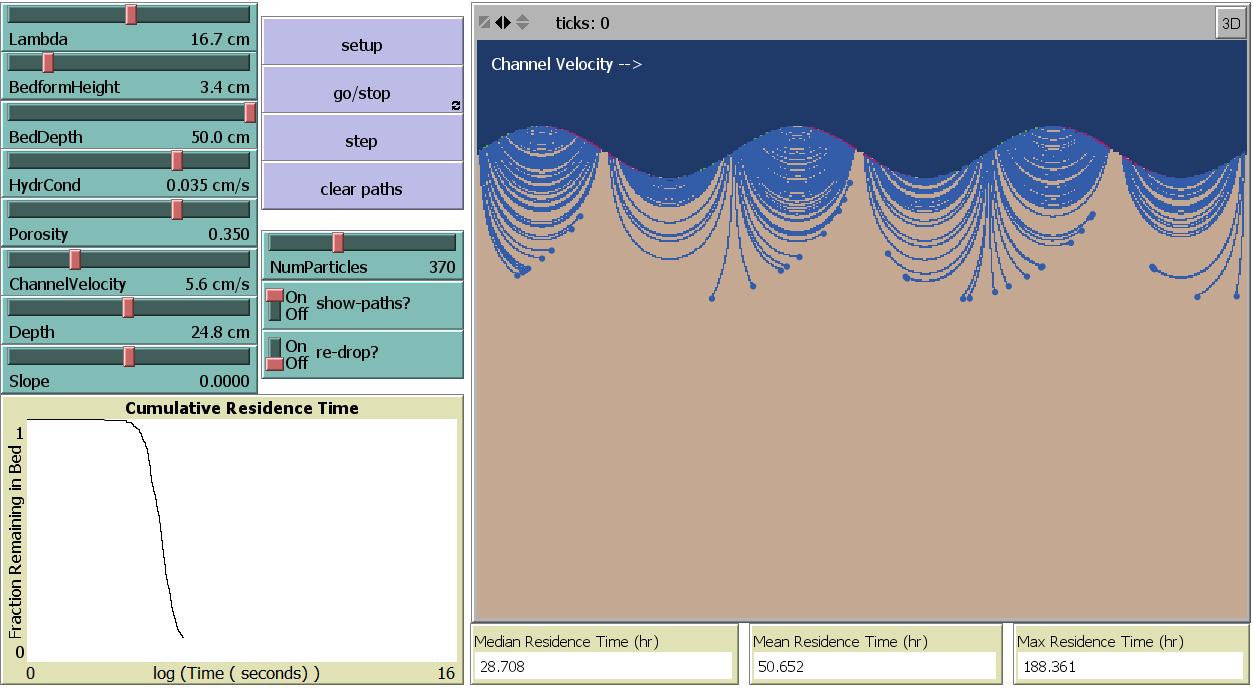

Hyporheic Exchange Model: Interface preview image

4 collaborators

Contact_me Susa Stonedahl (Author)
Aaron Packman (Advisor)
Kevin Roche (Team member)

Tags

bedforms

Tagged by Susa Stonedahl over 2 years ago

earth science

Tagged by Susa Stonedahl over 2 years ago

flume

Tagged by Susa Stonedahl over 2 years ago

groundwater

Tagged by Susa Stonedahl over 2 years ago

hyporheic

Tagged by Susa Stonedahl over 2 years ago

hyporheic exchange

Tagged by Susa Stonedahl over 2 years ago

sediment

Tagged by Susa Stonedahl over 2 years ago

soil and water conservation

Tagged by Susa Stonedahl over 2 years ago

water

Tagged by Susa Stonedahl over 2 years ago

water flow

Tagged by Susa Stonedahl over 2 years ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 5.2.0 • Viewed 294 times • Downloaded 24 times • Run 0 times
Download the 'Hyporheic Exchange Model: Interface' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [ particles particle ]

particles-own [ residence-time in-bank? ]
globals [Boundary constant maxflux k2 height time-counter time-dx HydrCond2 hm2 Boundary2 xcutoff ChannelVelocity2 depth2]

to-report surface-function [ x ]
  report height * sin ( k2 * x ) + Slope * x
end

to setup
  clear-all
 set constant 240 / (3 * lambda)

 set k2 ( 360 / (constant * lambda ))
 set Boundary BedDepth
 set height (( BedformHeight / 2 ) * constant )
 set time-counter 0
 set time-dx 100
 set HydrCond2 constant * HydrCond
 set ChannelVelocity2 ChannelVelocity * constant
 set depth2 depth * constant
 ifelse (( height * 2 / depth2 ) > .34)
  [set hm2 .28 * ( ( ChannelVelocity2 ) ^ 2 ) / ( 2 * 9.8 * constant * 100  ) * (( height * 2 / depth2 ) / .34 ) ^ ( 3 / 2 ) ]
  [set hm2 .28 * ( ( ChannelVelocity2 ) ^ 2 ) / ( 2 * 9.8 * constant * 100  ) * (( height * 2 / depth2 ) / .34 ) ^ ( 3 / 8 ) ]

 set Boundary2 constant * Boundary
 set xcutoff constant * lambda * floor( 240 / (constant * lambda))

 set maxflux 1.5 * ( max [flux-weighting pxcor] of patches with [pycor = 0] )
 ;show maxflux

 ask patches
 [
  ifelse ( pycor < surface-function (pxcor))
    [ set pcolor brown + 2 ] ; sand color
    [ set pcolor blue - 2 ]  ; water color

 if ( pycor < -1 * boundary2 )
    [ set pcolor black ]

 if ( pxcor > xcutoff )
    [ set pcolor black ]


   if ( pxcor < 0 )
    [ set pcolor black ]
  ]

 repeat NumParticles
 [
  drop-particle
 ]
do-plot
reset-ticks
end

to-report flux-weighting [ x ]
let exp1 1
let exp2 exp ( k2 * (2 * pi / 360 ) * (-2 * boundary2 ) )
let expsum exp1 + exp2

let yvel  ((-1 * (cos ( x * k2 )) * ( ( exp1 - exp2) * (k2 * 2 * pi / 360 )) * hm2)) * HydrCond2 / porosity ;
let xvel  ((k2 * (2 * pi / 360 ) * ( sin ( x * k2 )) * ( expsum )  * hm2 ) ) * HydrCond2 / porosity;
let derivative (( (1) * height * 2 * pi / (constant * lambda )) * cos ( ( x) * k2 ) )
report derivative * xvel - yvel
end

to-report random-flux-weighted-x

  let x random-float xcutoff
  let threshold random-float maxflux   ; number bigger than any flux-weighting value
  while [ threshold > flux-weighting x ]
  [
     set x random-float xcutoff
     set threshold random-float maxflux
  ]
  report x
end

to drop-particle
 create-particles 1 [
   set xcor random-flux-weighted-x
   set ycor surface-function xcor
   set in-bank? true
   set residence-time 0
   set size .5
   set color green
   set shape "circle"
   stamp
   set size 2

   if (show-paths?) [ pd ]
 ]
end

to go
 ask particles with [ in-bank? ]
 [
  move
 ]

 if re-drop?
 [
 while [ count particles with [ in-bank? ] < NumParticles ]
 [
  drop-particle
 ]
]
 set time-counter time-counter + time-dx
if (not re-drop?)
 [
  do-plot
 ]
tick
end

to move

let ycor2 ycor - surface-function( xcor )

let exp1 exp ( k2 * (2 * pi / 360 ) * ycor2 )
let exp2 exp ( k2 * (2 * pi / 360 ) * (-2 * boundary2 - ycor2 ) )
let exp3 exp ( k2 * (2 * pi / 360 ) * (-2 * boundary2) )
let expsum exp1 + exp2

let yvel  ((-1 * (cos ( xcor * k2 )) * ( ( exp1 - exp2) * (k2 * 2 * pi / 360 )) * hm2)) / (1 + exp3) * HydrCond2 / porosity ;
let xvel  ((k2 * (2 * pi / 360 ) * ( sin ( xcor * k2 )) * ( expsum )  * hm2 ) ) / (1 + exp3) * HydrCond2 / porosity;

 set xcor xcor +  time-dx * (xvel - HydrCond2 * Slope / (porosity * (1 + Slope ^ 2))) ; / constant

 if (ycor + yvel > max-pycor)
 [ show "big problem -- particle lost above screen" die ]
 if (ycor + yvel < min-pycor)
 [
  ;show "Oh no, I'm lost!"
  die
 ]
  set ycor ycor + time-dx * (yvel - (HydrCond2 * Slope ^ 2) / (porosity * (1 + Slope ^ 2))); + HydrCond2 / porosity );/ constant

 set residence-time residence-time + time-dx

if xcor >= xcutoff
  [ pen-up

   set ycor ycor - Slope * xcutoff
    set xcor xcor - xcutoff

  if show-paths?
    [pen-down]

  ]

  if xcor <= 0
  [ pen-up

      set ycor ycor + Slope * xcutoff

    set xcor xcor + xcutoff

  if show-paths?
    [pen-down]
  ]

 set in-bank? (ycor <= surface-function xcor)
 ifelse (in-bank?)
 [
  set color blue
 ]
 [
  set color magenta
  ; show residence-time
  set size 0.5
  ; we want them to stamp them right on the function, for better visuals
  set ycor surface-function xcor
  stamp
  ht
 ]
end

to do-plot
 if (count particles != 0)
[
  set-current-plot "Cumulative Residence Time"

if time-counter > time-dx
  [set-plot-x-range 0 1 + round (log (1 + Median [residence-time] of particles) 10 ) * 3]
  ; keep increasing y-range, proportionally to number of particles
  ;set-plot-y-range 0 (ceiling (count particles / 1900))
  set-plot-y-range 0 1
  ;set-histogram-num-bars 54
  ;histogram [ residence-time ] of particles with [ not in-bank? ]
  plotxy (log (( time-counter  + 1 )) 10)  ( count particles with [ in-bank? ] / count particles )

]
end

to export-residence-times
 let file user-new-file
 if ( file != false )
 [
  if ( file-exists? file )
    [ file-delete file ]
  file-open file
 ]
 let res-time-list [ residence-time ] of particles with [ not in-bank? ]
 foreach res-time-list
 [
  file-type ?
  file-type "\r\n"
 ]
 file-close
end

There are 2 versions of this model.

Uploaded by When Description Download
Forrest Stonedahl about 2 years ago Minor improvements / fixes / tweaks Download this version
Susa Stonedahl over 2 years ago Initial upload Download this version

Attached files

File Type Description Last updated
Hyporheic Exchange Model: Interface.png preview image over 2 years ago, by Susa Stonedahl Download

This model does not have any ancestors.

This model does not have any descendants.
