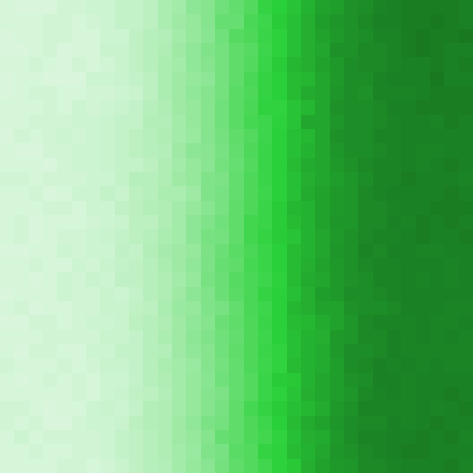

Language Change preview image

1 collaborator

Default-person Brian Bowyer (Author)

Tags

(This model has yet to be categorized with any tags)
Model group MAM-2015 | Visible to everyone | Changeable by the author
Model was written in NetLogo 5.2.0 • Viewed 383 times • Downloaded 28 times • Run 0 times
Download the 'Language Change' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

A model of language change over an area of space. Patches reprsent speakers, and their language is coded as their color.

HOW IT WORKS

Each tick, each patch mutates its own language by MUTATION-RATE and tries to talk to NUM-INTERACTIONS other patches around it. If the language of a patch it tries to talk to is within THRESHOLD-OF-INTELLIGIBILITY percent of the maximum distance, it succeeds, and both patches move their language closer together by the lexical distance between them times INFLUENCE-FACTOR.

HOW TO USE IT

"setup-uniform" makes all patches have the same random language. "setup-random" makes all patches have different random languages. "setup-contact" makes the left side of the landscape have one language and the right side have another; how far apart they can be is determined by the CONTACT-MAX-DISTANCE slider.

Other than that, play around with sliders and see what happens.

THINGS TO NOTICE

If NUMBER-OF-ATTRIBUTES is not 3, the way the color is represented will change, and so the display will change pretty radically. I don't recommend moving this slider for this reason.

Many of the measures are dependent on THRESHOLD-OF-INTELLIGIBILITY. If any patch can understand any other patch, it's no surprise that every patch can understand all its neighbors.

The sides of the landscape do not wrap.

THINGS TO TRY

Play with MUTATION-RATE and INFLUENCE-FACTOR and see how they interact. Also, the effect of NUM-INTERACTIONS and THRESHOLD-OF-INTELLIGIBILITY isn't very well represented by the charts but is fairly clear if you mess with them yourself.

Try playing with SPREAD-OBSTACLE-WITH-MOUSE. The black patches it produces do not talk to other languages and essentially act like walls. What happens when you isolate a small region? What happens when you divide the landscape in half? In quarters?

RELATED MODELS

Although it's not related directly, the Hotellier's Law, Rumor Mill, and Voting models are all space-control models like this one. Also, there is a Language Change model in the model library but the implementation is radically different from this one.

CREDITS AND REFERENCES

At the Modelling Commons: http://modelingcommons.org/account/models/1511

by Brian Bowyer for EECS 372, taught by Prof. Uri Wilensky

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [
  distances
  average-language
  most-distinctive
  distance-between-edges
  avg-intelligible-neighbors
  ;distinct-languages
  max-possible-distance
]

patches-own[
  language ;;list with three numbers
]

to-report distance-between-languages [lang1 lang2]
  let squares (map [(?2 - ?1) ^ 2] lang2 lang1)
  report sqrt (sum squares)
end

to-report is-obstacle? [lang]
  ifelse (sum lang) < 0
  [report true]
  [report false]
end

to-report compute-max-possible-distance
  report distance-between-languages (n-values number-of-attributes [0]) (n-values number-of-attributes [255])
end

to-report intelligible-dist ;computes maximum intelligible distance
  report ((threshold-of-intelligibility + 0.0001) / 100) * max-possible-distance
end

to-report compute-average-language
  let languages [language] of patches
  let simplified_mean mean (map mean languages)

  report first [language] of patches with-min [abs((mean language) - simplified_mean)]
end

to-report compute-distance-between-edges
  let max-language first [language] of patches with-max [mean language]
  let min-language first [language] of patches with-min [mean language]

  report distance-between-languages max-language min-language
end

to-report most-average [languages]
  let simplified map mean languages
  let sl map [abs((mean ?1) - mean simplified)] languages
  let min_sl min sl

  report item (position min_sl sl) languages
end

to-report intelligible-to-average
  report (count patches with [distance-between-languages average-language language < intelligible-dist])/(count patches) * 100
end

to-report compute-most-distinctive
  report first [language] of patches with-max [distance-between-languages language average-language]
end

to-report distinctiveness ;distinctiveness = distance between the average and the furthest edge of the distribution of languages
  report distance-between-languages most-distinctive average-language
end

to-report unintelligible? [a b] ;method written relatively late: many times in code I do the check directly instead of calling this function
  report ((distance-between-languages a b) >
    intelligible-dist)
end

to-report distinct-languages ;this method runs very slowly and should be not be called every tick, particularly on a very non-uniform set of languages
  let languages [language] of patches
  let lang-list (list average-language)
  set languages (filter [unintelligible? average-language ?] languages)

  while [not empty? languages] [
    let new-lang most-average languages
    set lang-list fput new-lang lang-list
    set languages (filter [unintelligible? new-lang ?] languages)
  ]

  report lang-list
end

to-report compute-avg-intelligible-neighbors
  report mean [count intelligible-neighbors] of patches
end

to update-metrics
  ;this procedure exists to avoid having multiple outside calls to an expensive reporter per tick
  set average-language compute-average-language
  set most-distinctive compute-most-distinctive
  set distance-between-edges compute-distance-between-edges
  set avg-intelligible-neighbors compute-avg-intelligible-neighbors
end

to setup-uniform
  ca
  let starting-language (n-values number-of-attributes [random 255])
  ask patches [
    set language starting-language
    reset-patch-color
  ]
  set max-possible-distance compute-max-possible-distance
  update-metrics
  reset-ticks
end

to setup-random
  ca
  ask patches [
    set language (n-values number-of-attributes [random 255])
    reset-patch-color
  ]
  set max-possible-distance compute-max-possible-distance
  update-metrics
  reset-ticks
end

to setup-contact
  ca

  let lang_1 (n-values number-of-attributes [random 255])
  let lang_2 map [? + random contact-max-distance] lang_1
  let divider 0

  ask patches [
    ifelse pxcor > divider
      [ set language lang_1]
      [ set language lang_2]
    reset-patch-color
  ]
  set max-possible-distance compute-max-possible-distance
  update-metrics
  reset-ticks
end

to spread-obstacle-with-mouse
  if mouse-down?
    [ ask patch mouse-xcor mouse-ycor
        [ set language (n-values number-of-attributes [-1])
          reset-patch-color
          ]
        display ]
end

to go
  ask patches [
    mutate-self
    talk-to-neighbors
    reset-patch-color
  ]
  update-metrics
  tick
end



;;
;;patch procedures
;;

to-report scaled-color [lang]
  let not-negative (max (list lang 0))
  let squished (min (list not-negative 255))
  report 0 + squished
end

to-report intelligible-neighbors
  report neighbors with [not (unintelligible? language [language] of myself)]
end

to reset-patch-color
  if is-obstacle? language [
    set pcolor black
    stop]

  ifelse length language = 3 [
    let new-color map scaled-color language
    ;show language
    ;show new-color
    set pcolor new-color
    stop
  ]
  [
    set pcolor scaled-color mean language
    stop
  ]
end

to mutate-self
  if is-obstacle? language [stop] ;;don't mutate obstacles
  let new-language (list)
  foreach language [
    set new-language lput (min list 255 (max list 0 (? + ((random-float (mutation-rate) ) * (one-of (list 1 -1)))))) new-language
  ]
  set language new-language
end

to talk-to-neighbors
  let possible-neighbors patches with [distance myself <= speech-radius]
  let num-possible-neighbors (length sort possible-neighbors)
  ask n-of (min (list num-interactions num-possible-neighbors)) possible-neighbors [
    if is-obstacle? language or is-obstacle? [language] of myself [
      stop] ;;don't talk to obstacles
      talk-crawl myself
  ]
end

to talk-average [target]
  if not (distance-between-languages language ([language] of target) < threshold-of-intelligibility) [stop] ;;don't  talk if the languages are too unrelated
  let mean-language mean (list language [language] of target)

  set language mean-language
  ask target [set language mean-language]
end


;move-towards1 moves lang1 towards lang2
;move-towards2 moves lang2 towards lang1
;they're two different procedures because you can't return two values from a procedure
;without some kludge like bundling the values into a list, or having two almost identical procedures

to-report move-towards1 [lang1 lang2 influence]
  let new-lang1 (list)
  (foreach lang1 lang2 [
    ifelse (?1 > ?2) [
      set new-lang1 lput (max (list (?1 - influence) ?2 0)) new-lang1]
    [
      set new-lang1 lput (min (list (?1 + influence) ?2 255)) new-lang1]
  ])
  report new-lang1
end

to-report move-towards2 [lang1 lang2 influence]
  let new-lang2 (list)
  (foreach lang1 lang2 [
    ifelse (?1 > ?2) [
      set new-lang2 lput (min (list (?2 + influence) ?1 255)) new-lang2]
    [
      set new-lang2 lput (max (list (?2 - influence) ?1 0)) new-lang2]
  ])
  report new-lang2
end

to talk-crawl [target]
  ;named talk-crawl because of a procedure I took out called talk-average
  ;this one, in contrast to that one, moves ("crawls") towards the target language instead of averaging their languages

  let target-language [language] of target
  let dist (distance-between-languages language target-language)
  if dist > intelligible-dist [stop] ;; don't talk if the languages are too unrelated
  let influence dist * (influence-factor / 100) ;divided by 100 so I get at states that don't behave like high influence-factor does

  set language move-towards1 language target-language influence
  ask target [set language move-towards2 ([language] of myself) language influence]
end
