Parking with information

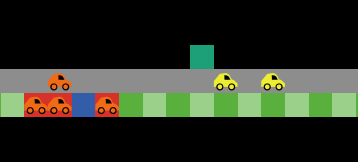

Parking with information preview image

1 collaborator

Default-person zhibin chen (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 5.2.0 • Viewed 239 times • Downloaded 18 times • Run 0 times
Download the 'Parking with information' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

Globals [ticks1 z1 w1 t1 walk avgwalk]
turtles-own [parktimer distparked diststart disttraveled parked]
;;parked is a boolean indicating whether a car is parked or not
;;parktimer is a counter that counts down to when a parked car departs
;;ticks2 is a counter that resets every time a new car is created

;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

to setup
  clear-all
  setup-patches
  setup-turtles
  reset-ticks
  set w1 list "null" "Walking Distance"
  set t1 list "null" "Walking Distance"
  set z1 round(random-exponential arrival_headway)
end

;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

to setup-patches
  ask patch 0 1 [ set pcolor 75]
  ask patches with [ pycor = -1]
  [
    set pcolor green
      if (pxcor mod 2 = 0)
      [
        set pcolor green + 2
      ]
  ]
  ask patches with [pycor = 0]
    [
      set pcolor gray
    ]
end

;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

to setup-turtles
  ask n-of 1 patches with [pycor = -1]
  [
    sprout 1 [set parktimer round((random-exponential depart_headway))]
  ]

  ;print max [count turtles-here] of patches
  ask turtles with [who > 0]
  [
    set color blue
    set shape "car"
    set heading 90
    set pcolor red
  ]

  Ask turtle 0
  [
    set color orange
    set shape "car"
    set heading 90
    set xcor (- startposition)                                           ;;This xcor indicates the spot where someone will start searching
    set ycor 0                                                           ;;ycor of 0 indicates this car is on the road
    set diststart abs(xcor)
    set parked false
  ]
end

;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

to advance
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  ifelse ticks = 0 []
  [                                                                     ;;This is the arrival rate/creation of new cars searching for parking
   ifelse (ticks1 >= z1 and (not any? turtles-on patches with [(pycor = 0) and (pxcor = (- startposition))]))
   [
    create-turtles 1
    [
          set color orange - 2
          set shape "car"
          set heading 90
          set xcor (- startposition)
          set diststart  xcor
          set parked false
          set parktimer round(random-exponential depart_headway)
    ]
    set ticks1 0
    set z1 round(random-exponential arrival_headway)
   ]
   [
    set ticks1 ticks1 + 1
   ]
  ]


   ask turtles with [ (color = orange) and (ycor = 0)]
   [
     ifelse( any? turtles-on patch-at 0 -1)
     [
       forward 1
     ]
     [
       right 90
       forward 1
       set pcolor red
       set distparked abs(xcor)
       set disttraveled (xcor + startposition)
       set w1 lput (abs(distparked)) w1
       set t1 lput (disttraveled) t1
       set parked true
       let walk1 but-first w1
       set walk but-first walk1
       set avgwalk (sum walk / length walk)
      ]
   ]

   ask turtles with [ (color = orange - 2) and (ycor = 0)]
   [
     set color orange
   ]

   ask turtles with [color = yellow]
   [
     forward 1
   ]

   ask turtles with [ycor = -1]                                       ;;Departure code-- Cars will depart when their parktimer is 0. Parktimer is set randomly (exponentially) upon creation.
   [
     ifelse (parktimer <= 0 and (not any? turtles-on patch-at 0 1 ))
     [
       depart
     ]
     [
       set parktimer (parktimer - 1)
     ]
   ]

   ask turtles with [ (xcor = max-pxcor) and (color = yellow)]
   [
     die
   ]
   tick
end

;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

to depart
  set pcolor blue
         set ycor 0
          set heading 90
          set color yellow
end

;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

There is only one version of this model, created about 6 years ago by zhibin chen.
