MorphologicalAnalysis_Tool
Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)
WHAT IS IT?
It is a tool providing basic support for general morphological analysis, a method for structuring and investigating the total set of relationships contained in a multi-dimensional and nonquantifiable problem complex. Morphological Analysis is used in several disciplines, such as strategic analysis, scenario planning, disaster recovery, business continuity, and so on. For more information consult papers and books from T.Ritchey (http://www.swemorph.com) and M.Godet (http://www.laprospective.fr).
As for now, morphological spaces up to 9 categories X 12 cells each can be defined.
HOW IT WORKS

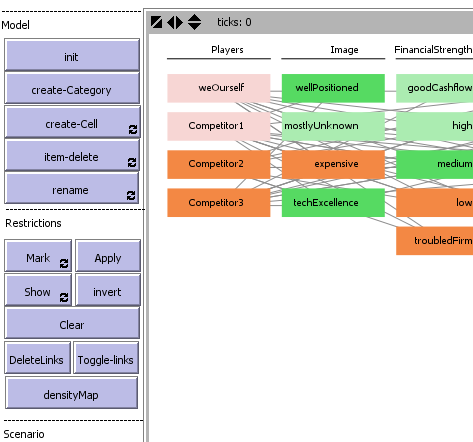

At the interface tab, left most controls let you work with the morphological space (MS) that is shown on the world's view. These controls were spread on four sections:
The Model section holds functions related to the MS edition, that is create, edit and delete categories and / or variables. The Restrictions section let you maintain and explore restrictions between cells. The Scenario section allows define "fixed" variables and solve the morphological space of all configurations valid for that combination (solution space).
Finally, as a "fourth section" below the world's view and at right, there are the controls that let you save or load the models.
HOW TO USE IT
Please hide the command center to see the save and load commands at bottom right.
To load an existing model
Type the file-name on the input control and press the load-model button. A few toy-models has been included with the distribution.
To create a new model
Press the Init button. To create a category, press the create-category button. As a message asking for the category name appears, write it and press OK. To create new cells below the categories, press the create-cell button and then click below the category where you want to add it. Enter the cell description and press OK. You will need to repeat this process for each cell to be created. You can delete an item (category or cell) using item-delete and clicking on it, or change its name using rename.
Once you have defined all categories and its cells, you can start to define restrictions (pairs excluded from any solution space).
On the restrictions section, press the mark button and click on the cell whose restrictions you are going to define; its color will change to pink. Now, you can define all restriction pairs for that cell; to do that, press the mark button and click a cell in other column as many times as needed (cells will turn dark orange). When finished, press apply to register the restrictions, or clear to discard them. If you prefer to mark 'permissions' instead of restrictions, mark them and then press invert before to apply
To see the restrictions defined for any cell, press show and click on the cell. Press deleteLinks to delete all restrictions ( a message asking for confirmation will appear). Pressing toggleLinks you can show or hide the restriction links. To see at once the quantity of restrictions defined for each cell, you can press densityMap. Type a new file-name and save the model when the model is finished.
To work with scenarios
At first, identify the cells defining the scenario pressing define and clicking the cells. Use define and click as many times as necessary, but only one cell by category is allowed and some categories should remain 'unmarked'.
When finished press solve. Green and pink cells will define the solution space, while orange cells are the restricted ones. Press stats to obtain a few numbers about the current state.
At this time you can freeze the scenario, reserving it for future use. At any time you can press recall to see the last frozen scenario (only one scenario is mantained).
To compare scenarios
Assuming you have a previously frozen scenario, act as before to define a second one, and press compare. The comparison is shown as follows: Pink cells : cells defining each scenario. Orange cells : cells pertaining to no solution space. Dark-green cells : cells pertaining to both solution spaces. Medium-green cells : cells pertaining only to the solution space of the last scenario. Light-green cells : cells pertaining only to the solution space of the 'frozen' scenario.
Please note the logical relations:
Frozen OR new scenario = all the green cells. Frozen AND new scenario = dark-green cells. Frozen XOR new scenario = medium- and light green cells. Frozen AND NOT (minus) new scenario = light-green cells. New AND NOT (minus) frozen scenario = medium-green cells.
You can not freeze a comparison of scenarios.
After working with scenarios or comparisons, use the clear button from the restrictions sections to clear the results.
CREDITS AND REFERENCES
Developped by Carlos Roca ( rocacarlosa@gmail.com) as part of MoNET (Modelizacion del Negocio, la Empresa y su Tecnologia) open source ressources.
About the NetLogo software
- Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.
About Morphological Analysis
- T.Ritchey, at http://www.swemorph.com and http://www.ritcheyconsulting.org.
- M.Godet, at http://www.laprospective.fr.
COPYRIGHT NOTICE & DISCLAIMER
Copyright 2015 Carlos Roca. All rights reserved.
Permission to use, modify or redistribute this model is hereby granted, provided that both of the following requirements are followed:
a) this copyright notice is included.
b) the users understand and agree that the author does not assume any responsibility about that use.
Comments and Questions
globals [ mouseX mouseY max-categories ; maximum of categories allowed max-cells-in-column ; maximum of cells per column num_categories ; current number of categories column-offset ; from left, start of first category columns-width ; just that cells-height ; Idem header-offset ; headers-line ; header's ycor cells-base-color primary-cell-color secondary-cell-color solution-space-color and-color xor-color-this xor-color-frozen;; for compare solution spaces' function initial-cell-defined ; first cell defined whed edit field initial-cell-column ; column of initial cell toggle-links-flag frozen-primary-cells ; list of frozen cells [ [ catN nCell ] ... ] frozen-solution-cells ] breed [cells cell] cells-own [ catN nCell myLabel myDoc] breed [categories category] categories-own [ catN cellsHere myLabel ] breed [banners banner] banners-own [ catN ] undirected-link-breed [ rejected-links rejected-link ] undirected-link-breed [ banner-links banner-link ] to setup clear-all set-default-shape cells "rectangle" set-default-shape categories "category" ask patches [ set pcolor white] set max-categories 9 set max-cells-in-column 12 set num_categories 0 set column-offset 5 set header-offset 5 set columns-width 9 set cells-height 3 set headers-line 39 set cells-base-color 48 ; light yellow set primary-cell-color 19 ; light red set secondary-cell-color 26 ; orange + 1 set solution-space-color 67 ; light green set and-color 64 ;; lime set xor-color-this 66 ;; lime + 3 (from last 'solve') set xor-color-frozen 68 ;; lime + 3 (from frozen) set initial-cell-defined false set toggle-links-flag true set frozen-primary-cells [] set frozen-solution-cells [] reset-ticks end to go ifelse toggle-links-flag = true [ ask rejected-links [ hide-link ] set toggle-links-flag false ] [ ask rejected-links [ show-link ] set toggle-links-flag true ] end to create-cell if mouse-down? [ let xmouse mouse-xcor if xmouse < column-offset + columns-width * num_categories [ let cat int(xmouse / columns-width ) let cells-in-category [cellsHere] of one-of categories with [ catN = cat + 1] if cells-in-category >= max-cells-in-column [ user-message "max cells in column were reached" stop ] let cell-text user-input "description ?" if cell-text = "" or length cell-text > 20 [ stop ] addCell cat cell-text stop ] ] end to addCell [ cat cell-text ] create-cells 1 [ set catN cat + 1 set myLabel cell-text ask categories with [ catN = cat + 1 ] [ set cellsHere cellsHere + 1 ] let myCellNumber [ cellsHere ] of one-of categories with [ catN = cat + 1 ] set nCell myCellNumber setxy column-offset + cat * columns-width headers-line - myCellNumber * cells-height set size 9 set color cells-base-color attach-banner catN cell-text xcor ycor ] end to attach-banner [catNber cell-text x y] ;; circle procedure hatch-banners 1 [ set size 0 set xcor x + 2 set ycor y set label cell-text set catN catNber set label-color black create-banner-link-with myself [ tie hide-link ] ] end to create-category if num_categories = max-categories [ user-message "max categories reached" stop ] let catName user-input "Category ?" if catName = "" [ stop ] addCategory num_categories catName end to addCategory [ catNumber catName ] set num_categories num_categories + 1 create-categories 1 [ setxy column-offset + (num_categories - 1) * columns-width headers-line set catN catNumber + 1 set cellsHere 0 set myLabel catName let x xcor let y ycor set heading 0 set size 9 set color black hatch-banners 1 [ set size 0 set xcor x + 2 set ycor y set label catName set catN catNumber + 1 set label-color black create-banner-link-with myself [ tie hide-link ] ] ] end to item-edit if mouse-down? [ let thisItem min-one-of turtles [ distancexy mouse-xcor mouse-ycor ] if thisItem = nobody [ stop ] if is-cell? thisItem or is-category? thisItem [ let chgMessage word "Please type new description to replace " [ myLabel ] of thisItem let newLabel user-input chgMessage let oldLabel "" let my_label_position 0 ask thisItem [ set oldLabel myLabel set myLabel newLabel set my_label_position xcor + 2] ask banners with [ (label = oldLabel) and (xcor = my_label_position) ] [ set label newLabel ] stop ] ] end to item-delete if mouse-down? [ let isCategory false let thisItem min-one-of turtles [ distancexy mouse-xcor mouse-ycor ] ; nearest turtle from click if thisItem = nobody [ stop ] ; ... if any ifelse is-cell? thisItem [ let isCell true ] [let isCell false ] let catToDelete [ catN ] of thisItem if is-banner? thisItem [ stop ] let confirmMessage word "Please confirm you want to delete " [ myLabel ] of thisItem let deleted_cell_number 0 if user-yes-or-no? confirmMessage [ if is-category? thisItem ; if category, all cells in column should be deleted [ set isCategory true set num_categories num_categories - 1 ask cells with [ catN = catToDelete ] [ let my_label_position xcor + 2 ask banners with [ (label = [myLabel] of myself) and ( xcor = my_label_position) ] [ die ] die ] ] ask thisItem ; and now the item itself can be deleted [ let my_label_position xcor + 2 if not is-category? thisItem [ set deleted_cell_number nCell ] ; but when cell, reserve number to housekeeping ask banners with [ (label = [myLabel] of myself) and ( xcor = my_label_position) ] [ die ] die ] ifelse isCategory ; done, now reposition picture [ ask cells with [ catN > catToDelete ] ; on a category delete, all columns right should be shifted left [ set catN catN - 1 let my_label_position xcor + 2 set xcor xcor - columns-width ask banners with [ (label = [myLabel] of myself) and ( xcor = my_label_position) ] [ set xcor xcor - columns-width ] ] ask categories with [ catN > catToDelete ] [ set catN catN - 1 let my_label_position xcor + 2 set xcor xcor - columns-width ask banners with [ (label = [myLabel] of myself) and ( xcor = my_label_position) ] [ set xcor xcor - columns-width ] ] ] [ ask cells with [ catN = catToDelete and nCell > deleted_cell_number ] [ let my_label_position xcor + 2 set ycor ycor + cells-height set nCell nCell - 1 ] ask categories with [ catN = catToDelete ] [ set cellsHere cellsHere - 1 ] ] stop ] ] end to save-model if file-exists? file-name [ ifelse user-yes-or-no? "File exists. Do you want to overwrite it?" [ file-delete file-name ] [ stop ] ] ifelse num_categories <= 1 [ user-message "Nothing to be saved !" ] [ file-open file-name let thisCat 1 let catName "" let numCells 0 let thisCell 0 let cellDescription "" while [ thisCat <= num_categories ] [ set catName [ myLabel ] of one-of categories with [ catN = thisCat ] file-write catName set numCells [ cellsHere ] of one-of categories with [ catN = thisCat ] file-write numCells set thisCell 1 while [ thisCell <= numCells ] [ set cellDescription [ myLabel ] of one-of cells with [ catN = thisCat and nCell = thisCell ] file-write cellDescription set thisCell thisCell + 1 ] set thisCat thisCat + 1 ] file-write "LINKS-LIST" ask rejected-links [ let cat1 [catN] of end1 let cellN1 [nCell] of end1 let cat2 [catN] of end2 let cellN2 [nCell] of end2 file-write cat1 file-write cellN1 file-write cat2 file-write cellN2 ] file-close user-message "File has been saved" ] end to load-model setup ifelse file-exists? file-name [ ; set loading-flag true file-open file-name let eof false let first-field "" let processing-links false let currentCatNumber 1 let currentCatName "" let cellsNumber 0 let newCell 0 let cellName "" while [ not file-at-end? ] [ set currentCatName file-read if currentCatName = "LINKS-LIST" [ set processing-links true ifelse file-at-end? [ set eof true] [set currentCatName file-read]] if eof = false [ ifelse processing-links = false [ ; Read model set cellsNumber file-read addCategory currentCatNumber - 1 currentCatName set newCell 1 while [ newCell <= cellsNumber ] [ set cellName file-read addCell currentCatNumber - 1 cellName set newCell newcell + 1 ] set currentCatNumber currentCatNumber + 1 ] [ ; Links update set processing-links true let cat1 currentCatName let cell1 file-read let cat2 file-read let cell2 file-read ask cells with [ catN = cat1 and nCell = cell1] [ create-rejected-links-with cells with [ catN = cat2 and nCell = Cell2 ] ] ] ] ] file-close ;set loading-flag false ] [ user-message "File does not exists !" ] end to define-restrictions if mouse-down? [ let thisItem min-one-of cells [ distancexy mouse-xcor mouse-ycor ] if is-cell? thisItem and [catN] of thisItem != initial-cell-column [ let thisItem-color [color] of thisItem ifelse initial-cell-defined = true [ ifelse thisItem-color = cells-base-color [ ask thisItem [ set color secondary-cell-color ] ] [ if thisItem-color = secondary-cell-color [ ask thisItem [ set color cells-base-color ask my-rejected-links [ die ] ] ] ] ] [ if thisItem-color = cells-base-color [ ask thisItem [ set color primary-cell-color set initial-cell-column catN ask rejected-link-neighbors [ set color secondary-cell-color] ] set initial-cell-defined true ] ] stop ] ] end to invert ;; provided that only primary, secondary and base cells are on the world, ;; turn secondaries on base and viceversa let noWay false ask cells [ if color != primary-cell-color and color != secondary-cell-color and color != cells-base-color [ set noWay true ] ] if noWay = true [ user-message "Only restrictions sets can be inverted" stop ] let catOfSelected [catN] of one-of cells with [ color = primary-cell-color ] let catNumber 1 while [ catNumber <= num_categories ] [ if count cells with [ color = secondary-cell-color and catN = catNumber ] > 0 [ ask cells with [ catN != catOfSelected and catN = catNumber ] [ ifelse color = secondary-cell-color [ set color cells-base-color ] [ if color = cells-base-color [ set color secondary-cell-color ] ] ] ] set catNumber catNumber + 1 ] end to Apply-restrictions ask cells with [ color = primary-cell-color ] [ create-rejected-links-with cells with [ color = secondary-cell-color ]] user-message "Selected restrictions has been applied" ask cells [ set color cells-base-color ] set initial-cell-defined false set initial-cell-column 0 end to show-restrictions if mouse-down? [ let thisItem min-one-of cells [ distancexy mouse-xcor mouse-ycor ] if is-cell? thisItem [ ask thisItem [ set color primary-cell-color ask rejected-link-neighbors [ set color secondary-cell-color ] ] ] stop ] end to clear-all-restrictions ask cells [ set color cells-base-color ] set initial-cell-defined false set initial-cell-column 0 end to define-scenario if mouse-down? [ let thisItem min-one-of cells [ distancexy mouse-xcor mouse-ycor ] if is-cell? thisItem [ let thisItem-color [color] of thisItem ifelse thisItem-color = cells-base-color [ ask thisItem [ set color primary-cell-color ] ] [ ask thisItem [ set color cells-base-color ] ] ] stop ] end to solve-scenario ;;;; Only one selected cell by column is allowed let noChange true repeat num_categories - 1 [ ;; if any pair of selected cells is rejected => no solution let noSolution false ask cells with [ color = primary-cell-color ] ;; ask all selected cells [ if any? rejected-link-neighbors with [ color = primary-cell-color ] and noSolution = false ;; if they have some neighbor also selected [ user-message "No solution for the selected cells" set noSolution true stop ] ;; in such a case, there's no solution. ] if noSolution = true [ stop ] ;; to continue has no sense ;; at first, reject all non-selected cells of a column with selected ones ask cells with [ color = primary-cell-color ] [ let thisCat catN ask cells with [ catN = thisCat and color != primary-cell-color ] [ set color secondary-cell-color ] ;; also reject cells linked by rejection-links ask rejected-link-neighbors [ set color secondary-cell-color ] ] ;; remaining cells are marked as candidates to solution ask cells with [color = cells-base-color] [ set color solution-space-color] ;; now, validate they are really solutions ask cells with [ color = solution-space-color ] [ let myCat catN let catNumber 1 while [catNumber <= num_categories] [ let mark-out false if catNumber != myCat [ let available-cells count cells with [ color = solution-space-color and [catN] of self = catNumber] let inhibited-cells count cells with [ [catN] of self = catNumber and color = solution-space-color and ( rejected-link-neighbor? myself or any? rejected-link-neighbors with [ color = primary-cell-color]) ] if available-cells = inhibited-cells and available-cells != 0 [ set mark-out true ] ] if mark-out = true [ set color secondary-cell-color set noChange false] set catNumber catNumber + 1 ] ] ;; Assure that at least one solution is available let catNumber 1 while [catNumber <= num_categories] ;; It remains at least one solution-cell by column? [ let solution-cells count cells with [ color = solution-space-color and catN = catNumber] let primary-cells count cells with [ color = primary-cell-color and catN = catNumber] if solution-cells + primary-cells = 0 [ user-message word "No solution because of " [ myLabel ] of one-of categories with [ catN = catNumber ] set noChange true ] set catNumber catNumber + 1 ] if noChange = true [ stop ] ] end to reset-all-links ; delete all rejected-links if user-yes-or-no? "Please confirm deletion of all restrictions !" [ ask rejected-links [ die ] clear-all-restrictions ] end to freeze ifelse any? cells with [ color = solution-space-color ] [ set frozen-primary-cells [ ] ask cells with [ color = primary-cell-color ] [ let thisCell [ ] set thisCell lput catN thisCell set thisCell lput nCell thisCell set frozen-primary-cells lput thisCell frozen-primary-cells ] set frozen-solution-cells [ ] ask cells with [ color = solution-space-color ] [ let thisCell [ ] set thisCell lput catN thisCell set thisCell lput nCell thisCell set frozen-solution-cells lput thisCell frozen-solution-cells ] user-message "Solution space frozen." ] [ user-message "No solution space to freeze." ] end to compare ifelse any? categories and any? cells and length frozen-primary-cells > 0 [ foreach frozen-primary-cells ;; set primary cells from frozen [ let nCat item 0 ? let cellN item 1 ? ask one-of cells with [ catN = nCat and nCell = cellN ] [ set color primary-cell-color ] ] ask cells with [ color = primary-cell-color ] ;; mark as rejected cells not selected on columns with primaries [ let thisCat catN ; remaining cells on selected cells' columns are rejected ask cells with [ catN = thisCat and color != primary-cell-color ] [ set color secondary-cell-color ] ] ask cells with [ color = solution-space-color ] [ let listElement list catN nCell ifelse member? listElement frozen-solution-cells [ set color and-color ] [ set color xor-color-this ] ] ask cells with [ color = secondary-cell-color ] [ let listElement list catN nCell if member? listElement frozen-solution-cells [ set color xor-color-frozen ] ] ] [ user-message "Nothing to compare with." ] end to recall ask cells [ set color secondary-cell-color ] foreach frozen-primary-cells [ ask cells with [ catN = item 0 ? and nCell = item 1 ? ] [ set color primary-cell-color] ] foreach frozen-solution-cells [ ask cells with [ catN = item 0 ? and nCell = item 1 ? ] [ set color solution-space-color] ] end to stats ifelse any? categories and any? cells [ let totCells count cells let L1 (word "\nCategories : " num_categories "\nCells : " totCells) let totScen reduce * [cellsHere] of categories set L1 (word L1 "\nTotal configurations : " totScen) let catList remove-duplicates [catN] of categories let cellList map [ count cells with [ catN = ? and ( color != secondary-cell-color) ] ] catList let solSpaceSize reduce * cellList let L2 word "\nSelected configurations : " solSpaceSize set L1 word L1 L2 let redFactor precision ( 100 * ( totScen - solSpaceSize ) / totScen) 2 set L1 ( word L1 "\nReduction factor : " redFactor " %.\n--------------------" ) let colorCells count cells with [ color = primary-cell-color] if colorCells > 0 [ set L1 ( word L1 "\nSelected Cells : " colorCells) ] set colorCells count cells with [ color = secondary-cell-color] if colorCells > 0 [ set L1 ( word L1 "\nInhibited Cells : " colorCells) ] set colorCells count cells with [ color = solution-space-color] if colorCells > 0 [ set L1 ( word L1 "\nSolution Space Cells : " colorCells) ] set colorCells count cells with [ color = and-color] if colorCells > 0 [ set L1 ( word L1 "\nAND Cells : " colorCells) ] set colorCells count cells with [ color = xor-color-this] if colorCells > 0 [ set L1 ( word L1 "\nXOR Cells from last : " colorCells) ] set colorCells count cells with [ color = xor-color-frozen] if colorCells > 0 [ set L1 ( word L1 "\nXOR Cells from frozen : " colorCells) ] user-message L1 ] [ user-message "No model has been defined." ] end to show-density clear-all-restrictions ask cells [ let myLinksQty count rejected-link-neighbors set color scale-color red myLinksQty 30 0 ] end
There is only one version of this model, created over 8 years ago by Carlos Roca.
Attached files
File | Type | Description | Last updated | |
---|---|---|---|---|
abstractTest.ma | data | Sample file #0 | over 8 years ago, by Carlos Roca | Download |
competitivespace1.ma | data | Sample file #2 | over 8 years ago, by Carlos Roca | Download |
MorphologicalAnalysis_Tool.png | preview | Preview for 'MorphologicalAnalysis_Tool' | over 8 years ago, by Carlos Roca | Download |
techSpace.ma | data | Sample file #1 | over 8 years ago, by Carlos Roca | Download |
