GenJam-Mixed

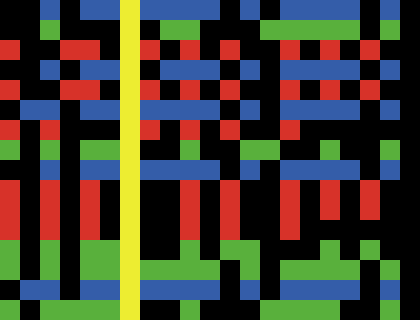

GenJam-Mixed preview image

1 collaborator

Default-person Connor Bain (Author)

Tags

music

Tagged by Connor Bain almost 8 years ago

Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.0-M6 • Viewed 201 times • Downloaded 21 times • Run 0 times
Download the 'GenJam-Mixed' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

extensions [ sound ]

globals [
 chromosomes-duple ;; list of all possible duple chromosomes
 chromosomes-triple ;; list of all possible triple chromosomes
 random-whos ;; keeps a shuffled list for pretty-ness
 generations ;; number of generations we've seen
]

turtles-own [
  my-chromosomes my-pattern ;; lists to hold the chromosomes and hit-pattern of a drummer
  my-velocity my-instrument ;; the (int) velocity value and (string) MIDI instrument for that turtle
  mutation-rate ;; variables to control "reproduction"
  hits ;; counts the number of drum hits for a turtle
  hits-since-evolve ;; the number of hits since a mutation or evolution
]

breed [ low-drums low-drummer ]
breed [ med-drums med-drummer ]
breed [ high-drums high-drummer ]

to setup
  ca
  ;; Make the view big enough to show 16 lines and however many 'beats'
  resize-world 0 ((num-chromosomes / 3 * 7) - 1) 0 15
  set-globals
  set-initial-turtle-variables
  reset-ticks
  update-view
end

;; Method to play a pattern without any evolution

to go-no-evolve
  ask turtles [
    play ;; includes end of life
  ]
  update-view
  tick
  wait 60 / TEMPO-BPM / 7
end

;; Method to play a pattern with evolution

to go
  ask turtles [
   play
  ]
  ;; If we've reached the end of a pattern, do some evolution!
  if (ticks mod (num-chromosomes / 3 * 7) = 0) and (ticks != 0) [
    set generations generations + 1
    go-evolve
  ]
  update-view
  tick
  wait 60 / TEMPO-BPM / 7   ;; This roughly sets temp
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; PLAY FUNCTIONS ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to play-my-drum ;; turtle proceudre
  let temp my-velocity
  if sound? [
    if solo? [ ;; If you're a soloer, play out! Otherwise, SHHHH.
      ifelse who = soloer [
        set temp my-velocity + 50
      ]
      [
        set temp my-velocity - 50
      ]
   ]
    sound:play-drum my-instrument temp
  ]
end

to play ;; turtle procedure
  if is-low-drummer? self [
    if item (ticks mod (num-chromosomes / 3 * 7)) my-pattern = 1 [
      play-my-drum
      set hits hits + 1
      set hits-since-evolve hits-since-evolve + 1
    ]
  ]

  if is-med-drummer? self [
    if item (ticks mod (num-chromosomes / 3 * 7)) my-pattern = 1 [
      play-my-drum
      set hits hits + 1
      set hits-since-evolve hits-since-evolve + 1
    ]
  ]

  if is-high-drummer? self [
    if item (ticks mod (num-chromosomes / 3 * 7)) my-pattern = 1 [
      play-my-drum
      set hits hits + 1
      set hits-since-evolve hits-since-evolve + 1
    ]
  ]
end
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; END PLAY FUNCTIONS ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; EVOLUTION FUNCTIONS ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to go-evolve
  ;; If there isn't a soloist, ask 2 of each type to evolve
  ifelse not solo? [
    ask n-of 2 low-drums [
      evolve
    ]
    ask n-of 2 med-drums [
      evolve
    ]
    ask n-of 2 high-drums [
      evolve
    ]
    ;; If a drummer hasn't changed in a while, mutate
    ask turtles with [hits-since-evolve > hit-limit] [
      mutate
      set hits-since-evolve 0
    ]
  ] [ ;; If there is a soloist, do the same, but don't include the soloer
   ask n-of 2 low-drums with [who != soloer] [
      evolve
    ]
    ask n-of 2 med-drums with [who != soloer] [
      evolve
    ]
    ask n-of 2 high-drums with [who != soloer]  [
      evolve
    ]
    ;; If a drummer hasn't changed in a while, mutate
    ask turtles with [hits-since-evolve > hit-limit and who != soloer] [
      mutate
      set hits-since-evolve 0
    ]
  ]
end

to evolve ;; turtle procedure
 let mate nobody
 let list-of-fitnesses []
 let search-fitness 0
 if is-low-drummer? self [
   set list-of-fitnesses [fitness] of other breed
   set search-fitness select-random-weighted-fitness list-of-fitnesses
   set mate one-of other breed with [fitness = search-fitness]
 ]

 if is-med-drummer? self [
   set list-of-fitnesses [fitness] of turtles with [breed != [breed] of myself]
   set search-fitness select-random-weighted-fitness list-of-fitnesses
   set mate one-of turtles with [(breed != [breed] of myself) and (fitness = search-fitness)]
 ]

 if is-high-drummer? self [
   set list-of-fitnesses [fitness] of other breed
   set search-fitness select-random-weighted-fitness list-of-fitnesses
   set mate one-of other breed with [fitness = search-fitness]
 ]

 let offspring-chromosomes reproduce-with mate

 ask min-one-of other breed with [who != soloer] [fitness] [
   set my-chromosomes offspring-chromosomes
   update-pattern
   set hits-since-evolve 0
 ]
end

;; This is where the basic genetic algorithm comes in

to-report reproduce-with [mate] ;; turtle procedure
  ;; ASKER IS 1st Parent MATE is 2nd parent
  ;;; my-chromosomes
  let her-chromosomes [my-chromosomes] of mate

  ;; Pick a random cross-over point
  let crossover-point random length my-chromosomes

  ;; Combine the chromosomes
  let baby-chromosomes sentence (sublist my-chromosomes 0 crossover-point) (sublist her-chromosomes crossover-point length her-chromosomes)

  ;; Do a little mutation
  let mutation-chance 0
  if is-low-drummer? self [
    set mutation-chance 50
  ]
  if is-med-drummer? self [
    set mutation-chance 25
  ]
  if is-high-drummer? self [
    set mutation-chance 10
  ]

  ;; Maybe actually mutate
  if random 100 > mutation-chance [
    set baby-chromosomes mutate-chromosomes baby-chromosomes
  ]
  report baby-chromosomes
end


;; FITNESS FUNCTIONS ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; Dependent on breed, because you can lose fitness or gain fitness by fitting to your particular proclivities

to-report fitness ;; turtle procedure
  ;; Arbirtrary 10% window around target density
  let my-fitness 0

  ;; Want to be under the hit-density and be on the downbeats
  if is-low-drummer? self [
    set my-fitness downbeat-fitness
    if my-density-fitness > (hit-density-modifier - 10) [
      set my-fitness my-fitness / 1.5
    ]
  ]

  ;; Want to be at the hit-density and be on the off-beats
  if is-med-drummer? self [
    set my-fitness offbeat-fitness
    if (my-density-fitness < hit-density-modifier - 10) or (my-density-fitness > hit-density-modifier + 10) [
      set my-fitness my-fitness / 2
    ]
  ]

  ;; Want to be above the hit-density and have lots o' clusters
  if is-high-drummer? self [
    set my-fitness offbeat-fitness
    if my-density-fitness < hit-density-modifier + 10 [
      set my-fitness my-fitness / 2
    ]
  ]
;; use add 1 smoothing
report my-fitness + 1
end

to-report my-density-fitness ;; turtle procedure
  report sum my-pattern / length my-pattern * 100
end

to-report cluster-fitness ;; turtle procedure
 ;; window size at 3
 let i 4
 let cluster-count 0
 while [i <= length my-pattern] [
   if (sum sublist my-pattern (i - 4) i) = 3 [
     set cluster-count cluster-count + 1
   ]
 ]
 ;; Lots of clusters relative to the notes I play
 report cluster-count / sum my-pattern * 100
end

to-report offbeat-fitness ;; turtle procedure
 let offbeat-count 0
 foreach n-values length my-pattern [?] [
  if member? (? mod 7) [1 3 5 6] [
    if item ? my-pattern = 1 [
      set offbeat-count offbeat-count + 1
    ]
   ]
 ]
 if offbeat-count = 0 [ report 0 ]
 ;; You want more off-beats and less down-beats
 report offbeat-count / sum my-pattern * 100
end

to-report downbeat-fitness ;; turtle procedure
 let downbeat-count 0
 foreach n-values length my-pattern [?] [
  if member? (? mod 7) [0 2 4] [
    if item ? my-pattern = 1 [
      set downbeat-count downbeat-count + 1
    ]
   ]
 ]
 if downbeat-count = 0 [ report 0 ]
 ;; In other words, you want lots of downbeats in comparison to your other notes
 report downbeat-count / sum my-pattern * 100
end

to mutate ;; turtle procedure
  set my-chromosomes mutate-chromosomes my-chromosomes
  update-pattern
end

;; Method to mutate a chromosome

to-report mutate-chromosomes [the-chromosomes]
  ;; basically picks a chromosome, mutates it, returns a new set
  let new-chromosomes the-chromosomes
  repeat num-mutations [
    let temp random num-chromosomes
    ifelse (temp + 1) mod 3 != 0 [

      set new-chromosomes replace-item temp new-chromosomes ((round (random-normal (item temp new-chromosomes) mutation-strength)) mod 4)
    ;; DUPLE CHROMOSOME
    ] [
       set new-chromosomes replace-item temp new-chromosomes ((round (random-normal (item temp new-chromosomes) mutation-strength)) mod 8)
    ]
  ]
  report new-chromosomes
end
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; END EVOLUTION FUNCTIONS ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; HELPER FUNCTIONS ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; Called after a chromosome update in order to redefine that turtle's pattern

to update-pattern ;; turtle method
  set my-pattern []
  let i 0
  foreach my-chromosomes [
   ifelse (i + 1) mod 3 != 0 [
    ;; DUPLE
       set my-pattern sentence my-pattern (get-duple-chromosome ?)
   ] [
    ;; TRIPLE
       set my-pattern sentence my-pattern (get-triple-chromosome ?)
   ]
   set i i + 1
  ]
end

to set-globals
  set generations 0
  set random-whos n-values 16 [?]
  ;; this is just for looks.
  if shuffle-parts? [
    set random-whos shuffle random-whos
    set random-whos shuffle random-whos
  ]

  ;; CHROMOSOME LIBRARY
  let c0 [0 0 0]
  let c1 [1 0 0]  let c2  [0 1 0] let c3 [0 0 1]
  let c4 [1 0 1]  let c5  [1 1 0] let c6 [0 1 1]
  let c7 [1 1 1]
  set chromosomes-triple (list c0 c1 c2 c3 c4 c5 c6 c7)

  set c0 [0 0]
  set c1 [1 0] set c2 [0 1]
  set c3 [1 1]
  set chromosomes-duple (list c0 c1 c2 c3)
  ;; END CHROMOSOME LIBRARY
end

to set-initial-turtle-variables
  create-low-drums 6 [
    set my-instrument "LOW CONGA"
    set my-velocity 85
    set color red
    set mutation-rate 64
  ]

  create-med-drums 5 [
    set my-instrument "Bass Drum 1"
    set color green
    set my-velocity 85
    set mutation-rate 32
  ]

  create-high-drums 5 [
    set my-instrument "Closed Hi Hat"
    set color blue
    set my-velocity 85
    set mutation-rate 16
  ]

  ask turtles [
    set my-pattern []
    set my-chromosomes (n-values num-chromosomes [1])
    ht
    update-pattern
    set hits 0
  ]
end

;; Method to update the view (simplified music notation)

to update-view
 ask turtles [
   let temp 0
   let row item who random-whos
   foreach my-pattern [
     ifelse ? = 1 [
       ifelse solo? and (soloer = who) [
         ask patch temp row [set pcolor white]
       ] [
         ask patch temp row [set pcolor [color] of myself]
       ]
     ] [
     ask patch temp row [set pcolor black]
     ]
     set temp temp + 1
   ]
 ]
 ask patches with [pxcor = (ticks mod (num-chromosomes / 3 * 7))] [set pcolor yellow]
end

;; Method to get a triple chromosomes pattern from the library

to-report get-triple-chromosome [index]
  report item index chromosomes-triple
end

;; Method to get a duple chromosomes pattern from the library

to-report get-duple-chromosome [index]
  report item index chromosomes-duple
end


;; This is my version picking a weighted random turtle

to-report select-random-weighted-fitness [theList]
   let weighted-list []
   foreach theList [
     ;; add one smoothing
     let temp ?
     foreach n-values round ((? / sum theList * 100) + 1) [?] [
       set weighted-list fput temp weighted-list
     ]
   ]
   report item (random length weighted-list) weighted-list
end

;;; OLD CODE
;breed [ low-drums low-drummer ]
;;; Atsimevu
;;; 64 Low Conga
;;; 63 Open Hi Conga
;;; 52 Mute Hi Conga
;;;  open-hand open-fingers slap-fingers slap-two-fingers ;; Options for hit
;
;;; Sogo or Kidi
;;; MIDI INSTRUMENT 117. Taiko Drum
;breed [ med-drums med-drummer ]
;
;;; Kagan
;;; 65. Hi Timbale
;breed [ high-drums high-drummer ]

There is only one version of this model, created almost 8 years ago by Connor Bain.

Attached files

File Type Description Last updated
GenJam-Mixed.png preview Preview for 'GenJam-Mixed' almost 8 years ago, by Connor Bain Download

This model does not have any ancestors.

This model does not have any descendants.
