extensions [nw csv]

;;; Это описание пород агентов, которые есть в программе - к каждой породе ее собственные переменные

breed [users user] ;
breed [pages page] ;

directed-link-breed  [bonds bond] ; создание
directed-link-breed [editbonds editbond] ; редактирование


undirected-link-breed [friendbonds friendbond] ;

undirected-link-breed [uulinks uulink] ;
uulinks-own [colpages] ;


users-own [agentname pages_list edit_list friend_list my_friends ] ;
;; мое имя, страницы, которые создал, страницы, которые редактировал

pages-own [pagename my_author editors_list  http ] ;
;; мое имя, автор и редактора

bonds-own [edits] ;
editbonds-own [ed] ;


undirected-link-breed [unsselinks unsselink] ; - связи, основанные на том, что редактировал объект другого автора
unsselinks-own [colpages]


globals [wikihistory user_list step nlinks ] ;



;;; Очистили,  закрыли и обнулили все,

to startup
clear-all ;
 set-default-shape users "person" ;
  set-default-shape pages "square" ;
set-default-shape friendbonds "comment" ;

file-close;
  set wikihistory [] ;
  set user_list [] ;
  if (file-exists? "go_ban3.gif" ) [import-drawing "go_ban3.gif" ]
end


;;  Загрузили данные

to load_file
   file-open user-file
           while [ not file-at-end? ]     [
             set wikihistory  lput   csv:from-row file-read-line  wikihistory
            ]
             file-close
end



;;;;;;;;;

to present
 reset-ticks
  ;; насколько мы их сдвигаем от центра
  set step max-pxcor /  (length  remove-duplicates map [first ?] wikihistory)
  set nlinks 0
  foreach  wikihistory [
  visual ?
    layout-spring  turtles links 0.1 1 0.3
    tick ;
  ]
end


  ;; Надо, чтобы они появлялись в нужном месте!!!! А то они все в центре

to visual [flist]
 let agent_name first flist ;; это мы просто считали имена агентов и страниц
 let page_name first bf flist ;; это имя страницы
    let newpage 0
;; если у нас юзера с этим именени - создаем юзера с именен ;

if (not any? pages with [pagename = page_name]) [
  create-ordered-pages 1
   [
                 ;;ht   ;; Не показываем страницы
       set size 0.8
       set color green
       set pagename page_name ;
        set editors_list [] ;
       set newpage 1
   ]
   ]


if (not any? users with [agentname = agent_name])   [
  create-ordered-users 1 [
   set size 1.6
   set color orange
   set pages_list [] ;
    set edit_list [] ;
   set agentname agent_name ;

   rt random 360 fd step * count users

  ]
  ]


         let who_user [who] of one-of users with [agentname = agent_name] ;
         let who_page [who] of one-of pages with [pagename = page_name] ;


         if newpage = 1   ;; Если страница в первый раз - значит она создается
         [
                ask page who_page  [set my_author who_user move-to user who_user rt random 360 fd 1  ] ;
                ask user who_user [
                  create-bond-to page who_page
                  set pages_list lput who_page pages_list
                  ] ;
                stop ;
             ]


                     ask user who_user [
                       if (who_user = [my_author] of page who_page) or (member? who_user [editors_list] of page who_page) [stop]

                    create-editbond-to page who_page
                     set edit_list lput who_page edit_list
                     ask page who_page [set editors_list lput who_user editors_list]
                    ;; stop
                     ]

   ;;        stop
end

to table_output
  nw:set-context turtles links
  file-open user-new-file
file-print "General information" ;
 file-print csv:to-row (list
   "Num_agents"
   "Num_objects"
   "Num_links"
   "Density"
   ) ;
 file-print csv:to-row (list
   count users
   count pages
   count links
   density
     )

 file-print "Agents" ;
 file-print csv:to-row (list
    "Agentname"
   "userID"
   "PagesCreates"
   "Usefulness"
  "Edits"
  "Benefit"
   "MyLinks"
   "Norm-Betweenness"
   "PageRank"
   ) ;


  foreach reverse sort-on [nw:page-rank] users [file-print csv:to-row
    (list
      [agentname] of ?
      [who] of ?
      [length pages_list] of ?
      [length pages-editors pages_list] of ? ;; сколько с ним связались
     [length edit_list] of ?
          [length page-authors edit_list] of ? ;; со сколькими он связался
      [count my-links ] of ?
      [norm-betweenness] of ?
    precision   [nw:page-rank] of ? 3
    )
    ]

;; Ideas ;;
 file-print "Objects" ;
 file-print csv:to-row (list
   "PageName"
   "PageID"
   "Author"
  "Edits"
  "Norm-Betweenness"
"PageRank"
   ) ;
  foreach reverse sort-on [nw:page-rank] pages [file-print  csv:to-row (list
      [pagename] of ?
      [who] of ?
      [agentname] of user [my_author] of ?
      [length editors_list] of ?
[norm-betweenness] of ?
[nw:page-rank] of ?

      ) ]


 file-close
end

;;;
;; Выявление

to-report page-authors [list1]
    if empty? list1 [report []]
report remove-duplicates map [[my_author] of page ?] list1
end

to-report pages-editors [list1]
  if empty? list1 [report []]
report remove-duplicates reduce sentence map [[editors_list] of page ?] list1
end


;;; у нас есть список и мы хотим перевести его в имена черепах - наверное map

to-report names-from-list [inlist]
  report map [[agentname] of user ?] inlist
end

;;;;
;;;   Нормированная центральности

to-report norm-betweenness
  if count turtles > 4 [report precision (nw:betweenness-centrality /  ((count turtles - 1) *  (count turtles - 2) / 2 )) 2 ]
  report 0
end

to-report centralization-btw
 let znm ((count turtles - 1) * (count turtles - 1) *  (count turtles - 2)) / 2 ;
 let mx  max [nw:betweenness-centrality] of turtles ;
report (sum map [mx - ?] [nw:betweenness-centrality] of turtles ) / znm
end

to-report density
 if count turtles > 2 [ report (2 * count links) / ( (count turtles) * ( (count turtles) - 1) )]
 report 0
end

to-report global-clustering-coefficient
 let closed-triplets sum [ nw:clustering-coefficient * count my-links * (count my-links - 1) ] of turtles
 let triplets sum [ count my-links * (count my-links - 1) ] of turtles
 report closed-triplets / triplets
end

to-report average_local_clustering
report  mean [ nw:clustering-coefficient ] of users
end

;;;

to OneModeGraph
  ask pages [
     let page_id [who] of self ;

      let MyEditors  (turtle-set in-editbond-neighbors )

     ask MyEditors [
       ;; если связь уже существует, то добавить к ней в переменную страницу
       ;; unsselink
       ifelse is-unsselink? unsselink [who] of self [my_author] of myself
       [

         ask unsselink [who] of self [my_author] of myself [set colpages lput  page_id colpages ]
         ]
      [
       create-unsselink-with user [my_author] of myself [set colpages lput  page_id [] ]
      ]
       ]
die
  ]
end

to see_Btw
  ask turtles [ht]
 ;; ask links [hide-link]
 foreach sublist reverse sort-on [norm-betweenness] users 0 9 [ask ? [st set size 3 set label-color black set label norm-betweenness ]]
end

;;; cliques

to see_Bcliq
  ask turtles [ht]
  ask links [hide-link]
  let BigCliq one-of nw:biggest-maximal-cliques
  ask BigCliq [st]
  let BigCliqLinks links with [(member? end1 BigCliq) and  (member? end2 BigCliq) ]
  ask BigCliqLinks [show-link]
  repeat 5 [layout-spring  BigCliq BigCliqLinks 1 15 2]
end

to see_Mcliq
  ask turtles [ht]
  ask links [hide-link]
   foreach nw:maximal-cliques [if  (count ?) > ((count one-of nw:biggest-maximal-cliques) - 1) [
  let BigCliq ?
    let BigCliqLinks links with [(member? end1 BigCliq) and  (member? end2 BigCliq) ]
      ask BigCliq [st]
       ask BigCliqLinks [show-link]
       layout-spring  BigCliq BigCliqLinks 1 10 14
       ]]
   ;;  layout-circle users with [hidden? = false]  15
end

 ;; Покажи нам клики, куда входят участники с наибольшими показателями центральности

to central_cliques
 let Mcentr  sublist  reverse sort-on [norm-betweenness] users 0 10
  ask turtles [ht]
  ask links [hide-link]
   foreach nw:maximal-cliques [
show member? one-of ? Mcentr
if  ((count ?) > 5) and (any? ? with [member? one-of ? Mcentr])
;;  and (member? user SomeUser ?)
[
  let BigCliq ?
    let BigCliqLinks links with [(member? end1 BigCliq) and  (member? end2 BigCliq) ]
      ask BigCliq [st]
       ask BigCliqLinks [show-link]
  ;;   layout-spring  BigCliq BigCliqLinks 1 7 1

       ]]
end

 ;;; мы умеем извлекать клики, в которые входит заданный участник

to Mcliq_user [SomeUser]

  ask turtles [ht]
  ask links [hide-link]
   foreach nw:maximal-cliques [
if  ((count ?) > 5) and (member? user SomeUser ?)
[
  let BigCliq ?
    let BigCliqLinks links with [(member? end1 BigCliq) and  (member? end2 BigCliq) ]
      ask BigCliq [st]
       ask BigCliqLinks [show-link]
    layout-spring  BigCliq BigCliqLinks 1 7 1

       ]]
end

 ;;

to clustC
  nw:set-context users links
 let Centr max-one-of users [nw:betweenness-centrality]
layout-radial users  links Centr
;; export-view (word "../google_school_results/clust5/" [who] of Centr ".png" )
;; export-view (word "../google_school_results/clust_view/" [who] of Centr ".png" )
;; ask max-one-of users [nw:betweenness-centrality] [die] ask users with [count my-links = 0] [die]
;; wait 10
;; ask Centr  [die]
;; ask users with [count my-links = 0] [die]
end


 ;;;

to users_output

    nw:set-context users links
  file-open user-new-file
 file-print csv:to-row (list
  "Density"
  "Centrlization-betweenness"
  "Global-Clustering"
  "AverageLocalClastering"
  "Cliques"
  ) ;
  file-print csv:to-row  (list
    density
    centralization-btw
   global-clustering-coefficient
   average_local_clustering
   se length nw:biggest-maximal-cliques count one-of nw:biggest-maximal-cliques
    ) ;

 file-print csv:to-row (list
    "Agentname"
   "userID"
     "PagesCreates"
   "Edits"
   "MyLinks"
   "Norm-Betweenness"
   "PageRank"
   "Clustering-coefficient"

   ) ;

  foreach reverse sort-on [nw:page-rank] users [file-print csv:to-row
    (list
      [agentname] of ?
      [who] of ?
      [length pages_list] of ?
        [length edit_list] of ?
      [count my-links ] of ?
      [norm-betweenness] of ?
    precision   [nw:page-rank] of ? 3
    precision  [nw:clustering-coefficient] of ? 3
    )
    ]


 file-close
end

There is only one version of this model, created over 2 years ago by Evgeny Patarakin.

Attached files

No files

Parent: WikiAnalytics

This model does not have any descendants.

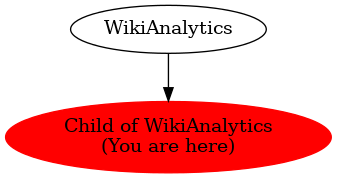

Graph of models related to 'Child of WikiAnalytics'
