ShoeFactory - PheromoneApproach

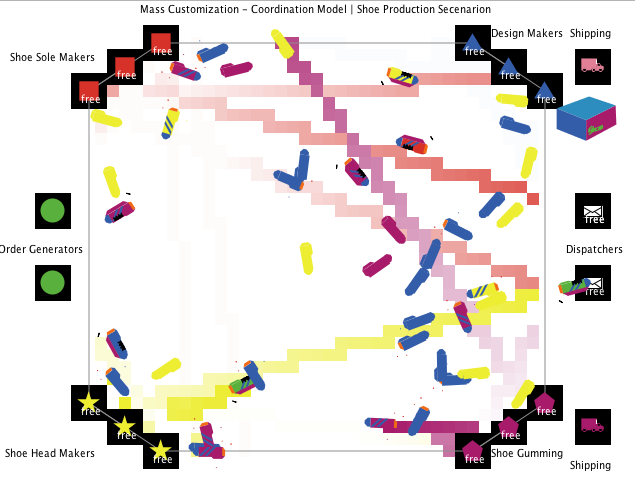

ShoeFactory - PheromoneApproach preview image

1 collaborator

Default-person Rotimi Ogunsakin (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 6.0 • Viewed 190 times • Downloaded 15 times • Run 0 times
Download the 'ShoeFactory - PheromoneApproach' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [tsize all-resources mylist sole-link-set head-link-set design-link-set finishing-link-set task world-condition newlist num num-produced]

breed [shoe-orders shoe-order]
breed [sole-makers sole-maker]
breed [shoe-head-makers shoe-head-maker]
breed [design-makers design-maker]
breed [shoe-finishings shoe-finishing]
breed [dispatches dispatch]
breed [shoe-shippings shoe-shipping]
breed [new-orders new-order]
undirected-link-breed [borders border]

patches-own [task-color cx]
shoe-orders-own [orders-set ]
sole-makers-own [sole-set]
shoe-head-makers-own [head-set]
design-makers-own [design-set]
shoe-finishings-own [finishing-set]
dispatches-own [dispatch-set]
new-orders-own [ new-order-set found-shoe order-plan next-plan plan plan-index exit prev-plan]
borders-own [border-tikness]

to set-parameters
   ask new-orders [set found-shoe 0]
   ask patches [set task-color 45 ]
   ask new-orders [set plan-index 0]
   ask new-orders [set exit 0]
   set num-produced 0
end

to setup
clear-all
;set-parameters
write-up
setup-patches
create-resources
setup-links
create-orders
;set-default-shape borders "boundary"
reset-ticks
end

to go
move-orders
sence-pheromone
;drop-pheromone
shipping
fade-signals
terminate-production
tick
end

to setup-patches
  ask patches [set pcolor white]
end

to write-up
  ask patch 14 20 [set plabel "Mass Customization - Coordination Model | Shoe Production Secenarion" set plabel-color black]
  ask patch -19 16 [set plabel (word "Shoe Sole Makers") set plabel-color black]
  ask patch -19 -17 [set plabel (word "Shoe Head Makers") set plabel-color black]
  ask patch 20 -17 [set plabel (word "Shoe Gumming") set plabel-color black]
  ask patch 20 17.5 [set plabel (word "Design Makers") set plabel-color black]
  ask patch -20 0 [set plabel (word "Order Generators") set plabel-color black]
  ask patch 25 0 [set plabel (word "Dispatchers") set plabel-color black]
  ask patch 24 18 [set plabel (word "Shipping") set plabel-color black]
  ask patch 24 -18 [set plabel (word "Shipping") set plabel-color black]
end

to create-resources

  set tsize 2
  (foreach [3 -3] [ [x] -> create-shoe-orders 1[
    set shape "circle"
    set color green
    set xcor -22
    set ycor x
    ;set label "free"
    set pcolor black
    set size tsize
     ask neighbors [set pcolor black]

  ]])

    (foreach [3  -3  3] [ [x] -> create-dispatches 1[
    set shape "letter sealed"
    set xcor 23
    set ycor x
    set color white
    set label "free"
    set size 2
    set pcolor black
    ask neighbors [set pcolor black]
  ]])

(foreach [ -19 -16 -13 ][13 15 17] [ [x y] -> create-sole-makers 1[
    set shape "square"
    set color red
    set xcor x
    set ycor y
    set label "free"
    set pcolor black
    set size tsize
    ask neighbors [set pcolor black]
  ]])

(foreach [ 13 16 19 ] [17 15 13] [ [x y] -> create-design-makers 1[
    set shape "triangle"
    set color blue
    set xcor x
    set ycor y
    set label "free"
    set pcolor black
    set size tsize
    ask neighbors [set pcolor black]
  ]])

(foreach [ -19 -16 -13 ] [-13 -15 -17] [ [x y] -> create-shoe-head-makers 1[
    set shape "star"
    set color yellow
    set xcor x
    set ycor y
    set label "free"
    set pcolor black
    set size tsize
    ask neighbors [set pcolor black]
  ]])

(foreach [ 13 16 19 ] [-17 -15 -13] [ [x y] -> create-shoe-finishings 1[
    set shape "pentagon"
    set color magenta
    set xcor x
    set ycor y
    set label "free"
    set pcolor black
    set size tsize
    ask neighbors [set pcolor black]
  ]])

  (foreach [23 23] [ 15 -15] [ [x y] -> create-shoe-shippings 1[
    set shape "truck"
    set xcor x
    set ycor y
    ;set label "free"
    set pcolor black
    set size tsize
    ask neighbors [set pcolor black]
  ]])
end

to setup-links
; Creating link in-between turtles-breed
  set sole-link-set get-resource-list (sole-makers)
    ask item 0 sole-link-set [create-links-with other sole-makers]
  set head-link-set  get-resource-list (shoe-head-makers)
    ask item 0 head-link-set [create-links-with other shoe-head-makers]
  set design-link-set  get-resource-list (design-makers)
    ask item 0 design-link-set [create-links-with other design-makers]
  set finishing-link-set  get-resource-list (shoe-finishings)
    ask item 0 finishing-link-set [create-links-with other shoe-finishings]

; Creating link between different turtles-breeds
  ask last sole-link-set [create-link-with first design-link-set]
  ask first sole-link-set [create-link-with first head-link-set]
  ask last head-link-set [create-link-with first finishing-link-set]
  ask last finishing-link-set [create-link-with last design-link-set]
end

to plan-assignment-1
  ;set order-plan (list (random 4) (random 4) (random 4))
  set plan item plan-index order-plan
  set next-plan get-plan(plan)
  set color [color] of one-of next-plan
  set task-color [color] of one-of next-plan
  ;set task-color plan-color(plan)
  ;face one-of next-plan
  ;show task-color
  set-shape
  get-random-direction
  ;show order-plan
end

to set-shape
  ask new-orders [
    ifelse plan-index = 0 [set shape "shoe_1"][
      ifelse plan-index = 1 [set shape "shoe_2"][
        ifelse plan-index = 2 [set shape "shoe_3"][shipping]]]]
end

to-report get-plan [new-plan]
  ifelse (new-plan = 0 and not any? sole-makers-on neighbors ) [report sole-makers][
  ifelse (new-plan = 1 and not any? shoe-head-makers-on neighbors ) [report shoe-head-makers][
  ifelse (new-plan = 2 and not any? design-makers-on neighbors ) [report design-makers][
     ifelse (new-plan = 3 and not any? shoe-finishings-on neighbors ) [report shoe-finishings][report shoe-finishings]]]]
    ;ifelse (new-plan = 3 and not any? shoe-finishings-on neighbors ) [report shoe-finishings][plan-assignment-1]]]]
  ;if (new-plan = 3 and not any? shoe-finishings-on neighbors ) [report shoe-finishings]]]]
end
;to-report find-direction
;end

to-report plan-color [resource-color]
  if (resource-color = 0 ) [report red]
  if (resource-color = 1 ) [report yellow]
  if (resource-color = 2 ) [report blue]
  if (resource-color = 3 ) [report magenta]
end

to create-orders
  ask one-of shoe-orders [ hatch-new-orders 1 [
  set order-plan (list (random 4) (random 4) (random 4))
  set color gray
  set size 5
  set shape "default"
  set heading 90
  fd 5
  show order-plan
  ;get-random-direction-1
  plan-assignment-1
  ]]
end

to move-orders

; ask new-orders [
; ifelse ([pcolor] of patch-ahead 1 != black) and (ycor <= 17 and ycor >= -17 and xcor <= 18 and xcor >= -18) [fd 0.2][
;   ifelse ([pcolor] of patch-ahead 1 = black and exit = 0)[if any? next-plan in-cone 3 90 [ set found-shoe found-shoe + 1 next-plan-execution]][
;     ifelse (exit = 1)[set found-shoe 0 fd 0.2] [get-random-direction set found-shoe 0]]]]

 ;ask new-orders [if (found-shoe = 1) [ask patch-at-heading-and-distance 0 0 [set pcolor task-color] next-plan-execution]]
 let num-shoe-orders count new-orders
 ask one-of shoe-orders [if order-number > num-shoe-orders + num-produced [create-orders]]
  ask new-orders [
    if ([pcolor] of patch-ahead 1 = black)[if any? next-plan in-cone 5 120 [set found-shoe found-shoe + 1 set num found-shoe set prev-plan next-plan next-plan-execution]]]
  ask new-orders [ if (found-shoe >= 1) [drop-pheromone]]
  ask new-orders [ifelse ([pcolor] of patch-ahead 1 != black) and (ycor <= 17 and ycor >= -17 and xcor <= 18 and xcor >= -18) [fd 0.2][
    ifelse (exit = 1)[set found-shoe 0 fd 0.2 set num found-shoe] [get-random-direction set found-shoe 0 set num found-shoe]]]
  ;sence-pheromone
end

to sence-pheromone
  if (sense-pheromone?)[
  ;let color1 [pcolor] of patch-ahead 1
  ;ask new-orders [if ([pcolor] of patch-ahead 1  >= task-color and [pcolor] of patch-ahead 1  <= task-color + 4.5 and exit = 0)[face one-of next-plan]]
    ask new-orders [if ([pcolor] of patch-ahead 1  >= [color] of self and [pcolor] of patch-ahead 1  <= [color] of self + 4.5 and exit = 0)[face one-of next-plan]]
  ]
end

to drop-pheromone
 set task-color [color] of one-of prev-plan
 set pcolor task-color
end

to execute-plan
 ask patch-at-heading-and-distance 0 0 [set pcolor grey]
  next-plan-execution
end

to next-plan-execution
  ifelse (plan-index < 2) [set plan-index plan-index + 1
    plan-assignment-1][set color green set exit 1 face one-of dispatches fd 0.2 ]
end

to shipping
  ask new-orders [if any? dispatches-on neighbors[
    set plan-index 3
    set shape "shoe_box"
      face min-one-of shoe-shippings  [distance myself]
      fd 0.1]]
end

to terminate-production
  ask new-orders [if any? shoe-shippings-on neighbors[ set num-produced num-produced + 1 die]]
end

to do-task
   set task yellow
   ask new-orders [ if any? shoe-head-makers-on neighbors[
   set color yellow
   ask patch-at-heading-and-distance 0 1 [set pcolor yellow]]
   ]
end

to fade-signals
  ask patches [set cx task-color + 4.9]
  ask patches [if (pcolor <= precision cx 8 and pcolor >= precision task-color 8) [set pcolor pcolor + pheromone-difusion-rate]]
end

to get-random-direction
  ;do-task
  set heading heading + 180
  fd 0.2
  get-random-direction-1
  fd 0.2
end

to get-random-direction-1
  set heading random 360
end

to-report get-resource-list [resource-name]
  report sort (resource-name)
end

to test
  show get-resource-list (sole-makers)
  ;show sole-set
end

to setup-caller
  setup-links
end
