MABM with a central bank

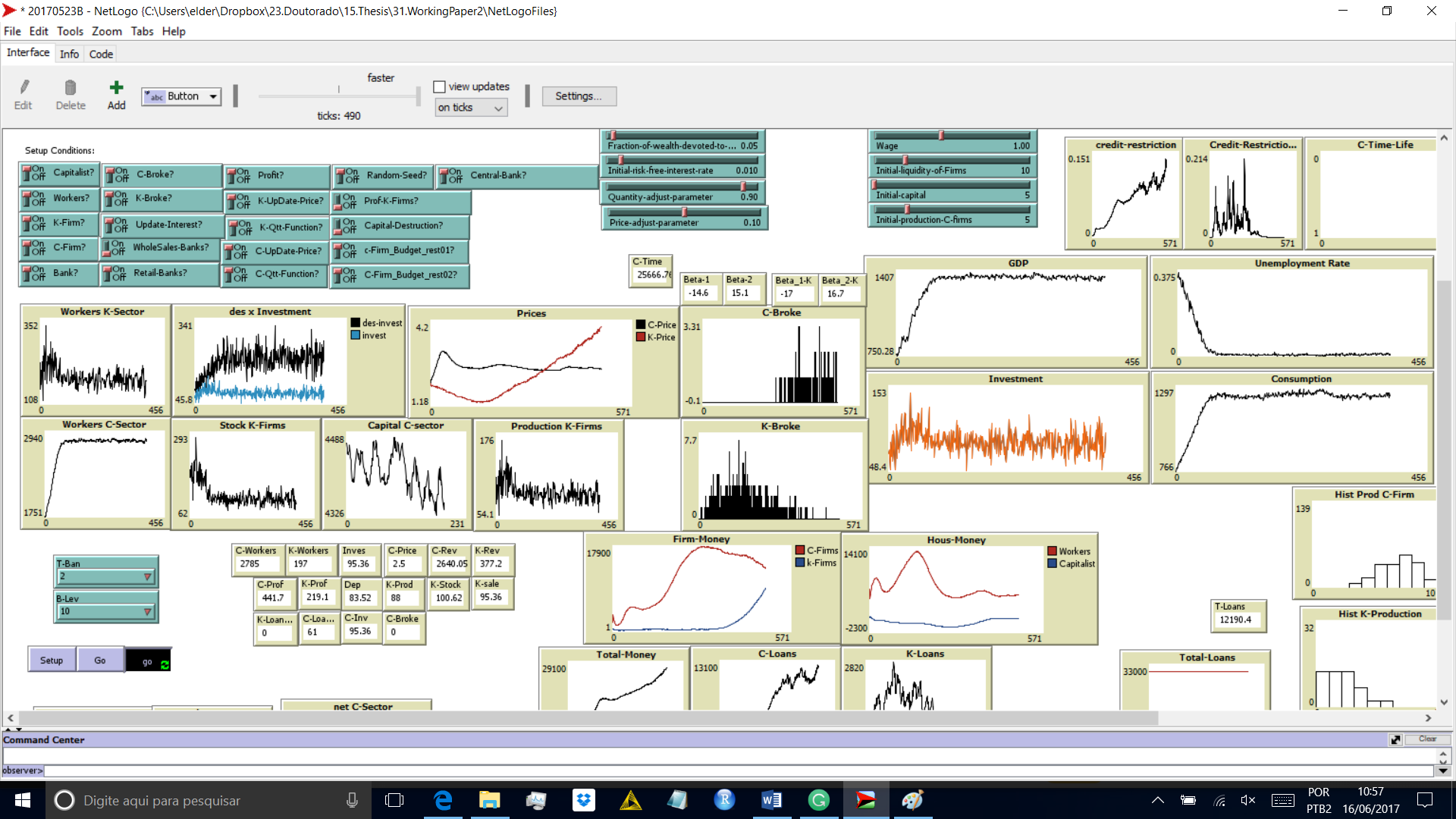

MABM with a central bank preview image

1 collaborator

Foto elder silva (Author)

Tags

mabm

"Islamic Economy"

Tagged by Gairuzazmi Mat Ghani almost 4 years ago

mabm

"Macroeconomic Agent-Based Model"

Tagged by elder silva almost 7 years ago

macroeconomy

Tagged by elder silva almost 7 years ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 6.0.1 • Viewed 619 times • Downloaded 42 times • Run 0 times
Download the 'MABM with a central bank' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Error message (Question)

Dear Elder: When I run the model with all the controls at the "on" position (including "Wholesales-Banks?", "Prof-K-Firms?" and "Capital Destruction?"), after a few ticks I get the following error message: "math operation produced a number too large for NetLogo error while firm 3209 running ^ called by procedure SUBF-UPDATE-INTEREST-WHOLESALE-K called by procedure SUBF-ASK-FOR-K-CREDIT-W called by procedure SUBF-CALL-WHOLESALES called by procedure FUNCTION-CREDIT-MARKET called by procedure GO called by Botón 'Go'" I would like to get a better understanding of what is wrong here and how could it be fixed. Thanks!

Posted over 6 years ago

Answer Error message

Hello Rubén, This model uses two NetLogo extensions, “matrix” and “R”. That is because the model needs to solve one logistic equation that I couldn´t solve using only NetLogo. You will need to install that two extensions and then run the model. I download the file which is on the website, and it is running on my pc. So, I think what would be happing wrong in your case must be because the two extensions are needed.

Posted over 6 years ago

Little list

Hi Elder: I have a list of minor bugs in your code (maybe I did not understand well these steps): - line 299: "if not C-Firm_Budget_rest02?", the problem is in that "not", because C-Firm_Budget_rest02 is binary. - line 501: "random xcor", should be "random-xcor". - line 587: "(1 - Depreciation-of-capital-K * 10)", the problem is that "* 10". - line 926: "if (Beta_2-C-Firms &rt; 0) = false", this is strange but if you replace that with "if (Beta_2-C-Firms <= 0)" and you try to run the model you get an error message. - line 969: "Installment-on-debt", and it should be "Installment-on-debt-wholesales". - line 973: "Current-Retail-Loan" should be "Current-Wholesale-Loan". - line 1016 and 1025: "Installment-on-debt" should be "Installment-on-debt-Wholesales".

Posted over 6 years ago

Little list answer (Question)

Hello Ruben, thank you for your help. I am currently working on the code too. The one in line 926 I don´t know why that happens, I also had seems it. The others I will study and upload the file with the corrections. I am trying to use the results to write some papers. Would you be interest in academics publications? You may contact me in: elder0055@gmail.com Tks again

Posted over 6 years ago

Click to Run Model

extensions [ matrix r ]

globals [
  Free-Interest-Rate
  GDP
  Unemployment                                                ; sum of the households without a job
  Consumption                                                 ; sum of goods sold by the consumptions firms
  Total-Investment                                            ; sum of total capital sold by the capital production firms
  Goods-Price-Level                                           ; sum (price * qt) / Qt sold
  Goods-Price-Level_t-1
  Capital-Price-Level                                         ; sum (price * qt) / Qt sold
  Capital-Price-Level_t-1
  Total-Loans                                                 ; sum of loans
  Total-Loans-C-Firms                                         ; sum of loans with the C-Firms
  Total-Loans-K-Firms                                         ; sum of loans with the K-Firms
  C-Firms                                                     ; group of firms with property consumption production
  K-Firms                                                     ; group of firms with property capital production
  Workers                                                     ; group of households with property worker
  Capitalists                                                 ; group of households with property capitalist
  Retail-Banks                                                ; group of banks with property retail
  Wholesale-Banks                                             ; group of banks with property wholeseler
  C-Broke                                                     ; sum of Consumption firms that went broke last period
  K-Broke                                                     ; sum of capital production firms that went broke last period
  Matrix-C-Firms-Bankruptcy                                   ; input with information that will be used in calculation into R
  Matrix-K-Firms-Bankruptcy                                   ;input with information that will be used in calculation into R
  Beta_1-C-Firms                                              ; parameter utilized by the banks to calculate the interest rate for the firms
  Beta_2-C-Firms                                              ; parameter utilized by the banks to calculate the interest rate for the firms
  Beta_1-K-Firms                                              ; parameter utilized by the banks to calculate the interest rate for the firms
  Beta_2-K-Firms                                              ; parameter utilized by the banks to calculate the interest rate for the firms
  Mi
  Mj
  Mjk
  ]

breed               [Households Household]                    ; agent class
breed               [Firms      Firm     ]                    ; agent class
breed               [Banks      Bank     ]                    ; agent class
directed-link-breed [Hireds     Hired    ]                    ; link used to link firms to the worker
directed-link-breed [Owners     Owner    ]                    ; link used to link firms to their owner/capitalist

Households-own [
  Worker?                                                     ; property of the household, yes if it is a worker, not if it is a capitalis
  Human-Wealth                                                ; parameter to calibrate how much of the intire wealth will be use for consumption
  Current-Income                                              ; the salary if it is a worker, the profit if it is a capitalist
  Deposit-Bank                                                ; the total of wealth of the households held with the bank
  Desire-Consume                                              ; theorical value the household want to consume this period
  Consume                                                     ; real value the household did consume
  Price-List                                                  ; list with the prices of firms the household visited last period
  ]

Firms-own [
  C-Firms?                                                    ; property of the firms, yes if it is a consumption production firm, not if is a capital production firm

  Price                                                       ; last price praticed by the firm
  Demand                                                      ; last quantity demanded
  Production                                                  ; actual production of the firm
  Stock                                                       ; amount availible for sales
  Delta                                                       ; parameter used to calculate new price
  Number-Employee                                             ; actual number of employee of this firm
  Desire-Employee                                             ; ideal number of employee for this firm
  Vacancy                                                     ; number of opened places at this firm for new workers

  Revenue                                                     ; sum of quantity sold times the price
  Salles                                                      ; sum of quantity sold last period
  Profit                                                      ; revenue less the despenses
  Dividend                                                    ; part of the profit given to the owner
  Need-Cash                                                   ; money that will be ask at bank as a new loan
  Bank-Deposit                                                ; money availible at the bank
  Leverage                                                    ; assets of firm divided by their debts
  Broke                                                       ; true or false indicator, yes if the firm went broke this period
  Assets                                                      ; sum deposit at bank and stock availible for sales
  Current-Retail-Loan                                         ; sum of loans with the retail bank
  Interest-Retail                                             ; actual interest rate praticed with this firm by the retail bank
  Current-Wholesale-Loan                                      ; sum of loans with the wholesaler bank
  Interest-Wholesale                                          ; actual interest rate praticed with this firm by the wholesale bank
  Retail-Bankruptcy                                           ; the probability to go bankruptcy by this firm, calculated by the retail bank
  Wholesale-Bankruptcy                                        ; the probability to go bankruptcy by this firm, calculated by the wholesaler bank
  Interest-Pay                                                ; sum of interest rate payed last period
  Installment-Pay                                             ; sum of the installment payed last period
  T-expected                                                  ; the expected life expan for this firm

  Capital                                                     ; property of the C-firms, indicate the capital availible to be used at the production process
  Desire-Investment                                           ; property of the C-Firms, ideal investiment needed
  Price-List                                                  ; property of the C-Firms, list of prices from the K-Firms visited last period trying to buy capital goods
  Investment                                                  ; property of the C-Firms, capital goods bough last period
  Investment-Memory                                           ; property of the C-firms, parameter utilized to calculate te Desire-Investment
  Util-Capacity                                               ; property of the C-Firms, indicates how much of the Capital had been used

  Stock-t-1                                                   ; Stock availible in t-1

  ]

Banks-own [
  Retail-Bank?                                                 ; Banks property, true if it is a retail bank, false it is a wholesaler bank
  Equity-Workers                                               ; sum of deposit at bank of the households
  Equity-Capitalists                                           ; sum of deposit at bank of the capitalists
  Equity-C-Firms                                               ; sum of deposit at bank of the C-Firms
  Equity-K-Firms                                               ; sum of deposit at bank of the K-Firms
  Equity-Bank                                                  ; bank own equity
  Equity-Total                                                 ; sum of all equities
  Leverage-C-Firms                                             ; mean leverage of the C-Firms, every bank has their number
  Leverage-K-Firms                                             ; mean leverage of the K-Firms, every bank has their number
  Interest-Receive                                             ; sum of interest received last period
  Installment-Receive                                          ; sum of installment received last period
  Profit                                                       ; sum of interest received less the bank losses with their loans
  Intrabank-Loan                                               ; loans regestrited between banks
  Intrabank-rate                                               ; interest rate praticed in the Intrabank-Loan

  ]

;;******************************************************************************XXXXXXXX_SETUP_XXXXXXXX******************************************************************************

to Setup
  clear-all
  if Workers?                                       [ Setup-Workers    ]             ; call the setup for workers
  if C-Firm?                                        [ Setup-C-Firms    ]             ; call the setup for C-Firms
  if K-Firm?                                        [ Setup-K-Firms    ]             ; call the setup for K-Firms
  if Capitalist?                                    [ Setup-Capitalist ]             ; call the setup for Capitalists
  Setup-Globals                                                                      ; call the setup for globals
  if Bank?                                          [ Setup-Bank       ]             ; call the setup for banks
  reset-ticks                                                                        ; netlogo needs
end

to Setup-Globals
  set Free-Interest-Rate             natural-interest-rate
  set GDP                            0                                               ; initial GDP
  set Unemployment                   0                                               ; initial Unemployment rate
  set Consumption                    0                                               ; initial value of consumption
  set Total-Investment               0                                               ; initial value of total investment
  set Goods-Price-Level              2                                               ; initial goods price level
  set Capital-Price-Level            2                                               ; initial capital goods price level
  set Total-Loans                    0                                               ; initial value for total loans loans
  set Total-Loans-C-Firms            0                                               ; initial value for c-loans
  set Total-Loans-K-Firms            0                                               ; initial value for K-Loans
  set C-Firms                        Firms      with [    C-Firms?]                  ; building the group with all C-Firms
  set K-Firms                        Firms      with [not C-Firms?]                  ; building the group with all K-firms
  set Capitalists                    Households with [not Worker? ]                  ; building the group with all Capitalist
  set Workers                        Households with [    Worker? ]                  ; building the group with all workers
  set Matrix-C-Firms-Bankruptcy      matrix:make-constant  2 Window 0                ; building the initial matrix which will be used by R-Netlogo later
  set Matrix-K-Firms-Bankruptcy      matrix:make-constant  2 Window 0                ; building the initial matrix which will be used by R-Netlogo late
  set Mj                             0                                               ; helper with the matrix above
  set Mjk                            0                                               ; helper with the matrix above
  if not Random-Seed?               [ random-seed 12345 ]                            ; random seed may or not be used
end

to Setup-Workers
  create-Households Number-of-workers [
    setxy                            random-xcor random-ycor                         ; the initial position of the worker is random
    set shape                        "person"                                        ; just for fun, not necessary for the model, used only for display in HUD netlogo
    set size                         0.50                                            ; just for fun, not necessary for the model, used only for display in HUD netlogo
    set color                        blue                                            ; just for fun, not necessary for the model, used only for display in HUD netlogo
    set Worker?                      true                                            ; proper of the household, true indicates it is a worker
    set Human-Wealth                 1                                               ; initial value for Human Wealth, utilized to calculate the consume process
    set Current-Income               0                                               ; intitial income
    set Deposit-Bank                 Initial-households-personal-assets              ; initial value of deposit at bank
    set Desire-Consume               0                                               ; initial value for desire consume
    set Consume                      0                                               ; initial value for consume
    set Price-List                   [ ]                                             ; setup for the list which will be use to colect the price of the C-Firms visited
    ]
end

to Setup-Capitalist
  ask n-of 250 patches [                                                             ; each patches represent one firm, this command ensure will be one capitalist for each firm
    sprout-Households 1 [                                                            ; ask to create one capitalist in each position
      set shape                        "person"                                      ; just for fun, not necessary for the model, used only for display in HUD netlogo
      set size                         0.50                                          ; just for fun, not necessary for the model, used only for display in HUD netlogo
      set color                        white                                         ; just for fun, not necessary for the model, used only for display in HUD netlogo
      set Worker?                      false                                         ; proper of the household, false means it is a capitalist
      set Human-Wealth                 1                                             ; initial value for human wealth
      set Current-Income               0                                             ; initial value for current income
      set Deposit-Bank                 Initial-households-personal-assets            ; initial value for deposit at bank
      set Desire-Consume               0                                             ; initial value for desire-consume
      set Consume                      0                                             ; initial value of consume
      set Price-List                   [ ]                                           ; setup for the list which will be use to colect the price of the C-Firms visited
      create-Owner-from                one-of Firms-Here [set hidden? true]          ; this create a link between the firm and the capitalist. Thus, one will know eachother for all the porpouse, dividen, rebuild a broken firm, etc.
      ]
    ]
end

to Setup-C-Firms
  ask n-of 200 patches with [pycor < 8] [                                             ; this command ask the 200 patches which are position at grid with y coordinates less than 8
    sprout-Firms 1 [                                                                  ; ask to create one firm at this patche
      set shape                      "house"                                          ; just for fun, not necessary for the model, used only for display in HUD netlogo
      set size                       0.75                                             ; just for fun, not necessary for the model, used only for display in HUD netlogo
      set color                      orange                                           ; just for fun, not necessary for the model, used only for display in HUD netlogo
      set C-Firms?                   true                                             ; proper of the Firms, true means it is a consumption producer firm
      set Price                      2                                                ; initial value for price
      set Capital                    Initial-capital                                  ; initial value for capital
      set Stock                      Initial-production-C-firms                       ; initial value for stock
      set Production                 Initial-production-C-firms                       ; initial value for production
      set Revenue                    0                                                ; initial value for revenue
      set Salles                     0                                                ; initial value for sales
      set Need-Cash                  0                                                ; initial value for cash need
      set Desire-Investment          0                                                ; initial value for desire investment
      set Investment                 0                                                ; initial value for investment
      set Number-Employee            0                                                ; initial value for number of employee
      set Desire-Employee            0                                                ; initial value for desire employees
      set Price-List                 [ ]                                              ; setup for the list which be used to colect the prices from the K-firms visited trying to buy capital
      set Vacancy                    0                                                ; initial value for vacancy
      set Bank-Deposit               Initial-liquidity-of-Firms                       ; initial money deposited at the bank
      set Investment-Memory          Initial-Capital                                  ; initial value for Investment-Memory; parameter utilized to calculate the desire investment
      set Util-Capacity              0                                                ; initial value for util-capacity
      ]
    ]
end

to Setup-K-Firms
    ask n-of 50 patches with [pycor >= 8] [                                           ; this command ask 50 patches which are located at coordinates y >= 8
    sprout-Firms 1 [                                                                  ; ask to create one firm in each of those patches
      set shape                      "house"                                          ; just for fun, not necessary for the model, used only for display in HUD netlogo
      set size                       0.75                                             ; just for fun, not necessary for the model, used only for display in HUD netlogo
      set color                      brown                                            ; just for fun, not necessary for the model, used only for display in HUD netlogo
      set C-Firms?                   false                                            ; proper of Firms, false mean it is a capital producer firm
      set Price                      2                                                ; initial value for price
      set Capital                    Initial-capital                                  ; initial value for capital
      set Stock                      Initial-production-K-firms                       ; initial value for stock
      set Production                 Initial-production-K-firms                       ; initial value for production
      set Revenue                    0                                                ; initial value for revenue
      set Salles                     0                                                ; initial value for sales
      set Need-Cash                  0                                                ; initial value for cash needed
      set Desire-Investment          0                                                ; initial value for desire investment
      set Investment                 ""                                               ; initial value for investment
      set Number-Employee            0                                                ; initial number for employee
      set Desire-Employee            0                                                ; initial value for desire employee
      set Price-List                 ""                                               ; not applied to K-Firms
      set Vacancy                    0                                                ; initial value for vacancy
      set Bank-Deposit               Initial-liquidity-of-Firms                       ; initial money deposited at the bank
      set Investment-Memory          ""                                               ; not applied to K-Firms
      set Util-Capacity              ""                                               ; not applied to K-Firms
      ]
    ]
end

to Setup-Bank
  create-Banks 1 [                                                                    ; create one bank
    set Retail-Bank?                 true                                             ; bank proper, true means it is a retail bank type
    set Equity-Workers               sum [deposit-bank] of workers                    ; explicit
    set Equity-Capitalists           sum [deposit-bank] of capitalists                ; explicit
    set Equity-C-Firms               sum [bank-deposit] of c-firms                    ; explicit
    set Equity-K-Firms               sum [bank-deposit] of k-firms                    ; explicit
    set Equity-Bank                  Initial-equity-of-the-bank                       ; initial value fo the own bank equity
    set Equity-Total                 Equity-Workers + Equity-Capitalists + Equity-C-Firms + Equity-K-Firms + Equity-Bank
    set Intrabank-loan               0                                                ; initial value for the intrabank loans
    set Intrabank-Rate               free-interest-rate                            ; initial intrabank interest rate
    ]
  if Wholesales-Banks? [                                                              ; swith positioned in the netlogo HUD
    create-Banks 1 [                                                                  ; ask to create one bank
      set Retail-Bank?               false                                            ; bank proper, false means it is a wholesaler bank type
      set Equity-Workers             0                                                ; only retails bank had this
      set Equity-Capitalists         0                                                ; only retails bank had this
      set Equity-C-Firms             0                                                ; only retails bank had this
      set Equity-K-Firms             0                                                ; only retails bank had this
      set Equity-Bank                Initial-equity-of-the-bank                       ; initial value of bank own equity
      set Equity-Total               Equity-Bank                                      ; initial value for total equity
      set Intrabank-loan             0                                                ; initial value for intrabank loans
      set Intrabank-Rate             free-interest-rate                            ; initial value for intrabank-rate
      ]
    ]
  set Retail-Banks                   Banks with [    Retail-Bank?]                    ; create a group with all retails banks
  set Wholesale-Banks                Banks with [not Retail-Bank?]                    ; create a group with all wholesalers banks
end

;;******************************************************************************XXXXXXXX_GO_XXXXXXX******************************************************************************

to Go                                                                                 ; here will be calling the functions
  Function-Job-Market                                                                          ; this function plays the job market process
  Function-Consumption-Market                                                                  ; this function plays the consumption market process
  Function-Capital-Market                                                                      ; this function plays the capital market process
  Function-UpDate-Production                                                                   ; this function plays the production process
  Function-UpDate-Globals                                                                      ; this function update the globals
  Function-Cash-Flows                                                                          ; this function update the cash flow
  Function-Credit-Market                                                                       ; this function update the credit market
  if Central-Bank? [ Function-Call-Central-Bank ]

  tick                                                                                ; netlogo needs
end



;;--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
;;******************************************************************************XXXXXXXX_Functions_XXXXXXX******************************************************************************
;;--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



;;******************************************************************************XXXXXXXX_Function-JobMarket_XXXXXXX******************************************************************************



To Function-Job-Market                                                                                                              ; here will be called the subfunctions
  ask Firms                                 [ SubF-UpDate-Desire-Workers set Need-Cash 0                    ]                   ; reset the firms need for cash and update the desire workers number
  ask Workers with [current-Income = 0]     [ SubF-Find-a-Job                                               ]                   ; ask workers which did not have a job to look for one
  ask Workers                               [ set Deposit-Bank   Deposit-Bank + Current-Income         ]                   ; ask workers to update their income
  ask Firms                                 [ set Bank-Deposit   Bank-Deposit - Number-Employee * wage ]                   ; ask firms to updated their bank account
end

to SubF-UpDate-Desire-Workers                                                                                                   ; this subfunction update the desire workers
  if  C-Firms?                              [                                                                              ; if C-firms is true, only C-Firm run this
     set Desire-Employee   min list Desire-Employee ((Capital * Productivity-of-capital) / Productivity-of-labor)          ; set desire employee considering the capital production restriction
     if C-Firm_Budget_rest02? [ if Desire-Employee * wage > bank-deposit [                                             ; update the desire employee considering the money availible
         set Desire-Employee   max list 0 (int (Bank-Deposit / wage) + 1)                                                  ; update the desire employee considering the money availible
          ] ]
     ]
  set Vacancy                                Desire-Employee   -   Number-Employee                                         ; opening new vacancies to contract more employee
  while                                     [Vacancy < 0 and Number-Employee > 0] [                                        ; if vacancy < 0 need to fire some one
    ask one-of my-in-Hireds [                                                                                              ; choose one employee
      ask other-end [                                                                                                      ; ask this employee to set...
        set Current-Income                   0                                                                             ; their income as 0, it was fired
        ]
      die                                                                                                                  ; die means this worker no more has a contract with the firm, fired
      ]
    set Vacancy                              Vacancy           + 1                                                         ; confirm the fired process, perhaps need to fire another one
    set Number-Employee                      Number-Employee   - 1                                                         ; update the number of employee after the firing process
    ]
end

to SubF-Find-a-Job                                                                                                              ; this subfunction is used by the worker trying to find a job position
  repeat Number-of-firms-visited-by-unemployed-workers [                                                                   ; the worker can try a maximum number of times to get a job, if not find he still unemployeed
    setxy                                    random-xcor random-ycor                                                       ; this means the worker visit a firm at the grid
    let Vacancy?                             false                                                                         ; auxiliar variable to this subfunction
    ask one-of Firms-here  [                                                                                               ; ask to firm visited if ...
      if Vacancy > 0 [                                                                                                     ; ... it has an open position
        set Vacancy?                         true                                                                          ; update auxiliar variable
        set Number-Employee                  Number-Employee + 1                                                           ; update the number of employee
        set Vacancy                          Vacancy         - 1                                                           ; update the vacancy of this firm
      ]
    ]
    if Vacancy? [                                                                                                          ; using the auxiliar variable to update the worker status
      set Current-Income                      Wage                                                                         ; update the current-income of the worker
      create-Hired-to                         one-of Firms-here [set hidden? true]                                         ; this link means the worker has a job, and it and the firm knows abouot eachother
      stop                                                                                                                 ; for the repeat function, if it finds a job did not need try once more
    ]
  ]
end




;;******************************************************************************XXXXXXXX_Function-ConsumpMarket_XXXXXXX******************************************************************************

to Function-Consumption-Market                                                                                                      ; here will be called the subfunctions of the consumption market
  ask C-firms    [ set demand 0 set salles 0 set revenue 0]                                                                ; updating properties of the C-Firms
  ask Households [                                                                                                         ; explicit
    SubF-UpDate-Desire-Consume                                                                                                  ; call subfunction for households update their consume desire
    SubF-Visit-Firms                                                                                                            ; call subfunction for households visit firm trying to consume
    if Desire-Consume > 0 [ SubF-Try-Consume ]                                                                                  ; if wana consume something, try buy it
    ]
end

to SubF-UpDate-Desire-Consume
  set Human-Wealth                           (Memory-parameter-human-wealth             * Human-Wealth) + (1 - Memory-parameter-human-wealth) * Current-Income                 ; update human wealth
  set Desire-Consume                          min list    Deposit-Bank                  ((Fraction-of-wealth-devoted-to-consumption * Deposit-Bank) + Human-Wealth)            ; update desire consume, it can not be higher than the money the household has
  set Desire-Consume                          max list  0 Desire-Consume                                                                                                       ; ensure desire consume is not negative
end

to SubF-Visit-Firms                                                                                                             ; this subfunction rule the shopping process, visitng the firms
  let Who01                                   ""                                                                           ; auxiliar variable, save the name of the first firm visited
  let Who02                                   ""                                                                           ; auxiliar variable, save the name of the second firm visited
  let Price01                                 ""                                                                           ; auxiliar variable, save the price of the firm visited
  let Price02                                 ""                                                                           ; auxiliar variable, save the price of the second firm visited
  setxy random-xcor random 8                                                                                               ; choose the address of one random C-firm
  ask one-of Firms-here [
    set Who01                                 Who                                                                          ; save the name of this firm
    set Price01                               Price                                                                        ; save the price of this firm
    ]
  setxy random-xcor random 8                                                                                               ; choose the address of the second firm
  ask one-of Firms-here [
    set Who02                                 Who                                                                          ; save the name of this firm
    set Price02                               Price                                                                        ; save the price of this firm
    ]
  while [Who01 = Who02] [                                                                                                  ; if happened to visited the same firm twice, find another one, repeat the process above
    setxy random-xcor random 8
    ask one-of Firms-here [
      set Who02                                 Who
      set Price02                               Price
      ]
    ]
  ifelse Price01 < Price02 [set Price-List list (Firm Who01) (Firm Who02) ] [set Price-List list (Firm Who02) (Firm Who01) ] ; create an organized list, the firm with the lowest price comes first
end

to SubF-Try-Consume
  let Firm-A                                    first Price-List                                                          ; extract the name of the firm with a better price
  let Firm-B                                    last  Price-List                                                          ; extract the name of the firm with the worst price
  let Qtt                                       Desire-Consume / [Price] of Firm-A                                        ; auxiliar variable, record the quantity can be bought
  let expenses                                  0                                                                         ; auxiliar variable to update the deposit at bank later
  let cons                                      0                                                                         ; auxiliar variable to record the quantity consumed
  ask Firm-A [set Demand                        Demand + Qtt ]                                                            ; update the demand of C-firms
  if [Stock] of Firm-A < Qtt [                                                                                            ; if there is not availible goods at the first firm ...
    ask Firm-B [set Demand                      Demand + Qtt - [Stock] of Firm-A ]                                        ; also the second firm has a demand for their product
    ]
  ask Firm-A [                                                                                                            ; trying to consume at the better price
    ifelse Stock > Qtt [                                                                                                  ; first situation, better one which can consume all at the better price
      set Stock                                 Stock  - Qtt                                                              ; updated the stock of the firm
      set Salles                                Salles + Qtt                                                              ; update the sales
      set Revenue                               Price  * Qtt  + Revenue                                                   ; update the revenue
      set expenses                              Price  * Qtt  + expenses                                                  ; update the auxiliar variable, used later to update the household bank account
      set cons                                  cons   + Qtt                                                              ; update the auxiliar variable to register the qtt consumed
      set Qtt                                   0                                                                         ; means no need to bought anymore
      ] [
      if Stock > 0 [                                                                                                      ; second situation, buying only part at first firm
        set Salles                              Salles  + Stock                                                           ; update sales
        set Revenue                             Price   * Stock + Revenue                                                 ; update revenue
        set expenses                            Price   * Stock + expenses                                                ; update auxiliar variable, later used to update the bank account of the household
        set cons                                cons    + Stock                                                           ; update stock
        set Qtt                                 Qtt     - Stock                                                           ; update auxiliar variable to register the qtt consumed
        set Stock                               0                                                                         ; update stock
        ]
      ]
    ]; end ask Firm-A
  if Qtt > 0 [                                                                                                            ; means household did not consume all it wanted to in the first firm
    set Qtt                                     (Qtt * [Price] of Firm-A) / [Price] of Firm-B                             ; auxiliar variable, max quantity can consume at this price
    ask Firm-B [                                                                                                          ; updating values at the second firm
      ifelse Stock > Qtt [                                                                                                ; as above...
        ;first situation, buy all
        set Stock                                 Stock  - Qtt
        set Salles                                Salles + Qtt
        set Revenue                               Price  * Qtt  + Revenue
        set expenses                              Price  * Qtt  + expenses
        set cons                                  cons   + Qtt
        set Qtt                                   0
        ] [
        ;second situation, did not consume all he wants
        if Stock > 0 [
          set Salles                              Salles  + Stock
          set Revenue                             Price   * Stock + Revenue
          set expenses                            Price   * Stock + expenses
          set cons                                cons    + Stock
          set Qtt                                 Qtt     - Stock
          set Stock                               0
          ]
        ]
      ];end ask firm-B
    ];end Qtt > 0
  ;update households atributes
  set Consume                                     cons                                                                  ; update the Consume of the households
  set Deposit-Bank                                Deposit-Bank - expenses                                               ; update the bank account of the households
end




;;*********************************************************************************************Function-Capital-Market*********************************************************************************************

to Function-Capital-Market                                                                                              ; this function set the rules for the capital goods market
  ask K-Firms [ set Demand 0 set revenue 0 set Salles  0 ]                                                              ; upadte K-Firms properties
  ask C-Firms [                                                                                                         ; updating the c-Firms properties
    set Investment                 0
    SubF-UpDate-Investment-Desire                                                                                       ; call sub-function to update investment
    if Desire-Investment > 0 [ SubF-UpDate-Investment ]                                                                 ; if there is need for investment call the sub-function for investment
    ]
end

to SubF-UpDate-Investment-Desire                                                                                        ; sub-function with procedure to update the investment need of a C-Firm
  set Desire-Investment            0                                                                                    ; reset variable
  let rand                         random-float 1                                                                       ; auxiliar sub-function variable
  if  rand < Probability-of-investing [                                                                                 ; check if it is time to invest
    if ticks > 1 [                                                                                                      ; assure that there is no investment in time equal zero
      set Investment-Memory        (Memory-parameter-investment * Investment-Memory) + (1 - Memory-parameter-investment) * Util-Capacity * Capital                               ; begin of equation of capital motion
      set Desire-Investment        max list 0 (( (1 / Desire-capacity-utilization-rate) + (Depreciation-of-capital / Probability-of-investing) ) * Investment-Memory - Capital)  ; end of equation of capital motion
      set Need-Cash                Need-Cash   +  Desire-Investment * Capital-Price-Level                                                                                        ; check for cash needed
      ]
    ]
end

to SubF-UpDate-Investment                                                                                               ; this subfunction is called when there is need for investment
  if Desire-Investment > 0 [                                                                                            ; just trying to find product in two diferents K-Firms
    SubF-Visit-K-Firms                                                                                                  ; visit two k-firms, take note of their prices
    SubF-Buy-Capital                                                                                                    ; sub-function used to bought capital
  ]
end

to SubF-Visit-K-Firms                                                                                                   ; searching for the better price, similar to the households sub-functions, check for details there
  let X                                xcor                                                                             ; the diference is that the firm need to have a fixed position. this X and Y auxiliar variable save the firm position at the grid
  let Y                                ycor
  let Who01                            ""
  let Price01                          ""
  let Who02                            ""
  let Price02                          ""
  setxy                                random-xcor (random 2 + 8)
  ask one-of other Firms-here [
    set Who01                          Who
    set Price01                        Price
    ]
  setxy                                random-xcor (random 2 + 8)
  ask one-of other Firms-here [
    set Who02                          Who
    set Price02                        Price
    ]
  while [ Who01 = Who02 ] [
    setxy                             random-xcor (random 2 + 8)
    ask one-of other Firms-here [
      set Who02                       Who
      set Price02                     Price
    ]
    ]
  ifelse Price01 < Price02 [set Price-List list (Firm Who01) (Firm Who02) ] [set Price-List list (Firm Who02) (Firm Who01) ]
  setxy                              X Y                                                                                  ; return the firm to their position after the prices search
end

to SubF-Buy-Capital                                                                                                       ; sub-function to buy capital goods
  let expenses                                  0                                                                         ; sub-function auxiliar variable to save the expenses of the C-Firm
  let New-Inv                                   0                                                                         ; sub-function auxiliar variable to save the qtt capital bough by the C-Firm
  let Firm-A                                    first Price-List                                                          ; extract the name of the K-firm with the better price
  let Firm-B                                    last  Price-List                                                          ; extract the name of the K-firm with the seccond price
  let Qtt                                       Desire-Investment                                                         ; auxiliar variable register the qtt C-firm want to buy
  if c-Firm_Budget_rest01? [                                                                                              ; including budget restriction, this way the demand of k-firm is afected by the monetary restriction
    let Budget                                    Qtt * [Price] of Firm-A                                                 ; auxiliar variable with the monetary value the C-Firm can afford to invest
    if Budget > Bank-Deposit [                                                                                            ; check if the C-Firm has enough money to invest
      set Qtt                                     max list 0 (Bank-Deposit / [Price] of Firm-A)                           ; rebalance the investment according to money availible
    ]
  ]
  ask Firm-A [ set Demand                       Demand + Qtt ]                                                            ; updating demand at K-Firm
  if [stock] of Firm-A < Qtt [                                                                                            ; check if the K-Firm has enough stock to supply
    ask Firm-B [ set Demand                     Demand + Qtt - [Stock] of Firm-A ]                                        ; with the first did no has enough stock, also update the demand of the second firm
    ]
  ifelse [stock] of Firm-A >= Qtt [                                                                                       ; trying to buy
    ask Firm-A [                                                                                                          ; first situation, better one, it is possible to bought all at the better price
      set stock                                 stock   - Qtt                                                             ; updating properties of the K-Firm ...
      set Revenue                               Price   * Qtt + Revenue                                                   ; ...
      set expenses                              Price   * Qtt + expenses                                                  ; ...
      set Salles                                Salles  + Qtt                                                             ; ...
      set New-Inv                               New-Inv + Qtt                                                             ; ...
      set Qtt                                   0                                                                         ; ...     end first situation for Firm-A
      ]
     ] [
     if [stock] of Firm-A > 0 [                                                                                           ; second situation, there is not enough stock at the first firm
       ask Firm-A [                                                                                                       ; updating properties of the K-Firm ...
         set Revenue                            Price   * Stock + Revenue                                                 ; ...
         set expenses                           Price   * Stock + expenses                                                ; ...
         set Salles                             Salles  + Stock                                                           ; ...
         set Qtt                                Qtt     - Stock                                                           ; ...
         set New-Inv                            New-Inv + Stock                                                           ; ...
         set Stock                              0                                                                         ; ...        end second situation for Firm-A
         ]
       ]
     ]

  if Qtt > 0 [                                                                                                            ; means the C-Firm did not consume all investment needed
    ifelse [stock] of Firm-B >= Qtt [                                                                                     ; first situation, it is possible to bought all it is needed
      ask Firm-B [                                                                                                        ; updating properties of the K-Firm ...
        set stock                                 stock   - Qtt                                                           ; ...
        set Revenue                               Price   * Qtt + Revenue                                                 ; ...
        set expenses                              Price   * Qtt + expenses                                                ; ...
        set Salles                                Salles  + Qtt                                                           ; ...
        set New-Inv                               New-Inv + Qtt                                                           ; ...
        set Qtt                                   0                                                                       ; ...      end first situation for Firm-B
      ]
    ] [
    if [stock] of Firm-B > 0 [                                                                                            ; second situation, the C-Firm will not invest all it wants to
      ask Firm-B [                                                                                                        ; updating the properties of the K-Firm ...
        set Revenue                            Price   * Stock + Revenue                                                  ; ...
        set expenses                           Price   * Stock + expenses                                                 ; ...
        set Salles                             Salles  + Stock                                                            ; ...
        set Qtt                                Qtt     - Stock                                                            ; ...
        set New-Inv                            New-Inv + Stock                                                            ; ...
        set Stock                              0                                                                          ; ...      end second situation   Firm-B
      ]
    ]
    ]
  ]
    set Investment                              New-Inv                                                                   ; updating the propertie of the C-Firm, the investment it was acomplished
    set Bank-Deposit                            Bank-Deposit - expenses                                                   ; updating the bank account the C-Firm
end




;****************************************************************************************Function-UpDate-Production*********************************************************************************************

to Function-UpDate-Production                                                                                            ; this function update the production of Firms
  ask K-Firms [                                                                                                          ; updating the production of K-Firms
    set Production                  Number-Employee         * Productivity-of-labor                                      ; updating actual production
    set Stock                       Stock                   * (1 - depreciation-of-capital)           + Production  ; updating stock
    set Bank-Deposit                Bank-Deposit            + Revenue                                                    ; update bank account
    set Delta                       Production              - Demand                                                     ; variable used to decide new production
    ifelse K-Qtt-Function?          [ set Desire-Employee    Report-K-Update-Desire-Employee             ]               ; the user may force the k-firm to produce capital goods ...
                                    [ set Desire-Employee    Demand   /   Productivity-of-labor   ]                      ; ... if the switcher at HUD is turned off
    ifelse K-UpDate-Price?          [ set Price              Report-K-Update-Price                       ]               ; the user may force the capital price be fixed if ...
                                    [ set Price              wage / productivity-of-labor         ]                      ; ... the switcher at HUD is turned off
    ]
  ask C-Firms [                                                                                                          ; updating the production of C-Firms
    set Capital                     Capital                   - Capital * Util-Capacity * Depreciation-of-capital + Investment                      ; update the capital avalible for production process
    set Production                  min list                 (Number-Employee   *   Productivity-of-labor) (Capital * Productivity-of-capital)      ; update actual production limited by the availible capital
    set Stock                       Production                                                                           ; the C-Goods are perishable, so the actual stock are equal the production
    set Util-Capacity               Production               / (Capital * Productivity-of-capital)                       ; updat utilized capacity
    set Bank-Deposit                Bank-Deposit             + Revenue                                                   ; update bank account
    set Delta                       Production               - Demand                                                    ; variable used to decide new production level
    ifelse C-Qtt-Function?          [ set Desire-Employee    Report-C-Update-Desire-Employee ]                           ; the user may force the C-Firm to produce C-goods ...
                                    [ set Desire-Employee    Demand            /   Productivity-of-labor   ]             ; ... if the switcher at HUD is turned off
    ifelse C-UpDate-Price?          [ set Price              Report-C-Update-Price               ]                       ; the user may force the consumption good be fixed ...
                                    [ set Price              wage / productivity-of-labor ]                              ; ... if the switcher at HUD is turned off
    ]
end

to-report Report-C-Update-Price                                                                                                             ; reporting the new price for C-Firms ...
  let N-P                           Price                                                                                                   ; local auxialiar variable
  if  (delta <= 0) and              (Price <  Goods-Price-Level)  [ set N-P      Price * (1 + random-float 1 * Price-adjust-parameter)  ]   ; rule to reduce current price
  if  (delta >  0) and              (Price >  Goods-Price-Level)  [ set N-P      Price * (1 - random-float 1 * Price-adjust-parameter)  ]   ; rule to increase current price
  report N-P                                                                                                                                ; report new price
end

to-report Report-K-Update-Price                                                                                                             ; reporting the new price for K-firms
  let N-P                           Price                                                                                                   ; local auxiliar variable
  if (delta <= 0) and               (Price <   Capital-Price-Level) [ set N-P Price * (1 + random-float 1 * Price-adjust-parameter )  ]     ; rule to reduce price
  if (delta >  0) and               (Price >   Capital-Price-Level) [ set N-P Price * (1 - random-float 1 * Price-adjust-parameter )  ]     ; rule to increase price
  report                            N-P                                                                                                     ; report new price
end

to-report Report-C-Update-Desire-Employee                                                                                                                            ; reporting new need for a C-firm employees
  let N-E                           Number-Employee                                                                                                                  ; local auxiliar variable
  if (delta <= 0) and               (Price >= Goods-Price-Level)  [ set N-E ((Production - Quantity-adjust-parameter * delta) / productivity-of-labor) ]             ; possible condition to change actual number of employee
  if (delta >  0) and               (Price <  Goods-Price-Level)  [ set N-E ((Production - Quantity-adjust-parameter * delta) / productivity-of-labor) ]             ; other possible condition to change actual number of employee
  report N-E                                                                                                                                                         ; report new desire employee
end

to-report Report-K-Update-Desire-Employee                                                                                                                             ; reporting new need for a C-firm employees
  let N-E                           Number-Employee                                                                                                                   ; local auxiliar variable
  if (delta <= 0) and               (Price >=  Capital-Price-Level) [ set N-E ((Production - Quantity-adjust-parameter * delta - Stock) / productivity-of-labor)  ]   ; possible condition to change actual number of employee
  if (delta >  0) and               (Price <   Capital-Price-Level) [ set N-E ((Production - Quantity-adjust-parameter * delta - Stock) / productivity-of-labor)  ]   ; other possible contidtion to change actual number of employee
  report N-E                                                                                                                                                          ; report new need for employees
end




;;***************************************************************************************************GLOBALS*********************************************************************************************

to Function-UpDate-Globals                                                                                                                                    ; this function update the globals
  set Unemployment              1 - ((sum [Number-Employee]              of firms) / Number-of-workers )                                                      ; update the unemployemnt rate
  set GDP                             sum [Production  ]                 of Firms - sum [stock]  of K-Firms   if GDP < 0 [set GDP 1]                          ; update the GDP, sum production - stocks
  set Total-Investment                sum [Investment  ]                 of C-Firms                                                                           ; update investment realized by the C-Firms
  set Consumption                     sum [Consume     ]                 of Households                                                                        ; update the consumption
  set Total-Loans                     sum [Current-Retail-Loan]          of Firms     +     sum [Current-wholesale-Loan]          of Firms                    ; update the sum of retail loans, all firms
  set Total-Loans-C-Firms             sum [Current-Retail-Loan]          of C-Firms   +     sum [Current-wholesale-Loan]          of C-Firms                  ; update the sum of retail loans for C-Firms
  set Total-Loans-K-Firms             sum [Current-Retail-Loan]          of K-Firms   +     sum [Current-wholesale-Loan]          of K-Firms                  ; update the sum of retail loans for K-Firms
  set Goods-Price-Level_t-1               Goods-Price-Level
  set Capital-Price-Level_t-1             Capital-Price-Level
  if sum [Salles] of C-Firms != 0   [ set Goods-Price-Level              sum [Revenue     ] of C-Firms                  / sum [Salles] of C-Firms ]           ; update the goods price level
  if sum [Salles] of K-Firms != 0   [ set Capital-Price-Level            sum [Revenue     ] of K-Firms                  / sum [Salles] of K-Firms ]           ; update the capital price level
end




;*********************************************************************************************Function-Cash-Flows*********************************************************************************************

to Function-Cash-Flows                                                                                                         ; this function set the moviment of cash in the system
  ask C-Firms [                                                                                                                ; Cash flow of C-Firms
    let div                                     0                                                                              ; auxiliar variable
    if  Profit? [                                                                                                              ; HUD control
      set Profit                                max list 0 ( Revenue - Number-Employee * Wage)                                 ; check if had profit this period
      set Dividend                              min list   ( Dividend-payout-ratio     * Profit) (max list 0 (Bank-Deposit))   ; if there was profit setup dividend
      set Bank-Deposit                          Bank-Deposit - Dividend                                                        ; reduce the bank account the dividen which will be payed to the capitalist
      set Div                                   Dividend                                                                       ; auxiliar variable bring the div to the capitalist later
      ]
    ask one-of my-out-owners [                                                                                                 ; calling the owner of this firm
      ask other-end [                                                                                                          ; other end is the capitalist
        set Current-Income                     div                                                                             ; update the current income
        set Deposit-Bank                       Deposit-Bank   +   div                                                          ; update the household bank account
      ]
    ]
    ]

  ask K-Firms [                                                                                                                ; cash flow of the K-firms
    let div                                     0                                                                              ; auxiliar variable
    if  Profit? [                                                                                                              ; HUD control
      set Profit                                max list 0 ( Revenue - Number-Employee * Wage)                                 ; check if had profit this period
      if Prof-K-Firms? [                                                                                                       ; switch in HUD control
        set Profit                              max list 0 ( Bank-Deposit )                                                    ; set max profit to avoid negative bank account
         ]
      set Dividend                              min list   ( Dividend-payout-ratio     * Profit) (max list 0 (Bank-Deposit))   ; set dividend
      set Bank-Deposit                          Bank-Deposit - Dividend                                                        ; update bank account
      set Div                                   Dividend                                                                       ; auxiliar variable bring the value of div to the capitatilist later
      ]
    ask one-of my-out-owners [                                                                                                 ; calling the owner of this firm
      ask other-end [                                                                                                          ; other is the capitalist
        set Current-Income                     div                                                                             ; update the current income
        set Deposit-Bank                       Deposit-Bank   +   div                                                          ; update the household bank account
      ]
    ]
    ]

  ask Retail-Banks [                                                                                                           ; update the data into the retail bank system
    set Equity-Workers               sum [deposit-bank] of workers                                                             ; explicit
    set Equity-Capitalists           sum [deposit-bank] of capitalists                                                         ; explicit
    set Equity-C-Firms               sum [bank-deposit] of c-firms                                                             ; explicit
    set Equity-K-Firms               sum [bank-deposit] of k-firms                                                             ; explicit
    set Equity-Bank                  Initial-equity-of-the-bank                                                                ; explicit
    set Equity-Total                 Equity-Workers + Equity-Capitalists + Equity-C-Firms + Equity-K-Firms + Equity-Bank       ; explicit
    ]
end




;;******************************************************************************************Function-Credit-Market*********************************************************************************************

to Function-Credit-Market                                                                             ; this function rules the credit market system
  SubF-Call-Matrix-Formation                                                                          ; function to set the matrix used in R to calculate the life spam of firms
  set C-Broke                         0                                                               ; global variable for total C-firm went broke this period
  set K-Broke                         0                                                               ; global variable for total K-firm went broke this period
  if Wholesales-Banks? [ SubF-Call-Wholesales  SubF-Call-Intrabank ]                                  ; switch in HUD to control the introduction of the wholesaler bank
  if Retail-Banks? [                                                                                  ; switch in HUD to controle the retail bank
    ask Firms [                                                                                       ; firms update their status with the retail bank
      SubF-Update-Installment                                                                         ; to update the installment
      SubF-Update-Cash-Need                                                                           ; to update firm cash need
      SubF-Update-Assets                                                                              ; to update assets value
      SubF-Update-Leverage                                                                            ; to update the leverage, all this is used to rule interest rate praticed later
    ]
    ask K-firms [
      SubF-Ask-for-K-Credit                                                                           ; Check if this K-Firm needs credit, if it is need will be asked in this subfunction
      ]
    ask C-Firms [
      SubF-Ask-for-C-Credit                                                                           ; check if this C-firm needs credti, if it is need will be asked in this subfunction
      ]
    let C-Loans                       sum [Current-Retail-Loan] of Firms                              ; local variable
    let I-Receive                     sum [Interest-Pay       ] of Firms                              ; local variable
    let D-Receive                     sum [Installment-Pay    ] of Firms                              ; local variable
    ask Retail-Banks [                                                                                ; the retail bank update the balance after the new was created
      set Total-Loans-C-Firms         sum [Current-Retail-Loan] of C-Firms                            ; explicit
      set Total-Loans-K-Firms         sum [Current-Retail-Loan] of K-Firms                            ; explicit
      set Total-Loans                 sum [Current-Retail-Loan] of Firms                              ; explicit
      set Interest-Receive            I-Receive                                                       ; explicit
      set Profit                      Profit + I-Receive                                              ; explicit
      set Installment-Receive         D-Receive                                                       ; explicit
    ]

    if C-Broke? [                                                                                     ; switch check if the user want the broke procedure
      ask C-Firms [                                                                                   ; this rules is for C-firm broke
        ifelse (Retail-Bankruptcy > T-Ban) or (Wholesale-Bankruptcy > T-Ban) [                        ; check if this firm did not pay their debts with a bank
          SubF-Go-Bankruptcy-Type-C                                                                   ; subfunction to lead the broke process
          set Broke 1                                                                                 ; if this bad increase the broke status
          ] [ set Broke 0 ]                                                                           ; if the firm has no open debt reset their broke status
         ]
      ]
    if K-Broke? [                                                                                     ; the same as the C-firm, check above for details
      ask K-Firms [
        ifelse (Retail-Bankruptcy > T-Ban) or (Wholesale-Bankruptcy > T-Ban) [
          SubF-Go-Bankruptcy-Type-K
          set Broke 1
          ] [ set Broke 0 ]
        ]
      ]
  ]
end

to SubF-Go-Bankruptcy-Type-K                                                                           ; this subfunction rules the process for how a K-firm broke
  set K-Broke                          K-Broke  + 1                                                    ; increase the global parameter which count of broke status
  set Retail-Bankruptcy                0                                                               ; reset this parameter
  set Wholesale-Bankruptcy             0                                                               ; reset the parameter
  let debts                            Current-Retail-Loan + Current-Wholesale-Loan                    ; local auxialiar variable
  ask one-of my-out-owners [                                                                           ; use the capitalist to rebuild the firm
    ask other-end [                                                                                    ; find out who is the owner of this firm
      set Deposit-Bank                 Deposit-Bank - Initial-liquidity-of-Firms                       ; update the bank account of the capitalist, reduce the moneu invested to recreat the firm
      ]
     ]
  set Current-Retail-Loan              0                                                               ; reset the loan of the firm after the bankruptcy
  set Current-Wholesale-Loan           0                                                               ; reset the loan of the firm after the bankruptcy
  set Bank-Deposit                     Initial-liquidity-of-Firms                                      ; iniciate the firm with the money from the capitalist whom owner the firm
end

to SubF-Go-Bankruptcy-Type-C                                                                           ; this subfunction rules the process for the C-firm bankruptcy
  set C-Broke                           C-Broke + 1                                                    ; increase the global parameter which count the broke status
  set Retail-Bankruptcy                 0                                                              ; reset the parameter
  set Wholesale-Bankruptcy              0                                                              ; reset the parameter
  let debts                             Current-Retail-Loan + Current-Wholesale-Loan                   ; local auxiliar variable
  ask one-of my-out-owners [                                                                           ; find out who is the owner of this firm
    ask other-end [                                                                                    ; the owner
      set Deposit-Bank                  Deposit-Bank - Initial-liquidity-of-Firms                      ; update the bank account of the capitalist, reduce the money used to rebuild the firm
      ]
     ]
  set Current-Retail-Loan               0                                                              ; reset the parameter
  set Current-Wholesale-loan            0                                                              ; reset the parameter
  if Capital-Destruction? [             set Capital Initial-Capital ]                                  ; reset the capital of the c-firm
  set Bank-Deposit                      Initial-liquidity-of-Firms                                     ; updated the bank account with the money from the capitalist
end

to SubF-Update-Installment                                                                             ; this subfunction update the installment debt
  set  Interest-Pay                     0                                                              ; reset parameter
  set  Installment-Pay                  0                                                              ; reset parameter
  if Current-Retail-Loan > 0 [                                                                         ; check if exist loan
    ifelse Bank-deposit >= ((Installment-on-debt + Interest-Retail ) * Current-Retail-Loan) [          ; check if there is money enough to pay the debts
      set Interest-Pay                Interest-Retail     * Current-Retail-Loan                        ; update the parameter with the value will be payed
      set Bank-Deposit                Bank-Deposit        - interest-pay                               ; update parameter
      set Installment-Pay             Installment-on-debt * Current-Retail-Loan                        ; update parameter
      set Bank-Deposit                Bank-Deposit        - Installment-Pay                            ; update parameter
      set Current-Retail-Loan         Current-Retail-Loan - Installment-Pay                            ; update parameter
      set Retail-Bankruptcy          0                                                                 ; as the firm pay debts this period, reset the parameter for bankruptcy
      ] [
    set Retail-Bankruptcy             Retail-Bankruptcy  +  1                                          ; if the firm did not had money she will be closer and closer to bankruptcy
      ]
    ]
end

to SubF-Update-Cash-Need                                                                               ; subfuntion used for update the need for cash
   set Need-Cash                      max list 0 (Need-Cash + Number-Employee * Wage - Bank-Deposit + (Installment-on-debt + Interest-Retail) * Current-Retail-Loan)
end

to SubF-Update-Assets                                                                                  ; subfunction to update the assets, which differ from c-firm to k-firm type
  ifelse C-Firms? [
    set Assets                       max list 0 (Stock      * Price  +  Bank-Deposit  + Capital * Capital-Price-Level)
    ] [
    set Assets                       max list 0 (Stock      * Price  +  Bank-Deposit )
    ]
end

to SubF-Ask-for-K-Credit                                                                               ; this subfunction is called when there is need for a loan
  let lev                           mean [Leverage] of K-Firms                                         ; local parameter used by a bank
  let risk                          1                                                                  ; local parameter used by a bank
  let Availible-Credit              Bank-loss-parameter * (sum [Equity-Bank] of Retail-Banks * B-Lev * ( risk  ) -  sum [Current-Retail-Loan] of Firms)  ; how much money the bank has to offer as a loan
  if (Need-Cash > 0)  and (Availible-Credit > Need-Cash) and (Retail-Bankruptcy < T-Ban) [             ; check if the need of a firm is lower then the availible credit
    set Current-Retail-Loan          Current-Retail-Loan  +  Need-Cash                                 ; updating the loans parameter
    set Bank-Deposit                 Bank-Deposit         +  Need-Cash                                 ; updating the bank account with the money received
    ifelse Update-Interest?          [ SubF-Update-Interest-Retail-K ] [ set Interest-Retail              free-interest-rate] ; call a subfunction to update the interest rate of this firm
    ]
end

to SubF-Ask-for-C-Credit                                                                               ; this subfunction is called when there is need for a loan, c-firm type
  let lev                           mean [Leverage] of C-Firms                                         ; local parameter used by a bank
  let risk                          1                                                                  ; local parameter used by a bank
  let Availible-Credit              Bank-loss-parameter * (sum [Equity-Bank] of Retail-Banks * B-Lev * ( risk  ) -  sum [Current-Retail-Loan] of Firms)  ; how much money the bank has to offer as a loan
  if (Need-Cash > 0)  and (Availible-Credit > Need-Cash) and (Retail-Bankruptcy < T-Ban) [             ; check if the need of a firm is lower then the availible credit
    set Current-Retail-Loan          Current-Retail-Loan  +  Need-Cash                                 ; updating the loans parameter
    set Bank-Deposit                 Bank-Deposit         +  Need-Cash                                 ; updating the bank account with the money received
    ifelse Update-Interest?          [ SubF-Update-Interest-Retail-C ] [ set Interest-Retail              free-interest-rate] ; call a subfunction to update the interest rate of this firm
    ]
end

to SubF-Update-Interest-Retail-C                                                                                                         ; update the interest rate of a C-firm
  let prob-die                       (1 / (1 + e ^ ( - Beta_1-C-Firms - (Beta_2-C-Firms * leverage))))                                   ; local variable, save the prob of this firm die
  set T-expected                     (1 / prob-die)                                                                                      ; calculate the life expectation of this firm
  let Numerator                      (1 + (free-interest-rate / installment-on-debt))                                                 ; local auxiliar variable, first part to calculate the new interest rate
  let Denominator                    ((1 - (1 - installment-on-debt) ^ (T-expected + 1)) / installment-on-debt)                          ; // // second part of the new interest rate
  let new-int                        Bank-gross-mark-up * ((numerator / denominator) - installment-on-debt)                              ; calculating the new interest rate
  set Interest-Retail                (Interest-Retail   * (Current-Retail-Loan - Need-Cash) + new-int * Need-Cash) / Current-Retail-Loan ; update the interest rate as mean of the new and the later interest rate
end

to SubF-Update-Interest-Retail-K                                                                                                         ; update the interest rate of a K-firm
  let prob-die                       (1 / (1 + e ^ ( - Beta_1-K-Firms - (Beta_2-K-Firms * leverage))))                                   ; the same as the C-firm, check above for details
  set T-expected                     (1 / prob-die)
  let Numerator                      (1 + (free-interest-rate / installment-on-debt))
  let Denominator                    ((1 - (1 - installment-on-debt) ^ (T-expected + 1)) / installment-on-debt)
  let new-int                        Bank-gross-mark-up * ((numerator / denominator) - installment-on-debt)
  set Interest-Retail                (Interest-Retail   * (Current-Retail-Loan - Need-Cash) + new-int * Need-Cash) / Current-Retail-Loan
end

to SubF-Update-Leverage                                                                                                                  ; updating the leverage of a firm
  if Need-Cash > 0                 [ set Leverage                      (Current-Retail-Loan + Need-Cash) / (Assets + Current-Retail-Loan + Need-Cash)]
  if (Current-Retail-Loan = 0)     [ set Leverage 0 ]
end

to SubF-Distribute-Dividends                                                                                                             ; this subfunction set the rules for dividend for banks
  ask Retail-Banks [                                                                                                                     ; the retail bank dividend
    let Div                         Profit  / (Number-of-consumptions-firms + number-of-capital-goods-firms)                             ; calculate dividend as part of the total profit divided by capitalists
    ask Capitalists [                                                                                                                    ; call each of one of the capitalist
      set Current-Income           Current-Income + div                                                                                  ; increase the income of the capitalist
      set Deposit-Bank             Deposit-Bank   + div                                                                                  ; update the bank account of the capitalist
      ]
    set Equity-Total               Equity-Total   - Profit
    set Profit                     0
    ]
  ask Wholesale-banks [                                                                                                                  ; the wholesalers bank dividend
    set Profit                     max list 0 (Interest-Receive - (Intrabank-loan * Intrabank-rate)) *  Dividend-payout-ratio            ; check if there was profit this period                                                       ;
    let div                        Profit  / (Number-of-consumptions-firms + number-of-capital-goods-firms)                              ; calculate dividend as part of the total profit divided by capitalists
    ask Capitalists [                                                                                                                    ; call each of one of the capitalist
      set Current-income           current-income + div                                                                                  ; increase the income of the capitalist
      set deposit-bank             deposit-bank   + div                                                                                  ; update the bank account of the capitalist
      ]
    set Equity-Total               Equity-Total - Profit
  ]
end

to SubF-Call-Matrix-formation                                                                                              ; subfunction that manage the R rotines
  ask C-Firms [
    set Matrix-C-Firms-Bankruptcy matrix:set-and-report Matrix-C-Firms-Bankruptcy 1 Mj Leverage                            ; update the matrix with information about C-Firms
    ifelse (Retail-Bankruptcy < T-Ban) and (Wholesale-Bankruptcy < T-Ban)                                                  ; update a position with 0 if the firm is alive, and 1 if the firm went bankruptcy
    [ set Matrix-C-Firms-Bankruptcy matrix:set-and-report Matrix-C-Firms-Bankruptcy 0 Mj 0 ]
    [ set Matrix-C-Firms-Bankruptcy matrix:set-and-report Matrix-C-Firms-Bankruptcy 0 Mj 1 ]
    set Mj Mj + 1 if Mj > (Window - 1) [ set Mj 0]                                                                         ; move the matrix to the next position
    ]

  ask K-Firms [
    set Matrix-K-Firms-Bankruptcy matrix:set-and-report Matrix-K-Firms-Bankruptcy 1 Mjk leverage                           ; update the matrix with information abou the K-firms
    ifelse (Retail-Bankruptcy < T-Ban) and (Wholesale-Bankruptcy < T-Ban)                                                  ; update a position with 0 if the if alive, and 1 if the firm went bankruptcy
    [ set Matrix-K-Firms-Bankruptcy matrix:set-and-report Matrix-K-Firms-Bankruptcy 0 Mjk 0 ]
    [ set Matrix-K-Firms-Bankruptcy matrix:set-and-report Matrix-K-Firms-Bankruptcy 0 Mjk 1 ]
    set Mjk Mjk + 1 if Mjk > (Window - 1) [ set Mjk 0]                                                                     ; move the matrix the next position
    ]

  let A matrix:get-row Matrix-C-Firms-Bankruptcy 0                                                                         ; creat an object with the first row of the matrix
  let B matrix:get-row Matrix-C-Firms-Bankruptcy 1                                                                         ; creat an object with the seccond row of the matrix

  r:put   "a" A                                                                                                            ; call the R and put there the object A
  r:put   "b" B                                                                                                            ; call the R and put there the object B
  r:eval  "c <- glm(a ~ b, family = binomial)"                                                                             ; call R and ask to solve the logistic function with the inputs A and B

  let C  r:get "c$coefficients"                                                                                            ; call R and the coefficients into object C
  set Beta_1-C-Firms  first C                                                                                              ; save the beta-1 for C-firms
  if  Beta_1-C-Firms < (- 25)      [set Beta_1-C-Firms (- 25)]                                                             ; assure value into a meaninful range, because the first period there are not enough information
  set Beta_2-C-Firms  last  C                                                                                              ; sabe the beta-2 for C-firms
  if  Beta_2-C-Firms > 0  = false  [set Beta_2-C-Firms      0]                                                             ; assure value into a meaninful range, because the first period there are not enough information
  if  Beta_2-C-Firms > 25          [set Beta_2-C-Firms     25]                                                             ; assure value into a meaninful range, because the first period there are not enough information

  set A matrix:get-row Matrix-K-Firms-Bankruptcy 0                                                                         ; creat an object with the first row of the matrix
  set B matrix:get-row Matrix-K-Firms-Bankruptcy 1                                                                         ; creat an object with the seccond row of the matrix

  r:put   "a" A                                                                                                            ; call the R and put there the object A
  r:put   "b" B                                                                                                            ; call the R and put there the object B
  r:eval  "c <- glm(a ~ b, family = binomial)"                                                                             ; call R and ask to solve the logistic function with the inputs A and B

  set C  r:get "c$coefficients"                                                                                            ; the same as for the C-firms, look above for details
  set Beta_1-K-Firms  first C
  if  Beta_1-K-Firms < (- 25)     [set Beta_1-K-Firms  (- 25)]
  set Beta_2-K-Firms  last  C
  if (Beta_2-K-Firms > 0) = false [set Beta_2-K-Firms       0]
  if  Beta_2-K-firms > 25         [set Beta_2-K-Firms      25]
end


To SubF-Call-Wholesales                                  ; subfunction used for firms to ask credit at the wholesalers banks
    ask Firms [
      SubF-Update-Installment-W                          ; call subfunction to update installment
      SubF-Update-Cash-Need                              ; call subfunction to update possible need for cash
      SubF-Update-Assets                                 ; call subfunction to update the assets
      SubF-Update-Leverage-W                             ; call subfunction to update leverage
    ]
    ask K-firms [
      SubF-Ask-for-K-Credit-W                            ; check with a K-firm if it needs credit
    ]
    ask C-Firms [
      SubF-Ask-for-C-Credit-W                            ; check with a C-firm if it needs credit
    ]
end

to SubF-Update-Installment-W                                                                              ; subfunction to update the installment wiht the wholesalers bank
  set  Interest-Pay                     0                                                                 ; reset parameter
  set  Installment-Pay                  0                                                                 ; reset parameter
  let  Interest                         0                                                                 ; reset parameter
  let  Installment                      0                                                                 ; reset parameter
  if Current-Wholesale-Loan > 0 [                                                                         ; check if this firm already has a loan with this bank
    ifelse Bank-deposit     >= ((Installment-on-debt-wholesales                 + Interest-Wholesale ) * Current-Wholesale-Loan) [                     ; check if this firm has enough money to pay their debits
      set Interest-Pay                Interest-Wholesale             * Current-Wholesale-Loan             ; update the parameter
      set Bank-Deposit                Bank-Deposit                   - interest-pay                       ; updating bank account
      set Interest                    interest-pay                                                        ; update parameter
      set Installment-Pay             Installment-on-debt-Wholesales * Current-Wholesale-Loan                ; update parameter
      set Bank-Deposit                Bank-Deposit                   - Installment-Pay                    ; update bank account
      set Current-Wholesale-Loan      Current-Wholesale-Loan         - Installment-Pay                    ; reduce the debit after the payment
      set Installment                 Installment-pay                                                     ;
      set Wholesale-Bankruptcy        0                                                                   ; means the firm did not went bankruptcy
      ] [
    set Wholesale-Bankruptcy          Wholesale-Bankruptcy  +  1                                          ; if the firm did not had money she will be closer and closer to bankruptcy
      ]
    ]
  ask Wholesale-Banks [                                                                                   ; update the wholesalers bank properties
    set Equity-Total                  Equity-Total     + Installment
    set Interest-Receive              Interest-Receive + Interest
    ]
end

to SubF-Update-Leverage-W                                                                                 ; subfuntion for update the leverage of firms with the wholesalers bank
  if Need-Cash > 0                    [ set Leverage                      (Current-Wholesale-Loan + Need-Cash) / (Assets + Current-Wholesale-Loan + Need-Cash)] ;
  if (Current-Wholesale-Loan = 0)     [ set Leverage 0 ]
end

to SubF-Ask-for-K-Credit-W                                                                                ; subfunction used by a K-firms to ask credit with a wholesaler bank
  let Availible-Credit              Bank-loss-parameter * (sum [Equity-Total] of Wholesale-Banks * B-Lev )  ; check money availible for new loans
  if (Need-Cash > 0)  and (Availible-Credit > Need-Cash) [                                                ; check if this firm had luck and receive a new loan
    set Current-Wholesale-Loan       Current-Wholesale-Loan  +  Need-Cash                                 ; creating a new loan
    set Bank-Deposit                 Bank-Deposit         +  Need-Cash                                    ; update bank account wiht new credit reeceived
    ifelse Update-Interest?          [ SubF-Update-Interest-Wholesale-K ] [ set Interest-Wholesale              free-interest-rate] ; call subfunction to update the interest rate with the wholesaler bank
    ]
end

to SubF-Ask-for-C-Credit-W                                                                                ; subfunction used by a C-firm to ask for credit with a wholsaler bank
  let Availible-Credit              Bank-loss-parameter * (sum [Equity-Total] of Wholesale-Banks * B-Lev )  ; check money availible for new loans
  if (Need-Cash > 0)  and (Availible-Credit > Need-Cash) [                                                ; check if this firm had luck and receive a new loan
    set Current-Wholesale-Loan       Current-Wholesale-Loan  +  Need-Cash                                 ; creating a loan
    set Bank-Deposit                 Bank-Deposit            +  Need-Cash                                 ; update bank account wiht new credit reeceived
    ifelse Update-Interest?          [ SubF-Update-Interest-Wholesale-C ] [ set Interest-Wholesale              free-interest-rate] ; call subfunction to update the interest rate with the wholesaler bank
    ]
end

to SubF-Update-Interest-Wholesale-C                                                                       ; this function update the interest rate of a firm with the wholesaler bank. Similar to the subfunction for the retail bank, check above for details
  let prob-die                       (1 / (1 + e ^ ( - Beta_1-C-Firms - (Beta_2-C-Firms * leverage))))
  set T-expected                     (1 / prob-die)
  let Numerator                      (1 + (free-interest-rate /                         installment-on-debt-wholesales))
  let Denominator                    ((1 - (1 - installment-on-debt-wholesales) ^ (T-expected + 1)) / installment-on-debt-wholesales)
  let new-int                        Bank-gross-mark-up    * ((numerator / denominator)  - installment-on-debt-wholesales)
  set Interest-Wholesale             (Interest-Wholesale   * (Current-Wholesale-Loan - Need-Cash) + new-int * Need-Cash) / Current-Wholesale-Loan
end

to SubF-Update-Interest-Wholesale-K                                                                       ; this function update the interest rate of a firm with the wholesaler bank. Similar to the subfunction for the retail bank, check above for details
  let prob-die                       (1 / (1 + e ^ ( - Beta_1-K-Firms - (Beta_2-K-Firms * leverage))))
  set T-expected                     (1 / prob-die)
  let Numerator                      (1 + (free-interest-rate /                         installment-on-debt-Wholesales))
  let Denominator                    ((1 - (1 - installment-on-debt-wholesales) ^ (T-expected + 1)) / installment-on-debt-Wholesales)
  let new-int                        Bank-gross-mark-up    * ((numerator / denominator) -  installment-on-debt-Wholesales)
  set Interest-Wholesale             (Interest-Wholesale   * (Current-Wholesale-Loan - Need-Cash) + new-int * Need-Cash) / Current-Wholesale-Loan
end

to SubF-Call-Intrabank                                                                                   ; this subfunction has the process for the intrabank structure
  let lev                            sum [Current-Wholesale-Loan] of Firms                               ; auxiliar variable with the value of the total wholesaler loans
  let New-Intra-Loan                 0                                                                   ; local auxiliar variable
  let Availible-Loan                 0                                                                   ; local auxiliar variable
  let Installment                    0                                                                   ; local auxiliar variable
  let Interest                       0                                                                   ; local auxiliar variable
  let Need-loan                       max list 0 ( Initial-equity-of-the-bank - (abs sum [Intrabank-loan] of Wholesale-Banks) + lev)  ; local variable with the value of the new loans needed for the wholesaler bank
  if Need-Loan > 0 [                                                                                     ; if the wholesaler bank need more money...
    ask Retail-Banks [                                                                                   ; ... then ask the retail bank if there is any availible
      set Availible-Loan             min list Need-Loan (Bank-loss-parameter * Equity-Total * (number-of-consumptions-firms + number-of-capital-goods-firms))       ;  availible credit for this period
      set Intrabank-Loan             Intrabank-Loan - Availible-Loan                                     ; update the intrabank credit value
      set Equity-Total               Equity-Total   - Availible-Loan                                     ; update the equity of the retail bank
      ]
    ]
  ask Wholesale-Banks [                                                                                  ; update the parameter of the wholesalers bank after new loans
    if (Intrabank-Loan > 0) and (Equity-Total > 0) [                                                     ; proceed  with the payment of debits of the Wholesaler bank with the retail bank
      set Installment                Intrabank-Loan * (Installment-on-debt)                              ; update the installment payed
      set Interest                   Intrabank-Loan * Intrabank-Rate                                     ; update the interest payed
      set Equity-Total               Equity-Total   - Installment - Interest                             ; update equity of the wholesaler bank
      set Intrabank-Loan             Intrabank-Loan - (Intrabank-Loan * Installment-on-debt)             ; update parameter of intrabank loan
      ]
    set Equity-Total                 Equity-total   + Availible-Loan                                     ; this is called even when there was not previous intrabank credit
    set Intrabank-Loan               Intrabank-Loan + Availible-Loan                                     ; this is called even when there was not previous intrabank credit
    if Equity-total < 0 [ set Equity-total Initial-equity-of-the-bank]                                   ; bank bankruptcy, recapitalized
    ]
  ask Retail-Banks [                                                                                     ; update the retail bank properties using the local auxiliar variables
    set Equity-Total                 Equity-Total   + Installment + Interest
    set Intrabank-Loan               Intrabank-Loan + Installment
    ]
end




;*************************************************************************************Function-Call-Central-Bank*************************************************************************************************

to Function-Call-Central-Bank
  ;Taylor-rule-parameter-for-product
  ;Taylor-rule-parameter-for-inflation
  ;Desire-inflation-for-the-monetary-authority
  ;Natural-interest-rate
  let pi_t                          ((ln Goods-Price-Level - ln Goods-Price-Level_t-1) + (ln Capital-Price-Level - ln Capital-Price-Level_t-1))
  let P_gdp                         Productivity-of-capital * sum [Capital] of C-Firms
  let sensity_inflation             Taylor-rule-parameter-for-inflation * (pi_t - Desire-inflation-for-the-monetary-authority)
  let sensity_product               Taylor-rule-parameter-for-product   * (ln GDP - ln P_gdp)
  set Free-Interest-Rate            max list 0.01 ( (pi_t + natural-interest-rate + sensity_inflation + sensity_product) * (Slow_taylor) + (1 - slow_taylor) * Free-Interest-Rate )
end







There are 2 versions of this model.

Uploaded by When Description Download
elder silva over 6 years ago I would like to thanks Rubén Osuna for the comments and improvments on the code. Download this version
elder silva almost 7 years ago Initial upload Download this version

Attached files

File Type Description Last updated
MABM with a central bank.png preview Preview for 'MABM with a central bank' almost 7 years ago, by elder silva Download
ODD_Appendix.pdf pdf full description of the model almost 7 years ago, by elder silva Download

This model does not have any ancestors.

This model does not have any descendants.
