Social Inequity in Transportation System

Social Inequity in Transportation System preview image

1 collaborator

20161220_121606 Gillmar Betara (Author)

Tags

transport, social dynamics

"This model shows that transport phenomena, such as transport mode choice behavior, emerged from social interactions as opposed from the conventional transport model which assume that transport behavior follows Random Utility Theory"

Tagged by Gillmar Betara 3 months ago

Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.0 • Viewed 88 times • Downloaded 2 times • Run 0 times
Download the 'Social Inequity in Transportation System' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


## ABOUT THE MODEL

This is a transport mode choice behavior. The idea is simple. It is evident that public transportations are developed to reduce transport cost, which in result generates additional income for the user (agents). The interesting part of this phenomenon is what do agents do with the additional income?

Common mode-choice models developed under the assumption that one will behave rationally to maximize her utility. We argued that this model failed to address two key factors: additional income and local interaction. It is evident that most, if not all, public transportation aims to reduce transport cost, which in result generates additional income. Moreover, the use of additional income is highly affected by agent’s social interaction and, obviously, people interacts with each other within their social networks. Therefore, the possible existence of a phase in which people purchase automobile because of the additional income and social prestige is an attractive proposition. In simpler words, there is a long-term effect that public transportation could actually become the cause of traffic congestion.

This model is an agent-based model of artificial agents who lives in an artificial world of patches. Each agent occupies a single patch and interact with theier neighbors. They will then update their state, either purchasing a car or using public transportation, according to a probability function. The higher the difference between an agent’s wealth to her neighbors’, the higher the probability of the agent to purchase a car.

## MODEL OUTPUT

Our model suggests that transportation system is an ever-moving system of three states: transit-oriented, automobile-oriented, and equilibrium. Moreover, the model also shows inverse relation between the state of the system and its social implications. Transit-oriented system is widely known to favor the poor over the rich. However, our model shows that by favoring the poor, it encourages people to view automobile much more prestigious than public transport. Therefore, prestige-driven behavior emerged, hence automobile-oriented system arises. Additionally, the model could also be viewed as a generalized form of the conventional model. The model shows that rational behavior and utility maximization only occurs when purchasing automobiles is considered costly, thus, functionality and degree of necessity becomes critical.

**NOTE:**

To produce this output, you need to use the _Behavior Space_ from the _Tools_ option.

> What needs to be done:

>

> - set FARE = 0

> - set THRESHOLD = 0

> - vary BUY-PRICE from 0.0 to 5.0 (actually, there is nothing interesting happening from BUY-PRICE >= 3.5)

> - set REPETITION = 100

> - compute average value for each output:

> - number of turtles who buy a car

> - number of turtles who use public transportation

> - car profile

> - public transportation profile

> - plot in a graph (I suggest you to make two graphs)

> - BUY-PRICE (x-axis) vs number of turtles who buy a car (y-axis-1) and number of turtles who use public transportation (y-axis-2)

> - BUY-PRICE (x-axis) vs car profile (y-axis-1) and public transportation profile (y-axis-2)

## MODEL PROPERTIES

Each agent has these properties

> **FARE** = the cost of using public transport mode

> **DEPRECIATION** = the decline of the value of a car over time

> **THRESHOLD** = perceived utility of using public transport mode

> **AGE-REMAINING** = agent's remaining life

> **RISK-BUY** = agent's risk aversion of buying a car

> **RISK-SELL** = agent's tolerance toward selling her car

> **CURRENT-ASSET** = agent's asset at time t (excluding car ownership)

> **LIVING-COST** = agent's average cost of living

> **INCOME** = agent's average income

> **WEALTH** = agent's total economic asset (including car ownership)

> **OWN-CAR** = agent's car ownership

> **ABILITY-TO-BUY** = agent's ability to purchase a new car

> **PROBABILITY-TO-BUY** = agent's probability to buy a new car

> **AVERAGE-ASSET** = average asset value of agent's neighbors (including the agent itself). Imagine the agent ask herself "What kind of pattern emerged if I live in this neighborhood?"

> **UTILITY-OF-BUYING-A-CAR** = perceived benefit of buying and/or having a car

## THE BASIC IDEA OF THE MODEL

The basic rule is agents will have to choose between using public transportation or buying an automobile which is as follows:

>**if** expected utility of purchasing a car is less than the perceived utility of using public transportation **then** use public transportation, **otherwise** purchase a car

## MODEL INITIALIZATION (SETUP PROCEDURE)

First, in the initialization (Setup), we create the environment (world), the agents, and its properties:

**Step 1** set world wraps vertically and horizontally

**Step 2** set global variables

> ```

> set depreciation 0.9

> ```

**Step 3** set patches pcolor to grey

> ```

> ask patches [ set pcolor grey]

> ```

**Step 4** sprout one agent in every patch

> ```

> ask patches [ sprout 1]

> ```

**Step 5** set agents' properties

> ```

> ask turtles [

> set age-remaining (10 + random 60)

> set risk-buy 1.5

> set risk-sell precision random-float 1.0 2

> set current-asset precision random-float 1.0 2

> set living-cost precision random-float 1.0 2

> set wealth current-asset

> set income precision (random-float 1.0) 2

> set own-car 0]]

> ```

**Step 6** display agent

> ```

> ask turtles [

> set shape "circle"

> set size 1

>

> ifelse (own-car = 1)

> [ set color 94]

> [ ifelse (current-asset < fare)

> [set color 98]

> [set color 96]]

> ```

## INTERACTION RULES AND ITERATION PROCESS (GO PROCEDURE)

After we initialize all the components of the model, then we setup the interaction rules (Go):

**Step 1** set maximum iteration at TICKS = 300

> ```

> if ticks >= 300 [ stop]

> ```

**Step 2** if the Agent already have a car (depends randomly on the initialization), she will have to decide if she wants to keep the car or sell the car

> ```

> ifelse (CURRENT-CAR-VALUE < RISK-SELL * BUY-PRICE)[

> [ sell-car]

> [ keep-car]]

> ```

**Step 2.a** if she decided to sell her car (sell-car)

> ```

> set OWN-CAR OWN-CAR - 1

> let SELL-PRICE (0.1 + random-float 0.61) * BUY-PRICE

> set WEALTH (CURRENT-ASSET + SELL-PRICE - CURRENT-CAR-VALUE)

> set CURRENT-ASSET (CURRENT-ASSET + INCOME + SELL-PRICE - LIVING-COST)

> set CURRENT-CAR-VALUE ""

> ```

**Step 2.B** if she decided to keep her car (keep-car)

> ```

> set OWN-CAR OWN-CAR

> set CURRENT-CAR-VALUE (DEPRECIATION * CURRENT-CAR-VALUE)

> set WEALTH CURRENT-ASSET + CURRENT-CAR-VALUE

> set CURRENT-ASSET (CURRENT-ASSET + INCOME - CAR-COST - LIVING-COST)

> ```

**Step 3** if the agent does not have a car (depends randomly on the initialization) then she will have to decide whether she wants to use the public transportation or buy a car

> ```

> set ABILITY-TO-BUY CURRENT-ASSET RISK-BUY * BUY-PRICE

> ```

**Step 3.a** compute her ability to buy a car

> ```

> set ABILITY-TO-BUY CURRENT-ASSET RISK-BUY * BUY-PRICE

> ```

**Step 3.b** compute her probability to buy a car

> ```

> set PROBABILITY-TO-BUY 1 - exp (- (CURRENT-ASSET - AVERAGE-ASSET))

> ```

**Step 3.c** compute her expected utility of purchasing a car

> ```

> set UTILITY-OF-BUYING-A-CAR ABILITY-TO-BUY * PROBABILITY-TO-BUY

> ```

**Step 3.d** compare her expected utility of purchasing a car with the perceived utility of using public transportation and update her state

> ```

> ifelse (UTILITY-OF-BUYING-A-CAR < THRESHOLD) [

> [ use-public-transport]

> [ buy-car]]

> ```

**Step 3.d.1** if she decided to use public transportation (use-public-transport)

> ```

> set OWN-CAR OWN-CAR

> set WEALTH CURRENT-ASSET

> set CURRENT-ASSET (CURRENT-ASSET + INCOME - PUBLIC-TRANSPORT-FARE - LIVING-COST)

> ```

**Step 3.d.2** if she decided to buy a car (buy-car)

> ```

> set OWN-CAR OWN-CAR + 1

> set CURRENT-CAR-VALUE (DEPRECIATION * BUY-PRICE)

> set WEALTH (CURRENT-ASSET + CURRENT-CAR-VALUE)

> set CAR-COST 0.3 * BUY-PRICE

> set CURRENT-ASSET (CURRENT-ASSET + INCOME - BUY-PRICE - LIVING-COST)

> ```

**Step 4** display agents

**Step 5** update agent's life

> ```

> set AGE-REMAINING AGE-REMAINING - 1

> if (WEALTH <= FARE) or (AGE-REMAINING <= 0) [

> [ reset agent properties]

> ```

## HOW TO USE IT

The FARE slider controls how much an agent should pay to use a public transportation mode

The BUY-PRICE slider controls how much an agent should pay to purchase a new car

The THRESHOLD slider controls the critical point of agent's decision making by comparing agent's UTILITY-OF-BUYING-A-CAR to the THRESHOLD value. A value of UTILITY-OF-BUYING-A-CAR less than THRESHOLD will result in agent buying a car and a value of UTILITY-OF-BUYING-A-CAR greater than or equal to THRESHOLD will result in agent using public transportation.

The # OF CAR monitor shows how many of agents buy a car

The # OF PUBLIC monitor shows how many of agents use public transportation

CAR PROFILE monitor shows the prestige value of buying a car

PUBLIC PROFILE monitor shows the prestige value of using public transportation

## THINGS TO NOTICE

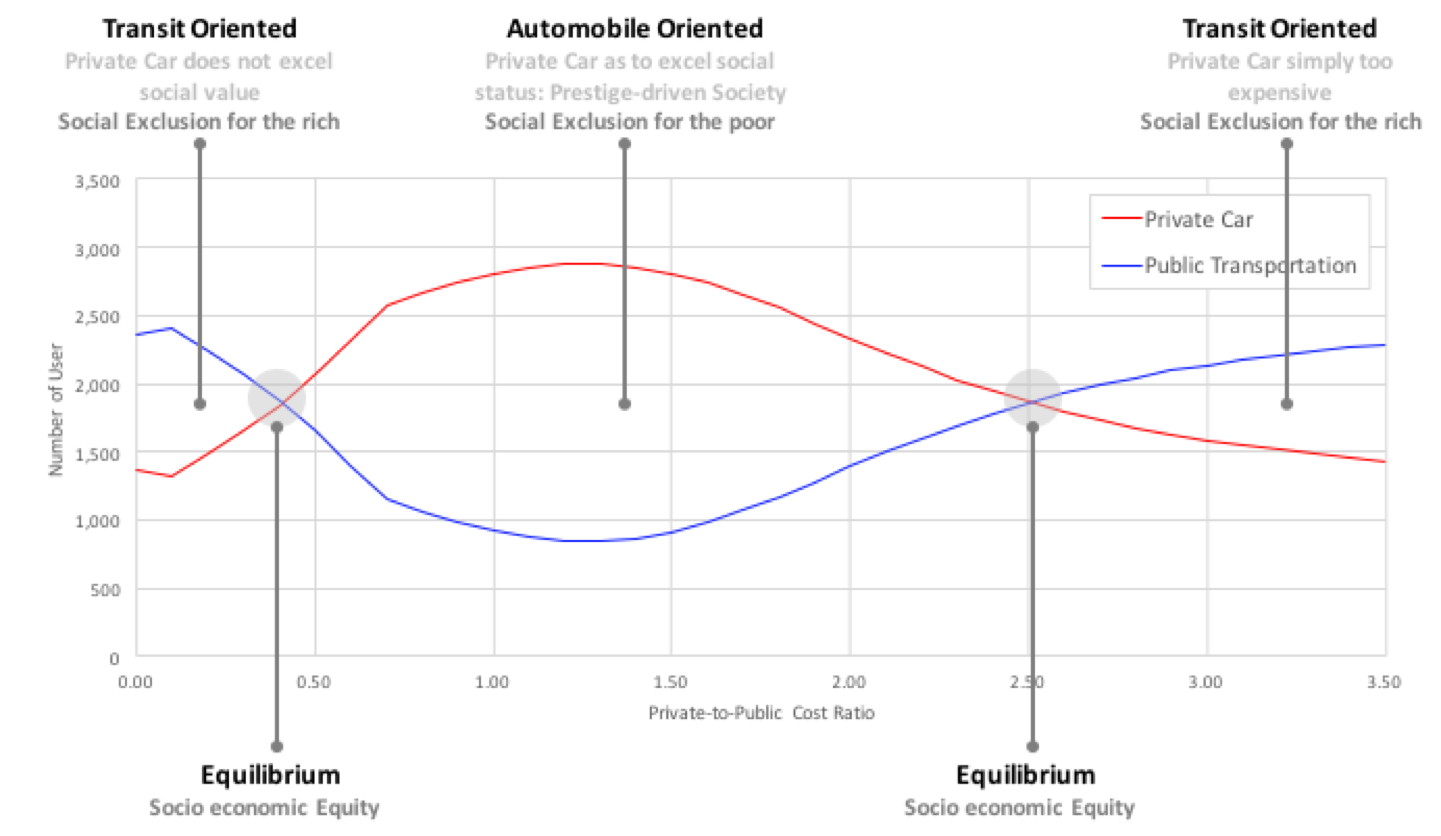

With parameters FARE and THRESHOLD fixed at 0, there is two critical value of BUY-PRICE that switches the state of the system.

- BUY-PRICE approximately at 0.4 marks the system changing from public transport dominant to car user dominant

- BUY-PRICE approximately at 2.5 marks the system changing from car user dominant to public transport dominant

## THINGS TO TRY

Try to vary the parameters (FARE, BUY-PRICE, THRESHOLD) using the sliders to see different simulation results

## CREDITS AND REFERENCES

The PROBABILITY-TO-BUY function is adopted from Modeling Civil Violence: An Agent-based computational approach (Epstein, 2002) which also accesible in Rebellion.nlogo in the _Models Library_

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals
[
  depreciation
]

turtles-own
[
  age-remaining
  wealth
  current-asset
  income
  living-cost
  ability-to-buy
  probability-to-buy
  utility-of-buying-a-car
  own-car
  car-cost
  current-car-value
  risk-buy
  risk-sell
]


;; Initialization

to setup
  clear-all                                              ;; clear the world

  set depreciation 0.9                                   ;; set depreciation value of car

  ask patches
  [
    set pcolor grey
    sprout 1                                             ;; create turtles on every patch
  ]


  ask turtles
  [
    set age-remaining (10 + random 60)
    set risk-buy 1.5                                     ;; set turtles braveness of taking risk to buy a car
    set risk-sell precision random-float 1.0 2           ;; set turtles braveness of taking risk to sell her car
    set current-asset precision random-float 1.0 2       ;; set turtles asset [0,1]
    set living-cost precision random-float 1.0 2
    set wealth current-asset
    set income precision (random-float 1.0) 2            ;; set turtles income [0,1] uniformly distributed
    set own-car 0                                        ;; all turtles do not have car in the beginning
    display-agent
  ]

  reset-ticks
end


;; Start Simulation

to go
  if ticks >= 300 [ stop]
  ask turtles
  [
    ifelse (own-car = 1)
    [
      ifelse (current-car-value < risk-sell * buy-price )
      [ sell-car]
      [ keep-car]
    ]

    [
      let average-asset ((sum [current-asset] of turtles-on neighbors + current-asset) / (count turtles-on neighbors + 1))
      set ability-to-buy (current-asset - risk-buy * buy-price)
      set probability-to-buy (1 - exp (- (current-asset - average-asset)))
      ifelse probability-to-buy < 0
      [ set probability-to-buy 0]
      [ set probability-to-buy probability-to-buy]
      set utility-of-buying-a-car ability-to-buy * probability-to-buy

      ifelse (utility-of-buying-a-car < threshold)                 ;; threshold = utility of not buying a car i.e utility of using public transportation
      [ use-public-transport]
      [ buy-car]
    ]

    set age-remaining (age-remaining - 1)
    if (wealth <= fare) or (age-remaining <= 0)
    [
      ;; agent died and new agent is born i.e reset agent properties
      set age-remaining (10 + random 60)
      set risk-sell precision random-float 1.0 2
      set current-asset precision random-float 1.0 2
      set living-cost precision random-float 1.0 2
      set wealth current-asset
      set income precision (random-float 1.0) 2
      set own-car 0
    ]
  ]
  ask turtles [display-agent]
  tick
end

to sell-car
  set own-car own-car - 1
  let sell-price (0.1 + random-float 0.61) * buy-price
  set wealth (current-asset + sell-price - current-car-value)
  set current-asset (current-asset + income + sell-price - living-cost)
  set current-car-value ""
end

to keep-car
  set own-car own-car
  set current-car-value (depreciation * current-car-value)
  set wealth current-asset + current-car-value
  set current-asset (current-asset + income - car-cost - living-cost)
end

to use-public-transport
  set own-car own-car
  set wealth current-asset
  set current-asset (current-asset + income - fare - living-cost)
end

to buy-car
  set own-car own-car + 1
  set current-car-value (depreciation * buy-price)
  set wealth (current-asset + current-car-value)
  set car-cost 0.3 * buy-price
  set current-asset (current-asset + income - buy-price - living-cost)
end

to display-agent
  set shape "circle"
  set size 1

  ifelse (own-car = 1)
  [ set color 94]
  [ ifelse (current-asset < fare)
    [set color 98]
    [set color 96]
  ]
end
