WHAT IS IT? This is based on Sakoda's 1971 paper "The Checkerboard Model of Social Interaction" in "The Journal of Mathematical Sociology"- the same edition in which Schelling's model of segregation was first published. In this model, there are n groups, each with 2 attitudes: an "in-group" attitude towards its members, and an "out-group" attitude towards everybody else. currently, these attitudes can take on one of 3 values (+1, 0, and -1). On each turn, each agent decides to move one patch or remain in place, based on which patch location has the highest value. The value of each patch is determined by the following algorithm: Patch_value = Sum (Vj / (Dj ^ (1/w))), where Vj is either +1, 0, or -1 (i.e. the 'value' for other turtle j), D is distance to that turtle, and "w" is the parameter "Importance of Far Away Agents". Basically, the potential patch location calculates this for every other turtle and then sums them to get the overall or total value for that patch. Then, the turtle picks the patch with the highest value and moves to it. This model extends Sadoka's original model in several ways. First, you can choose more than two groups now. Second, you can choose the population level you want (in the original, there are only 6 agents per 2 groups). HOW IT WORKS This is a simple model. Most of the work is done in the report procedure. There is also an output box which lists the groups and their ingroup and out-group attitudes. HOW TO USE IT See what patterns emerge when groups of different preferences interact. For instance, a group that likes its own members but dislikes other groups, interacting with a second group that dislikes its own group members but likes other groups. This sort of dynamic captures hierarchical social processes. For example, the rich prefer to mingle with other rich people, while the poor would also rather mingle with the rich. EXTENDING THE MODEL In this model, the preferences within each group are homogenous. This can be extended and made more realistic by making preferences somewhat heterogenous, but to count as a group, there should be less variation within the group than between groups regarding group preferences. Groups might also be modeled as tags or labels attached by outside groups. The attitude values are discrete. They could also be modeled as continuous, say, using a random-float ranging from -1 to +1. CREDITS AND REFERENCES Sakoda, J.M. (1971). The checkerboard model of social interaction. Journal of Mathematical Sociology 1(1). 119-132. Elsenbroich, Corinna and Nigel Gilbert (2014) Modeling Norms. Chapter 8.

Posted over 6 years ago

Click to Run Model

;x94.30000   y75.000   z381.74056   f3   maybef-89.222397
turtles-own [groupid ingroup outgroup] ;attitudes
patches-own [p_values]

to setup
  clear-all
  clear-output
  reset-ticks
  crt population
   ;set-default-shape turtles "person"
  ask turtles [
  set size 1
 let close min-one-of other turtles [distance myself]
 while [distance close < .5]
[let r random 360
  set heading r
  setxy random-xcor random-ycor
  ;fd 3
  set close min-one-of other turtles [distance myself]
  ]
  ]
  ask turtles [set groupid 0]
  let n round (population / groups)
  let i 1
  while [count turtles with [groupid = 0] > 0] [
    let nt count turtles with [groupid = 0]
    ifelse nt < n [set nt nt] [set nt n]
    let t n-of nt turtles with [groupid = 0]
    ask t [
      set groupid i
      ;set label groupid
    ]
    set i i + 1
  ]

;;SETTING ATTITUDES AND COLORS
let c one-of base-colors
let maxn max [groupid] of turtles
let i2 1
ask turtles [set color 0]
    while [count turtles with [color = 0] > 0] [
    ask turtles with [groupid = i2] [
      if groupid = 1 [set color blue set ingroup Group1_ingroup set outgroup Group1_outgroup]
      if groupid = 2 [set color red set ingroup Group2_ingroup set outgroup Group2_outgroup]
      if groupid = 3 [set color green set ingroup Group3_ingroup set outgroup Group3_outgroup]
      if groupid = 4 [set color yellow set ingroup Group4_ingroup set outgroup Group4_outgroup]
      if groupid = 5 [set color gray set ingroup Group5_ingroup set outgroup Group5_outgroup]
      set label groupid
      ]
    set i2 i2 + 1
    ]
end

to go!

   ask turtles [
      let p_list (patch-set neighbors patch-here)
     let v1 ingroup
     let v2 outgroup
     let myid groupid
     let i self
     let ot other turtles
     let new_patch nobody
     ask p_list [set p_values 0]

     set new_patch patch_values p_list i ot myid v1 v2
     move-to new_patch

     let close min-one-of other turtles [distance myself]
     while [distance close < 1]
     [let r random 360
       set heading r
       setxy random-xcor random-ycor
       fd 1]

     ask p_list [set p_values 0]
   ]

tick
end

to-report patch_values [p_list i ot myid v1 v2]
 let w importance_of_far_away_agents

 ask p_list [
   let v 0
   let my_list []
   let me self
   foreach (list ot) [ ?1 -> ask ?1 [
       let d 1
       let my_v 1
       ifelse groupid = myid [set v v1] [set v v2]
       set d distance me
       ifelse d = 0 [set my_v 0] [set my_v v / (d ^ (1 / w))]
       ask me [set my_list fput my_v my_list]
   ] ]
 set p_values sum my_list
 ]
report max-one-of p_list [p_values]
end


;;  00, 11, -1-1, 01, 10, 0-1, -10, 1-1, -11  = 9 possible combinations

There is only one version of this model, created over 6 years ago by John Bradford.

Attached files

File	Type	Description	Last updated

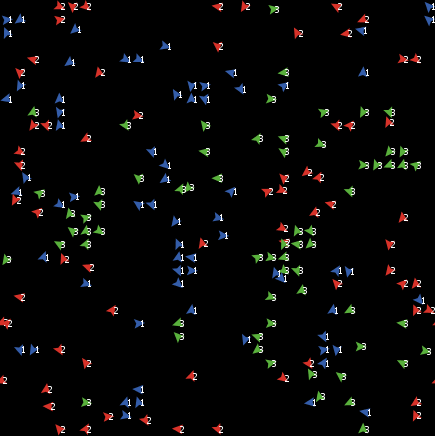

Sakodas Model of Social Interaction.png	preview	Preview for 'Sakodas Model of Social Interaction'	over 6 years ago, by John Bradford	Download
