Mouse Map

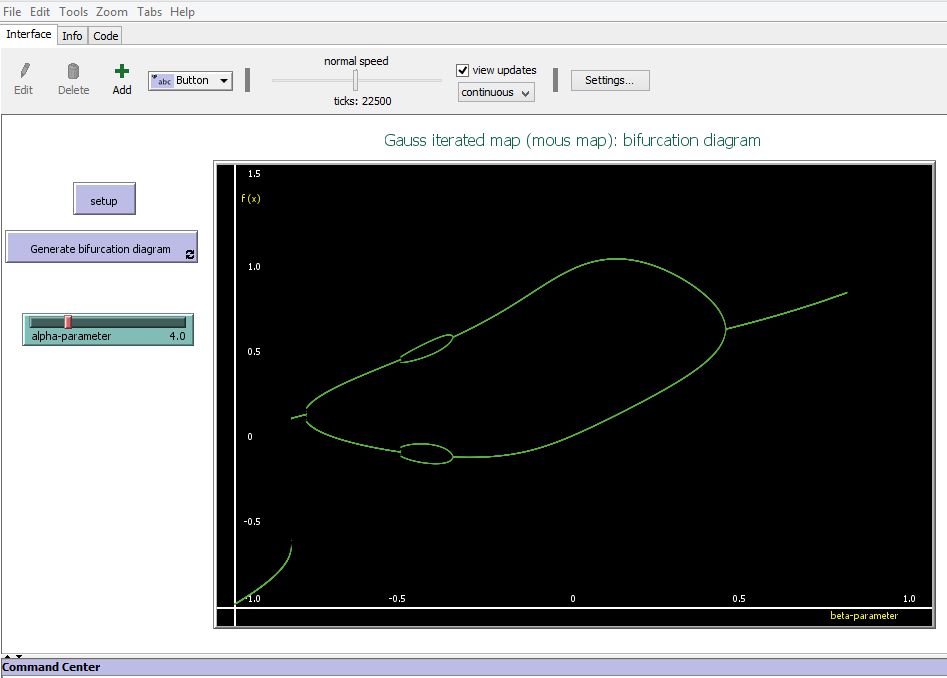

Mouse Map preview image

1 collaborator

Tags

Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.0.1 • Viewed 182 times • Downloaded 6 times • Run 0 times
Download the 'Mouse Map' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

 globals [     ;; setting the globals for the model functioning
  mylist-x
  mylist-r
  num-iterations
  axis
 ]

breed [ m-turtles m-turtle ]    ;; these are turtles to be ploted on
                                ;; on bifurcation diagram

to setup   ;; general setup procedure
  ca
  set mylist-x  list (0) (-1)     ;; setting the list for turtles x-coordinates
  set mylist-r list  (0) (-1)    ;; setting the list for turtles y-coordinates
  create-axis                   ;; creating coordinates axes
  setup-c-origin                ;; and their components.
  setup-coordinates
  set num-iterations 22500    ;; this is the max number of iterates which
                              ;; "keeps" the results of iterations in the
                              ;; limits of the model world
  reset-ticks
end

to create-axis
  ask patches with [ pxcor = (- 200) ] [ set pcolor white ]
  ask patches with [ pycor = (- 100) ] [ set pcolor white ]
end

to setup-c-origin

ask patch -185 140
  [ set plabel "f (x)"
    set plabel-color yellow
    ]
  ask patch 190 -105
  [ set plabel "beta-parameter"
    set plabel-color yellow
   ]
end

to setup-coordinates
ask patch -185 -95
[ set plabel "-1.0"
set plabel-color white
  ]

 ask patch -100 -95
[ set plabel "-0.5"
set plabel-color white
  ]

 ask patch 0 -95
[ set plabel "0"
set plabel-color white
  ]

  ask patch 100 -95
[ set plabel "0.5"
set plabel-color white
  ]

  ask patch 200 -95
[ set plabel "1.0"
set plabel-color white
  ]

  ask patch -185 155
[ set plabel "1.5"
set plabel-color white
  ]

  ask patch -185 100
[ set plabel "1.0"
set plabel-color white
  ]

  ask patch -185 50
[ set plabel "0.5"
set plabel-color white
  ]

   ask patch -190 0
[ set plabel "0"
set plabel-color white
  ]

   ask patch -185 -50
[ set plabel "-0.5"
set plabel-color white
  ]
end

to go                                        ;; procedure of iteration

  set mylist-x lput result mylist-x               ;; generation of the list with
  repeat 30 [set mylist-x lput result mylist-x]   ;; x-coordinates of turtles

  set mylist-r lput result-r mylist-r         ;; generation of the list with
                                              ;; x-coordinates of turtles
  if ticks >= Num-iterations [ stop ]    ;; condition for stopping the model once
                                         ;; the preset number of iterations is reached
  create-m-turtles 1 [        ;; creating a turtle every iteration/tick
    set color green           ;; and ploting it according to the coordinates
    set shape "circle"        ;; as values in the respective lists
    set size 0.5
    set xcor (last mylist-r) * 200
    set ycor (last mylist-x) * 100
    ]
  tick
end

to-report result                                               ;; reports the result of iterations
  report  exp ((- alpha-parameter) * last mylist-x * last mylist-x) + last mylist-r
end

to-report result-r                  ;; reports the result of r-increments with every iteration/tick
  report last mylist-r + 0.00008
end
