Melt ponds on arctic sea-ice

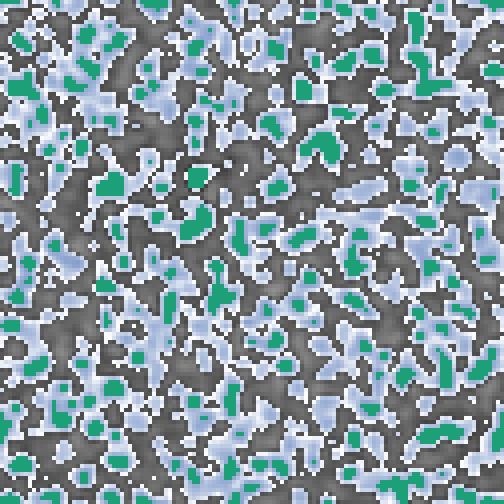

Melt ponds on arctic sea-ice preview image

1 collaborator

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 6.0.2 • Viewed 198 times • Downloaded 16 times • Run 0 times
Download the 'Melt ponds on arctic sea-ice' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals[
  ;mean-ice-height is defined via the GUI
  ;smooth-cycles   is defined via the GUI
  density-ratio
  ;melt-rate-ice
  ;melt-rate-pond
  water-height-transition
  ;seepage-rate

  gravity
  kinematic-viscosity
  horizontal-permeability
  albedo-sea-water
  albedo-ice

  ;; physical parameters for the model
  time-step
  space-step ; not used for the moment

  ;utility variables
  max1
  max2
  initial-mean-ice
  time-to-half-of-initial-mean-ice
]

breed[drops drop]

; internal variables on the patches:
; "ice" is ice height in [cm]
; "water" is the melt water in [cm]
; "melt" represents the water recently melted in [cm]
; "albedo" the fraction of radiation reflected by the surface
patches-own[ice water albedo]

drops-own[water-content]

;; we affect the global physical parameters that are relevant for the model

to startup
  set time-step  0.5  ; expressed in days
  set space-step 100.  ; the lateral size of a patch expressed in cm

  ;set melt-rate-ice 1.2  ;in cm of ice per day
  ;set melt-rate-pond 2.0 ;in cm of ice per day, nominal value, check the literature
  set water-height-transition 10 ;in cm
  set density-ratio 0.8 ;ratio between ice and water mass densities , for less porous ice can be 0.9

  ;ifelse seepage? [
  ;set seepage-rate 0.8 ; in cm / day
  ;][
  ;set seepage-rate 0.0 ; in cm / day
  ;]

  set gravity 9.81 * 100 * (86400 * 86400 ) ;in  cm / day^2
  set kinematic-viscosity 1.e-6 * (100 * 100) * 86400  ;in cm^2 / day
  set horizontal-permeability  3.e-9 * (100 * 100); in cm^2

  set albedo-sea-water 0.1
  set albedo-ice 0.9

  set max1 0
  set max2 0
  set time-to-half-of-initial-mean-ice 0
end


; generate a random smooth topography

to setup-topography
  if clear-previous-plots? [clear-all]
  startup
   ask patches
  [
  set ice random-float (2 * mean-ice-height)
  set water 0
  set albedo compute-albedo

  set pcolor scale-color cyan ice 0 (2 * mean-ice-height)
  ]
  ifelse(smooth-with-radius?) [
    smooth-ice-with-radius][
    smooth-ice-with-cycles]

  set initial-mean-ice compute-mean-ice

  reset-ticks
  tick ;this is to enable the plotting of the histogram of the initial configuration
  reset-ticks
end

; this is the function to smooth the random ice field

to smooth-ice-with-cycles
  repeat smooth-cycles [
    ask patches [
      let sum-ice-neighbors sum [ice] of neighbors4
      let mean-ice (sum-ice-neighbors + ice) / 5
      set ice mean-ice + random-float 0.1
      color-field
    ]
  ]
end

; this is the function to smooth the random ice field with a different procedure

to smooth-ice-with-radius
    ask patches [
      ;let sum-ice sum [ice] of patches in-radius smooth-radius
      ;let count-ice count patches in-radius smooth-radius
      ;let mean-ice (sum-ice  + ice) / ( count-ice + 1 )
      let mean-ice mean [ice] of patches in-radius smooth-radius
      set ice mean-ice
  ]
  ask patches[
      color-field
    ]
end



; coloring functions

to color-field
  ifelse water > 0 [
    set pcolor scale-color blue (2. * mean-ice-height * density-ratio - water) 0 (2. * mean-ice-height * density-ratio)
  ][
  if ice > 0 [set pcolor scale-color grey ice -10 (2 * mean-ice-height)]
  ;same result as the following 2 lines
  ;let ice-color 80 + ((89.9 - 80) / (2 * mean-ice-height)) * ice
  ;set pcolor ice-color
    if ice = 0 [set pcolor turquoise] ;blue - 3]
  ]
end



; melt ice

to melt-ice
  let actual-melted-volume 0
 if ice > 0 [
    ;; VERTICAL MELTING

    ;; 1) the following line implements conductive melting of ice
    if water = 0 [
      set actual-melted-volume  melt-rate-ice * time-step ;shall be corrected to include Stefan effect, see line below
      ;set actual-melted-volume  ( melt-rate-ice * time-step / ice * mean-ice-height )
    ]

    ;; 2) the following line implements the increased melt-rate for pondend ice : water enahnces melting (as in Luethje et al. paper)
    if water > 0 [
      ifelse water < water-height-transition[
      set actual-melted-volume (melt-rate-ice +  (melt-rate-pond - melt-rate-ice) * (water / water-height-transition)  )* time-step
      ][
      set actual-melted-volume melt-rate-pond * time-step
      ]
    ]

    ;; lateral melting
    if pond-lateral-melting?[set actual-melted-volume (actual-melted-volume + (melt-rate-pond * lateral-melting * time-step))]

    ;; Making melting happening
    if actual-melted-volume > ice [
      set actual-melted-volume ice  ;this is to avoid to melt more ice than what we have
      set water 0
    ]
    set ice (ice - actual-melted-volume ) ; melt has occurred
    sprout-drops 1 [
      set water-content (actual-melted-volume  * density-ratio)  ; the melted water is put into a pocket (a moving agent)
      ifelse pen-down? [pen-down][pen-up]
      hide-turtle
    ]
  ]
end

;; seepage of meltwater

to seepage
  let seepage-amount (seepage-rate * time-step) ; the seepage amount per patch

    ask drops-here [
      ifelse water-content > seepage-amount[
        set water-content water-content - seepage-amount
        set seepage-amount 0
      ][
        set seepage-amount (seepage-amount - water-content)
        set water-content 0
        die
      ]
    ]


  if seepage-amount > 0 and water > 0[
    ifelse water > seepage-amount[
      set water (water - seepage-amount)
    ][
      set water 0
    ]
  ]
end


;; move drops till conversion into water
;; flow assumes that the water produced by melt displaces instantaneously to position of minimum potential energy

to flow
  loop[
  let p min-one-of neighbors [ice + water]
   ifelse (ice + water) >  [ice + water] of p [
      move-to p
    ][
     set water (water + water-content) ; the pocket of melted water has reached a minimum height and it remains there
     if ice = 0 [set water 0]
     if not melt-ponds? [set water 0] ; remove all water if we are not interested in ponds
      die
  ]
  ]
end

; move drops till conversion into water
;; flow2 assumes that the spped is finite. It depends on the local gradient of "ice + water" and by the size of the patch. Needs improvement.

to flow2
  let p min-one-of neighbors [ice + water]
  ;let displacement (gravity / kinematic-viscosity) * (((ice + water) - [ice + water] of p) / space-step) * time-step
  ;let gradient (((ice + water) - [ice + water] of p) / space-step)
  let h atan space-step ((ice + water) - [ice + water] of p)
  let angle (90 - h) mod 360
  let horizontal-velocity  2 ;1000 * space-step  * sqrt (abs (gravity * (sin angle))  / (2 * space-step) )
  let displacement (horizontal-velocity * time-step)
   ifelse displacement >  distance p [
      move-to p
    ][
     set water (water + water-content) ; the pocket of melted water has reached a minimum height and it remains there
     if ice = 0 [set water 0]
     if not melt-ponds? [set water 0] ; remove all water if we are not interested in ponds
     die
  ]
end

to refreeze
  ask drops[
    set water (water + water-content) ; the pocket of melted water has reached a minimum height and it remains there
    if ice = 0 [set water 0]
    if not melt-ponds? [set water 0] ; remove all water if we are not interested in ponds
    die
  ]
  ask patches[
  set ice ice + (water / density-ratio)
  set water 0
  color-field
  ]
  tick
end

; a function for patches to account for the contribution to melting due to the presence of nearby ponds

to-report lateral-melting
  let ice-here ice
  let melt-volume 0
  ask neighbors4 with [ice < ice-here][
  ;ask neighbors with [ice < ice-here][
    ifelse (ice + water > ice-here)[
      set melt-volume (melt-volume + (ice-here - ice))
    ][
      set melt-volume (melt-volume + water)
    ]
  ]
  set melt-volume (melt-volume / space-step)
  report melt-volume
end


;; MAIN
;; this is the procedure for the loop over time

to melt-and-flow
  if pen-down? [cd] ; to clear previous drawings

  ask patches[
    ;; melt the ice
    melt-ice
    ;; seepage
    if seepage? [seepage]
  ]

  ask drops[
    ;; move water
    if water-flowing-mode = 1 [flow]
    if water-flowing-mode = 2 [flow2]
  ]

  ask patches[
    ;; recoloring the map
    color-field
    ;; estimate albedo
    set albedo compute-albedo
  ]

  if (count patches with [ice = 0] = count patches )[
    stop
  ]
  tick
end

; reports used in plots

to-report compute-mean-ice
  report  mean [ice] of patches
end

to-report compute-mean-water
  report  mean [water] of patches
end

to-report compute-max-mean-water
  let water-depth mean [water] of patches
  if water-depth > max2 [ set max2 water-depth]
  report max2
end

to-report compute-std-ice
  let avg compute-mean-ice
  let var (mean [ice * ice] of patches)
  report sqrt (var - ( avg * avg ))
end

; we need to improve this, it's just for test

to-report compute-albedo
  let alpha albedo-sea-water  ; we start from total absorption (like if there is sea everywhere)
  if ice > 0 [
  ifelse water > 0 [
    let kappa (-1 / water-height-transition) * ln ( albedo-sea-water / albedo-ice )
    set alpha albedo-ice * exp (- water / water-height-transition) ; albedo coeff of pond
    ][
    set alpha albedo-ice ; albedo coeff of ice
    ]
  ]
  report alpha
end

to-report max-pond-coverage
  let value 100 * (count patches with [water > 0]) / count patches
  if value > max1 [set max1 value]
  report max1
end

to-report time-to-50%-ice-melt
  if compute-mean-ice <  0.5 * initial-mean-ice and time-to-half-of-initial-mean-ice = 0 [
    set time-to-half-of-initial-mean-ice (ticks * time-step)
  ]
    report time-to-half-of-initial-mean-ice
end

There is only one version of this model, created over 3 years ago by Enrico Calzavarini.
