## WHAT IS IT?

This model simulates the sunflower inheritance patterns revealed by Cvejić _et al._ (2016) and Divita -et al.- (2012). Three characters are presented: floral color, inflorescence type and disc color. Users may explore monohybrid, dihybrid and trihybrid cross in sunflowers.

## HOW TO USE IT

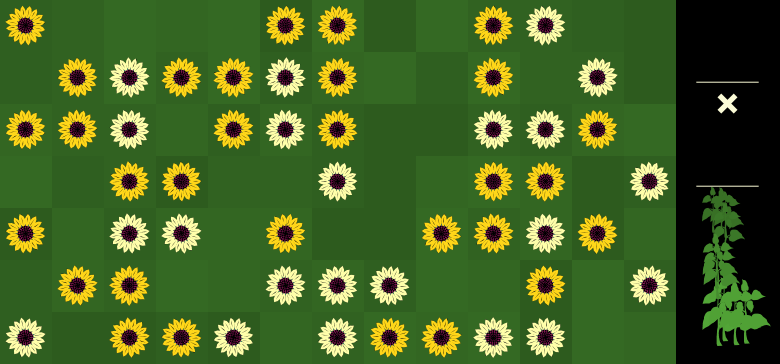

1. Choose one of seven cases, then press on "Start/reset Simulation" button to confirm.

2. Click on "Press and choose flowers" button, you will be able to use cursor to choose sunflower(s) from the simulation window.

3. You may choose one sunflower to conduct self-pollination, or choose two flowers to conduct cross-pollination (test cross).

4. Examine offspring sunflower frequencies in "Progeny" section.

## HOW IT WORKS?

This model involves three genes: floral color (Y), inflorescence type (S) and disc color (C). Studies from Cvejić _et al._ (2016) and Divita _et al._ (2012) have suggested that the genes of floral color and inflorescence type are inherited independently. In this model, it is assumed that disc color is also inherited independently in relation to the floral color and inflorescence type. Also, this model only involves complete dominance.

Depending on the cases, a group of gametes containing alleles of each three genes are first produced and then form sunflowers. The phenotypes of sunflowers are determined by their genotypes, which are in turn determined by the gamete genotypes. Therefore, the sunflowers you get at the beginning can be either heterozygous or homozygous. WHAT?!!! Yes, let's face this and keep two things in mind: 1) scientists do not just get purebred individuals automatically and 2) they don't know which trait is dominant or recessive. They have to identify them! This model allows you to work like a scientist to figure out the dominance and recessiveness of floral color, inflorescence type and disc color in sunflowers.

Yes, you conduct test cross to collect data and figure them out. Once you choose one flower or two to conduct test cross, the model will produce gametes based on the genotype(s) of the selected sunflower(s). For self-pollination, sperms and eggs will randomly fuse to form offspring sunflowers. For cross-pollination, the sperms and eggs of one parent sunflower will fuse with the sperms and eggs of the other parent sunflower. The total number of offspring sunflowers and the frequencies of different offspring phenotypes are presented in the "Progeny" section. Note you are unlikely to get the ratios that perfectly match the theoretic ones. This is what happen in reality and allows you to conduct further data analysis, such as the chi-square goodness of fit test.

## Teaching suggestions

* Start with cases 1~3

* Allow students to work in groups

* Focus students on identifying phenotype type and ratios first. DO NOT just try to guess the genotypes.

* Let students collect numeric data to infer dominance and recessiveness. They must use data evidence to support their claims.

* Conduct chi-square goodness of fit test if you use this model to AP biology or college students.

* There is a way for teachers to check the genotype of each sunflower. Check how to do it at https://sites.google.com/view/3d-science-ABM/genetics

## MODEL FAMILIES

This model is one of the NetLogo models we developed for teaching principles of genetics. Check other models for multiallelic trait, codominance, and linkage at http://3dsciencemodeling.com

## CREDITS

This module is made by Dr. Lin Xiang at the University of Kentucky. If you mention this model in a publication, we ask that you include the citations below.

Xiang, L. (2018). Mendelian inheritance in sunflowers. Department of STEM Education, University of Kentucky, Lexington, KY.

## REFERENCES

Cvejić, S., Jocić, S., & Mladenović, E. (2016). Inheritance of floral colour and type in four new inbred lines of ornamental sunflower (Helianthus annuus L.). The Journal of Horticultural Science and Biotechnology, 91(1), 30-35.

Divita, M. E., Salaberry, M. T., Echeverría, M. M., & Rodríguez, R. H. (2012, February). Genetic and environmental effects of some traits of ornamental value in sunflower (Helianthus annuus L.). In Proc. 18th Int. Sunflower Conf., Mar del Plata (pp. 566-574).

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [x y p1 p2 population-size]    ;p1=selected parent 1, p2=selected parent 2,
turtles-own [c1 c2 c3 c4 genotype phenotype f-color inflorescence disc-flower]

breed [gametes gamete]
breed [flowers flower]
breed [leaves a-leaf]
breed [crosses cross]

to setup
ca

  set-ground
  set-gametes
  fertilization-1
  set-leaves
  set-cross

reset-ticks
end

to gamete-trait
    set size 0.1
    set color white
    set shape "dot"
    setxy random-xcor random-ycor
end

to set-gametes        ;produce gametes

    create-gametes (50 + random 20) * 2
  [gamete-trait
    if cases = "Case 1" [                 ;monohybrid case 1--flower color
      set c1 item random 3 ["Y" "y" "y"]      ;produce two alleles for gene Y. Produce more y than Y to deviate from ratio of 3:1
      set c2 "s"
      set c3 "C"
      set genotype word c1 c2
      set genotype word genotype c3]

    if cases = "Case 2" [                 ;monohybrid case 2--Inflorescence
      set c1 "y"
      set c2 item random 3 ["S" "s" "s"]      ;produce two alleles for gene S. Produce more s than S to deviate from ratio of 3:1
      set c3 "C"
      set genotype word c1 c2
      set genotype word genotype c3]

    if cases = "Case 3" [                 ;monohybrid case 3--disc-flower
      set c1 "Y"
      set c2 "s"
      set c3 item random 3 ["C" "c" "c"]      ;produce two alleles for gene C. Produce more c than C to deviate from ratio of 3:1
      set genotype word c1 c2
      set genotype word genotype c3]

    if cases = "Case 4" [                 ;dihybrid--flower color and inflorescence
      set c1 item random 3 ["Y" "y" "y"]
      set c2 item random 3 ["S" "s" "s"]
      set c3 "C"
      set genotype word c1 c2
      set genotype word genotype c3]

    if cases = "Case 5" [                 ;dihybrid--disc-flower and inflorescence
      set c1 "y"
      set c2 item random 3 ["S" "s" "s"]
      set c3 item random 3 ["C" "c" "s"]
      set genotype word c1 c2
      set genotype word genotype c3]

    if cases = "Case 6" [                 ;dihybrid--flower color and disc-flower
      set c1 item random 3 ["Y" "y" "y"]
      set c2 "s"
      set c3 item random 3 ["C" "c" "c"]
      set genotype word c1 c2
      set genotype word genotype c3]

    if cases = "Case 7" [                 ;trihybrid--flower color, inflorescence and disc-flower
      set c1 item random 3 ["Y" "y" "y"]
      set c2 item random 3 ["S" "s" "s"]
      set c3 item random 3 ["C" "c" "s"]
      set genotype word c1 c2
      set genotype word genotype c3]
  ]
end

to fertilization-1     ;self-cross procedure

  ask gametes [
    let mate one-of other gametes
    if mate != nobody
    [hatch-flowers 1
      [set genotype word genotype [genotype] of mate
       expression
       arrange-genotype
       set-position
        set size 0.9
       ]
    ]
    ask mate [die]
    die]

  ;ask-concurrent flowers [grow]
end

to fertilization-2    ;test cross procedure

  ask gametes with [color = white] [
    let mate one-of gametes with [color = black]
    if mate != nobody
    [hatch-flowers 1
      [set genotype word genotype [genotype] of mate
        expression
        arrange-genotype
       set-position
        set size 0.9
       ]
    ]
    ask mate [die]
    die]

  ;ask-concurrent flowers [grow]
end

to arrange-genotype
  set c1 item 0 genotype      ;read 1st allele
  set c2 item 3 genotype      ;read 4th allele
  set c1 word c1 c2           ;set the 1st pair of alleles
  if member? "yY" c1 [set c1 "Yy"]  ;rearrange alleles

  set c2 item 1 genotype      ;read 2nd allele
  set c3 item 4 genotype      ;read 5th allele
  set c2 word c2 c3           ;set the 2nd pair of alleles
  if member? "sS" c2 [set c2 "Ss"]  ;rearrange alleles


  set c3 item 2 genotype      ;read 3rd allele
  set c4 item 5 genotype      ;read 6th allele
  set c3 word c3 c4           ;set the 3rd pair of alleles
  if member? "cC" c3 [set c3 "Cc"]  ;rearrange alleles

  set genotype word c1 c2     ;connect the three pairs of alleles
  set genotype word genotype c3     ;connect the three pairs of alleles
end

to expression

  ifelse member? "Y" genotype = true [set f-color "yellow" set color 45 + random-float 0.5 ]
                                     [set f-color "orange" set color 24.5 + random-float 0.5]
  ifelse member? "S" genotype = true [set inflorescence "chrysanthemum-type" ifelse member? "C" genotype = true [set shape "sunflower" set disc-flower "purple-disc"][set shape "sunflower-0" set disc-flower "yellow-disc"]]
                                     [set inflorescence "normal-type" ifelse member? "C" genotype = true [set shape "sunflower-2" set disc-flower "purple-disc" ][set shape "sunflower-1" set disc-flower "yellow-disc"]]
end

to set-cross

  create-crosses 1
  [set size 1.2
    set color 49
    set shape "square-1"
    setxy max-pxcor - 0.5 max-pycor - .5]

  create-crosses 1
  [set size 0.5
    set color 49
    set shape "x"
    setxy max-pxcor - 0.5 max-pycor - 1.5]

  create-crosses 1
  [set size 1.2
    set color 49
    set shape "square-1"
    setxy max-pxcor - 0.5 max-pycor - 2.5]
end

to set-ground
  ask patches [set pcolor 52.5 + random-float 0.5]
  ask patches with [pxcor >= max-pxcor - 1] [set pcolor 0]
end

to grow
  wait 0.01
  if size < 0.9 [set size size + 0.03]
  if size < 0.9 [grow]
end

to set-leaves

create-leaves 7 + random 4
  [
    set shape "stem-2"
    setxy max-pxcor - random-float 1.2 0.2 + min-pycor + random-float 2.5
    set size 1.5 - [ycor] of self * 0.2
    set color 55 - ([ycor] of self) * 0.75
  ]
end

to set-position
  setxy random (max-pxcor - 1) random (max-pycor + 1)
  if any? other flowers-here [set-position]
end

to pick

 clear-output
  if mouse-inside? [
    if mouse-down? [
      set x round mouse-xcor set y round mouse-ycor
      ask flowers with [xcor = x and ycor = y]
        [ifelse count flowers with [pxcor >= (max-pxcor - 1)] > 0 [setxy max-pxcor - 0.5 max-pycor - 2.5 set size 1.1][setxy max-pxcor - 0.5 max-pycor - 0.5 set size 1.1]
  ]]]


 if count flowers with [pxcor >= max-pxcor - 1] = 2 [     ;clean up the last generations when 2 parents are chosen

    let mom flowers with [ycor = max-pycor - 0.5]
    let dad flowers with [ycor = max-pycor - 2.5]

    set p1 [f-color] of mom    ;set phenotype color inflorescence disc-flower
    set p1 word p1 " "
    set p1 word p1 [inflorescence] of mom
    set p1 word p1 " "
    set p1 word p1 [disc-flower] of mom



    set p2 [f-color] of dad  ;set phenotype
    set p2 word p2 " "
    set p2 word p2 [inflorescence] of dad
    set p2 word p2 " "
    set p2 word p2 [disc-flower] of dad



    ask flowers with [pxcor < max-pxcor - 1 ] [die]
    ask gametes [die]

    stop
     ]
end

to gametogenesis-1        ;self-cross

  set population-size (70 + random 21 ) * 2

    repeat population-size [
    ask flowers [
      ifelse member? "Y" genotype = true [ifelse member? "y" genotype = true [set c1 item random 2 ["Y" "y"]][set c1 "Y"]][set c1 "y"]
      ifelse member? "S" genotype = true [ifelse member? "s" genotype = true [set c2 item random 2 ["S" "s"]][set c2 "S"]][set c2 "s"]
      ifelse member? "C" genotype = true [ifelse member? "c" genotype = true [set c3 item random 2 ["C" "c"]][set c3 "C"]][set c3 "c"]

      hatch-gametes 1[
      set genotype word c1 c2
      set genotype word genotype c3
      gamete-trait
      ]
  ]]

  ask flowers [die]
end

to gametogenesis-2         ;test cross

  set population-size 60 + random 31

  let mom flowers with [ycor = max-pycor - 0.5]
  let dad flowers with [ycor = max-pycor - 2.5]


    repeat population-size [
      ask mom [ifelse member? "Y" genotype = true [ifelse member? "y" genotype = true [set c1 item random 2 ["Y" "y"]][set c1 "Y"]][set c1 "y"]
      ifelse member? "S" genotype = true [ifelse member? "s" genotype = true [set c2 item random 2 ["S" "s"]][set c2 "S"]][set c2 "s"]
      ifelse member? "C" genotype = true [ifelse member? "c" genotype = true [set c3 item random 2 ["C" "c"]][set c3 "C"]][set c3 "c"]

      hatch-gametes 1 [
      set genotype word c1 c2
      set genotype word genotype c3
      gamete-trait

  ]]]

  repeat population-size [
      ask dad [
      ifelse member? "Y" genotype = true [ifelse member? "y" genotype = true [set c1 item random 2 ["Y" "y"]][set c1 "Y"]][set c1 "y"]
      ifelse member? "S" genotype = true [ifelse member? "s" genotype = true [set c2 item random 2 ["S" "s"]][set c2 "S"]][set c2 "s"]
      ifelse member? "C" genotype = true [ifelse member? "c" genotype = true [set c3 item random 2 ["C" "c"]][set c3 "C"]][set c3 "c"]

      hatch-gametes 1 [
      set genotype word c1 c2
      set genotype word genotype c3
      gamete-trait
      set color black
  ]]]

  ask mom [die]
  ask dad [die]
end
