Cyberslug 2.0

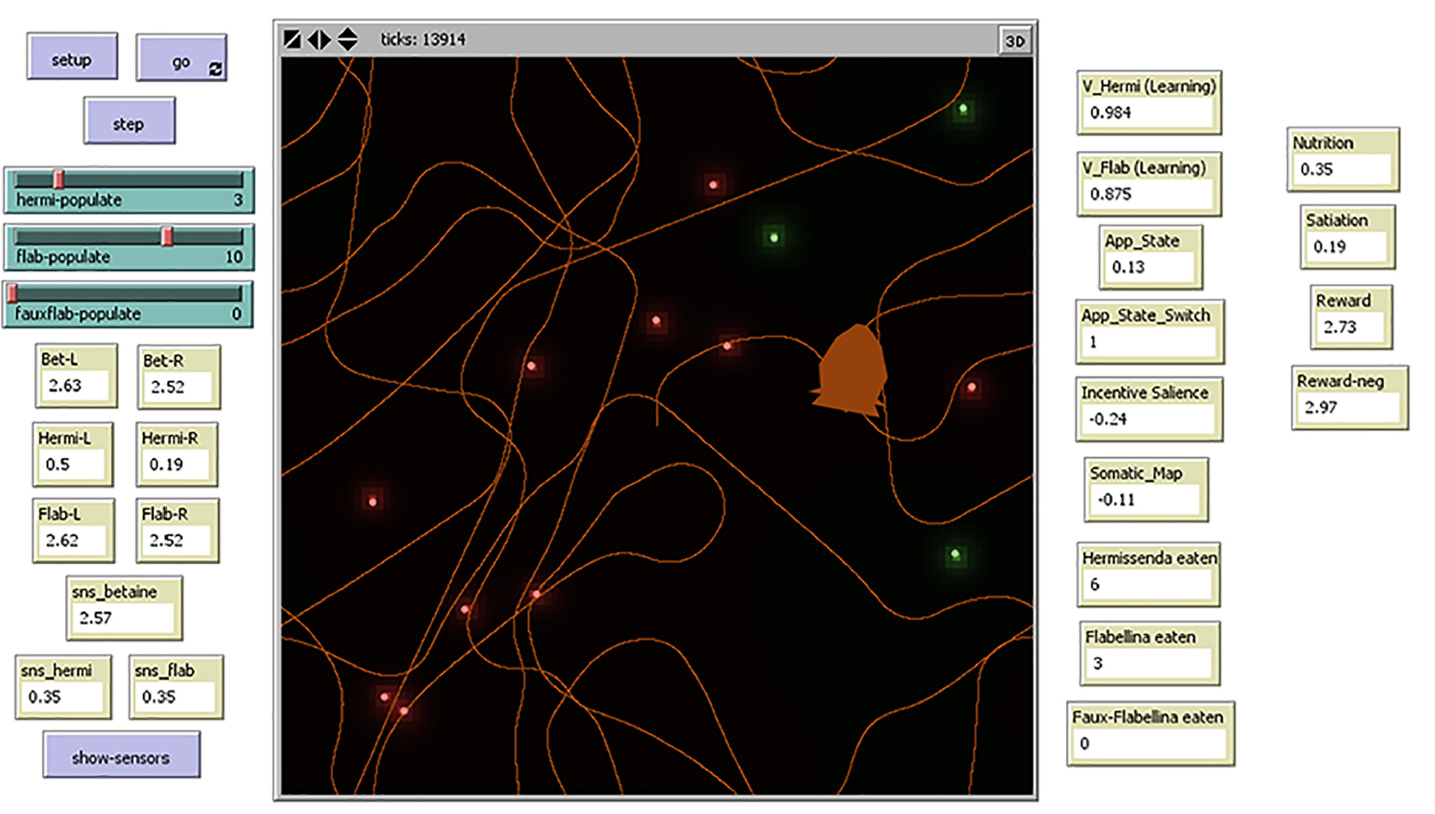

Cyberslug 2.0 preview image

2 collaborators

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 6.0.1 • Viewed 21 times • Downloaded 0 times • Run 0 times
Download the 'Cyberslug 2.0' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


## ## WHAT IS IT?

Cyberslug™ reproduces the decisions for approach or avoidance in the predatory sea-slug Pleurobranchaea californica. It applies relations discovered in the nervous system of the real animal that underlie decisions in foraging for prey. Those decisions are based on motivation and reward learning. The approach-avoidance decision is basic to foraging as well as to most other economic behavior.

## ## HOW IT WORKS

Approach-avoidance choice is organized around appetitive state, which is how the Cyberslug agent feels in terms of hunger, the savory qualities of prey odor, and what it remembers about earlier experience with that prey. The agent adds up sensation, motivation (satiation/hunger), and memory from moment-to-moment into its appetitive state. Appetitive state controls the switch for approach vs. avoidance turn responses to prey.

The difference of odor sensation at two sensors on Cyberslug's head is used to calculate the probable location of prey for the turn response. The sensors respond to betaine, an odor representing the energy value of the prey (like the taste of sugar to the human tongue), and to the learned identifying odors of Hermi and Flab.

## ## HOW TO USE IT

The user can occupy the world with valuable and dangerous prey, Hermis and Flabs respectively, with the slider bars. In the beginning the simulation starts with three Hermis and 10 Flabs. Cyberslug learns to prefer or avoid the different prey.

The progress of learning is shown in the interface tabs V_hermi and V_flab. Other tabs show important quantities used in calculating the decision: the nutritional and satiation states, summed appetitive state (App_State), and the positive and negative rewards and incentives sensed for prey. There is also a tab for Cyberslug's estimate of the odor source direction (Somatic_Map). Other tabs on the left show the strengths of the three odors sensed at the two sensors, and the averaged strengths of the odors (sns_odor).

Another animal prey can be introduced, Faux-Flab, which has the odor of the noxious Flab but is not dangerous. It is a "Batesian mimic", which is a harmless species that evolved to imitate the warning signals of a harmful species directed at a predator of them both. It may receive protection if the predator learns from the real Flab that the odor can signal danger. Three tabs on the right record the numbers of the different prey eaten.

The program is set to run for 150,000 software cycles (ticks). This can be changed in the code.

## ## THINGS TO NOTICE

What happens to approach-avoidance decision when Cyberslug is not hungry? What happens to decision about the noxious Flab prey when the Cyberslug is very hungry?

## ## THINGS TO TRY

What is the effect on prey selection when Faux-Flab is introduced?.

What are the effects of altering the densities of the different prey?

At what different prey densities does Faux-Flab receive protection or not?

Is the Cyberslug always accurate in prey choice? Why or why not, do you think?

Learning happens here according to the Rescorla-Wagner rule for classical learning. What happens if you go into the program and alter the values of the Rescorla-Wagner equation? What are the effects on the Batesian mimic of altering the densities of itself, the prey it mimics, and the predator?

## ## CREDITS AND REFERENCES

Jeffrey W Brown, Derek Caetano-Anollés, Marianne Catanho, Ekaterina Gribkova, Nathaniel Ryckman, Kun Tian, Mikhail Voloshin, and Rhanor Gillette. Implementing Goal-Directed Foraging Decisions of a Simpler Nervous System in Simulation. In preparation, 2017.

The relations are discussed in detail in the following technical references:

1. Brown JW, Caetano-Anollés D, Catanho M, Gribkova E, Ryckman N, Tian K, Voloshin M, and Gillette R. Implementing Goal-Directed Foraging Decisions of a Simpler Nervous System in Simulation. In preparation, 2017.

2. Gillette R, Brown JW (2015) The sea slug, Pleurobranchaea californica: A signpost species in the evolution of complex nervous systems and behavior. Integrative and Comparative Biology, v. 55, pages 1058-1069

3. http://www.scholarpedia.org/article/Pleurobranchaea. The article's Curator is: R Gillette. Published November 13, 2014.

4. Hirayama K and others (2012) A core circuit module for cost/benefit decision. Frontiers in Neuroscience, v. 6, pages 123-128.

5. Gillette R and others (2000) Cost-benefit analysis potential in feeding behavior of a predatory snail by integration of hunger, taste, and pain. Proceedings of the National Academy of Sciences USA, v. 97, pages3585-3590.
