Ecology of Lyme 2

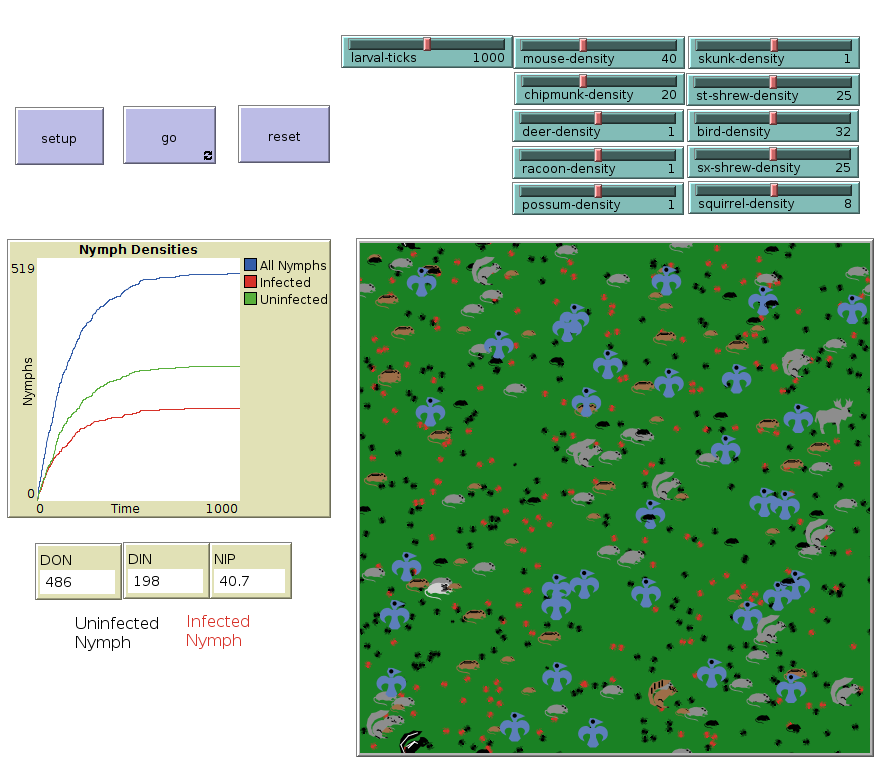

Ecology of Lyme 2 preview image

1 collaborator

Default-person Michael Zito (Author)

Tags

ecology

Tagged by Michael Zito 4 months ago

lyme

Tagged by Michael Zito 4 months ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 6.1.0 • Viewed 50 times • Downloaded 0 times • Run 0 times
Download the 'Ecology of Lyme 2' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

The parameters used in this model are from

https://www.pnas.org/content/pnas/100/2/567.full.pdf

Posted 4 months ago

Click to Run Model

;;----- Breed types

breed [blticks bltick]
breed [mice mouse]
breed [chipmunks chipmunk]
breed [deers deer]
breed [racoons racoon]
breed [possums possum]
breed [skunks skunk]
breed [st-shrews st-shrew]
breed [birds bird]
breed [sx-shrews sx-shrew]
breed [squirrels squirrel]

;;----- Breed properties

blticks-own [infected? molt?]                                        ;; larval ticks molt once and may become carriers of Lyme as a result
mice-own [body-burden reservoir-competence molting-percentage]       ;; each species can carry Lyme and have a probability of transmitting Lyme
chipmunks-own [body-burden molting-percentage reservoir-competence]
deers-own [body-burden molting-percentage reservoir-competence]
racoons-own [body-burden molting-percentage reservoir-competence]
possums-own [body-burden molting-percentage reservoir-competence]
skunks-own [body-burden molting-percentage reservoir-competence]
st-shrews-own [body-burden molting-percentage reservoir-competence]
birds-own [body-burden molting-percentage reservoir-competence]
sx-shrews-own [body-burden molting-percentage reservoir-competence]
squirrels-own [body-burden molting-percentage reservoir-competence]

to setup

  ca

  ;; color the patches
  ask patches [set pcolor 63]

  ;; intialize breeds and randomly distribute them in the world
  create-blticks larval-ticks [
    set shape "spider"
    set color black
    set size 0.5
    set infected? FALSE
    set molt? FALSE
  ]

  create-mice mouse-density [
    set shape "mouse side"
    set color gray
    set size 2.5
    set body-burden 28
    set reservoir-competence 0.921
    set molting-percentage 0.415
  ]

  create-chipmunks chipmunk-density [
    set shape "chipmunk"
    set color brown
    set size 2.5
    set body-burden 36
    set reservoir-competence 0.55
    set molting-percentage 0.412
  ]

  create-deers deer-density [
    set shape "moose"
    set color brown + 2
    set size 4
    set body-burden 239
    set reservoir-competence 0.046
    set molting-percentage 0.563
  ]

  create-racoons racoon-density [
    set shape "racoon"
    set color brown
    set size 3
    set body-burden 127
    set reservoir-competence 0.013
    set molting-percentage 0.365
  ]

  create-possums possum-density [
    set shape "possum"
    set color gray + 3
    set size 3
    set body-burden 254
    set reservoir-competence 0.026
    set molting-percentage 0.441
  ]

  create-skunks skunk-density [
    set shape "skunk"
    set color black
    set size 3
    set body-burden 67
    set reservoir-competence 0.097
    set molting-percentage 0.639
  ]

  create-st-shrews st-shrew-density [
    set shape "mouse side"
    set color brown
    set size 1.5
    set body-burden 63
    set reservoir-competence 0.418
    set molting-percentage 0.468
  ]

  create-birds bird-density [
    set shape "bird"
    set color blue + 1
    set size 3
    set body-burden 2
    set reservoir-competence 0.117
    set molting-percentage 0.339
  ]

  create-sx-shrews sx-shrew-density [
    set shape "mouse side"
    set color black
    set size 1.5
    set body-burden 56
    set reservoir-competence 0.512
    set molting-percentage 0.496
  ]

  create-squirrels squirrel-density [
    set shape "squirrel"
    set color gray
    set size 3
    set body-burden 142
    set reservoir-competence 0.147
    set molting-percentage 0.593
  ]

  ask turtles [setxy random-xcor random-ycor]

  reset-ticks
end

to go

  ;; stop when all ticks have fed
  ;if all? blticks [ molt? ] [ stop ]
  if ticks = 1000 [stop]

  ;; have each breed move at a different speed
  move

  ;; ticks will feed on a host if one is on the same patch
  ask blticks [feed]

  tick
end

to move

  ;; all hosts move randomly around the world
  ask mice [
    left random 50
    right random 50
    repeat 1 [fd 0.1]
  ]

  ask chipmunks [
    left random 50
    right random 50
    repeat 3 [fd 0.1]
  ]

  ask deers [
    left random 50
    right random 50
    repeat 10 [fd 0.1]
  ]

  ask racoons [
    left random 50
    right random 50
    repeat 6 [fd 0.1]
  ]

  ask possums [
    left random 50
    right random 50
    repeat 6 [fd 0.1]
  ]

  ask skunks [
    left random 50
    right random 50
    repeat 6 [fd 0.1]
  ]

  ask st-shrews [
    left random 50
    right random 50
    repeat 1 [fd 0.1]
  ]

  ask birds [
    left random 50
    right random 50
    repeat 10 [fd 0.1]
  ]

  ask sx-shrews [
    left random 50
    right random 50
    repeat 1 [fd 0.1]
  ]

  ask squirrels [
    left random 50
    right random 50
    repeat 6 [fd 0.1]
  ]
end

to feed

    ;; define local variables
    let pInfected  0
    let pMolt 0
    let burden 0

    ;;find a host, exclude other ticks
    let host one-of other turtles-here with [member? self blticks = FALSE ]

    ;; set local variables to the host's properties
    ;; for each feeding event if larva has not already fed
    if host != nobody and not molt?[
      ask host [
        set pMolt molting-percentage
        set pInfected reservoir-competence
        set burden body-burden
      ]

    ;; ticks feed once, molt, and become larger
    ;; survival is determined based on the host quality
    ;; infection status is determined based on the host's reservoir competence
      if random 254 <= burden [                       ;; is host below its body burden?
        ifelse random-float 1.0 <= pMolt              ;; does larva survive to molt?
        [
          set molt? TRUE                              ;; feed
          set size size * 2                           ;; molt
            if random-float 1.0 <= pInfected          ;; did B.burgdorferi transfer?
            [
              set infected? TRUE                      ;; if so change infection status
              set color red                           ;; and color
            ]
        ]
        [ die ]                                       ;; else larva dies
      ]
    ]
end

to-report DON

  report count blticks with [molt?]
end

to-report DIN

  report count blticks with [infected?]
end

to-report NIP

  report 100 * DIN / DON
end

to reset

  ;; resets model parameters to intial satate
  ;; multiply parameters from literature by 20 to normalize all as integers? HUGE numbers!

  set larval-ticks 1000
  set mouse-density 40
  set chipmunk-density 20
  set deer-density 1
  set racoon-density 1
  set possum-density 1
  set skunk-density 1
  set st-shrew-density 25
  set bird-density 32
  set sx-shrew-density 25
  set squirrel-density 8
end
