Urban Region Toy

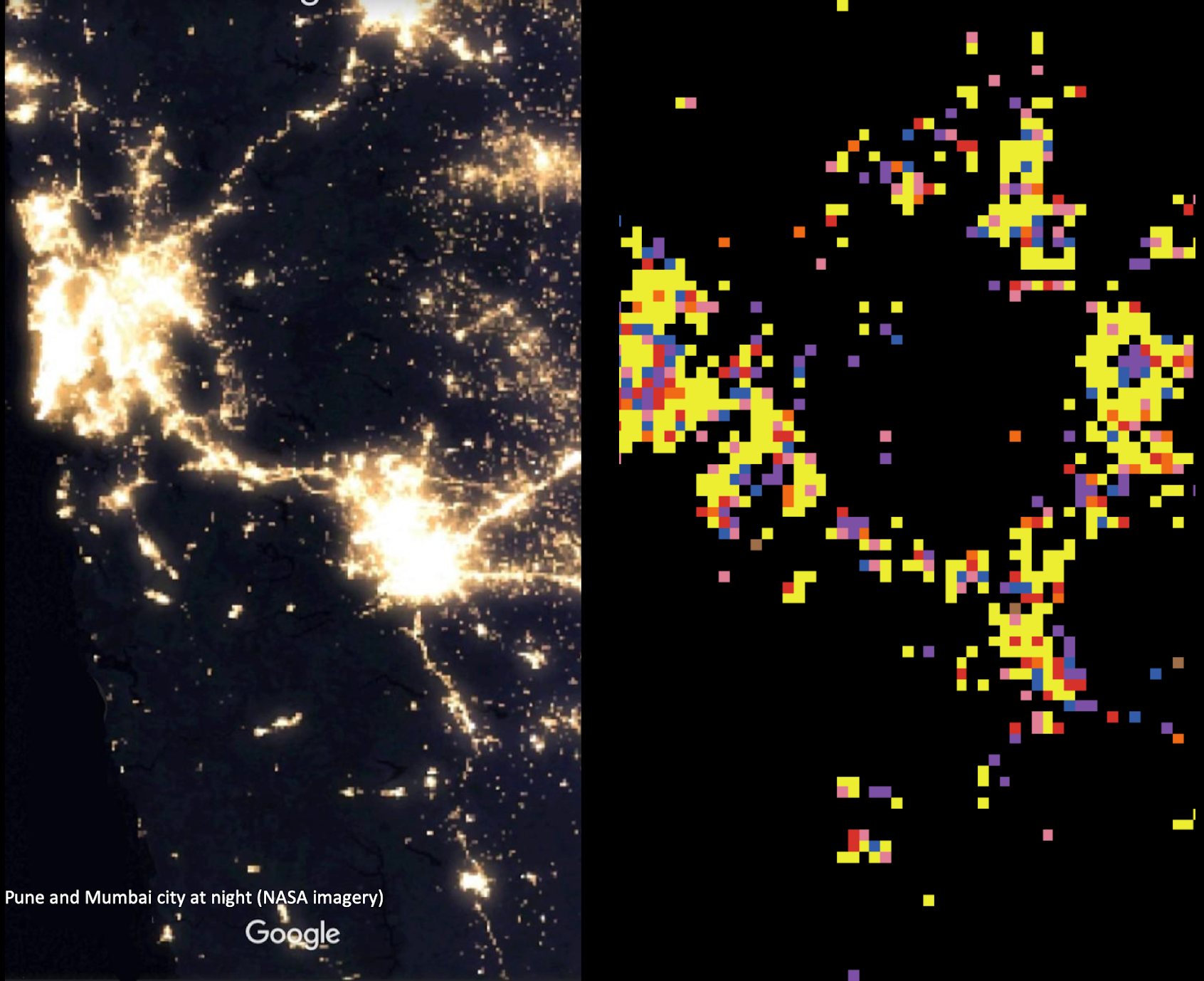

Urban Region Toy preview image

1 collaborator

19344_1338329223422_4777790_n Javier Sandoval (Author)

Tags

urban

Tagged by Javier Sandoval over 1 year ago

urban planning

Tagged by Javier Sandoval over 1 year ago

urbanization

Tagged by Javier Sandoval over 1 year ago

Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.1.1 • Viewed 87 times • Downloaded 3 times • Run 0 times
Download the 'Urban Region Toy' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;::::::::::::::::::::::::::::::::::::::::U R B A N   R E G I O N   T O Y::::::::::::::::::::::::::::::::::::::::
;::::::::::::::::::::::::::::::::::::::::Code: Dr. Javier Sadoval Felix:::::::::::::::::::::::::::::::::::::::::
;::::::::::::::::::::::::::::::::::::::::Contact: jarquisol@gmail.com:::::::::::::::::::::::::::::::::::::::::::

extensions [rnd]
patches-own [
  potential
  new-potential
  interest
  urban?
slope]

globals [
  %Residential
  %Commercial
  %Industrial
  %Tourism
  %R-C
  %C-I
  %Equipment
  probability-list
  fitness
  threshold
]

to setup
  clear-all
  set threshold 4

  ifelse Restrictions?
  [ask patches [ set potential one-of [1 -1] ]
   set probability-list (list (list "Residential" Residential) (list "Commercial" Commercial) (list "Industrial" Industrial) (list "Tourism" Tourism) (list "H-C" Residential-Commercial) (list "C-I" Commercial-Industrial) (list "Equipment" Equipment))
   setup-patches
   set fitness ((max [slope] of patches) - (min [slope] of patches))]

  [ask patches [ set potential one-of [1 -1] ]
   set probability-list (list (list "Residential" Residential) (list "Commercial" Commercial) (list "Industrial" Industrial) (list "Tourism" Tourism) (list "H-C" Residential-Commercial) (list "C-I" Commercial-Industrial) (list "Equipment" Equipment))
 ]
  reset-ticks
end

to go
  estimate-%
  if (Residential + Commercial + Industrial + Tourism + Residential-Commercial + Commercial-Industrial + Equipment) != 100 [user-message "Suma de porcentajes de uso no es igual a 100%"
    stop]
  ask patches with [pcolor = white] [ask neighbors [set potential (potential + one-of [1 -1])]]
  ask patches [ set new-potential (potential + sum [potential] of neighbors4) / 5 + one-of [1 -1] ]
  ask patches [ set potential new-potential
                if potential > threshold and urban? = 0 and slope >= ((min [slope] of patches) + (fitness / 2))

                 [set interest first rnd:weighted-one-of-list probability-list last]
                   if interest = "Residential" and count patches in-radius Tolerance-radius with [interest = "Industrial" or interest = "C-I"] = 0
                        [set pcolor yellow
                         set urban? 1]

                   if interest = "Commercial" and (count patches in-radius Tolerance-radius with [interest = "Industrial"] = 0)
                        [set pcolor red
                         set urban? 1]

                   if interest = "Industrial" and (count patches in-radius Tolerance-radius with [interest = "Residential" or interest = "H-C" = 0 or interest = "Tourism" or interest = "Commercial"] = 0)
                        [set pcolor violet
                         set urban? 1]

                   if interest = "Tourism" and (count patches in-radius Tolerance-radius with [interest = "Industrial" or interest = "C-I" or interest = "Equipment"] = 0)
                        [set pcolor pink
                         set urban? 1]

                   if interest = "H-C" and (count patches in-radius Tolerance-radius with [interest = "Industrial" or interest = "C-I"] = 0)
                        [set pcolor orange
                         set urban? 1]

                   if interest = "C-I" and (count patches in-radius Tolerance-radius with [interest = "Residential" or interest = "Tourism" or interest = "H-C"] = 0)
                        [set pcolor brown
                         set urban? 1]

                   if interest = "Equipment" and (count patches in-radius Tolerance-radius with [interest = "Tourism"] = 0)
                        [set pcolor blue
                         set urban? 1]]
  tick
end

to Hab
    if mouse-down?
    [ask patch mouse-xcor mouse-ycor
        [ set pcolor yellow
          set urban? 1
          set interest "Residential"]]
  display
end

to Com
  if mouse-down?
    [ask patch mouse-xcor mouse-ycor
        [ set pcolor red
          set urban? 1
          set interest "Commercial"]]
  display
end

to Ind
  if mouse-down?
    [ask patch mouse-xcor mouse-ycor
        [ set pcolor violet
          set urban? 1
          set interest "Industrial"]]
  display
end

to Equi
  if mouse-down?
    [ask patch mouse-xcor mouse-ycor
        [ set pcolor blue
          set urban? 1
          set interest "Equipment"]]
end

to Tur
  if mouse-down?
    [ask patch mouse-xcor mouse-ycor
        [ set pcolor pink
          set urban? 1
          set interest "Tourism"]]
  display
end

to Hab-Com
  if mouse-down?
    [ask patch mouse-xcor mouse-ycor
        [ set pcolor orange
          set urban? 1
          set interest "H-C"]]
  display
end

to Com-Ind
  if mouse-down?
    [ask patch mouse-xcor mouse-ycor
        [ set pcolor brown
          set urban? 1
          set interest "C-I"]]
  display
end

to Road
  if mouse-down?
    [ask patch mouse-xcor mouse-ycor
        [ set pcolor white
          set urban? 1
          set interest 0]]
  display
end

to No-urb
  if mouse-down?
    [ask patch mouse-xcor mouse-ycor
        [ set pcolor gray
          set urban? 1]]
  display
end

to setup-patches
  ask patches
  [set slope ( random 15 )]
  repeat 70
  [diffuse slope 1]
  ask patches
  [set pcolor scale-color green slope 7 6]
end

to estimate-%
  if count patches with [pcolor = yellow] != 0 [set %Residential (count patches with [pcolor = yellow] * 100) / (count patches with [pcolor = yellow or pcolor = red or pcolor = violet or pcolor = pink or pcolor = orange or pcolor = brown or pcolor = blue])]
  if count patches with [pcolor = red] != 0 [set %Commercial (count patches with [pcolor = red] * 100) / (count patches with [pcolor = yellow or pcolor = red or pcolor = violet or pcolor = pink or pcolor = orange or pcolor = brown or pcolor = blue])]
  if count patches with [pcolor = violet] != 0 [set %Industrial (count patches with [pcolor = violet] * 100) / (count patches with [pcolor = yellow or pcolor = red or pcolor = violet or pcolor = pink or pcolor = orange or pcolor = brown or pcolor = blue])]
  if count patches with [pcolor = pink] != 0 [set %Tourism (count patches with [pcolor = pink] * 100) / (count patches with [pcolor = yellow or pcolor = red or pcolor = violet or pcolor = pink or pcolor = orange or pcolor = brown or pcolor = blue])]
  if count patches with [pcolor = orange] != 0 [set %R-C (count patches with [pcolor = orange] * 100) / (count patches with [pcolor = yellow or pcolor = red or pcolor = violet or pcolor = pink or pcolor = orange or pcolor = brown or pcolor = blue])]
  if count patches with [pcolor = brown] != 0 [set %C-I (count patches with [pcolor = brown] * 100) / (count patches with [pcolor = yellow or pcolor = red or pcolor = violet or pcolor = pink or pcolor = orange or pcolor = brown or pcolor = blue])]
  if count patches with [pcolor = blue] != 0 [set %Equipment (count patches with [pcolor = blue] * 100) / (count patches with [pcolor = yellow or pcolor = red or pcolor = violet or pcolor = pink or pcolor = orange or pcolor = brown or pcolor = blue])]
end
