path-simulator

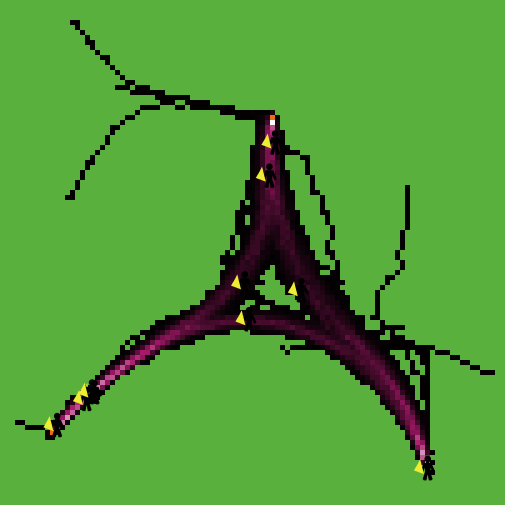

path-simulator preview image

1 collaborator

Default-person Chris Reudenbach (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.0.2 • Viewed 121 times • Downloaded 16 times • Run 0 times
Download the 'path-simulator' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

; define turtles
breed [ walkers walker ]

; define turtles and patches specific variables
walkers-own [ goal ]
patches-own [ popularity streets obstacle ]

; define global (observer) variables
globals [
  roads
  visible-routes
  gini-index-reserve
  lorenz-points
]

; setup procedure carried out once

to setup
  clear-all
  set vis-pop false
  ask patches [ set pcolor green
    set obstacle 0
    set popularity 0
  ]

  ; call the experiment setup procedure
  make-experiment

 ; if no experiment is choosen stop
  if selected-experiment = "none" [
    if message [user-message (word "Es wurde kein Szenario gewählt?!\n Zähle jetzt Schafe...")]
      ask  n-of n-walker patches [sprout-walkers 1 [
        set color white
        set size random 10
        set shape "sheep"
      ]
    ]
  ]

  ; finsihed so reset ticks
  ; if you want to calculate a lorenz curve you need to uncomment this call
  ;update-lorenz-and-gini
  reset-ticks
end

; procedure that controls the model run
; adapted from the original paths model

to go
  ; for runtime scaling and graying the popularity patches
  ifelse not vis-pop [ask patches with [popularity >= pop-lowlimit and pcolor != orange and pcolor != red] [set pcolor gray]]
  [scale-p]

  ; main procedure that rules the movement
  move-walkers

  ; if you want to calculate a lorenz curve you need to uncomment this call
  ;update-lorenz-and-gini
  tick

  ; if you do not want to use the Behavoiur Space you may use the next to calls to dump out result files
  ;if ticks = 4000 [
  ;  export-world (word "results/results " behaviorspace-experiment-name behaviorspace-run-number ".csv")
  ;  export-plot "number of patches per percentile"  (word "results/results " behaviorspace-experiment-name behaviorspace-run-number "_number-of-patches-per-percentile.csv")
  ;]
end

; procedure that calculate the attraction of a patch
; adapted from the original paths model

to become-more-popular
  set popularity popularity + 1
  ; if the increase in popularity takes us above the threshold, become a route
  ; current threshold is 1 times by a turtle
  if pcolor != orange [
    if obstacle != 1 [
      if popularity >= pop-lowlimit [ set pcolor gray ]]
  ]
end

; procedure to control the movement of walkers
; adapted from the original paths model

to move-walkers
  ask walkers [
    if patch-here = goal [
      if selected-experiment = "s-goal" [set goal one-of patches with [streets = 1]
      if show-goal [   ask goal [set pcolor yellow] ]
      ]
      if selected-experiment ="o-goal"
      or selected-experiment ="Y"
       or selected-experiment ="square"
       or selected-experiment ="houseOfSantaClaus" [set goal one-of patches with [pcolor = orange]]
      ]
      walk-towards-goal
  ]
end

; procedure to control the popularity of patches,
; the destination of the next walkes step and the avoidance of obstacles
; adapted from the original paths model

to walk-towards-goal
    ask patch-here [ become-more-popular ]
 face best-way-to goal
 avoid-patches
end

; procedure that calculate and perfom the decison  of the best direction
; adapted from the original paths model

to-report best-way-to [ destination ]
  ; of all the visible route patches (=gray), select the ones
  ; that would take me closer to my destination

  let visible-patches patches in-radius walker-vision-dist
  ;let visible-routes visible-patches with [popularity >= pop-lowlimit]
  ifelse not max-pop [set visible-routes visible-patches with [
     popularity >= pop-lowlimit]
   ;print "1"
  ]
   [set visible-routes visible-patches with-max [ popularity]

  ]
  ;print [popularity] of visible-routes
  let routes-that-take-me-closer visible-routes with [
    distance destination < [ distance destination - 1] of myself
  ]
  ; decision
  ifelse any? routes-that-take-me-closer [
    ; from those route patches, choose the one that is the closest to me
    report min-one-of routes-that-take-me-closer [ distance self ]
  ] [
    ; if there are no nearby routes to my destination
    report destination
  ]
end

; this procedure adapts the forward looking example of obstacles avoidance as presented by
; Vision Cone example of the Netlogo Lib in addition some ideas are taken from
; Thomas Christy at Bangor University 2009 and modified by William John Teahan
; http://files.bookboon.com/ai/index.html
; https://files.bookboon.com/ai/Obstacle-Avoidance-1.html
; found by google search "netlogo obstacle avoidance" page 3

to avoid-patches
 ; visualisation of cone of sight
 ; recolor all cone patches to the original colors
 ; we have to do so because otherwise the last cone will remain
 ask patches with [pcolor = sky]
  [ set pcolor green ]
 ask patches with [pcolor = pink]
  [ set pcolor red ]
  ask patches with [pcolor = cyan]
  [ set pcolor gray ]
 ; if visualisation of cones ist true
 ; color the cone depending on the underlying patch classes
 if vis-vision [
  ask patches in-cone walker-vision-dist walker-v-angle [
    if pcolor = green
    [ set pcolor sky ]
    if pcolor = gray
    [ set pcolor cyan]
    if pcolor = red
    [ set pcolor pink ]
  ]
]

; start of obstacle avoidance
; count patches in cone that are obstacles if there is at least one obstacle
; turn 12.5 degrees
; do this until there is no obstacle in cone
while [count patches in-cone walker-vision-dist walker-v-angle with [obstacle = 1] > 0]
 [ rt 12.5 ]

 ;  error workaround for touching the boundary of world that produces the "nobody" error
 ; we just check the patch in front and only if it is not nobody we head on
 let try  one-of patches in-cone walker-vision-dist walker-v-angle with [obstacle != 1]
 if try != nobody

 ; turn to one of the patches in the cone WITHOUT (!=1) an obstacle
  [face one-of patches in-cone walker-vision-dist walker-v-angle with [obstacle != 1]]

  ; last check if there is no obstacle step 1 forward
  ; otherwise step 1 backwards and turn 90 deg
  ifelse [obstacle] of patch-ahead 1 != 1
  [fd 1 ]
  [bk 1 lt 90]
end

; #####################################################
; create experiments

; this procedure creates some static road systems
; road width and geometry typ is defined by the GUI

to create-roads
   if preset-roads = "triangle" [
   set roads patches with
     [pxcor = -20 or pycor = 20 or pycor = pxcor - 2 ]
  ]
   if preset-roads = "square" [
   set roads patches with
     [pxcor = -20 or pycor = 20 or pxcor = 20 or pycor = -20]
  ]
   if preset-roads = "X" [
   set roads patches with
     [pxcor = pycor  or (-1 * pxcor) =  pycor ]
  ]
    ask roads
    [ paint-p patches in-radius road-width
             set pcolor gray
             ]

  set roads patches with [pcolor = gray]
  ask roads[ set popularity roads-pop
             set streets 1
  ]
  display
end

; this procedure creates some static road systems
; geometry is defined by the GUI

to make-experiment

    ; triangle
    if selected-experiment = "Y" [
    ; not rotated
    ;https://www.triangle-calculator.com/de/?what=vc&a=-40&a1=-40&3dd=3D&a2=0&b=0&b1=29.2825&b2=0&c=40&c1=-40&c2=0&submit=Berechnen&3d=0
    ;[-40 -40] [0 29.2825]  [40 -40]
    ;slightly rotated
    ;https://www.triangle-calculator.com/de/?what=vc&a=-40&a1=-40&3dd=3D&a2=0&b=4&b1=29&b2=0&c=35&c1=-43&c2=0&submit=Berechnen&3d=0

    ;recolorize remaining orange patches back to green
    ask patches with [pcolor = orange] [set pcolor  green]
    ;define goal patches and make them orange
    ask patches at-points [ [-40 -36] [4 27] [35 -43]] [ set pcolor orange]
    ; create walkers according to the settings
    ask  n-of n-walker patches [sprout-walkers 1 [
    if selected-experiment ="Y" [set goal one-of patches with [pcolor = orange]]
      set size 5
      set color black
      set shape "stud_tri"]
    ]

  ]

  ; pentagle
  if selected-experiment = "houseOfSantaClaus" [
    ask patches with [pcolor = orange] [set pcolor  green]
    ask patches at-points [[-35 10] [-35 -40] [0 40]  [35 10] [35 -40]] [ set pcolor orange]

    ask  n-of n-walker patches [sprout-walkers 1 [
    if selected-experiment ="houseOfSantaClaus" [set goal one-of patches with [pcolor = orange]]
      set size 4
      set color 45
      set shape "person student"]
    ]

  ]

  ; square
  if selected-experiment = "square" [
    ask patches with [pcolor = orange] [set pcolor  green]
    ask patches at-points [[-35 40] [-35 -40]  [35 40] [35 -40]] [ set pcolor orange]
        ask  n-of n-walker patches [sprout-walkers 1 [
    if selected-experiment ="square" [set goal one-of patches with [pcolor = orange]]
      set size 4
      set color 45
      set shape "person student"]
    ]
  ]

  ; a street szenario is choosen and strets are the only places for goals and turles to be born
  if selected-experiment = "s-goal" [
    if preset-roads != "none" [create-roads
      ; create walker and goals on structures (roads)
      ask  n-of n-walker roads [
        sprout-walkers 1 [ if selected-experiment = "s-goal" [set goal one-of patches with [streets = 1]]
          if show-goal [ask goal [set pcolor yellow]]
        set size 4
        set color 45
        set shape "person student"
        ]
      ]
    ]
    if preset-roads = "none" [
        ask  n-of n-walker patches [
      sprout-walkers 1 [ set goal one-of patches
      if show-goal [ask goal [set pcolor yellow]]
        set size 4
        set color 45
        set shape "person student"
      ]
    ]
     if message [user-message (word "Es wurden keine vordefinierten Strassen gewählt.\n Bitte JETZT Strassen zeichnen!")]
    ]
  ]

  ; a free goal szenario is choosen (goals MUST be orange)
  if selected-experiment ="o-goal" [
    if preset-roads != "none" [create-roads]
    ask n-of 4 patches with [pcolor = green][set pcolor orange]
    ask  n-of n-walker patches [sprout-walkers 1 [
    if selected-experiment ="o-goal" [set goal one-of patches with [pcolor = orange]]
      set size 4
      set color 45
      set shape "person student"]
    ]
    if message [user-message (word "Es wurden vier zufällige Ziele erzeugt. \nMit dem draw-world-items Button und der Farbauswahl orange können Weitere Ziele gesetzt werden.\n die Farbauswahl gray bzw. green erzeugt Strassen und Wiesen. ")  ]
  ]
end

;#########################################################
; reporter for analysis

; reports number of gray patches

to-report trampling
  report  count patches  with [popularity >= pop-lowlimit]
end

; reports number of patches with the pop-lowlimit value

to-report popularity-minimum
  report  count patches  with [popularity = pop-lowlimit  ]
end

; reports teh average popularity value of all patches

to-report popularity-average
let psum sum [popularity] of patches with [popularity >= pop-lowlimit]
let pcount count patches with [popularity >= pop-lowlimit]
report psum / pcount
end

;reports the maximum value of popularity

to-report popularity-maximum
let psum sum [popularity] of patches with-max [popularity]
let pcount count patches with-max [popularity]
  report psum / pcount
end

; reports the Gini Coefficient

to-report gini-05
  report  gini-index-reserve / trampling
end

; calls the help text not implemented yet

to help
 clear-all
  import-drawing "images/help.png"
if user-yes-or-no? "OK?"
  [ clear-all ]
end

;; this procedure recomputes the value of gini-index-reserve
;; and the points in lorenz-points for the Lorenz and Gini-Index plots

to update-lorenz-and-gini
  let sorted-popularity sort [popularity] of patches with [popularity >=  pop-lowlimit]
  let total-popularity sum sorted-popularity
  let popularity-sum-so-far 0
  let index 0
  set gini-index-reserve 0
  set lorenz-points []

  ;; now actually plot the Lorenz curve -- along the way, we also
  ;; calculate the Gini index.
  ;; (see the Info tab for a description of the curve and measure)
  repeat count patches with [popularity >=  pop-lowlimit] [
       set popularity-sum-so-far (popularity-sum-so-far + item index sorted-popularity)
    set lorenz-points lput ((popularity-sum-so-far / total-popularity) * 100) lorenz-points
    ;print lorenz-points
    set index (index + 1)
    set gini-index-reserve
      gini-index-reserve +
      (index / count patches with [popularity >=  pop-lowlimit]) -
      (popularity-sum-so-far / total-popularity)
  ]
end

; function reports a list of the popuklarity values of all patches >= pop-lowlimit

to-report spop
  report sort [popularity] of patches with [popularity >=  pop-lowlimit]
end


;; procedure to colorize the popularity
;; a linear approach from lowliomit to current max value is applied

to   scale-p
  if ticks > 10 [
  let pmax max [popularity] of patches
  ;if pmax < pop-lowlimit [set pmax pop-lowlimit + pop-lowlimit]
  ;print pmax
  ask patches with [pcolor != orange and pcolor != green and pcolor != red]
  [ set pcolor scale-color magenta popularity pop-lowlimit pmax ]
  ]
end


;#########################################################

to paint-p [p]
  ask p [ set pcolor gray]
end

; provides an simple way to draw new facilities

to draw-world-items
  while [mouse-down?] [
    create-turtles 1 [
      setxy mouse-xcor mouse-ycor
      ask patches in-radius line-width [ set pcolor read-from-string p_color
        if pcolor = red [set obstacle 1
                         set streets 0]
        if pcolor = gray [set obstacle 0
                         set streets  1
                         set popularity roads-pop
        set popularity roads-pop]
        if pcolor = green [set obstacle 0
                         set streets  0
                         set popularity 0]
      ]
      die
    ]
    display
  ]
end



; Copyright 2015 Uri Wilensky.
; See Info tab for full copyright and license.

There is only one version of this model, created about 4 years ago by Chris Reudenbach.

Attached files

File Type Description Last updated
path-simulator.png preview Preview for 'path-simulator' about 4 years ago, by Chris Reudenbach Download

This model does not have any ancestors.

This model does not have any descendants.
