SIR Model - COVID19

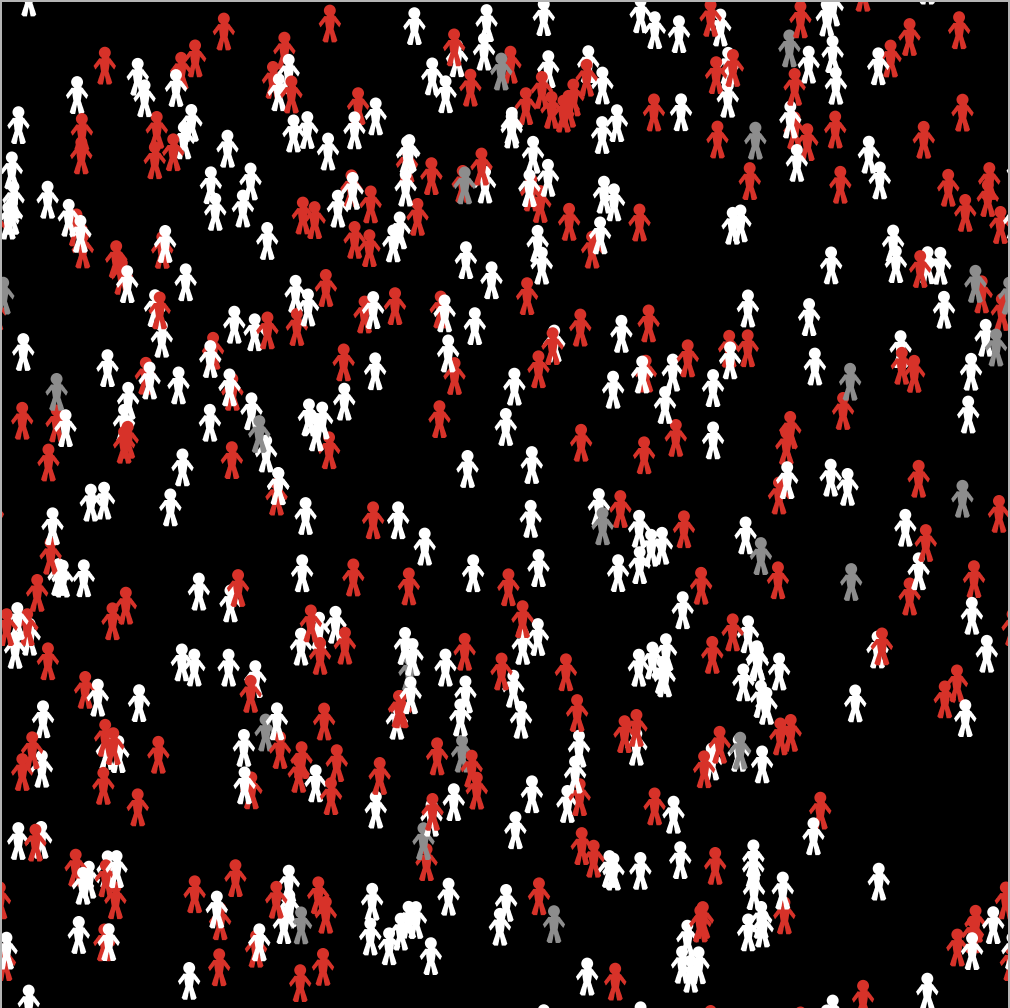

SIR Model - COVID19 preview image

1 collaborator

Default-person Paul Smaldino (Author)

Tags

covid19

Tagged by Paul Smaldino about 4 years ago

sir

Tagged by Paul Smaldino about 4 years ago

yared

Tagged by Yared Mekonnen almost 4 years ago

Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.1.1 • Viewed 4268 times • Downloaded 99 times • Run 0 times
Download the 'SIR Model - COVID19' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;;SIR Model with random movement
;;Agents move around at random.
;;They are either Susceptible, Infected, or Recovered (or, equivalently, removed)
;;
;;Coded in 2020 by Paul Smaldino
;;http://smaldino.com/wp/
;;
;;-----------------------------------------
;;CREATIVE COMMONS LICENSE
;;This code is distributed by Paul Smaldino under a Creative Commons License:
;;Attribution-ShareAlike 4.0 International (CC BY-SA 4.0)
;;https://creativecommons.org/licenses/by-sa/4.0/


globals [max-infected]

turtles-own[
  infected?
  immune?
]

to setup
  clear-all
  setup-turtles
  setup-infected
  set max-infected (count turtles with [infected?])
  reset-ticks
end

to setup-turtles
  create-turtles num-turtles [
    set color white
    set shape "person"
    set size 2
    set infected? false
    set immune? false
    setxy random-pxcor random-pycor
  ]
end

to setup-infected
  ask n-of init-infected turtles [
   set color red
   set infected? true
  ]
end

to go
  ;;stop if everyone or noone is infected
  if (count turtles with [infected?] = 0)
  or (count turtles with [infected?] = num-turtles)
  [stop]

  infect-susceptibles
  recover-infected
  recolor
  move
  calculate-max-infected
  tick
end

to infect-susceptibles ;; S -> I
  ask turtles [
    let infected-neighbors (count other turtles with [color = red] in-radius 1)
    if (random-float 1 <  1 - (((1 - transmissibility) ^ infected-neighbors)) and not immune?)
    [set infected? true]
  ]
end

to recolor
  ask turtles with [infected?]
  [ set color red]
end

to move
  ask turtles [
    right random 360 ;;get a new random heading
    forward speed
  ]
end

to recover-infected ;;I -> R
  ask turtles with [infected?]
  [
    if random-float 1 < recovery-rate
    [
      set infected? false
      ifelse remove-recovered?
      [
        set immune? true
        set color gray
      ]
      [
        set color white
      ]
    ]
  ]
end

to calculate-max-infected
  let x (count turtles with [infected?])
  if x > max-infected
  [set max-infected x]
end

to-report max-infected-prop
  report max-infected / num-turtles
end

to-report prop-uninfected
  report (count turtles with [not infected? and not immune?]) / num-turtles
end
