MIHS - CoronaVirus2.0

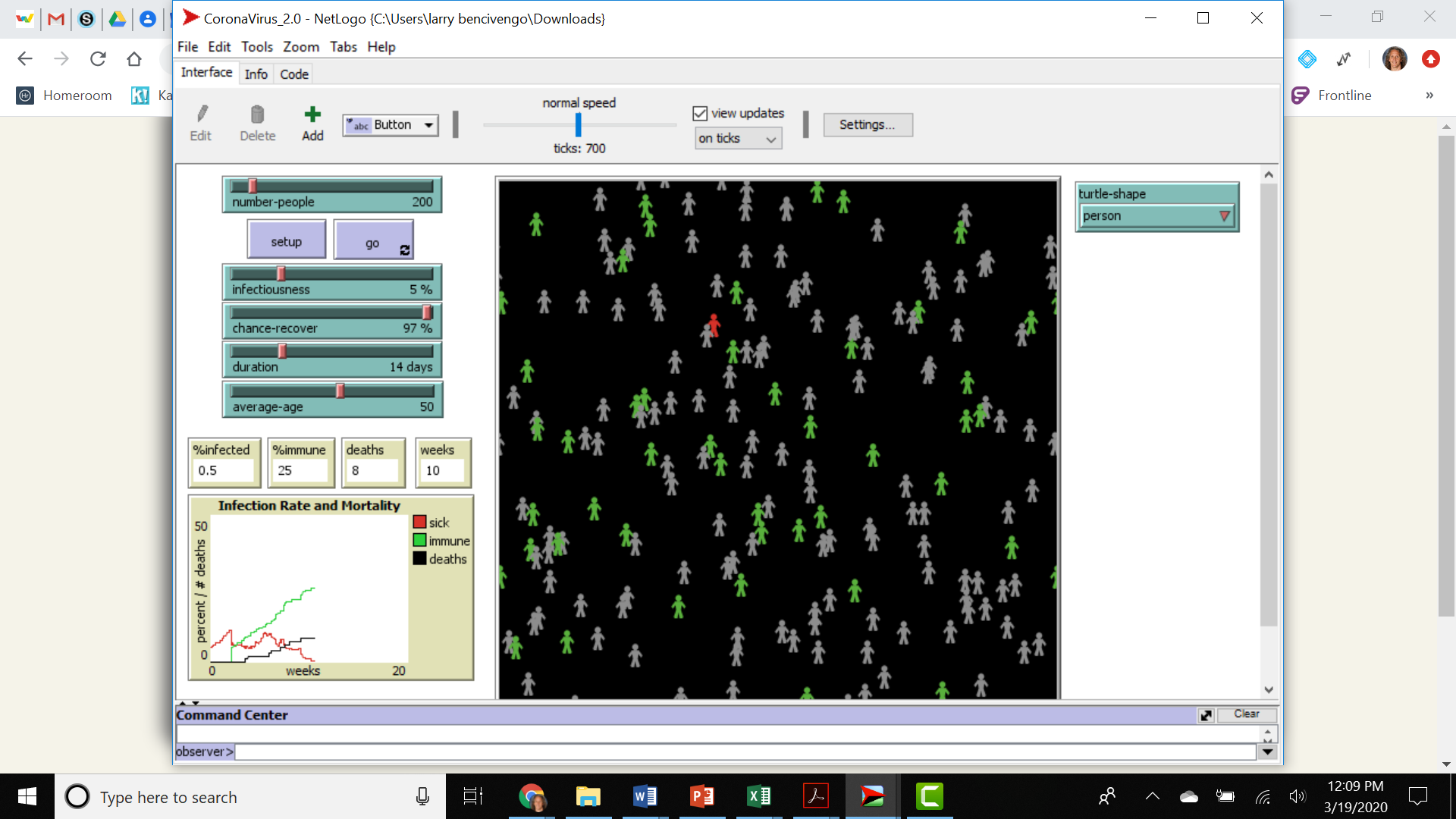

MIHS - CoronaVirus2.0 preview image

1 collaborator

Larry_bencivengo Larry Bencivengo (Author)

Tags

covid-19, epidemiology

Tagged by Larry Bencivengo about 4 years ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 6.0.2 • Viewed 197 times • Downloaded 17 times • Run 0 times
Download the 'MIHS - CoronaVirus2.0' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

turtles-own
  [ sick?                ;; if true, the turtle is infectious
    remaining-immunity   ;; how many weeks of immunity the turtle has left
    sick-time            ;; how long, in weeks, the turtle has been infectious
    age ]                ;; how many weeks old the turtle is

globals
  [ %infected            ;; what % of the population is infectious
    %immune              ;; what % of the population is immune
    days                 ;; cumulative number of days in simulation
    deaths               ;; cumulative number of deaths due to virus
    lifespan             ;; the lifespan of a turtle - the chance of dying when infected is higher for older turtles
    immunity-duration    ;; how many weeks immunity lasts
    cumulative-age       ;; used to calculate average age of population
    ticks-per-week ]     ;; # of ticks to simulate 1 week of time


;; The setup is divided into four procedures

to setup
  clear-all
  setup-constants
  setup-turtles
  update-global-variables
  update-display
  reset-ticks
end

;; We create a variable number of turtles of which 10 are infectious,
;; and distribute them randomly

to setup-turtles
  create-turtles number-people
    [ setxy random-xcor random-ycor
      set age ( random average-age + random lifespan * .75 )  ;; age is randomly distributed around the average value
      if age > lifespan + 30 [ set age lifespan + random 30 ]
      set cumulative-age cumulative-age + age
      set sick-time 0
      set remaining-immunity 0
      set size 1.5  ;; easier to see
      ;; set label age
      get-healthy ]
  ;; calculate average age
  set cumulative-age cumulative-age / number-people
  ask n-of 10 turtles
    [ get-sick ]
end

to get-sick ;; turtle procedure
  set sick? true
  set remaining-immunity 0
end

to get-healthy ;; turtle procedure
  set sick? false
  set remaining-immunity 0
  set sick-time 0
end

to become-immune ;; turtle procedure
  set sick? false
  set sick-time 0
  set remaining-immunity immunity-duration
end

;; This sets up basic constants of the model.

to setup-constants
  set lifespan 80     ;; average lifespan is assumed to be 80 years - the chance of dying when infected is higher for older turtles
  set immunity-duration 52
  set ticks-per-week 70
end

to go
  ask turtles [
    update-sick-immune
    move
    if sick? [ recover-or-die ]
    if sick? [ infect ]
  ]
  update-global-variables
  update-display
  tick
end

to update-global-variables
  if count turtles > 0
    [ set %infected (count turtles with [ sick? ] / count turtles) * 100
      set %immune (count turtles with [ immune? ] / count turtles) * 100 ]
end

to update-display
  ask turtles
    [ if shape != turtle-shape [ set shape turtle-shape ]
      set color ifelse-value sick? [ red ] [ ifelse-value immune? [ green ] [ grey ] ] ]
end

;; turtle counting variables are advanced either daily or once per week (i.e. only after ticks-per-week ticks have passed)

to update-sick-immune ;; turtle procedure
  ;; check that 1 day has passed and update sick-time
  if ticks mod ( ticks-per-week / 7 ) = 0 [
    if sick? [ set sick-time sick-time + 1 ]
  ]
  ;; check that 1 week has passed and update remaining-immunity
  if ticks mod ticks-per-week = 0 [
    if immune? [ set remaining-immunity remaining-immunity - 1 ]
  ]
end

;; turtles move about at random.

to move ;; turtle procedure
  right random 100
  left random 100
  forward 1
end

;; If a turtle is sick, it infects other turtles on the same patch.
;; Immune turtles don't get sick.

to infect ;; turtle procedure
  ask other turtles-here with [ not sick? and not immune? ]
    [ if random-float 100 < infectiousness
      [ get-sick ] ]
end

;; Once the turtle has been sick long enough, it
;; either recovers (and becomes immune) or it dies.

to recover-or-die ;; turtle procedure
  if sick-time > duration                        ;; If the turtle has survived past the virus' duration, then
    [ ifelse ( random-float 150 * age / lifespan ) < chance-recover   ;; either recover or die - older turtles have a lower chance of recovery
      [ become-immune ]
      [ set deaths deaths + 1  die ]
    ]
end

to-report immune?
  report remaining-immunity > 0
end

to startup
  setup-constants ;;
end


; Copyright 1998 Uri Wilensky.
; See Info tab for full copyright and license.

There is only one version of this model, created about 4 years ago by Larry Bencivengo.

Attached files

File Type Description Last updated
MIHS - CoronaVirus2.0.png preview Preview for 'MIHS - CoronaVirus2.0' about 4 years ago, by Larry Bencivengo Download

This model does not have any ancestors.

This model does not have any descendants.
