Covid-19 virus - effects of various measures used to contain its spread

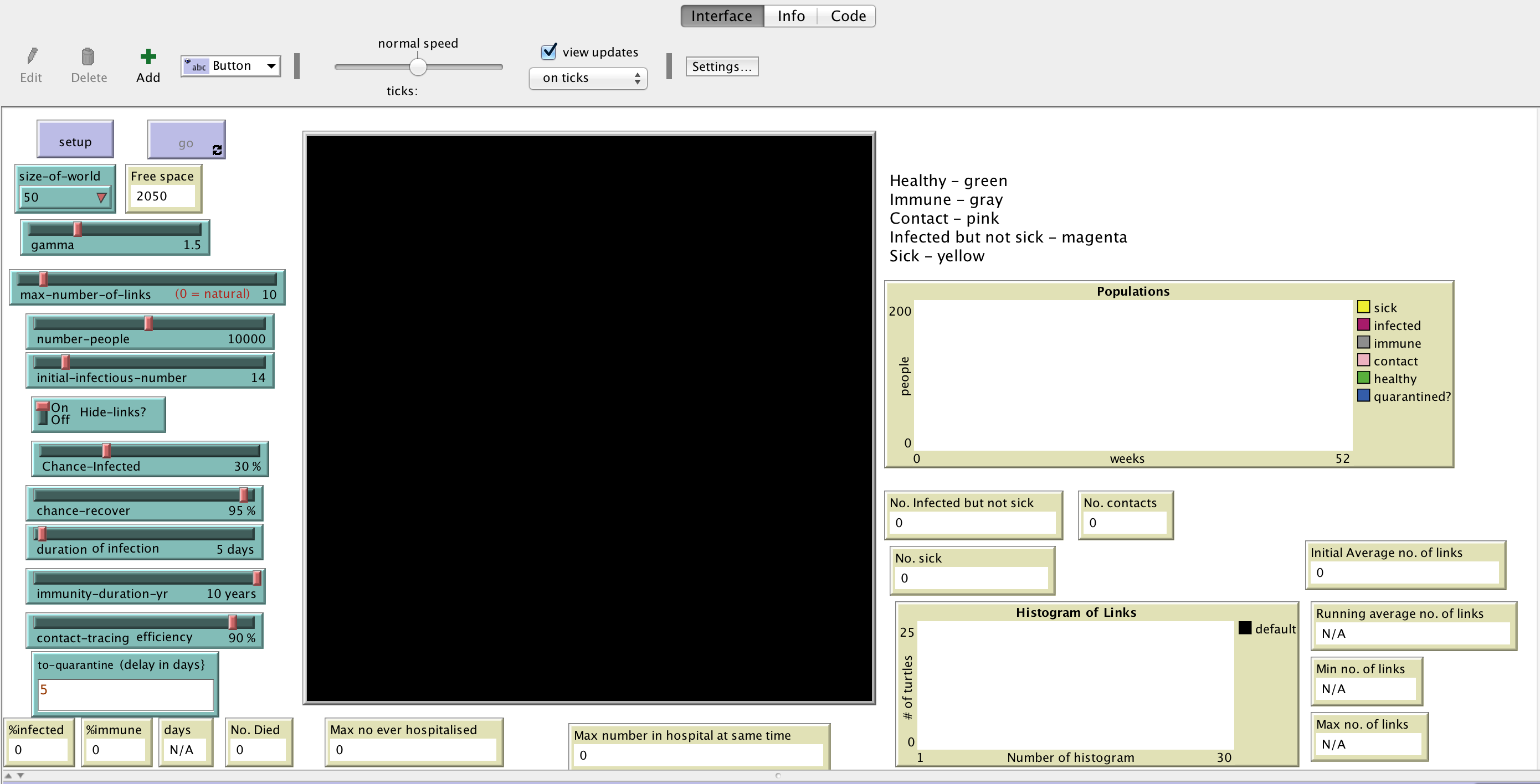

Covid-19 virus - effects of various measures used to contain its spread preview image

1 collaborator

Rng_avatar Ronald Paul Ng (Author)

Tags

Visible to everyone | Changeable by the author
Model was written in NetLogo 6.0.2 • Viewed 526 times • Downloaded 14 times • Run 0 times
Download the 'Covid-19 virus - effects of various measures used to contain its spread' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Very good model (Question)

Thanks for sharing the very good model. I too have developed a model pretty much along the same lines. Hoping to upload the model soon. A question I have is that in the plot you have shown the X-axis in 'weeks'. Whereas your 'tick' appears to be based on days. So how did you convert the day count to week count? Thanks!

Posted over 4 years ago

Click to Run Model

turtles-own
  [ status               ;; either: healthy, contact-infected, contact-healthy, sick or immune ;;
    infectious-time      ;; after being infetious for 14 days, become sick
    remaining-immunity   ;; how many days of immunity the turtle has left
    contact-time         ;; how long since last contact
    sick-time            ;; this determines the point in time when the agent recovers
    age                  ;; how old is the turtle
    quarantined?         ;; whether the person is quarantined
    number-of-links      ;; number of links each turtle has
  ]

patches-own
  [
  ]

globals
  [ %infected            ;; what % of the population is infectious
    %immune              ;; what % of the population is immune
    maximum-population   ;; keep it the same as the number of people who started.
    lifespan             ;; the lifespan of a turtle
    initial-ave-links    ;; initial average number of links
    immunity-duration    ;; turtle being immune in number of days
    total-died           ;; total number of people died from the virus
    total-sick           ;; total number of people who became sick
    max-sick             ;; the highest number at one time hospitalised
    number-sick          ;; number of sick people at any one moment
    number-infected      ;; number of infeccted people but not sick at any one moment, ie contact-infected status
    max-number-sick-at-one-time ;; the maximum sick at any one moemnt, hence the max in hospital
  ]

to setup
  clear-all
  resize-world 0 (size-of-world - 1) 0 (size-of-world - 1)
  set-patch-size (500 / max-pxcor)
  set maximum-population number-people  ;; this is to keep the total populace constant even though some will die
  ;; ==================================================

  set lifespan 80 * 365.25  ;; life expectancy set to 80

  set immunity-duration immunity-duration-yr * 365  ;; remain immune for number of years in days as indicated by immunity-duration-yr
  set max-number-sick-at-one-time 0
  set total-died 0
  ;; ===================================================
  create-turtles number-people
    [ set status "healthy"
      set age random lifespan
      set color green
      set sick-time 0
      set contact-time 0
      set remaining-immunity 0
      set size 1.5  ;; easier to see
      set quarantined? false
      setxy random-xcor random-ycor
    ]

;; code for number of links
  ask turtles [make-links]
  set initial-ave-links count links / count turtles
;;  =======================================================================
  ;; the next two line is to get the mean of number-of-links of turtles with high number of links
;  let max-links-turtles max-n-of 1000 turtles [number-of-links]
;  show mean [number-of-links] of max-links-turtles
;;  ========================================================================
  ask n-of initial-infectious-number turtles
    [ set status "contact-infected"
      set infectious-time 1
      set color magenta
    ]

  reset-ticks

  if hide-links? = true [ask links [hide-link]]
end

to go
  ask turtles [
    get-older ;; everybody gets older
    if status = "healthy" [
                           reproduce ;; this is to keep population number constant when peole dies
                          ]
    if status = "contact-healthy" and quarantined? = true [set contact-time contact-time + 1
                                                           if contact-time > 14 [ set status "healthy"
                                                                                  set quarantined? false  ;; since he is healthy, can be released from quarantine
                                                                                  make-links              ;; after 14 days, and shown to be not sick, can form links agai.
                                                                                  set color green
                                                                                  set contact-time 0]
                                                          ]
    ;; if a contact has not been qurantined, depending on the efficiency in contact tracing and the delay (as measured by contact-time) in qurantine
    ;; he might be or might not be quarantine. that is determined by a raondom number.
    if status = "contact-healthy" and quarantined? = false [set contact-time contact-time + 1
                                                            if contact-time >= to-quarantine [ if random 100 < contact-tracing [getting-quarantine]]
                                                            if contact-time > 14 [ set status "healthy"
                                                                                  set color green
                                                                                  ;; no need to make links as links are still intact since it is not quarantined
                                                                                  set contact-time 0]
                                                           ]

    if status = "contact-infected" and quarantined? = true [set infectious-time infectious-time + 1
                                                            if infectious-time > random 14 [ set status "sick"             ;; if infectious-time > max incubation time of 14, but can be shorter
                                                                                             set color yellow
                                                                                             ask [my-links] of self [die]  ;; hospitalised, no longer have links to infect
                                                                                             set total-sick total-sick + 1
                                                                                             set sick-time sick-time + 1
                                                                                           ]

                                                           ]

    if status = "contact-infected" and quarantined? = false [infect              ;; these are the agents who were not quarantined, though infectious.
                                                             set infectious-time infectious-time + 1
                                                             set contact-time contact-time + 1
                                                             if contact-time >= to-quarantine [if random 100 < contact-tracing [getting-quarantine]]
                                                             if infectious-time > random 14 [ set status "sick"             ;; if infectious-time > max incubation time of 14, but can be shorter
                                                                                             set color yellow
                                                                                             ask [my-links] of self [die]  ;; hospitalised, no longer have links to infect
                                                                                             set total-sick total-sick + 1
                                                                                             set sick-time sick-time + 1
                                                                                            ]

                                                           ]


    if status = "sick" [ infect  ;; this line of code comes before severing links, as he might infect other first before identified and go to hospital
                                 ;; if links are cut already in the previous round, he won't be able to infect others. (See procedure on "to infect"
                         set sick-time sick-time + 1
                         ask [my-links] of self [die]  ;; with links severed, it cannot infect anyone - equivalent of going to hospital
                         if sick-time > random-exponential 14 [recover-or-die]  ;; average sick time is 14 days, beween 6 to  42 days.
                       ]

    if status = "immune" [set color grey
                          ask [my-links] of self [die]
                          set remaining-immunity remaining-immunity - 1
                          if remaining-immunity <= 0 [get-healthy] ;; no longer immune, and becomes like normal
                         ]
  ]
  set number-sick count turtles with [status = "sick"] ;; this show the number sick at any ONE time
  set %infected (count turtles with [status = "sick"] + count turtles with [status = "contact-infected"]) / count turtles * 100
  set %immune  count turtles with [status = "immune"] / count turtles * 100
    if number-sick > max-number-sick-at-one-time [set max-number-sick-at-one-time number-sick]
  if count turtles with [status = "sick"] + count turtles with [status = "contact-infected"] = 0 [stop]
  tick
end

to get-older
  set age age + 1
end

to make-links
  ifelse max-number-of-links = 0
      [let K exp(ln(random-float 1) / (- gamma))
                  if K > count turtles with [quarantined? = false] [ set K count turtles with [quarantined? = false] - 1] ;; only those not with quarantined? = true can form links
                  set K round K
                  create-links-with n-of K other turtles
                  set number-of-links K]
       [let K exp(ln(random-float 1) / (- gamma))
                  if K > max-number-of-links [ set K max-number-of-links] ;; this will set the upper limit of links
                  set K round K
                  create-links-with n-of K other turtles
                  set number-of-links K]
end

to reproduce
  if count turtles < number-people [hatch (number-people - count turtles) [set status "healthy"
                                                                           set age random lifespan
                                                                           set sick-time 0
                                                                           set remaining-immunity 0
                                                                           set size 1.5  ;; easier to see
                                                                           set quarantined? false
                                                                           make-links
                                                                           setxy random-xcor random-ycor]
                                    ]
end

to infect
  ask link-neighbors [ifelse random 100 <= chance-infected [set status "contact-infected"
                                                           set color magenta
                                                           set contact-time 1]  ;; contact time is set as marker for when he is detected to be a contact
                                                          [set status "contact-healthy"
                                                           set color pink - 3
                                                           set contact-time 1 ]  ;; contact time is set as market for when he is detected to be a contact
                     ]
end

to getting-quarantine
  set quarantined? true
  ask [my-links] of self [die] ;; once the agentis quarantined, he is not linked to anyone
end

to recover-or-die
  ifelse random 100 > chance-recover [set total-died total-died + 1
                                      die
  print total-died]
                                     [set status "immune"
                                      set color grey
                                      set sick-time 0
                                      set contact-time 0
                                      set quarantined? false
                                      set remaining-immunity immunity-duration-yr * 365.25
                                     ]
end

to get-healthy
  set status "healthy"
  set color green
  set sick-time 0
  set contact-time 0
  set remaining-immunity 0
  set quarantined? false
  make-links
end
