# Segregation model: Model of Connectivity

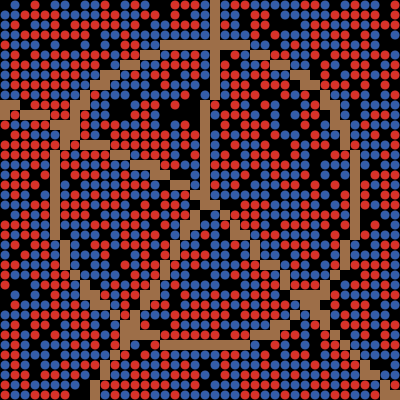

Model was written in NetLogo 6.1.1
•
Viewed 78 times
•
Downloaded 4 times
•
Run 0 times

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)

Info tab cannot be displayed because of an encoding error

## Comments and Questions

Please start the discussion about this model!
(You'll first need to log in.)

Click to Run Model

; =========== ; ## NOTES ## ; =========== ; The model is built partly with code from Crooks et al (2018), Wilensky (1997). ; The A* algorithm applied in NetLogo is taken from http://www.cs.us.es/~fsancho/?e=131 extensions [ rnd ] globals [ percent-unhappy prop_neighborhood ;; proportion of agents of type X in a neighborhood // a report variable p-valids ;Contain patches which are not barriers. Start ;Start position (unhappy turtle) Final-Cost ;Store the distance returned by the A* algorithm. pot_NBH ethnic_share similar unhappy dis ; For dissimilarity index calculation indexdissimilarity ] patches-own [ NBH_id ;Neighborhoods id. father ;Is used by A* to store paths. Cost-path ;Is used to store the cost of the path (distance). visited? ;A boolean indicating if the patch have been visited before. active? ;A boolean indicating if the patch is active in the search for shortest path. neigborhood2 ; To be used to calculated segregation index. ] turtles-own [ happy? ;boolean variable indicating if the agent is happy with their current living situation (given Schelling, 1971 behavior rules). similar-nearby ; similar in neighborhood where agent is located myneighbors ; a agent's polygon-neighbor, same as adjacent_polygon of the polygon where the agent is located. other-nearby ; others in neighborhood where agent is located total-nearby ; total population of neigborhood where agent is located NBH ;Which neighborhoods do the turtle dwell in. ] ; ========================== ; ## SETTING UP THE MODEL ## ; ========================== to setup ca set similar [] set unhappy [] ; Setting world. resize-world 0 (world_size - 1) 0 (world_size - 1) set-patch-size patch_size ; 7 o 36 ; Identifying neighborhood. ; Only works with tens (10, 20, 30, 40, 50 etc...) let x sizenbh let y sizenbh let col 36 while [y <= max-pycor + 2][ while [x <= max-pxcor + 2][ ask patches with [pxcor < x and pxcor >= x - sizenbh and pycor < y and pycor >= y - sizenbh][ set pcolor col ] set x x + sizenbh set col col + 3 ] set x sizenbh set y y + sizenbh ] ask patches[ set neigborhood2 [pcolor] of self] ; Generating physical features. if Environment = "Barrier" or Environment = "Bridges" [ if Ring-road [ crt (max-pycor * 3) layout-circle turtles (max-pycor * ((random (max-pxcor / 2) + (max-pxcor / 1.5 )) / 100)) ask turtles [set pcolor brown] ask turtles [die] ] ; Urban form: Monocentric if Urban-form = "Monocentric" [ let center-region patches with [ pycor = (round(max-pycor / 2)) and pxcor = (round(max-pxcor / 2))] ask center-region [sprout 4] let i 0 ask turtles [ set pcolor brown ] while [i < (max-pycor )][ ask one-of turtles [ fd 1 set pcolor brown fd 1 set pcolor brown fd 1 set pcolor brown fd 1 set pcolor brown ifelse (random 25 <= 1)[ rt one-of [-90 0 90] fd 1 set pcolor brown fd 1 set pcolor brown fd 1 set pcolor brown ][ set pcolor brown fd 1 set pcolor brown fd 1 set pcolor brown fd 1 set pcolor brown ] set i i + 1] ] ask turtles [die] ] ; Urban form: Polycentric if Urban-form = "Polycentric" [ ask n-of 2 patches with [ (pycor = (round(max-pycor * 0.5 )) and pxcor = (round(max-pxcor * 0.3))) or (pycor = (round(max-pycor * 0.5)) and pxcor = (round(max-pxcor * 0.7))) or (pycor = (round(max-pycor * 0.7)) and pxcor = (round(max-pxcor * 0.50))) or(pycor = (round(max-pycor * 0.3)) and pxcor = (round(max-pxcor * 0.50)))][sprout 2] let i 0 ask turtles [ set pcolor brown ] while [i < (max-pycor )][ ask one-of turtles [ fd 1 set pcolor brown fd 1 set pcolor brown fd 1 set pcolor brown fd 1 set pcolor brown ifelse (random 25 <= 1)[ rt one-of [-90 0 90] fd 1 set pcolor brown fd 1 set pcolor brown fd 1 set pcolor brown ][ set pcolor brown fd 1 set pcolor brown fd 1 set pcolor brown fd 1 set pcolor brown ] set i i + 1 ] ] ask turtles[die] ] ] ; Bridges. if Environment = "Bridges" [ ask n-of (count patches with [pcolor = brown] * 0.05) patches with [pcolor = brown][ ask patches in-radius 1 [ set pcolor 139] ] ] ; Adding agents. ask n-of ((count patches with [pcolor != brown]) * ( 1 - (%VacantHH / 100))) patches with [pcolor != brown][sprout 1] ask turtles [ set color red set shape "circle" set size 0.9 ] ask n-of ((minority-group-size / 100) * count turtles) turtles [set color blue] ask patches with [pcolor = 139][set pcolor ([neigborhood2] of self)] ; Adding neighborhood. ask patches with [pcolor != brown][ set NBH_ID nobody ] find-clusters ; Giving each neighborhood an ID. ask patches with [pcolor != brown] [ set pcolor black] ask turtles[ set NBH [NBH_ID] of patch-here] ; Setting start attributes for the A* algorithm ask patches [ set father nobody set Cost-path 0 set visited? false set active? false ] set p-valids patches with [pcolor != brown] reset-ticks end ; ==================== ; ## AGENT BEHAVIOR ## ; ==================== to go update-happiness if any? turtles with [happy? = false][ ask one-of turtles with [happy? = false][new-neighborhood]] update-globals tick end ; All agents evaluate their living situation. to update-happiness ask turtles[ ;Calculating composition of egocentric neighborhood. set myneighbors turtles with [NBH = [NBH] of myself] set similar-nearby count myneighbors with [color = [color] of myself] ; Number of similar agents in neighborhood set other-nearby count myneighbors with [color != [color] of myself] ; Number of other agents in neighborhood. set total-nearby similar-nearby + other-nearby ; Total agents in neighborhood. ;Determine if an agent is happy set happy? similar-nearby >= (%-similar-wanted * total-nearby / 100) ] end to new-neighborhood ; Identifying avaiable neigborhoods. ; Listing all potential neighborhoods. if Printer [print "-------------------"] set Start self if Printer [print(word" ""Unhappy agent is: " Start)] ; Identifying all vacant households outside the the agent's current neighborhood. let pot_NBH1 patches with [not any? turtles-here and pcolor != brown and NBH_id != [NBH] of myself] set pot_NBH sort pot_NBH1 if Printer [print(word" ""My current neighborhood is: " [NBH] of Start)] ; 'Ethnic' share of all possible vacant neigborhoods. ; Identifying agent's 'ethnicity let mycolor [color] of self ; Identifying polygon neighborhood let pot_NBH2 map [ i -> [NBH_id] of i ] pot_NBH ; Computing ethnic share of each neighborhood. set ethnic_share map [i -> prop_same_group i mycolor] pot_NBH2 if Printer [print(word" ""Agent is happy?" happy?)] if Printer [print(word" ""Agent's ethnicity :" mycolor)] ; Distance to all neighborhoods with vacant household. let distance_NBH map [i -> A* Start i p-valids] pot_NBH ; Normalzing distance, makes it weight more even to ethnic share. let distance_NBH_normal map [i -> normalize2 i ] distance_NBH ; Calculuating utility. if Printer [print " Calculating utility"] ; Ethnic share let utility_share map [i -> i * beta_ethnic] ethnic_share ; Household distance let utility_distance map [i -> i * beta_distance] distance_NBH_normal if Printer [print(word" ""Distance utility :" utility_distance)] if Printer [print(word" ""Share utility :" utility_share)] ; Summing utility let added_utility2 [] (foreach utility_share utility_distance [ [a b ] -> let suma (a + b ) set added_utility2 lput suma added_utility2 ]) ; Exp() utility let added_utility map [i -> exp i ] added_utility2 ; Calculating probabilities let tot_utility sum added_utility let NBH_probabilities map [i -> i / tot_utility] added_utility ; Joining final utilities and NBHs' ids let final_pool (map list pot_NBH NBH_probabilities) if Printer [print(word" ""Each neighborhoods utility :" final_pool)] ; Selecting the neighborhood with highest utility and moves. let origin_place patch-here if Printer [print(word" ""Moving from NBH :" origin_place)] if Printer [ pen-down ] let decision select_and_move Start final_pool origin_place end ; ============= ; ## REPORTs ## ; ============= ;To identify neighborhood, made on code from 'Patch Clusters example' model. to find-clusters loop [ ; Pick a random patch that isn't in a cluster yet let seed one-of patches with [NBH_id = nobody] ; If we can't find one, then we're done! if seed = nobody [ stop ] ; Otherwise, grow-cluster to find the rest of the cluster ask seed [ set NBH_id self grow-cluster ] ] display end to grow-cluster ; Patch procedure ask neighbors4 with [(NBH_id = nobody) and (pcolor = [pcolor] of myself)] [ set NBH_id [NBH_id] of myself grow-cluster ] end ; Calculating fraction of similar neighbors in each neighborhood with a vacant household. to-report prop_same_group [a mycolor] let similar_nearby count turtles with [color = mycolor and NBH = a] let total_nearby count turtles with [NBH = a] ifelse (total_nearby > 0) [set prop_neighborhood (similar_nearby / total_nearby)] [ set prop_neighborhood 0] report prop_neighborhood end to-report normalize2 [ current_distance ] let b precision ( current_distance / ( world_size * 3 )) 4 report b end to-report select_and_move [a b c] ask a [ if ( (length b) > 0 ) [ let chosen_NBH first rnd:weighted-one-of-list b [ [p] -> last p ] if Printer [print(word"""Moved to NBH = "chosen_NBH)] move-to chosen_NBH set NBH [NBH_ID] of patch-here ] ] report [] end ; A* algorithm, used to calculate shortest distance to all vacant households. ; The A* algorithm applied in NetLogo is heavily based on the code from: http://www.cs.us.es/~fsancho/?e=131 to-report A* [#Start #Goal #valid-map] ; Reset everything. ask #valid-map with [visited?] [ set father nobody set Cost-path 0 set visited? false set active? false ] ; Active the starting point to begin the searching loop ask #Start [ set father self set visited? true set active? true ] ; Exists? indicates if the two points can be reached with the A* algorithm. let exists? true while [not [visited?] of #Goal and exists?] [ ; Only look at 'walk-able' patches which has not been visited before. let options #valid-map with [active?] ifelse any? options [ ; Chooses active patches with minimal expected cost (heuristic) ask min-one-of options [Total-expected-cost #Goal] [ ; Store its real cost (to reach it) to compute the real cost of its children let Cost-path-father Cost-path ; and deactivate it, because its children will be computed right now set active? false ; Compute its valid neighbors and look for an extension of the path let valid-neighbors neighbors4 with [member? self #valid-map] ask valid-neighbors [ let t ifelse-value visited? [ Total-expected-cost #Goal] [2 ^ 20] if t > (Cost-path-father + distance myself + Heuristic #Goal) [ ; The current patch becomes the father of its neighbor in the new path. set father myself set visited? true set active? true ; Store the distance in the Final-Cost variable set Cost-path Cost-path-father + distance father set Final-Cost precision Cost-path 3 ] ] ] ] [ set exists? false ;Can a path be found? ] ] ; If a path can be found (not isolated) ifelse exists? [ set Final-Cost (precision [Cost-path] of #Goal 3) report Final-Cost ] [ ; Otherwise, there is no path: use the Euclidean distance. set Final-Cost (precision (distance #Goal) 3) * 3 report Final-Cost ] end to-report Total-expected-cost [#Goal] report Cost-path + Heuristic #Goal end ; The heuristic is based on Euclidean distance. to-report Heuristic [#Goal] report distance #Goal end to update-globals ; Dissimilarity index. let tot_red (count turtles with [color = red]) let tot_blue (count turtles with [color = blue]) let neighb1 [neigborhood2] of patches let neighb remove-duplicates neighb1 set dis [] foreach neighb [i -> set dis lput abs((count turtles with [neigborhood2 = i and color = red] / tot_red) - (count turtles with [neigborhood2 = i and color = blue] / tot_blue)) dis] set indexdissimilarity sum(dis) / 2 end ; ================ ; ## REFERENCES ## ; ================ ; Crooks, A., Malleson, N., Manley, E., & Heppenstall, A. (2018). Agent-based modelling and geographical information systems: a practical primer. SAGE Publications Limited. ; Patch Cluster Example (in NetLogo) ; Sancho Caparrini, F. (2018). A General A* Solver in NetLogo. Retrieved 2020-03-15 from: http://www.cs.us.es/~fsancho/?e=131 ; Wilensky, U. (1997). NetLogo Segregation model. http://ccl.northwestern.edu/netlogo/models/Segregation. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.
