Information diffusion process model
Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)
WHAT IS IT?
An agent-based framework to simulate the diffusion process of a piece of misinformation according to a known compartmental model in which the fake news and its debunking compete in a social network.
HOW IT WORKS
Each agent may be a Believer, a Susceptible, or a Fact-checker (acording to a "State" variable). Every unit of time agents modify (with a certain probability) their State by considering the neighbors' "states".
HOW TO USE IT
Set up the model by modifying the number of agents, the Hoaxes Diffusion parameters and the type of network (Barabasi-Albert or Erdos-Reni).

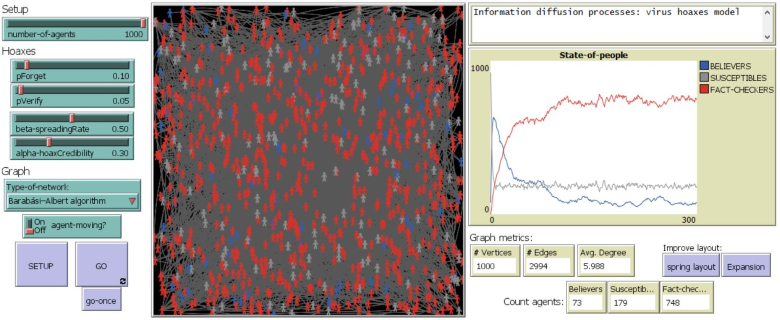

The graph on the right visualizes the amount of agents for each different type of State.
THINGS TO TRY
Change the network type to investigate the impact on diffusion processes. Improve the layout of BA network with a Spring layout.
EXTENDING THE MODEL
1 Perform parameter sweeping analysis (e.g., behaviourspace) to compute a certain ampount of test to find average and deviation standard values.
2 Include different network configuration to investigate changes in the model
3 Start the diffusion process from a certain node (e.g., from a node with high centrality or hub)
CREDITS AND REFERENCES
Sulis, E., Tambuscio, M. (2020). Simulation of misinformation spreading processes in social networks: an application with NetLogo. In 2020 IEEE International Conference on Data Science and Advanced Analytics (DSAA), IEEE.
Comments and Questions
extensions [ nw ] turtles-own [ state ] ;; Three states of agents: "B" (believer) ; "F" (factChecker) ; "S" (susceptible) links-own [ weigth ] ;; the weight of the links between agents ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; SETUP ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to setup ca setup-var setup-turtles update-plot reset-ticks end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; GO ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to go tick if ticks > 300 [stop] ;; stop condition (300 units of time) spreading ; forgetting ;-- Three main procedures for agent's behavior veryfing ; update-colors ;; just to improve the visualisation update-plot ;; update plots of the Interface end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; SETUP PROCEDURES ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to setup-var set-default-shape turtles "person" set-default-shape links "curved link" update-output end to update-output clear-output output-print "* Diffusion model in social networks *" if Type-of-network = "BA" [output-print "Barabási–Albert network"] if Type-of-network = "ER" [output-print "Erdős–Rényi network"] end to setup-turtles if Type-of-network = "Barabási–Albert algorithm" [ nw:generate-preferential-attachment turtles links number-of-agents 3 ] if Type-of-network = "Erdős–Rényi model" [ if number-of-agents > 100 [ if PC-low-performance? and ask-proceed? [ clear-output output-print (word "Erdős–Rényi model with " number-of-agents " nodes.") nw:generate-random turtles links number-of-agents 0.00585 ] ] ] init-edges end to init-edges ask links [set color 3] ask turtles [ setxy random-xcor random-ycor ifelse random 100 <= 90 [ set state "S" ][ set state "B" ] ] update-colors end to update-colors ask turtles [ if state = "B" [ set color blue ] if state = "F" [ set color red ] if state = "S" [ set color gray ] ] end to update-plot set-current-plot "State-of-people" set-current-plot-pen "BELIEVERS" plot count turtles with [state = "B"] set-current-plot-pen "FACT-CHECKERS" plot count turtles with [state = "F"] set-current-plot-pen "SUSCEPTIBLES" plot count turtles with [state = "S"] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; GO PROCEDURES ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to spreading ;; each agent modifies with some probability its state considering the points of view (states) of its neighbors; ; S -> B and S -> F according to: ; S -> B : "spreading" function for the hoax (fi) ; S -> F : disseminate among the immediate neighborhood of a vertex (gi) ask turtles with [state = "S"][ let nB count link-neighbors with [state = "B"] ; n-of neighbors Believers let nF count link-neighbors with [state = "F"] ; n-of neighbors Fact-checkers let _1PlusA ( 1 + alpha-hoaxCredibility) let _1MinusA ( 1 - alpha-hoaxCredibility) let den (nB * _1PlusA + nF * _1MinusA) let f 0 let g 0 if den != 0 [ set f beta-spreadingRate * ( nB * _1PlusA / den ) set g beta-spreadingRate * ( nF * _1MinusA / den ) ] let random-val-f random-float 1 ifelse random-val-f < f [ set state "B" ] [ if random-val-f < (f + g) [ set state "F" ] ] ] end to forgetting ;; B -> S; F -> S -- Each agent, regardless of belief state, forgets the news with a fixed probability pforget ask turtles with [state = "B" or state = "F"][ if random-float 1 < pForget [ set state "S" ] ] end to veryfing ;; B-> F ; each agent can fact-check the hoax with a fixed probability pverify; ask turtles with [state = "B"][ if random-float 1 < pVerify [ set state "F" ] ] end ;;;;;;;;;;;;;;;;;;;;;;; UTILS ;;;;;;;;;;;;;;;;;;;;;;;;;;;; to-report ask-proceed? report user-yes-or-no? "The network can be too wide to display in old PC: may suggest you to disable 'view updates' before press 'GO' button? Press Y to continue" end
