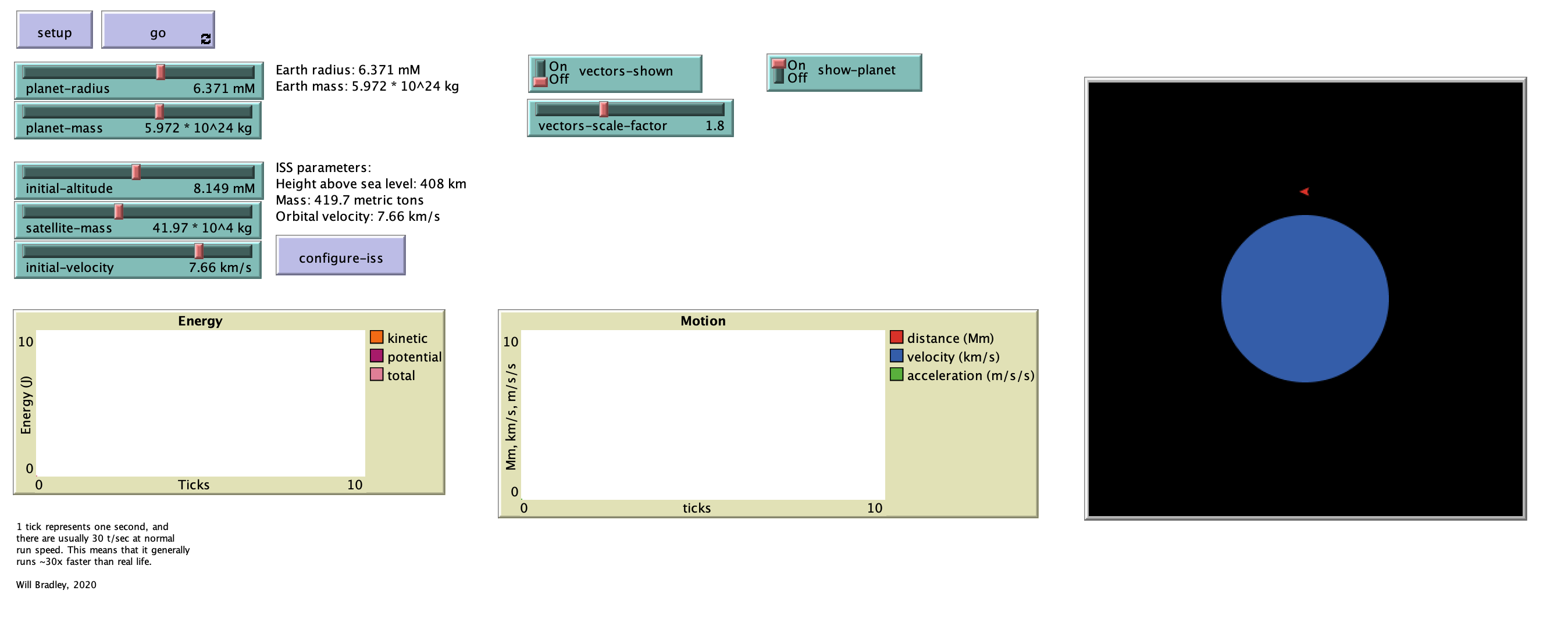

Single orbiting body

1 collaborator

Will Bradley (Author)

WHAT IS IT?

(a general understanding of what the model is trying to show or explain)

HOW IT WORKS

(what rules the agents use to create the overall behavior of the model)

HOW TO USE IT

(how to use the model, including a description of each of the items in the Interface tab)

THINGS TO NOTICE

(suggested things for the user to notice while running the model)

THINGS TO TRY

(suggested things for the user to try to do (move sliders, switches, etc.) with the model)

EXTENDING THE MODEL

(suggested things to add or change in the Code tab to make the model more complicated, detailed, accurate, etc.)

NETLOGO FEATURES

(interesting or unusual features of NetLogo that the model uses, particularly in the Code tab; or where workarounds were needed for missing features)

RELATED MODELS

(models in the NetLogo Models Library and elsewhere which are of related interest)

CREDITS AND REFERENCES

(a reference to the model's URL on the web if it has one, as well as any other necessary credits, citations, and links)

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [planets planet]
breed [sats sat]
breed [vectors vector]

globals [
  grav-const
  distance-m
  planet-mass-kg
  satellite-mass-kg
  vx-m-s vy-m-s acc-m-s2
  vx vy acc-x acc-y
  m-per-patch
  kinetic-energy
  potential-energy
  check-orbit?
  vector-vectors-scale-factor
]

turtles-own [
  id

]

to configure-iss
  set planet-radius 6.371
  set planet-mass 5.972
  set satellite-mass 41.97
  set initial-velocity 7.66
  set initial-altitude 6.709

  setup
end

to setup

  clear-all

  set check-orbit? true

  reset-ticks
  set grav-const 6.67408 * 10 ^ (-11)
  set m-per-patch 1000000
  set planet-mass-kg planet-mass * 10 ^ 24
  set satellite-mass-kg satellite-mass * 10 ^ 4


  create-planets 1 [
    ;set label (word "planet, diameter " (size * 100) " km")

    set color blue
    set size planet-radius * 2
    set shape "circle"
  ]

  create-sats 1 [

    set color red
    set heading 270
    setxy 0 initial-altitude

    set acc-m-s2 grav-const * planet-mass-kg / (distance one-of planets * m-per-patch) ^ 2

    set pen-size 1

  ]
  set  vx-m-s -1 * initial-velocity * 1000 set vy-m-s 0 ;

  ask one-of sats [
    hatch-vectors 1 [
      set id "acc"
      set color green
      hide-turtle


    ]

    hatch-vectors 1 [
      set id "vel"
      set color blue
      hide-turtle


    ]
  ]
end

to go
  if check-orbit? [
    clear-links
    ask one-of sats [

      set distance-m distance one-of planets * m-per-patch
      set acc-m-s2 grav-const * planet-mass-kg / (distance-m) ^ 2

      set acc-x -1 * acc-m-s2 * xcor / (distancexy 0 0) ; use similar triangles to get standard basis vecs from scalar
      set acc-y -1 * acc-m-s2 * ycor / (distancexy 0 0)

      set vx-m-s vx-m-s + acc-x
      set vy-m-s vy-m-s + acc-y

      set kinetic-energy 0.5 * satellite-mass-kg * (vx-m-s ^ 2 + vy-m-s ^ 2)
      set potential-energy -1 * grav-const * satellite-mass-kg * planet-mass-kg / (distance-m)

      let new-x xcor + vx-m-s / m-per-patch
      let new-y ycor + vy-m-s / m-per-patch

      facexy new-x new-y



      if vectors-shown [make-vectors]


      set xcor new-x
      set ycor new-y

      test-kill-orbit

    ]


  ]



  ifelse show-planet [
    ask planets [show-turtle]

  ] [
    ask planets [hide-turtle]
  ]

    tick
end

to make-vectors
  pen-up


  ask vectors with [id = "acc"] [
    set xcor max list (min (list (0.5 * vectors-scale-factor * (acc-x) + [xcor] of one-of sats) max-pxcor)) min-pxcor
    set ycor max list (min (list (0.5 * vectors-scale-factor * (acc-y) + [ycor] of one-of sats) max-pycor)) min-pycor

    create-links-from sats [
        set color green
        set label (word "acc: " precision acc-m-s2 2 " m/s/s")
    ]

  ]



  ask vectors with [id = "vel"] [

    set xcor max list (min (list (vectors-scale-factor * (vx-m-s / 2000) + [xcor] of one-of sats) max-pxcor)) min-pxcor
    set ycor max list (min (list (vectors-scale-factor * (vy-m-s / 2000) + [ycor] of one-of sats) max-pycor)) min-pycor

    create-links-from sats [
        set color blue
        set label (word "vel: " precision (sqrt(vx-m-s ^ 2 + vy-m-s ^ 2) / 1000) 2 " km/s")
    ]

  ]

  pen-down
end

to test-kill-orbit
  if distancexy 0 0 < planet-radius or abs xcor > max-pxcor or abs ycor > max-pycor [
    set shape "x"
    set check-orbit? false
    ask vectors with [id = "acc" or id = "vel"] [die]
    stop
  ]
end

; Copyright 2020 Will Bradley
