Green Stormwater Infrastructure Social Spatial Adoption (G-SSA) Conceptual Model
Download this modelDo you have questions or comments about this model? Ask them here! (You'll first need to log in.)
WHAT IS IT?
This model, the Green Stormwater Infrastructure Social Spatial Adoption (G-SSA) model, is a cellular automata agent-based model that simulates the behavior of private property owners responding to incentives to adopt on-site green stormwater infrastructure (GSI). Concepts such as small-world social networks, opinion dissemination and diffusion of innovation are used to capture dynamic social, spatial and temporal aspects of green stormwater infrastructure adoption. Demographic information, site constraints, GSI practice type and costs, and financial incentive information are integrated into modeling rules that influence adoption dynamics.
A generalized city comprising common neighborhood types is the context for modeling, which provides a template for incentive-based simulations for other urban landscapes facing stormwater runoff challenges on privately-held properties. Model output confirms the viability of the methodology presented and produces results that inform future efforts to explore the G-SSA model in greater detail. Initial findings show that the G-SSA model generates output consistent with GSI adoption patterns observed in innovative GSI incentive programs.
HOW IT WORKS
SETUP:
The conceptual G-SSA model uses an initialization routine to establish initial conditions during which cells are populated with data based upon model-established parameters as well as user-defined parameters. Some of these attributes are fixed while others adjust throughout a model run. Initial conditions for the G-SSA model establish information for each cell in the modeling environment related to physical and site/property information, social and economic information, and a series of indexes used in computational analyses associated with GSI adoption decision-making dynamics.
Several attributes associated with site and parcel characteristics are assigned to cells at model initialization. Land uses in the model includes both residential (low-density to high-density) and non-residential (including commercial, office, institutional, industrial and mixed-use). Parcel sizes are defined in acres and are assigned to cells through the use of the log-normal distribution reflecting the distribution of a major U.S. city (Washington, D.C.).
Each cell is populated with information assuming that it has the potential to be retrofitted with GSI, so a GSI practice is selected for each cell at model set-up. GSI practice type is limited by land use type. Sizing of GSI practices are based upon impervious acres treated on-site and the footprint required to retain the volume generated by the site.
Attributes associated with financial information are also established for cells at model initialization. Note that the GSI practice costs considered in the model for initial GSI adoption include the capital costs as well as opportunity costs.
MODEL INDEXES:
A series of indexes in the conceptual G-SSA model utilized for computational processes are defined and assigned to cells at model initialization. The use of indexes aids in the effort to compare input values with user-defined thresholds. In addition, indexes efficiently summarize input values that are tied to the critical model elements. These indexes were created by the researcher for the specific utilization in the G-SSA model. The definition for these indexes is provided in this section along with a justification of index context and construct.
Innovation Index - Education and awareness regarding an innovative environmental technology is a major factor in the process of adoption. To capture the logistic growth curve dynamics of DoI, the G-SSA model utilizes an “Innovation Index” (II) that is based upon parcel owner age and level of education.
Constraints Index - A practical limitation for GSI implementation is the many potential conflicts to constructing GSI practices, such as existing infrastructure, poorly-draining soils, and high-groundwater levels. The spatial distribution of limiting factors for GSI practices is very challenging or nearly impossible to predict, especially in the context of urban watersheds as these areas have higher potential for limitations overall compared with suburban or rural landscapes. A value ranging from 0 to 1 that represents the physical and site characteristics that could potentially limit the implementation of GSI, which is referred to as the “Constraints Index” (CI).
Opinion Index - To capture the opinion of private parcel owners, the G-SSA includes an “Opinion Index” (OI) that comprises initial values that remain fixed throughout the model execution along with other values that vary throughout the model run. OI is also influenced through social interactions by following small-world assumptions and the RA algorithm to provide the mechanism for the influence of opinions from parcel owner to parcel owner (i.e., from cell to cell). The Relative Algorithm (RA) method is used to transfer opinions through a social network via spatial and temporal dimensions.
Wealth Index - The amount of control a parcel owner has on the ability to adopt GSI is measured by the perceived behavioral control parameter. In the model, this parameter is defined by relative income and site constraints. Specifically, relative income is measured by a “Wealth Index” (WI).
Preceived Behavioral Control Index - An index to reflect perceived behavioral control (PBCI) is established to capture the multi-faceted challenges related to GSI implementation. Simply put, this index is defined as the Wealth Index minus the Constraints Index.
USER-SPECIFIED INPUTS:
Innovation Threshold - This input is used to determine the level of awareness of parcel owners regarding the incentive program, as informed by the Innovation Index value. Increasing this threshold requires that parcel owners have a higher level of innovativeness prior to gaining awareness of the incentive program.
Opinion Threshold - This input represents the level of opinion a parcel owner needs to have in order to have a “favorable” opinion of GSI adoption as defined by the OI value. The higher the threshold value, the higher the opinion a parcel owner must have before they are considered to have a “favorable” opinion. This threshold is critical to GSI adoption, as a parcel owner must have a favorable opinion of GSI adoption prior to taking action to adopt.
Neighbors Threshold - A phenomenon associated with innovative and conspicuous environmental technologies is a “neighboring” influence that raises awareness of the technology as well as informing opinions. Neighboring is integrated into opinion evolution as well as opinion influencing. The aspect of neighboring influence captured through the use of the Neighbors Threshold parameter. The Neighbors Threshold is a user-defined setting is associated with the number of cells surrounding a center cell that has adopted GSI.
Mu - A critical parameter associated with the RA algorithm is Mu, which impacts the speed of convergence/activity of the algorithm. The value associated with this parameter ranges between 0 and 0.5, with higher values driving more activity. Literature suggests that a value of 0.5 is appropriate for modeling applications.
GSI Costs - The user can define the unit cost for various GSI practices. The unit cost is dollars per impervious acre treated.
Number of Innovators - The number of "innovators" who have adopted GSI at model initiation (timestep 0).
ERU Rate - This is the Equivalent Residential Unit (ERU) for the model. This is the monthly stormwater fee charged to private property owners.
Credit Rebate Amount - This is the reduction of stormwater fee based upon the adoption of GSI practices onsite.
Upper/Lower Income Thresholds - These are annual incomes that define lower, middle and upper income households.
Innovation Threshold - This is the value that defines the lower value of Innovation Index for property owners who are considered as "innovative".
Payback Threshold (Self, Other) - This is the number of years required for self-invested or other-invested scenarios to payback the initial investment for GSI adoption.
Credit Price - This is the dollar value of a credit of stormwater retention as measured in a per gallon of retention gained.
Number of Public Outreach Agents - This is the number of public outreach agents that are used in the model who randomly walk througout the model landscape to increase awareness of the stormwater credit trading market.
Redevelopment Rate - This is the number of parcels that are redeveloped in the context of a percentage of all parcels in the model annually.
Development Demand - This is annual demand in stormwater retention credits associated with the redevelopment rate of existing private parcels.
Muni Demand - This is the annual demand in stormwater retention credits from the context of municipal government stormwater permit requirements.
MODEL EXECUTION:
Model execution in the conceptual G-SSA model is done through a series of program modules that work in a sequential fashion to provide a model results. Output from the model is GSI adoption across the modeling environment. Each module provides a critical function in model performance.
Initial Conditions Module: The first module establishes the starting point for the conceptual G-SSA model by utilizing model defaults and user-inputs to establish initial model conditions. This module is only activated once per model run, after which the five remaining modules are activated. These five modules cycle over the model run, which is defined as 360 timesteps represented as months (30 years total). This model period was chosen as it coincides with common stormwater and wet weather regulatory terms and the average estimate of lifespan for GSI practices (CNT 2018). As Figure 2-2 illustrates, after model initialization, the five modules remaining modules are engaged sequentially and are looped over teach timestep until model termination occurs at 30 years. At each timestep, public outreach agent(s) randomly visit parcels to increase awareness of the incentive program.
Current State Module: Subsequent to model initialization (initial conditions module), modeling execution involves an initial check on existing conditions across the landscape regarding GSI adoption. This module specifically reviews if GSI currently exists on a parcel (cell), and if so, whether efforts made to maintain it are financially advantageous. If no GSI exists on a parcel, the subsequent modules are executed to determine if GSI should be adopted for that parcel. If GSI does exist, an analysis is performed to compare the O&M costs with the benefits gained from the GSI investment. If the return on investment is greater than the O&M costs, GSI is assumed to be maintained and no other modules are activated. This analysis is performed for each parcel during each timestep.
Decision-Influencing Module: Social and spatial influences are significant dynamic elements in the G-SSA model. Social influences are made through the RA algorithm, as previously described. This influence is experienced by a subset of parcels during each timestep. The basis for this limited set of influencers is a reflection of the relatively infrequent social engagements expected that would focus on GSI adoption. This subset represents approximately 8.3% of all parcels, and over a single model run each parcel will experience an influencing event once per year on average. Spatial non-social influences are considered for all parcels at each timestep, as spatial influences are based solely upon visual input and not dependent upon social interactions. Spatial influencing is computationally manifest through the “neighboring” algorithm, which automatically increases the opinion level for any parcels surrounding those who have adopted GSI on-site.
Decision-Informing Module: If the parcel has GSI adopted on-site, no further computations occur for that parcel in terms of decision-making. For parcels without adopted GSI on-site, a series of decision-making parameters are checked. The initial consideration is the awareness that each parcel owner has of the GSI-based incentives being offered. Awareness in this context is based on the amount of contact with public outreach agents as well as the Innovation Index of the parcel owner and number of neighboring parcels with adopted GSI on-site. A secondary consideration in this module that targets parcel owners who are aware of the GSI incentive program is the Opinion Index value held by parcel owners, which is compared with the Opinion Threshold. It should be noted that Opinion Index values evolve over the course of a model run. The implication of this dynamism is that a parcel owner may have an unfavorable opinion over many timesteps before being positively influenced enough to become favorably opinionated on GSI adoption. For those parcel owners who are aware of the GSI incentive program and have a favorable opinion, the next step is to consider making a decision.
Decision-Making Module: Parcel owners who are supportive of GSI adoption have a decision to make – whether to consider self-invested adoption or seek outside financial support. The basis for this decision is on the Perceived Behavioral Control Index and Constraints Index values as well as the payback period. The payback computation is based upon an analysis of GSI practice cost and credit revenue generated at that timestep. A dynamic aspect of the model is the supply and demand of credits. The basis for tying the credit-to-supply ratio to credit price is based upon the assumption that a surplus of demand will increase the value of this limited resource (stormwater credits), while an oversupply of credits will dampen the value of credits.
As development or redevelopment occurs across the modeling environment, land developers who are required to meet stormwater management regulations are assumed to seek credits from the pool of available credits. In this way, development/redevelopment drives the market by increasing the amount of demand. The level of this type of demand is driven by the redevelopment rate defined by the user (defaulted to 1%). The G-SSA model allows for additional municipal sector demand; however, the default does not include this additional demand. Credit supply is generated by parcel owners who choose to adopt GSI on-site voluntarily. The ratio of demand-to-supply is computed at each timestep, and this ratio is multiplied by the base credit price (default is $1.50), such that a perfectly balanced demand-to-supply condition would result in a cost per credit of $1.50. As demand increases, the cost for credits increases as well, and as the value of credits increases, the payback calculation becomes more and more favorable to parcel owners. If the PBCI and CI values are favorable, but the payback period for self-investment is longer than the user-defined threshold (defaulted to be 7 years in the conceptual model), the parcel owner will not be ready to decide to adopt GSI on his/her own. If self-investment by the parcel owner is not possible, the model checks to see if the payback period is less than the threshold value for outside financial support (which is defaulted to 10 years).
Decision Module: Based upon the algorithms in each timestep, the parcel owner decides to either adopt GSI or to not adopt GSI on-site. After this decision is made, the G-SSA cycles back to the Current State module for another run. G-SSA model execution results in a landscape of GSI adoption across the modeling environment.
MODELING CONTEXT:

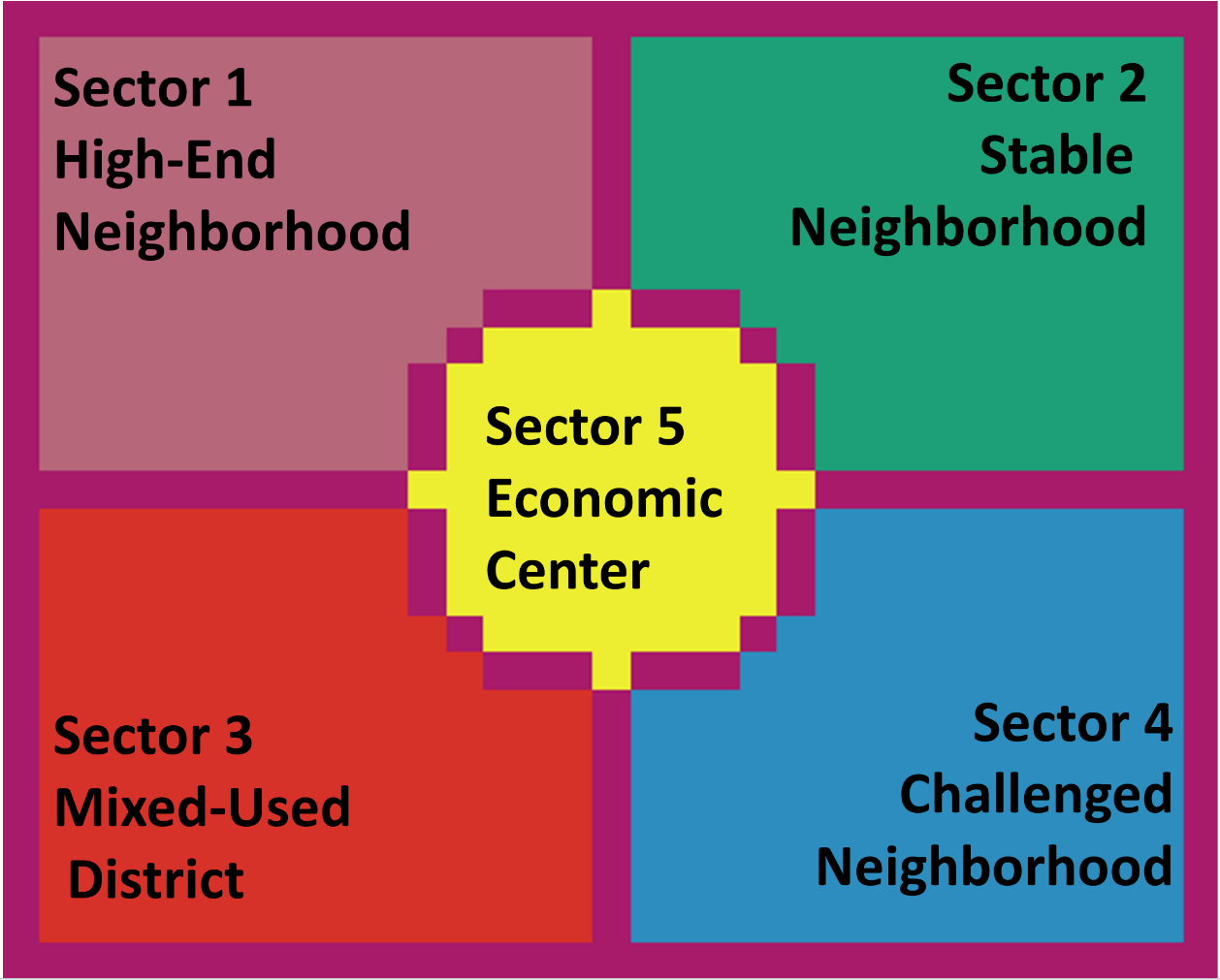

In order to illustrate the applicability of the G-SSA conceptual framework, a version of the model using a generalized case study is presented. The model construct is not targeted at one specific city, rather, it is set up to approximate demographics and characteristics common to urban landscapes commonly found in cities in the U.S. Specifically, the conceptual G-SSA model environment is comprised of five “sectors” that are based upon a subset of the six “neighborhood types” identified by the Urban Land Institute using factors such as population density, employment density, housing type, home values, rent levels, vacancy rates, employment rates, and the amount of new apartment development. These neighborhood types are summarized as:
Economic Center: Areas where office buildings outnumber residential buildings often located in the historical urban cores of cities. Example: Bellevue, Seattle
Emerging Economic Center: Rapidly emerging areas in zones with high (re)development rates where industrial and low-density residential land uses dominate. Example: Southpark, Charlotte
Stable Neighborhood: Historically working-class neighborhoods with diverse residential types/styles that are generally affordable; hence the forces of gentrification are significant in these areas in many cities. Example: East Nashville
High-End Neighborhood: Dominated by single-family housing, these areas reflect high-value properties that includes walkable commercial/shopping districts and mixed-use landscapes. Example: The Avenues, Salt Lake City
Mixed-Used District: Areas with high-density residential and upscale retail often located near major employment core areas. Example: Uptown, Dallas Challenged Neighborhood: Blighted residential areas with relatively low value properties, aging infrastructure and minimal new development. Example: Phillips, Minneapolis
The decision to use specifically five sectors was based upon the desire to develop a model that can potentially integrate all of the five different innovation populations into the modeling environment: innovators, early adopters, early majority, late majority, and laggards. In addition, two of the Identified neighborhood types (Mixed-Use District and Emerging Economic Center) have similar characteristics, so the Emerging Economic Center was not included if the G-SSA model. Lastly, the use of five sectors allows for a geometry that accommodates an urban core area surrounded by other neighborhoods. The use of this configuration facilitates the potential spatial and social influencing from an urban core (Economic Center) neighborhood on surrounding areas in terms of innovation and information dissemination, which is a significant and consistent dynamic in many cities.
HOW TO USE IT
Use the slider for the user-defined input parameters, as noted above, to establish initial conditions. The user can then define other variables for user-defined inputs. Push the "Set Up" button to establish patch and potential investor distribution. You can push the "Go-Once" button, which will run all procedures automatically.
THINGS TO NOTICE
The G-SSA model output is expressed as the amount of impervious acres that become managed through the adoption of GSI on private parcels due to the incentives associated with fee reduction and the trading market.
The ratio of demand over supply defines the market interest in stormwater credits. A value of 1 suggests a balance between supply and demand that reflects a healthy trading market. Throughout many model runs, this ratio is often volatile, but often lands on a small range of values. These values define the resulting stormwater credit price through the multiplication of the demand/supply ratio by the initial stormwater credit price. As demand increases, the value of credits make the investment associated with GSI adoption more economically advantageous. After significant GSI adoption, the demand drops, and along with it the value of the indexed stormwater credit price.
The amount of GSI adoption grows across the model landscape - viewing the growth of the percentage of total impervious cover that gecomes managed through GSI adoption should be investigated.
Aspects of GSI adoption reviewed include total GSI adoption and percentage of GSI adoption (both within each sector and across the entire modeling environment), the rate of GSI adopt by sector and overall, and the amount of GSI adoption clustering. The last parameter (clustering) in this analysis is associated with the number of cells surrounding a central cell with adopted GSI on-site who also have adopted GSI. A GSI “Cluster Number” (CN) for the G-SSA model. Review the CN throughout the model run - this reflects the spatial nature of GSI adoption overall.
THINGS TO TRY
Try to run the model under varying scenarios and examine the resulting GSI adoption rates, percentage of GSI overall, the demand/supply ratio and resulting indexed sotmrwater credit price.
EXTENDING THE MODEL
This model represents a hypothetical community based upon an almagmation of typical neighborhoods for U.S. cities. The next version of the model is to place the model in the context of a specific city.
NETLOGO FEATURES
The neighbors primitive returns the agentset of the patches to the north, south, east, west, northeast, northwest, southeast, and southwest. neighbors4 is like neighbors but only uses the patches to the north, south, east, and west. Some ABMs, like this one, are defined using the 8-neighbors rule, others the 4-neighbors.
RELATED MODELS
In Model Library: - Game of Life - Altruism - Slime - Urban Suite: Urban Sprawl
CREDITS AND REFERENCES
Brown, S., C. Ferreira. 2013. Agent-Based Modeling of Green Infrastructure Investment, ALAM CIPTA, International Journal of Sustainable Tropical Design Research and Practice, Vol. 6, No. 2, Selangor, Malaysia
Brown, S. (2013). NetLogo Aggregation model. Krasnow Institute for Advanced Study, Computational Social Science, George Mason University, Fairfax, VA. http://www.css.gmu.edu/
The Game of Life was invented by John Horton Conway.
See also:
Martin Gardner, "Mathematical Games: The fantastic combinations of John Conway's new solitaire game `life',", Scientific American, October, 1970, pp. 120-123.
HOW TO CITE
If you mention this model in a publication, we ask that you include this citation for the model:
Brown, S. (2019). Simulation of Economic Frameworks for an Urban Stormwater Program Using an Agent-Based Modeling Platform [Unpublished Ph.D. Dissertation]. George Mason University, Fairfax, Virginia.
COPYRIGHT AND LICENSE
Copyright 2019 Seth Brown
This model was created in partial fullfill of the requirements for the degree of doctor of philosophy (PhD) at George Mason University, Summer, 2019, Fairfax, Virginia.
Comments and Questions
breed [investors investor] breed [public-outreach-specialists public-outreach-specialist] breed [lowest-opinions lowest-opinion] breed [low-opinions low-opinion] breed [lower-opinions lower-opinion] breed [moderate-opinions moderate-opinion] breed [higher-opinions higher-opinion] breed [highest-opinions highest-opinion] patches-own [ favorability-level? ;; indicates level of favorability for cell, -2 for unfavorable, -1 for ;; less favorable, 0 for neutral, 1 for more favorable, 2 for favorable favorable-neighbors ;; counts how many neighboring cells make a favorable match near-patches sector ;; defines the part of the city (1-5) landuse ;; set's landuse parcel-size ;; parcel size impervious-cover impervious-acreage ERUs stormwater-fee innovation-index annual-income annual-fee annual-max-discount gallons-runoff-generated in-lieu-fee annual-max-credit BMP-number BMP-type BMP-cap-cost property-value BMP-footprint opportunity-cost OM-BMP-cost transaction-cost total-BMP-cost credit-revenue payback constraints-index wealth-index pbc public-outreach-agent-contact sia-initial sia-updated U-initial U-updated sia-initial-baseline sia-initial-income sia-initial-sector sia-innovation green-infrastructure-practiced acceptance-decision-score green-infrastructure-decision implementation-decision-score impervious-cost sia-neighboring sia-plus-east-value sia-plus-west-value sia-plus-north-value sia-plus-south-value sia-plus-southeast-value sia-plus-northeast-value sia-plus-southwest-value sia-plus-northwest-value landuse-type credit-revenue-generated cluster-number isolated-adopter ] to setup clear-all ask patches with[pxcor < 0 and pycor > 0][set sector 1] ask patches with[pxcor > 0 and pycor > 0][set sector 2] ask patches with[pxcor < 0 and pycor < 0][set sector 3] ask patches with[pxcor > 0 and pycor < 0][set sector 4] ask patches with [pxcor = 0 or pycor = 0] [set pcolor 125] ask patches with [pxcor > 15] [set pcolor 125] ask patches with [pxcor < -15] [set pcolor 125] ask patches with [pycor > 12] [set pcolor 125] ask patches with [pycor < -12] [set pcolor 125] ask patches with [pcolor = 125] [set sector 0] ask patch 0 0 [ask patches in-radius 6 [set sector 0]] ask patch 0 0 [ask patches in-radius 6 [set pcolor 125]] ask patch 0 0 [ask patches in-radius 5 [set sector 5]] set muni-demand 0 ; set muni-demand 50000 set development-demand 0 set demand-supply-ratio 0 set indexed-credit-price credit-price establish-landuse-patches assign-landuse-type assign-parcel-size assign-impervious-cover determine-impervious-acreage determine-ERUs determine-stormwater-fee set-innovation-by-sector set-income-by-sector assign-landuse-colors ; sprout-early-adopters identify-early-adopters determine-annual-stormwater-fee determine-annual-max-fee-discount determine-gallons-runoff-generated determine-in-lieu-fee determine-BMP-type assign-BMP-type determine-captial-cost-of-BMP determine-property-values estimate-BMP-footprint determine-opportunity-cost-of-BMP determine-other-BMP-costs credit-revenue-potential determine-pbc determine-payback establish-initial-sia-and-uncertainty set-property-owner-attributes create-outreach-agents determine-clusters reset-ticks end ;;;;;;;;;;;;;;;;;;;;;;;;;;;GO ROUTINES;;;;;;;;;;;;;;;;;;;;;;; to go if ticks >= 360 [ stop ] relative-algorithm-initial relative-algorithm-random ; neighbors-test public-outreach-specialists-move determine-clusters property-owner-decision-start-point determine-muni-demand determine-development-demand determine-supply-demand-ratio determine-indexed-credit-price sia-neighboring-plus-setup sia-neighboring-plus-add sia-neighboring-plus-adjust credit-revenue-potential determine-payback identify-isolated-adopters ; see-RA-work ; see-RA-work-turtles ; see-RA-work-turtles-patches ; assign-landuse-colors-invested-parcels tick end to go-RA-work if ticks >= 360 [ stop ]; relative-algorithm-initial ; relative-algorithm-random ; neighbors-test public-outreach-specialists-move property-owner-decision-start-point determine-muni-demand determine-development-demand determine-supply-demand-ratio determine-indexed-credit-price sia-neighboring-plus-setup sia-neighboring-plus-add sia-neighboring-plus-adjust credit-revenue-potential determine-payback see-RA-work ; see-RA-work-turtles ; see-RA-work-turtles-patches ; assign-landuse-colors-invested-parcels tick end to go-RA relative-algorithm-initial relative-algorithm-random tick end to go-decide property-owner-decision-start-point tick end ;to go-neighbors ; neighbors-test ; tick ;end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to highlight-sectors ask patches [ if sector = 0 [set pcolor 125] if sector = 1 [set pcolor 134] if sector = 2 [set pcolor 75] if sector = 3 [set pcolor 15] if sector = 4 [set pcolor 95] if sector = 5 [set pcolor 45] ] end to establish-landuse-patches repeat 10 [ ;Establish Sector 5 - From Ward 2 let sector-5-LDR (0.025 * count patches with [sector = 5]) ask n-of sector-5-LDR patches with [sector = 5] [set landuse "LDR"] let sector-5-LMDR (0.025 * count patches with [sector = 5]) ask n-of sector-5-LMDR patches with [sector = 5] [set landuse "LMDR"] let sector-5-MDR (0.15 * count patches with [sector = 5]) ask n-of sector-5-MDR patches with [sector = 5] [set landuse "MDR"] let sector-5-HDR (0.20 * count patches with [sector = 5]) ask n-of sector-5-HDR patches with [sector = 5] [set landuse "HDR"] let sector-5-MU (0.05 * count patches with [sector = 5]) ask n-of sector-5-MU patches with [sector = 5] [set landuse "MU"] let sector-5-I (0.05 * count patches with [sector = 5]) ask n-of sector-5-I patches with [sector = 5] [set landuse "I"] let sector-5-O (0.20 * count patches with [sector = 5]) ask n-of sector-5-O patches with [sector = 5] [set landuse "O"] let sector-5-C (0.20 * count patches with [sector = 5]) ask n-of sector-5-C patches with [sector = 5] [set landuse "C"] let sector-5-S (0.05 * count patches with [sector = 5]) ask n-of sector-5-S patches with [sector = 5] [set landuse "S"] ;Establish Sector 4 - From Ward 8 let sector-4-LDR (0.10 * count patches with [sector = 4]) ask n-of sector-4-LDR patches with [sector = 4] [set landuse "LDR"] let sector-4-LMDR (0.20 * count patches with [sector = 4]) ask n-of sector-4-LMDR patches with [sector = 4] [set landuse "LMDR"] let sector-4-MDR (0.40 * count patches with [sector = 4]) ask n-of sector-4-MDR patches with [sector = 4] [set landuse "MDR"] let sector-4-HDR (0.10 * count patches with [sector = 4]) ask n-of sector-4-HDR patches with [sector = 4] [set landuse "HDR"] let sector-4-MU (0.025 * count patches with [sector = 4]) ask n-of sector-4-MU patches with [sector = 4] [set landuse "MU"] let sector-4-I (0.025 * count patches with [sector = 4]) ask n-of sector-4-I patches with [sector = 4] [set landuse "I"] let sector-4-O (0.025 * count patches with [sector = 4]) ask n-of sector-4-O patches with [sector = 4] [set landuse "O"] let sector-4-C (0.075 * count patches with [sector = 4]) ask n-of sector-4-C patches with [sector = 4] [set landuse "C"] let sector-4-S (0.05 * count patches with [sector = 4]) ask n-of sector-4-S patches with [sector = 4] [set landuse "S"] ;Establish Sector 1 - From Ward 3 let sector-1-LDR (0.20 * count patches with [sector = 1]) ask n-of sector-1-LDR patches with [sector = 1] [set landuse "LDR"] let sector-1-LMDR (0.10 * count patches with [sector = 1]) ask n-of sector-1-LMDR patches with [sector = 1] [set landuse "LMDR"] let sector-1-MDR (0.20 * count patches with [sector = 1]) ask n-of sector-1-MDR patches with [sector = 1] [set landuse "MDR"] let sector-1-HDR (0.05 * count patches with [sector = 1]) ask n-of sector-1-HDR patches with [sector = 1] [set landuse "HDR"] let sector-1-MU (0.025 * count patches with [sector = 1]) ask n-of sector-1-MU patches with [sector = 1] [set landuse "MU"] let sector-1-I (0.05 * count patches with [sector = 1]) ask n-of sector-1-I patches with [sector = 1] [set landuse "I"] let sector-1-O (0.10 * count patches with [sector = 1]) ask n-of sector-1-O patches with [sector = 1] [set landuse "O"] let sector-1-C (0.125 * count patches with [sector = 1]) ask n-of sector-1-C patches with [sector = 1] [set landuse "C"] let sector-1-S (0.15 * count patches with [sector = 1]) ask n-of sector-1-S patches with [sector = 1] [set landuse "S"] ;Establish Sector 2 - From Ward 5 let sector-2-LDR (0.15 * count patches with [sector = 2]) ask n-of sector-2-LDR patches with [sector = 2] [set landuse "LDR"] let sector-2-LMDR (0.10 * count patches with [sector = 2]) ask n-of sector-2-LMDR patches with [sector = 2] [set landuse "LMDR"] let sector-2-MDR (0.35 * count patches with [sector = 2]) ask n-of sector-2-MDR patches with [sector = 2] [set landuse "MDR"] let sector-2-HDR (0.05 * count patches with [sector = 2]) ask n-of sector-2-HDR patches with [sector = 2] [set landuse "HDR"] let sector-2-MU (0.025 * count patches with [sector = 2]) ask n-of sector-2-MU patches with [sector = 2] [set landuse "MU"] let sector-2-I (0.05 * count patches with [sector = 2]) ask n-of sector-2-I patches with [sector = 2] [set landuse "I"] let sector-2-O (0.05 * count patches with [sector = 2]) ask n-of sector-2-O patches with [sector = 2] [set landuse "O"] let sector-2-C (0.125 * count patches with [sector = 2]) ask n-of sector-2-C patches with [sector = 2] [set landuse "C"] let sector-2-S (0.10 * count patches with [sector = 2]) ask n-of sector-2-S patches with [sector = 2] [set landuse "S"] ;Establish Sector 3 - From Ward 6 let sector-3-LDR (0.025 * count patches with [sector = 3]) ask n-of sector-3-LDR patches with [sector = 3] [set landuse "LDR"] let sector-3-LMDR (0.025 * count patches with [sector = 3]) ask n-of sector-3-LMDR patches with [sector = 3] [set landuse "LMDR"] let sector-3-MDR (0.075 * count patches with [sector = 3]) ask n-of sector-3-MDR patches with [sector = 3] [set landuse "MDR"] let sector-3-HDR (0.20 * count patches with [sector = 3]) ask n-of sector-3-HDR patches with [sector = 3] [set landuse "HDR"] let sector-3-MU (0.30 * count patches with [sector = 3]) ask n-of sector-3-MU patches with [sector = 3] [set landuse "MU"] let sector-3-I (0.025 * count patches with [sector = 3]) ask n-of sector-3-I patches with [sector = 3] [set landuse "I"] let sector-3-O (0.10 * count patches with [sector = 3]) ask n-of sector-3-O patches with [sector = 3] [set landuse "O"] let sector-3-C (0.20 * count patches with [sector = 3]) ask n-of sector-3-C patches with [sector = 3] [set landuse "C"] let sector-3-S (0.05 * count patches with [sector = 3]) ask n-of sector-3-S patches with [sector = 3] [set landuse "S"] ] end ;assign parcel size by land use to assign-parcel-size ask patches [ if landuse = "LDR" [set parcel-size exp (random-normal -1 1.3)] if landuse = "LMDR" [set parcel-size exp (random-normal -1 1.3)] if landuse = "MDR" [set parcel-size exp (random-normal -1 1.3)] if landuse = "HDR" [set parcel-size exp (random-normal -1 1.3)] if landuse = "MU" [set parcel-size exp (random-normal -1 1.3)] if landuse = "I" [set parcel-size exp (random-normal -1 1.3)] if landuse = "O" [set parcel-size exp (random-normal -1 1.3)] if landuse = "C" [set parcel-size exp (random-normal -1 1.3)] if landuse = "S" [set parcel-size exp (random-normal -1 1.3)] if parcel-size <= 0 [set parcel-size 0.001] set parcel-size precision parcel-size 2 ] end ;assign parcel size by land use to assign-impervious-cover ask patches [ if landuse = "LDR" [set impervious-cover random-normal 25 8.5] if landuse = "LMDR" [set impervious-cover random-normal 30 10.2] if landuse = "MDR" [set impervious-cover random-normal 38 12.9] if landuse = "HDR" [set impervious-cover random-normal 65 22.1] if landuse = "MU" [set impervious-cover random-normal 80 27.2] if landuse = "I" [set impervious-cover random-normal 72 24.5] if landuse = "O" [set impervious-cover random-normal 72 24.5] if landuse = "C" [set impervious-cover random-normal 85 28.9] if landuse = "S" [set impervious-cover random-normal 50 17] ; ; if landuse = "LDR" [set impervious-cover random-normal 21.2 7.21] ; if landuse = "LMDR" [set impervious-cover random-normal 27.8 9.45] ; if landuse = "MDR" [set impervious-cover random-normal 32.6 11.08] ; if landuse = "HDR" [set impervious-cover random-normal 44.4 15.10] ; if landuse = "MU" [set impervious-cover random-normal 44.4 15.10] ; if landuse = "I" [set impervious-cover random-normal 72.2 24.55] ; if landuse = "O" [set impervious-cover random-normal 72.2 24.55] ; if landuse = "C" [set impervious-cover random-normal 72.2 24.55] ; if landuse = "S" [set impervious-cover random-normal 34.4 11.70] if impervious-cover <= 0 [set impervious-cover 0.01] set impervious-cover precision impervious-cover 2 ] end to determine-impervious-acreage ask patches [ set impervious-acreage impervious-cover / 100 * parcel-size set impervious-acreage precision impervious-acreage 2 ] end ;determine ERUs to determine-ERUs ask patches [ if landuse = "S" [set ERUs impervious-cover / 100 * parcel-size * 43560 / 1000] if landuse = "I" [set ERUs impervious-cover / 100 * parcel-size * 43560 / 1000] if landuse = "O" [set ERUs impervious-cover / 100 * parcel-size * 43560 / 1000] if landuse = "C" [set ERUs impervious-cover / 100 * parcel-size * 43560 / 1000] if landuse = "HDR" [set ERUs impervious-cover / 100 * parcel-size * 43560 / 1000] if landuse = "MU" [set ERUs impervious-cover / 100 * parcel-size * 43560 / 1000] if landuse = "MDR" [set ERUs impervious-cover / 100 * parcel-size * 43560 / 1000] ; if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 < 600 [set ERUs 0.6] ; if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 600 and parcel-size * impervious-cover / 100 < 2000 [set ERUs 1] ; if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 2000 and parcel-size * impervious-cover / 100 < 3000 [set ERUs 2.4] ; if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 3000 and parcel-size * impervious-cover / 100 < 7000 [set ERUs 3.8] ; if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 7000 and parcel-size * impervious-cover / 100 < 11000 [set ERUs 8.6] ; if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 11000 [set ERUs 13.5] ; if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 < 600 [set ERUs 0.6] ; if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 600 and parcel-size * impervious-cover / 100 < 2000 [set ERUs 1] ; if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 2000 and parcel-size * impervious-cover / 100 < 3000 [set ERUs 2.4] ; if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 3000 and parcel-size * impervious-cover / 100 < 7000 [set ERUs 3.8] ; if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 7000 and parcel-size * impervious-cover / 100 < 11000 [set ERUs 8.6] ; if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 11000 [set ERUs 13.5] if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 < 2900 [set ERUs 0.5] if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 2900 and parcel-size * impervious-cover / 100 < 8900 [set ERUs 1] if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 8900 [set ERUs 2] if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 < 2900 [set ERUs 0.5] if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 2900 and parcel-size * impervious-cover / 100 < 8900 [set ERUs 1] if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 8900 [set ERUs 2] set ERUs precision ERUs 1 ] end ;determine monthly stormwater fee to determine-stormwater-fee ask patches [ if landuse = "S" [set stormwater-fee ERUrate * ERUs] if landuse = "I" [set stormwater-fee ERUrate * ERUs] if landuse = "O" [set stormwater-fee ERUrate * ERUs] if landuse = "C" [set stormwater-fee ERUrate * ERUs] if landuse = "HDR" [set stormwater-fee ERUrate * ERUs] if landuse = "MU" [set stormwater-fee ERUrate * ERUs] if landuse = "MDR" [set stormwater-fee ERUrate * ERUs] if landuse = "LMDR" [set stormwater-fee ERUrate * ERUs] if landuse = "LDR" [set stormwater-fee ERUrate * ERUs] ; if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 < 600 [set stormwater-fee ERUs * ERUrate] ; if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 600 and parcel-size * impervious-cover / 100 < 2000 [set stormwater-fee ERUs * ERUrate] ; if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 2000 and parcel-size * impervious-cover / 100 < 3000 [set stormwater-fee ERUs * ERUrate] ; if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 3000 and parcel-size * impervious-cover / 100 < 7000 [set stormwater-fee ERUs * ERUrate] ; if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 7000 and parcel-size * impervious-cover / 100 < 11000 [set stormwater-fee ERUs * ERUrate] ; if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 11000 [set stormwater-fee ERUs * ERUrate] ; if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 < 600 [set stormwater-fee ERUs * ERUrate] ; if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 600 and parcel-size * impervious-cover / 100 < 2000 [set stormwater-fee ERUs * ERUrate] ; if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 2000 and parcel-size * impervious-cover / 100 < 3000 [set stormwater-fee ERUs * ERUrate] ; if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 3000 and parcel-size * impervious-cover / 100 < 7000 [set stormwater-fee ERUs * ERUrate] ; if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 7000 and parcel-size * impervious-cover / 100 < 11000 [set stormwater-fee ERUs * ERUrate] ; if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 11000 [set stormwater-fee ERUs * ERUrate] set stormwater-fee precision stormwater-fee 2 ] end to determine-clusters ask patches with [pcolor = 55] [ if count neighbors with [ pcolor = 55 ] = 0 [set cluster-number 0.111] if count neighbors with [ pcolor = 55 ] = 1 [set cluster-number 0.222] if count neighbors with [ pcolor = 55 ] = 2 [set cluster-number 0.333] if count neighbors with [ pcolor = 55 ] = 3 [set cluster-number 0.444] if count neighbors with [ pcolor = 55 ] = 4 [set cluster-number 0.555] if count neighbors with [ pcolor = 55 ] = 5 [set cluster-number 0.666] if count neighbors with [ pcolor = 55 ] = 6 [set cluster-number 0.777] if count neighbors with [ pcolor = 55 ] = 7 [set cluster-number 0.888] if count neighbors with [ pcolor = 55 ] = 8 [set cluster-number 1] ] end to determine-annual-stormwater-fee ask patches [ set annual-fee stormwater-fee * 12 set annual-fee precision annual-fee 2 ] end to determine-annual-max-fee-discount ask patches [set annual-max-discount 12 * (rebate-amount * stormwater-fee)] ask patches [set annual-max-discount precision annual-max-discount 2] end to determine-gallons-runoff-generated ask patches ; [set gallons-runoff-generated impervious-cover / 100 * parcel-size * 43560 * 144 * 1.2 * 0.004329 * 0.95] [set gallons-runoff-generated impervious-cover / 100 * parcel-size * 43560 * 1 / 12 * 7.48 * 0.95] ask patches [set gallons-runoff-generated precision gallons-runoff-generated 0] end to determine-in-lieu-fee ask patches [ set in-lieu-fee 1 / 12 * (impervious-cover) / 100 * (parcel-size) * 43560 * 7.48 * 0.95 * 3.50 set in-lieu-fee precision in-lieu-fee 2 ; set annual-max-credit 2.14 * ERUs * 12 ; set annual-max-credit precision annual-max-credit 2 ] end to determine-BMP-type ask patches[ if landuse = "I" [set BMP-number random 2] if landuse = "O" [set BMP-number random 2] if landuse = "C" [set BMP-number random 2] if landuse = "HDR" [set BMP-number random 2] if landuse = "MU" [set BMP-number random 2] if landuse = "LDR" [set BMP-number random 3 + 2] if landuse = "LMDR" [set BMP-number random 3 + 2] if landuse = "S" [set BMP-number random 3 + 2] if landuse = "MDR" [set BMP-number random 1 + 5] ] end ;assign BMP type by BMP number (set above) for DDOE BMP Types 3.2 (green roof), 3.3 (rainwater harvesting), ;3.4 (impervious surface disconnection), 3.5 (permeable pavement), 3.6 (bioretention), 3.8 (infiltration/planter), ;3.9 (open channels - bioswales) to assign-BMP-type ask patches with [BMP-number = 0] [set BMP-type "Green Roof"] ask patches with [BMP-number = 1] [set BMP-type "Rainwater Harvesting"] ask patches with [BMP-number = 2] [set BMP-type "Permeable Pavement"] ask patches with [BMP-number = 3] [set BMP-type "Bioswale"] ask patches with [BMP-number = 4] [set BMP-type "Bioretention"] ask patches with [BMP-number = 5] [set BMP-type "Downspout Disconnection"] ask patches with [BMP-number = 6] [set BMP-type "Flow-Through Planter"] end ;assign costs by BMP type to determine-captial-cost-of-BMP ask patches[ if landuse-type = "non-residential" and BMP-number = 0 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 43560 * 1.0 * greenroofcost-Non-Res] if landuse-type = "non-residential" and BMP-number = 1 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 43560 * 1.0 * cisterncost-Non-Res] if landuse-type = "non-residential" and BMP-number = 2 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 43560 * 1.0 * permpavecost-Non-Res] if landuse-type = "non-residential" and BMP-number = 3 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * bioswalecost-Non-Res] if landuse-type = "non-residential" and BMP-number = 4 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * bioretentioncost-Non-Res] if landuse-type = "non-residential" and BMP-number = 5 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * downspoutcost-Non-Res] if landuse-type = "non-residential"and BMP-number = 6 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * plantercost-Non-Res] if landuse-type = "residential" and BMP-number = 0 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 43560 * 1.0 * greenroofcost-Res] if landuse-type = "residential" and BMP-number = 1 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 43560 * 1.0 * cisterncost-Res] if landuse-type = "residential" and BMP-number = 2 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 43560 * 1.0 * permpavecost-Res] if landuse-type = "residential" and BMP-number = 3 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * bioswalecost-Res] if landuse-type = "residential" and BMP-number = 4 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * bioretentioncost-Res] if landuse-type = "residential" and BMP-number = 5 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * downspoutcost-Res] if landuse-type = "residential"and BMP-number = 6 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * plantercost-Res] set BMP-cap-cost precision BMP-cap-cost 2 ] end to determine-property-values ;for LDR ask patches with [sector = 5 and landuse = "LDR"] [set property-value 200.47 * parcel-size * 43560] ask patches with [sector = 1 and landuse = "LDR"] [set property-value 184.83 * parcel-size * 43560] ask patches with [sector = 2 and landuse = "LDR"] [set property-value 111.61 * parcel-size * 43560] ask patches with [sector = 3 and landuse = "LDR"] [set property-value 206.87 * parcel-size * 43560] ask patches with [sector = 4 and landuse = "LDR"] [set property-value 50.83 * parcel-size * 43560] ;for LMDR ask patches with [sector = 5 and landuse = "LMDR"] [set property-value 200.47 * parcel-size * 43560] ask patches with [sector = 1 and landuse = "LMDR"] [set property-value 184.83 * parcel-size * 43560] ask patches with [sector = 2 and landuse = "LMDR"] [set property-value 111.61 * parcel-size * 43560] ask patches with [sector = 3 and landuse = "LMDR"] [set property-value 206.87 * parcel-size * 43560] ask patches with [sector = 4 and landuse = "LMDR"] [set property-value 50.83 * parcel-size * 43560] ;for MDR - assuming 10 units per story, so cost per floor ask patches with [sector = 5 and landuse = "MDR"] [set property-value 200.47 * parcel-size * 43560 * 1] ask patches with [sector = 1 and landuse = "MDR"] [set property-value 184.83 * parcel-size * 43560 * 1] ask patches with [sector = 2 and landuse = "MDR"] [set property-value 111.61 * parcel-size * 43560 * 1] ask patches with [sector = 3 and landuse = "MDR"] [set property-value 206.87 * parcel-size * 43560 * 1] ask patches with [sector = 4 and landuse = "MDR"] [set property-value 50.83 * parcel-size * 43560 * 1] ;for HDR - assuming 10 units per story, so cost per floor ask patches with [sector = 5 and landuse = "HDR"] [set property-value 200.47 * parcel-size * 43560 * 1] ask patches with [sector = 1 and landuse = "HDR"] [set property-value 184.83 * parcel-size * 43560 * 1] ask patches with [sector = 2 and landuse = "HDR"] [set property-value 111.61 * parcel-size * 43560 * 1] ask patches with [sector = 3 and landuse = "HDR"] [set property-value 206.87 * parcel-size * 43560 * 1] ask patches with [sector = 4 and landuse = "HDR"] [set property-value 50.83 * parcel-size * 43560 * 1] ;for MU - assuming 10 units per story, so cost per floor ask patches with [sector = 5 and landuse = "MU"] [set property-value 200.47 * parcel-size * 43560 * 1] ask patches with [sector = 1 and landuse = "MU"] [set property-value 184.83 * parcel-size * 43560 * 1] ask patches with [sector = 2 and landuse = "MU"] [set property-value 111.61 * parcel-size * 43560 * 1] ask patches with [sector = 3 and landuse = "MU"] [set property-value 206.87 * parcel-size * 43560 * 1] ask patches with [sector = 4 and landuse = "MU"] [set property-value 50.83 * parcel-size * 43560 * 1] ;for office ask patches with [sector = 5 and landuse = "O"] [set property-value 283.34 * parcel-size * 43560] ask patches with [sector = 1 and landuse = "O"] [set property-value 261.23 * parcel-size * 43560] ask patches with [sector = 2 and landuse = "O"] [set property-value 157.54 * parcel-size * 43560] ask patches with [sector = 3 and landuse = "O"] [set property-value 292.38 * parcel-size * 43560] ask patches with [sector = 4 and landuse = "O"] [set property-value 71.84 * parcel-size * 43560] ;for institutional - assumed to be same as officce ask patches with [sector = 5 and landuse = "S"] [set property-value 283.34 * parcel-size * 43560] ask patches with [sector = 1 and landuse = "S"] [set property-value 261.23 * parcel-size * 43560] ask patches with [sector = 2 and landuse = "S"] [set property-value 157.54 * parcel-size * 43560] ask patches with [sector = 3 and landuse = "S"] [set property-value 292.38 * parcel-size * 43560] ask patches with [sector = 4 and landuse = "S"] [set property-value 71.84 * parcel-size * 43560] ;for commercial ask patches with [sector = 5 and landuse = "C"] [set property-value 221.86 * parcel-size * 43560] ask patches with [sector = 1 and landuse = "C"] [set property-value 204.55 * parcel-size * 43560] ask patches with [sector = 2 and landuse = "C"] [set property-value 123.52 * parcel-size * 43560] ask patches with [sector = 3 and landuse = "C"] [set property-value 228.94 * parcel-size * 43560] ask patches with [sector = 4 and landuse = "C"] [set property-value 56.25 * parcel-size * 43560] ;for industrial ask patches with [sector = 5 and landuse = "I"] [set property-value 84.20 * parcel-size * 43560] ask patches with [sector = 1 and landuse = "I"] [set property-value 77.63 * parcel-size * 43560] ask patches with [sector = 2 and landuse = "I"] [set property-value 46.88 * parcel-size * 43560] ask patches with [sector = 3 and landuse = "I"] [set property-value 86.89 * parcel-size * 43560] ask patches with [sector = 4 and landuse = "I"] [set property-value 21.35 * parcel-size * 43560] ask patches [set property-value precision property-value 2] end ;determine appoximate BMP footprint (square feet) to estimate-BMP-footprint ask patches[ if BMP-number = 0 [set BMP-footprint impervious-cover / 100 * parcel-size * 43560 * 1] if BMP-number = 1 [set BMP-footprint impervious-cover / 100 * parcel-size * 43560 * 0] if BMP-number = 2 [set BMP-footprint impervious-cover / 100 * parcel-size * 43560 * 0.2] if BMP-number = 3 [set BMP-footprint impervious-cover / 100 * parcel-size * 43560 * 0.05] if BMP-number = 4 [set BMP-footprint impervious-cover / 100 * parcel-size * 43560 * 0.05] if BMP-number = 5 [set BMP-footprint impervious-cover / 100 * parcel-size * 43560 * 0] if BMP-number = 6 [set BMP-footprint impervious-cover / 100 * parcel-size * 43560 * 0.05] set BMP-footprint precision BMP-footprint 2 ] end ;determine opportunity costs by BMP type ;to determine-opportunity-cost-of-BMP ; ask patches[ ; if BMP-number = 0 [set opportunity-cost (BMP-footprint / 435600) / (parcel-size + 0.001) * property-value] ; if BMP-number = 1 [set opportunity-cost (BMP-footprint / 43560) / (parcel-size + 0.001) * property-value] ; if BMP-number = 2 [set opportunity-cost (BMP-footprint / 43650) / (parcel-size + 0.001) * property-value] ; if BMP-number = 3 [set opportunity-cost (BMP-footprint / 43560) / (parcel-size + 0.001) * property-value] ; if BMP-number = 4 [set opportunity-cost (BMP-footprint / 43560) / (parcel-size + 0.001) * property-value] ; if BMP-number = 5 [set opportunity-cost (BMP-footprint / 43560) / (parcel-size + 0.001) * property-value] ; if BMP-number = 6 [set opportunity-cost (BMP-footprint / 43560) / (parcel-size + 0.001) * property-value] ; set opportunity-cost precision opportunity-cost 2 ; ] ; end ;determine opportunity costs by BMP type to determine-opportunity-cost-of-BMP ask patches[ if BMP-number = 0 [set opportunity-cost BMP-footprint * 0.00000117 * property-value] if BMP-number = 1 [set opportunity-cost BMP-footprint * 0.00000117 * property-value] if BMP-number = 2 [set opportunity-cost BMP-footprint * 0.00000117 * property-value] if BMP-number = 3 [set opportunity-cost BMP-footprint * 0.00000117 * property-value] if BMP-number = 4 [set opportunity-cost BMP-footprint * 0.00000117 * property-value] if BMP-number = 5 [set opportunity-cost BMP-footprint * 0.00000117 * property-value] if BMP-number = 6 [set opportunity-cost BMP-footprint * 0.00000117 * property-value] set opportunity-cost precision opportunity-cost 2 ] end ;determine O&M, transaction and total costs (NEED TO INCLUDE RISK AND OPPORTUNITY COST SOMEHOW) to determine-other-BMP-costs ask patches [ if pcolor != 125 [set OM-BMP-cost BMP-cap-cost * (random (0.05) + 0.05)] ] ask patches [ if pcolor != 125 [set transaction-cost BMP-cap-cost * (random (0.2) + 0.2)] ] ask patches [ if pcolor != 125 [set total-BMP-cost BMP-cap-cost + transaction-cost + (opportunity-cost * opportunity-cost-level) ; + OM-BMP-cost ] ] ask patches [if pcolor != 125 [set impervious-cost total-BMP-cost / ( impervious-cover / 100 * (parcel-size + 0.001 ))]] ask patches [if pcolor != 125 [set impervious-cost precision impervious-cost 2]] ask patches [if pcolor != 125 [set OM-BMP-cost precision OM-BMP-cost 2]] ask patches [if pcolor != 125 [set transaction-cost precision transaction-cost 2]] ask patches [if pcolor != 125 [set total-BMP-cost precision total-BMP-cost 2]] end to credit-revenue-potential repeat 5 [ ask patches [ set credit-revenue gallons-runoff-generated ; * credit-price * indexed-credit-price ] ] end ;determine perceived behavior control index from credit-revenue, wealth-index and constraints-index; determine payback to determine-payback ask patches [ set payback (total-BMP-cost / (credit-revenue + annual-max-discount + 0.000000001)) set payback precision payback 2 ] end to determine-pbc ask patches [set constraints-index random-normal 0.5 0.17] ask patches [let max-income max [annual-income] of patches ; ask patches ; [set wealth-index (annual-income / 300000)] set wealth-index (annual-income / max-income)] ask patches ; [set pbc ((1 + wealth-index) / 2) - constraints-index] [set pbc (wealth-index - constraints-index)] ask patches [set constraints-index precision constraints-index 2] ask patches with [parcel-size != 0][set wealth-index precision wealth-index 2] ask patches with [parcel-size != 0][set pbc precision pbc 2] end to assign-landuse-colors ask patches with [landuse = "LDR"] [set pcolor 108] ask patches with [landuse = "LMDR"] [set pcolor 107] ask patches with [landuse = "MDR"] [set pcolor 106] ask patches with [landuse = "HDR"] [set pcolor 105] ask patches with [landuse = "MU"] [set pcolor 104] ask patches with [landuse = "S"] [set pcolor 103] ask patches with [landuse = "I"] [set pcolor 102] ask patches with [landuse = "O"] [set pcolor 101] ask patches with [landuse = "C"] [set pcolor 100] ask patches with [ sector = 0] [set pcolor 125] end to set-innovation-by-sector ask patches[ ; if sector = 1 [set innovation-index random-normal 2.49 0.85] ; if sector = 2 [set innovation-index random-normal 0.81 0.28] ; if sector = 3 [set innovation-index random-normal 1.45 0.49] ; if sector = 4 [set innovation-index random-normal 0.64 0.22] ; if sector = 5 [set innovation-index random-normal 2.07 0.71] if sector = 1 [set innovation-index random-normal 0.55 0.187] if sector = 2 [set innovation-index random-normal 0.63 0.214] if sector = 3 [set innovation-index random-normal 0.83 0.282] if sector = 4 [set innovation-index random-normal 0.56 0.190] if sector = 5 [set innovation-index random-normal 0.97 0.330] ] ask patches [set innovation-index precision innovation-index 2] end to set-income-by-sector ask patches[ if sector = 1 [set annual-income random-normal 86800 29512] if sector = 2 [set annual-income random-normal 52700 17918] if sector = 3 [set annual-income random-normal 86000 29240] if sector = 4 [set annual-income random-normal 37900 12886] if sector = 5 [set annual-income random-normal 96900 32946] ] ask patches [set annual-income precision annual-income 2] end to sprout-early-adopters ; based upon DOEE RiverSmart early program dynamics where early adopters were ; identified as being middle-class, single-familiy homeowners with 1-2 children and who give to charity repeat 7 [ ask n-of number-of-innovators patches [ if annual-income >= income-lower-threshold and annual-income < income-upper-threshold and (landuse = "LDR" or landuse = "LMDR") [ sprout 1 ] ] ask turtles [set shape "tree" set color 45] ] end to identify-early-adopters ask max-n-of (number-of-innovators * 0.75) patches with [(landuse = "LDR" or landuse = "LMDR") and annual-income >= income-lower-threshold and annual-income < income-upper-threshold] [innovation-index] [set pcolor 55] ask max-n-of (number-of-innovators * 0.25) patches with [landuse-type = "non-residential"] [innovation-index] [set pcolor 55] ask patches with [pcolor = 55] [set plabel "Innovator"] ; ask n-of (number-of-innovators * 0.75) patches with [(landuse = "LDR" or landuse = "LMDR") and annual-income >= income-lower-threshold and annual-income < income-upper-threshold and innovation-index >= 0.71] [set pcolor 55]; ; ask n-of (number-of-innovators * 0.25) patches with [landuse-type = "non-residential"and innovation-index > 1.07 ] [set pcolor 55] end to identify-early-adopters-old ; based upon DOEE RiverSmart early program dynamics where early adopters were ; identified as being middle-class, single-familiy homeowners with 1-2 children and who give to charity ;loop ;[ ; repeat 50 ; [ ask patches [ ;if count patches with [pcolor = 55] >= number-of-innovators [stop] if count patches with [pcolor = 55 and landuse-type = "residential" ] >= number-of-innovators * 0.75 and count patches with [pcolor = 55 and landuse-type = "non-residential"] >= number-of-innovators * 0.25 and count patches with [pcolor = 55 and landuse-type = "residential"] + count patches with [pcolor = 55 and landuse-type = "non-residential"] >= number-of-innovators [stop] ;ifelse count patches with [pcolor = 55 and landuse-type = "non-residential"] >= (number-of-innovators) * 0.25 [stop] ;if ;[ask patches ; [count patches with [pcolor = 55 and landuse = "LDR"] + count patches with [pcolor = 55 and landuse = "LMDR"] >= number-of-innovators * 0.75 [stop]]] if (annual-income >= income-lower-threshold and annual-income < income-upper-threshold and landuse-type = "residnential") or (landuse-type = "non-residential" and innovation-index >= 1.08) ;if pcolor != 125 [set pcolor 55] ] ; ask n-of number-of-innovators patches [ ; if landuse-type = "non-residential" and innovation-index >= 1.06 ; [set pcolor 55] ; ] ; ] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;OPINION/UNCERTAINTY;;;;;;;;;;;;;;;;;;;;;;; to establish-initial-sia-and-uncertainty ask patches [set sia-updated 0] ask patches [set U-updated 0] ask patches [set sia-initial-baseline random-float 0.15] ask patches [ if annual-income >= income-lower-threshold and annual-income < income-upper-threshold and (landuse = "LDR" or landuse = "LMDR") [set sia-initial-income random-float (0.15) + 0.05] ] ;; ask patches [ if (landuse-type = "non-residential" and innovation-index >= 1.07) [set sia-initial-income random-float (0.15) + 0.05] ] ;; ; ask patches ; [if any? neighbors with [ pcolor = 55 ] ; [set sia-neighboring random-float 0.20] ; ] ; ask patches ; [if innovation-index <= innovation-threshold ; [set sia-innovation random-float 0.15] ; ] ; ask patches with [sector = 5] ; [set sia-initial-sector random-normal 0.2070 0.0706] ; ask patches with [sector = 1] ; [set sia-initial-sector random-normal 0.2495 0.0851] ; ask patches with [sector = 2] ; [set sia-initial-sector random-normal 0.0812 0.0277] ; ask patches with [sector = 3] ; [set sia-initial-sector random-normal 0.1446 0.0493] ; ask patches with [sector = 4] ; [set sia-initial-sector random-normal 0.0636 0.0217] ; ask patches with [sector = 5] ; [set sia-initial-sector random-normal 0.2500 0.0850] ; ask patches with [sector = 1] ; [set sia-initial-sector random-normal 0.2440 0.0830] ; ask patches with [sector = 2] ; [set sia-initial-sector random-normal 0.0620 0.0210] ; ask patches with [sector = 3] ; [set sia-initial-sector random-normal 0.1450 0.0500] ; ask patches with [sector = 4] ; [set sia-initial-sector random-normal 0.1430 0.0490] ask patches with [sector = 5] [set sia-initial-sector random-normal 0.097 0.0330 + 0.14] ask patches with [sector = 1] [set sia-initial-sector random-normal 0.055 0.0187 + 0.14] ask patches with [sector = 2] [set sia-initial-sector random-normal 0.063 0.0214 + 0.14] ask patches with [sector = 3] [set sia-initial-sector random-normal 0.083 0.0282 + 0.14] ask patches with [sector = 4] [set sia-initial-sector random-normal 0.056 0.0190 + 0.14] ; ask patches [ ; if BMP-rebate != 0 [let sia-initial-BMP-rebate random-float (0.1) + 0.1] ; ] ask patches [set sia-initial sia-initial-baseline + sia-initial-income + sia-initial-sector ; + sia-neighboring ; + sia-innovation ; + sia-initial-rebate ] ask patches with [sia-initial != 0] [set U-initial 1 / sia-initial] ask patches [set sia-updated sia-initial] ask patches [set U-updated U-initial] ask patches [set sia-initial precision sia-initial 2] ask patches [set sia-initial-sector precision sia-initial-sector 2] ask patches [set U-initial precision U-initial 2] ask patches [set sia-initial-baseline precision sia-initial-baseline 2] ask patches [set sia-initial-income precision sia-initial-income 2] ask patches [set sia-neighboring precision sia-neighboring 2] ask patches [set sia-plus-east-value 0.00001] ask patches [set sia-plus-west-value 0.00001] ask patches [set sia-plus-north-value 0.00001] ask patches [set sia-plus-south-value 0.00001] ask patches [set sia-plus-northeast-value 0.00001] ask patches [set sia-plus-southeast-value 0.00001] ask patches [set sia-plus-northwest-value 0.00001] ask patches [set sia-plus-southwest-value 0.00001] end ;;;;;;;;;;;;;;;;;;RANDOM RELATIVE AGREEMENT ALGORITHM;;;;;;;;;; ; CREATE A PROCEDURE THAT PAIIRS UP A PATCH WITH RANDOM PATCH OUTSIIDE OF ITS NEIGHBORHOOD AND SECTOR PER SOCIAL DYNAMISM to relative-algorithm-random ask n-of 5 patches [ if innovation-index > (innovation-threshold - 0.2 ) [ let opinion-self [sia-updated] of patch-at 0 0 let uncertainty-self [U-updated] of patch-at 0 0 let sector-self [sector] of patch-at 0 0 ; let other-patches patch-set other neighbors let other-patches patch-set other patches ask one-of other-patches [ if sector != sector-self [ let opinion-other [sia-updated] of patch-at 0 0 let uncertainty-other [U-updated] of patch-at 0 0 let opinion-uncertainty-right-self opinion-self + uncertainty-self let opinion-uncertainty-left-self opinion-self - uncertainty-self let opinion-uncertainty-right-other opinion-other + uncertainty-other let opinion-uncertainty-left-other opinion-other - uncertainty-other ;other - NEED TO CORRECT THIS let h-self-other min (list opinion-uncertainty-right-self opinion-uncertainty-right-other) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-other) if h-self-other > uncertainty-other and parcel-size != 0 [ask patch-at 0 0 [set sia-updated (opinion-other + mu * ((h-self-other / uncertainty-self) - 1) * (opinion-self - opinion-other))]] if h-self-other > uncertainty-other and parcel-size != 0 [ask patch-at 0 0 [set U-updated (uncertainty-other + mu * ((h-self-other / uncertainty-self) - 1) * (uncertainty-self - uncertainty-other))]] ; if h-self-other > uncertainty-other and parcel-size != 0 ; [ask patch-at 0 0 [set pcolor 45]] ] ] ] ] end ;;;;;;;;;;;;;;;;;RELATIVE AGREEMENT ALGORITHM NEW;;;;;;;;;;;; to relative-algorithm-initial ;; opinion influence through word of mouth ;NEED TO FIGURE OUT HOW TO INCLUDE SMALL-WORLD DYNAMICS HERE - ASSUME A DISTRIBUTION OF OUTSIDE-NEIGHBORHOOD ;INTERACTIONS BETWEEN 1-10% BASED UPON INNOVATION INDEX/PROFILE - SHOULD FORCE CONTACTS TO BE MADE OUTSIDE OF ;HOME WARD ;ONE WAY OF DOING THIS IS TO HAVE OUTSIDE-NETWORK INTERACTIONS ROUTINE DEVELOPED FIRST, THEN ALLOW FOR ;IN-NEIGHBORHOOD CONTACTS VIA THE CODE ALREADY DEVELOPED IN THIS SECTION ; ask n-of 10 patches [ ; if parcel-size != 0 ; [ ask n-of 50 patches [ let opinion-self [sia-updated] of patch-at 0 0 let opinion-east [sia-updated] of patch-at 1 0 let opinion-west [sia-updated] of patch-at -1 0 let opinion-north [sia-updated] of patch-at 0 1 let opinion-south [sia-updated] of patch-at 0 -1 let opinion-southeast [sia-updated] of patch-at 1 -1 let opinion-northeast [sia-updated] of patch-at 1 1 let opinion-southwest [sia-updated] of patch-at -1 -1 let opinion-northwest [sia-updated] of patch-at -1 1 let uncertainty-self [U-updated] of patch-at 0 0 let uncertainty-east [U-updated] of patch-at 1 0 let uncertainty-west [U-updated] of patch-at -1 0 let uncertainty-north [U-updated] of patch-at 0 1 let uncertainty-south [U-updated] of patch-at 0 -1 let uncertainty-southeast [U-updated] of patch-at 1 -1 let uncertainty-northeast [U-updated] of patch-at 1 1 let uncertainty-southwest [U-updated] of patch-at -1 -1 let uncertainty-northwest [U-updated] of patch-at -1 1 let opinion-uncertainty-right-self opinion-self + uncertainty-self let opinion-uncertainty-left-self opinion-self - uncertainty-self let opinion-uncertainty-right-east opinion-east + uncertainty-east let opinion-uncertainty-left-east opinion-east - uncertainty-east let opinion-uncertainty-right-west opinion-east + uncertainty-west let opinion-uncertainty-left-west opinion-east - uncertainty-west let opinion-uncertainty-right-north opinion-north + uncertainty-north let opinion-uncertainty-left-north opinion-north - uncertainty-north let opinion-uncertainty-right-south opinion-south + uncertainty-south let opinion-uncertainty-left-south opinion-south - uncertainty-south let opinion-uncertainty-right-southeast opinion-southeast + uncertainty-southeast let opinion-uncertainty-left-southeast opinion-southeast - uncertainty-southeast let opinion-uncertainty-right-northeast opinion-northeast + uncertainty-northeast let opinion-uncertainty-left-northeast opinion-northeast - uncertainty-northeast let opinion-uncertainty-right-southwest opinion-southwest + uncertainty-southwest let opinion-uncertainty-left-southwest opinion-southwest - uncertainty-southwest let opinion-uncertainty-right-northwest opinion-northwest + uncertainty-northwest let opinion-uncertainty-left-northwest opinion-northwest - uncertainty-northwest ;east let h-self-east min (list opinion-uncertainty-right-self opinion-uncertainty-right-east) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-east) if h-self-east > uncertainty-east and parcel-size != 0 [ask patch-at 1 0 [set sia-updated (opinion-east + mu * ((h-self-east / uncertainty-self) - 1) * (opinion-self - opinion-east))]] if h-self-east > uncertainty-east and parcel-size != 0 [ask patch-at 1 0 [set U-updated (uncertainty-east + mu * ((h-self-east / uncertainty-self) - 1) * (uncertainty-self - uncertainty-east))]] ;west let h-self-west min (list opinion-uncertainty-right-self opinion-uncertainty-right-west) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-west) if h-self-west > uncertainty-west and parcel-size != 0 [ask patch-at -1 0 [set sia-updated (opinion-west + mu * ((h-self-west / uncertainty-self) - 1) * (opinion-self - opinion-west))]] if h-self-west > uncertainty-west and parcel-size != 0 [ask patch-at -1 0 [set U-updated (uncertainty-west + mu * ((h-self-west / uncertainty-self) - 1) * (uncertainty-self - uncertainty-west))]] ;north let h-self-north min (list opinion-uncertainty-right-self opinion-uncertainty-right-north) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-north) if h-self-north > uncertainty-north and parcel-size != 0 [ask patch-at 0 1 [set sia-updated (opinion-north + mu * ((h-self-north / uncertainty-self) - 1) * (opinion-self - opinion-north))]] if h-self-north > uncertainty-north and parcel-size != 0 [ask patch-at 0 1 [set U-updated (uncertainty-north + mu * ((h-self-north / uncertainty-self) - 1) * (uncertainty-self - uncertainty-north))]] ;south let h-self-south min (list opinion-uncertainty-right-self opinion-uncertainty-right-south) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-south) if h-self-south > uncertainty-south and parcel-size != 0 [ask patch-at 0 -1 [set sia-updated (opinion-south + mu * ((h-self-south / uncertainty-self) - 1) * (opinion-self - opinion-south))]] if h-self-south > uncertainty-south and parcel-size != 0 [ask patch-at 0 -1 [set U-updated (uncertainty-south + mu * ((h-self-south / uncertainty-self) - 1) * (uncertainty-self - uncertainty-south))]] ;southeast let h-self-southeast min (list opinion-uncertainty-right-self opinion-uncertainty-right-southeast) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-southeast) if h-self-southeast > uncertainty-southeast and parcel-size != 0 [ask patch-at 1 -1 [set sia-updated (opinion-southeast + mu * ((h-self-southeast / uncertainty-self) - 1) * (opinion-self - opinion-southeast))]] if h-self-southeast > uncertainty-southeast and parcel-size != 0 [ask patch-at 1 -1 [set U-updated (uncertainty-southeast + mu * ((h-self-southeast / uncertainty-self) - 1) * (uncertainty-self - uncertainty-southeast))]] ;northeast let h-self-northeast min (list opinion-uncertainty-right-self opinion-uncertainty-right-northeast) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-northeast) if h-self-northeast > uncertainty-northeast and parcel-size != 0 [ask patch-at 1 1 [set sia-updated (opinion-northeast + mu * ((h-self-northeast / uncertainty-self) - 1) * (opinion-self - opinion-northeast))]] if h-self-northeast > uncertainty-northeast and parcel-size != 0 [ask patch-at 1 1 [set U-updated (uncertainty-northeast + mu * ((h-self-northeast / uncertainty-self) - 1) * (uncertainty-self - uncertainty-northeast))]] ;southwest let h-self-southwest min (list opinion-uncertainty-right-self opinion-uncertainty-right-southwest) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-southwest) if h-self-southwest > uncertainty-southwest and parcel-size != 0 [ask patch-at -1 -1 [set sia-updated (opinion-southwest + mu * ((h-self-southwest / uncertainty-self) - 1) * (opinion-self - opinion-southwest))]] if h-self-southwest > uncertainty-southwest and parcel-size != 0 [ask patch-at -1 -1 [set U-updated (uncertainty-southwest + mu * ((h-self-southwest / uncertainty-self) - 1) * (uncertainty-self - uncertainty-southwest))]] ;northwest let h-self-northwest min (list opinion-uncertainty-right-self opinion-uncertainty-right-northwest) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-northwest) if h-self-northwest > uncertainty-northwest and parcel-size != 0 [ask patch-at -1 1 [set sia-updated (opinion-northwest + mu * ((h-self-northwest / uncertainty-self) - 1) * (opinion-self - opinion-northwest))]] if h-self-northwest > uncertainty-northwest and parcel-size != 0 [ask patch-at -1 1 [set U-updated (uncertainty-northwest + mu * ((h-self-northwest / uncertainty-self) - 1) * (uncertainty-self - uncertainty-northwest))]] ; ] ; ] ] ask patches [set sia-updated precision sia-updated 2] ask patches [set U-updated precision U-updated 2] end ;;;;;;;;;;;;;;;;;;;;;;sia-plus-old;;;;;;;;;;;;;;; to sia-neighboring-plus-old ask patches [ if count neighbors with [ pcolor = 55 ] = 1 [set sia-updated sia-updated + 0.01] if count neighbors with [ pcolor = 55 ] = 2 [set sia-updated sia-updated + 0.01] if count neighbors with [ pcolor = 55 ] = 3 [set sia-updated sia-updated + 0.01] if count neighbors with [ pcolor = 55 ] = 4 [set sia-updated sia-updated + 0.01] if count neighbors with [ pcolor = 55 ] = 5 [set sia-updated sia-updated + 0.01] if count neighbors with [ pcolor = 55 ] = 6 [set sia-updated sia-updated + 0.02] if count neighbors with [ pcolor = 55 ] = 7 [set sia-updated sia-updated + 0.04] if count neighbors with [ pcolor = 55 ] = 8 [set sia-updated sia-updated + 0.04] let sia-initial-max sia-initial + 0.15 if sia-updated >= sia-initial-max [set sia-updated sia-initial-max] ; if sia-updated > 1 ; [set sia-updated 1] ] end ;;;;;;;;;;;;;;;;;;;;;;sia-plus;;;;;;;;;;;;;;; ; THIS MODULE ACCOUNTS FOR NEIGHBORING/SPATIAL INFLUENCES THAT GO BEYOND WORD-OF-MOUTH ; THIS ROUTINE ASKS ALL PATCHES TO REVIEW ALL NEIGHBORS TO SEE IF THEY ARE ALREADY GREENED AND HAVEN'T HAD AN INFLUENCED OPINION AS OF YET ; IF BOTH CONDITIONS ARE MET, 0.04375 IS ADDED TO THEIR SIA-UPDATED VALUE - THE SIGNIFICANCE OF 0.04375 IS THAT THERE ARE 8 NEIGHBORS AND THE ; TOTAL INFLUENCE OF NEIGHBORING WAS DECIDED TO BE 0.35, SO 0.04375 * 8 = 0.35 to sia-neighboring-plus-setup ask ; n-of 10 patches [ if [pcolor] of patch-at 1 0 = 55 and sia-plus-east-value = 0.00001 [set sia-plus-east-value 0.04375] if [pcolor] of patch-at -1 0 = 55 and sia-plus-west-value = 0.00001 [set sia-plus-west-value 0.04375] if [pcolor] of patch-at 0 1 = 55 and sia-plus-north-value = 0.00001 [set sia-plus-north-value 0.04375] if [pcolor] of patch-at 0 -1 = 55 and sia-plus-south-value = 0.00001 [set sia-plus-south-value 0.04375] if [pcolor] of patch-at 1 -1 = 55 and sia-plus-southeast-value = 0.00001 [set sia-plus-southeast-value 0.04375] if [pcolor] of patch-at 1 1 = 55 and sia-plus-northeast-value = 0.00001 [set sia-plus-northeast-value 0.04375] if [pcolor] of patch-at -1 1 = 55 and sia-plus-northwest-value = 0.00001 [set sia-plus-northwest-value 0.04375] if [pcolor] of patch-at -1 -1 = 55 and sia-plus-southwest-value = 0.00001 [set sia-plus-southwest-value 0.04375] ] end ;THIS ROUTINE ADDS THE NEIGHBOR-INFLUENCED VALUE (SIA-PLUS) TO THE SIA-UPDATED VALUE to sia-neighboring-plus-add ask patches [ set sia-updated sia-updated + sia-plus-east-value + sia-plus-west-value + sia-plus-south-value + sia-plus-north-value + sia-plus-southeast-value + sia-plus-northeast-value + sia-plus-southwest-value + sia-plus-northwest-value ] end ; THIS ROUTINE ENSURES THAT THE NEIBORING EFFECT DOESN'T BECOME A 'RUNAWAY LOOP' BY ADDING 0.04375 OVER AND OVER AGAIN ; THE ROUTINE SCREENS OUT PATCHES THAT HAVE NEIGHBORS WITH 0.04375 IN THEIR SIA-PLUS VALUES to sia-neighboring-plus-adjust ask patches [ if [pcolor] of patch-at 1 0 = 55 and sia-plus-east-value = 0.04375 [set sia-plus-east-value 0] if [pcolor] of patch-at -1 0 = 55 and sia-plus-west-value = 0.04375 [set sia-plus-west-value 0] if [pcolor] of patch-at 0 1 = 55 and sia-plus-north-value = 0.04375 [set sia-plus-north-value 0] if [pcolor] of patch-at 0 -1 = 55 and sia-plus-south-value = 0.04375 [set sia-plus-south-value 0] if [pcolor] of patch-at 1 -1 = 55 and sia-plus-southeast-value = 0.04375 [set sia-plus-southeast-value 0] if [pcolor] of patch-at 1 1 = 55 and sia-plus-northeast-value = 0.04375 [set sia-plus-northeast-value 0] if [pcolor] of patch-at -1 1 = 55 and sia-plus-northwest-value = 0.04375 [set sia-plus-northwest-value 0] if [pcolor] of patch-at -1 -1 = 55 and sia-plus-southwest-value = 0.04375 [set sia-plus-southwest-value 0] ] ; [set sia-updated sia-updated + 0.04] ; let sia-initial-max sia-initial + 0.15 ; if sia-updated >= sia-initial-max ; [set sia-updated sia-initial-max] end ;;;;;;;;;;;;;;;;;RELATIVE AGREEMENT ALGORITHM OLD;;;;;;;;;;;; to relative-algorithm-initial-old ;; opinion influence through word of mouth ;NEED TO FIGURE OUT HOW TO INCLUDE SMALL-WORLD DYNAMICS HERE - ASSUME A DISTRIBUTION OF OUTSIDE-NEIGHBORHOOD ;INTERACTIONS BETWEEN 1-10% BASED UPON INNOVATION INDEX/PROFILE - SHOULD FORCE CONTACTS TO BE MADE OUTSIDE OF ;HOME WARD ;ONE WAY OF DOING THIS IS TO HAVE OUTSIDE-NETWORK INTERACTIONS ROUTINE DEVELOPED FIRST, THEN ALLOW FOR ;IN-NEIGHBORHOOD CONTACTS VIA THE CODE ALREADY DEVELOPED IN THIS SECTION ; ask n-of 10 patches [ ; if parcel-size != 0 ; [ ask ; n-of 10 patches [ let opinion-self [sia-initial] of patch-at 0 0 let opinion-east [sia-initial] of patch-at 1 0 let opinion-west [sia-initial] of patch-at -1 0 let opinion-north [sia-initial] of patch-at 0 1 let opinion-south [sia-initial] of patch-at 0 -1 let opinion-southeast [sia-initial] of patch-at 1 -1 let opinion-northeast [sia-initial] of patch-at 1 1 let opinion-southwest [sia-initial] of patch-at -1 -1 let opinion-northwest [sia-initial] of patch-at -1 1 let uncertainty-self [U-initial] of patch-at 0 0 let uncertainty-east [U-initial] of patch-at 1 0 let uncertainty-west [U-initial] of patch-at -1 0 let uncertainty-north [U-initial] of patch-at 0 1 let uncertainty-south [U-initial] of patch-at 0 -1 let uncertainty-southeast [U-initial] of patch-at 1 -1 let uncertainty-northeast [U-initial] of patch-at 1 1 let uncertainty-southwest [U-initial] of patch-at -1 -1 let uncertainty-northwest [U-initial] of patch-at -1 1 let updated-opinion-east [sia-updated] of patch-at 1 0 let updated-opinion-west [sia-updated] of patch-at -1 0 let updated-opinion-north [sia-updated] of patch-at 0 1 let updated-opinion-south [sia-updated] of patch-at 0 -1 let updated-opinion-southeast [sia-updated] of patch-at 1 -1 let updated-opinion-northeast [sia-updated] of patch-at 1 1 let updated-opinion-southwest [sia-updated] of patch-at -1 -1 let updated-opinion-northwest [sia-updated] of patch-at -1 1 let updated-uncertainty-east [U-updated] of patch-at 1 0 let updated-uncertainty-west [U-updated] of patch-at -1 0 let updated-uncertainty-north [U-updated] of patch-at 0 1 let updated-uncertainty-south [U-updated] of patch-at 0 -1 let updated-uncertainty-southeast [U-updated] of patch-at 1 -1 let updated-uncertainty-northeast [U-updated] of patch-at 1 1 let updated-uncertainty-southwest [U-updated] of patch-at -1 -1 let updated-uncertainty-northwest [U-updated] of patch-at -1 1 let opinion-uncertainty-right-self opinion-self + uncertainty-self let opinion-uncertainty-left-self opinion-self - uncertainty-self let opinion-uncertainty-right-east opinion-east + uncertainty-east let opinion-uncertainty-left-east opinion-east - uncertainty-east let opinion-uncertainty-right-west opinion-east + uncertainty-west let opinion-uncertainty-left-west opinion-east - uncertainty-west let opinion-uncertainty-right-north opinion-north + uncertainty-north let opinion-uncertainty-left-north opinion-north - uncertainty-north let opinion-uncertainty-right-south opinion-south + uncertainty-south let opinion-uncertainty-left-south opinion-south - uncertainty-south let opinion-uncertainty-right-southeast opinion-southeast + uncertainty-southeast let opinion-uncertainty-left-southeast opinion-southeast - uncertainty-southeast let opinion-uncertainty-right-northeast opinion-northeast + uncertainty-northeast let opinion-uncertainty-left-northeast opinion-northeast - uncertainty-northeast let opinion-uncertainty-right-southwest opinion-southwest + uncertainty-southwest let opinion-uncertainty-left-southwest opinion-southwest - uncertainty-southwest let opinion-uncertainty-right-northwest opinion-northwest + uncertainty-northwest let opinion-uncertainty-left-northwest opinion-northwest - uncertainty-northwest ;east let h-self-east min (list opinion-uncertainty-right-self opinion-uncertainty-right-east) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-east) if h-self-east > uncertainty-east and parcel-size != 0 [ask patch-at 1 0 [set sia-updated (opinion-east + mu * ((h-self-east / uncertainty-self) - 1) * (opinion-self - opinion-east))]] if h-self-east > uncertainty-east and parcel-size != 0 [ask patch-at 1 0 [set U-updated (uncertainty-east + mu * ((h-self-east / uncertainty-self) - 1) * (uncertainty-self - uncertainty-east))]] ;west let h-self-west min (list opinion-uncertainty-right-self opinion-uncertainty-right-west) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-west) if h-self-west > uncertainty-west and parcel-size != 0 [ask patch-at -1 0 [set sia-updated (opinion-west + mu * ((h-self-west / uncertainty-self) - 1) * (opinion-self - opinion-west))]] if h-self-west > uncertainty-west and parcel-size != 0 [ask patch-at -1 0 [set U-updated (uncertainty-west + mu * ((h-self-west / uncertainty-self) - 1) * (uncertainty-self - uncertainty-west))]] ;north let h-self-north min (list opinion-uncertainty-right-self opinion-uncertainty-right-north) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-north) if h-self-north > uncertainty-north and parcel-size != 0 [ask patch-at 0 1 [set sia-updated (opinion-north + mu * ((h-self-north / uncertainty-self) - 1) * (opinion-self - opinion-north))]] if h-self-north > uncertainty-north and parcel-size != 0 [ask patch-at 0 1 [set U-updated (uncertainty-north + mu * ((h-self-north / uncertainty-self) - 1) * (uncertainty-self - uncertainty-north))]] ;south let h-self-south min (list opinion-uncertainty-right-self opinion-uncertainty-right-south) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-south) if h-self-south > uncertainty-south and parcel-size != 0 [ask patch-at 0 -1 [set sia-updated (opinion-south + mu * ((h-self-south / uncertainty-self) - 1) * (opinion-self - opinion-south))]] if h-self-south > uncertainty-south and parcel-size != 0 [ask patch-at 0 -1 [set U-updated (uncertainty-south + mu * ((h-self-south / uncertainty-self) - 1) * (uncertainty-self - uncertainty-south))]] ;southeast let h-self-southeast min (list opinion-uncertainty-right-self opinion-uncertainty-right-southeast) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-southeast) if h-self-southeast > uncertainty-southeast and parcel-size != 0 [ask patch-at 1 -1 [set sia-updated (opinion-southeast + mu * ((h-self-southeast / uncertainty-self) - 1) * (opinion-self - opinion-southeast))]] if h-self-southeast > uncertainty-southeast and parcel-size != 0 [ask patch-at 1 -1 [set U-updated (uncertainty-southeast + mu * ((h-self-southeast / uncertainty-self) - 1) * (uncertainty-self - uncertainty-southeast))]] ;northeast let h-self-northeast min (list opinion-uncertainty-right-self opinion-uncertainty-right-northeast) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-northeast) if h-self-northeast > uncertainty-northeast and parcel-size != 0 [ask patch-at 1 1 [set sia-updated (opinion-northeast + mu * ((h-self-northeast / uncertainty-self) - 1) * (opinion-self - opinion-northeast))]] if h-self-northeast > uncertainty-northeast and parcel-size != 0 [ask patch-at 1 1 [set U-updated (uncertainty-northeast + mu * ((h-self-northeast / uncertainty-self) - 1) * (uncertainty-self - uncertainty-northeast))]] ;southwest let h-self-southwest min (list opinion-uncertainty-right-self opinion-uncertainty-right-southwest) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-southwest) if h-self-southwest > uncertainty-southwest and parcel-size != 0 [ask patch-at -1 -1 [set sia-updated (opinion-southwest + mu * ((h-self-southwest / uncertainty-self) - 1) * (opinion-self - opinion-southwest))]] if h-self-southwest > uncertainty-southwest and parcel-size != 0 [ask patch-at -1 -1 [set U-updated (uncertainty-southwest + mu * ((h-self-southwest / uncertainty-self) - 1) * (uncertainty-self - uncertainty-southwest))]] ;northwest let h-self-northwest min (list opinion-uncertainty-right-self opinion-uncertainty-right-northwest) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-northwest) if h-self-northwest > uncertainty-northwest and parcel-size != 0 [ask patch-at -1 1 [set sia-updated (opinion-northwest + mu * ((h-self-northwest / uncertainty-self) - 1) * (opinion-self - opinion-northwest))]] if h-self-northwest > uncertainty-northwest and parcel-size != 0 [ask patch-at -1 1 [set U-updated (uncertainty-northwest + mu * ((h-self-northwest / uncertainty-self) - 1) * (uncertainty-self - uncertainty-northwest))]] ] ; ] ; ] end ;;;;;;;;;;;;;;;PUBLIC OUTREACH AGENTS;;;;;;;;;;;;;;;;;;;;;;;;;; to create-outreach-agents ; repeat 10 ; [ ask n-of number-of-pub-outreach patches [ if public-outreach-agent-contact = "false" [sprout-public-outreach-specialists 1 [set color red set shape "triangle" set size 1]] ; if any? public-outreach-specialists-here [die] ] ; ] end to public-outreach-specialists-move ask public-outreach-specialists [ ; ifelse any? neighbors with [parcel-size = 0] ; [ setxy random-pxcor random-pycor ; ] [ set heading random 360 fd 1 ; ] ask patch-here [set public-outreach-agent-contact "true"] ] end to identify-isolated-adopters ; ask patches with [pcolor = 55] [if count neighbors with [plabel = "Innovator"] >= 1 [set isolated-adopter "true"]] ask patches with [pcolor = 55 and plabel != "Innovator"] [if count neighbors with [plabel = "Innovator"] >= 1 [set isolated-adopter "false"]] ask patches with [pcolor = 55 and plabel != "Innovator"] [if count neighbors with [plabel = "Innovator"] = 0 [set isolated-adopter "true"]] end ;;;;;;;;;;;;;;;;;;;;;;;;;TESTING;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;clustering;;;;;;;;;;;;;;; to determine-clusters-old ask patches with [pcolor = 55] [ if count patches in-radius 1 with [ pcolor = 55 ] = 0 [set cluster-number 0.111] if count patches in-radius 1 with [ pcolor = 55 ] = 1 [set cluster-number 0.222 if count patches in-radius 1 with [ pcolor = 55 ] = 2 [set cluster-number 0.333] if count patches in-radius 1 with [ pcolor = 55 ] = 3 [set cluster-number 0.444] if count patches in-radius 1 with [ pcolor = 55 ] = 4 [set cluster-number 0.555] if count patches in-radius 1 with [ pcolor = 55 ] = 5 [set cluster-number 0.666] if count patches in-radius 1 with [ pcolor = 55 ] = 6 [set cluster-number 0.777] if count patches in-radius 1 with [ pcolor = 55 ] = 7 [set cluster-number 0.888] if count patches in-radius 1 with [ pcolor = 55 ] = 8 [set cluster-number 1] ] ] end ;;;;;;;;;;;;;;;;;;;;;;clustering;;;;;;;;;;;;;;; to see-good-paybacks-self ask patches [if payback < payback-threshold-self [set pcolor 25] ] end to see-good-payback-threshold-other ask patches [if payback < payback-threshold-other [set pcolor 25] ] end to see-parcel-acreage-threshold ask patches [if parcel-size >= parcel-acreage-threshold [set pcolor 25] ] end to see-good-sia-threshold ask patches [if sia-updated > sia-threshold [set pcolor 25] ] end to see-good-innovation-threshold ask patches [if innovation-index > innovation-threshold and landuse-type = "non-residential" [set pcolor 25] ] end to see-imp-cover-0 ask patches [if impervious-cover <= 0 [set pcolor 25] ] end to see-implementation-decision-score ask patches [if implementation-decision-score = test-implementation-decision-score [set pcolor 25] ] end ;;;;;;;;;;;;;;;;;;;;;;;;PROCEDURES;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;SUPPLY AND DEMAND;;;;;;;;;;;;;;;;;;;;;;;;;;;; to determine-muni-demand if remainder ticks 12 = 0 [set muni-demand muni-demand + ongoing-muni-demand ; + 50000 ; + 0 ] end to determine-development-demand if remainder ticks 12 = 0 [ask n-of (redevelopment_rate / 100 * 654) patches with [sector != 0] ; [set pcolor red] [ let new-development-demand gallons-runoff-generated set development-demand (development-demand + new-development-demand) set development-demand precision development-demand 2 ] ] end to determine-supply-demand-ratio let total-supply sum [gallons-runoff-generated] of patches with [pcolor = 55 and plabel != "Innovator"] set demand-supply-ratio (muni-demand + development-demand) / (total-supply + 0.0000001) set demand-supply-ratio precision demand-supply-ratio 2 end to determine-indexed-credit-price set indexed-credit-price credit-price * demand-supply-ratio ; / 10 / 1 if indexed-credit-price > 3.5 [set indexed-credit-price 3.5] if indexed-credit-price < 1 [set indexed-credit-price 1] set indexed-credit-price precision indexed-credit-price 2 end ;;;;;;;;;;;;;;;;;;;DECISION-MAKING;;;;;;;;;;;;;;;;;;;;;;;;; to decision-making set-property-owner-attributes end to set-property-owner-attributes ask patches [ ifelse pcolor = 55 [set green-infrastructure-decision "accepted"] [set green-infrastructure-decision "not_accepted"] ifelse pcolor = 55 [set acceptance-decision-score 2] [set acceptance-decision-score 0] ifelse pcolor = 55 [set green-infrastructure-practiced true] [set green-infrastructure-practiced false] ifelse pcolor = 55 [set implementation-decision-score 3] [set implementation-decision-score 0] set public-outreach-agent-contact "false" ] end ;THIS IS PATCH-BASED DECISION MAKING STUFF to property-owner-decision-start-point ask patches [ if green-infrastructure-practiced = true and landuse-type = "residential" [SRC-implementation-continued-res] if green-infrastructure-practiced = false and landuse-type = "residential" [run-decide-between-accept-and-implement-res] if green-infrastructure-practiced = true and landuse-type = "non-residential" [SRC-implementation-continued-non-res] if green-infrastructure-practiced = false and landuse-type = "non-residential" [run-decide-between-accept-and-implement-non-res] ; if acceptance-decision-score = 1 [SRC-form-opinion] ] end ;;;;;;;;;;;;;;;;;RESIDENTIAL DECISION MAKING;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to run-decide-between-accept-and-implement-res if green-infrastructure-decision = "not_accepted" [ run-acceptance-decision-res ] if green-infrastructure-decision = "accepted_not_implemented" [ run-implementation-decision-res ] if green-infrastructure-decision = "implemented" [ SRC-implementation-continued-res ] end to run-acceptance-decision-res if acceptance-decision-score = 0 [ SRC-aware-res ] if acceptance-decision-score = 1 [ SRC-form-opinion-res ] if acceptance-decision-score = 2 [ run-implementation-decision-res ] end to SRC-aware-res ifelse ((innovation-index > innovation-threshold) or (public-outreach-agent-contact = "true")) or ; ( ; (innovation-index > innovation-threshold) and (count neighbors with [ green-infrastructure-practiced = true ] >= neighbors-threshold) ; ) [set acceptance-decision-score 1] [set acceptance-decision-score 0] end ;--------------------------------------------------------------------------------------------------------- to SRC-form-opinion-res ; ask patches [ ifelse sia-updated > sia-threshold [ run-implementation-decision-res ] [ SRC-aware-res ] ; ] end to run-implementation-decision-res set green-infrastructure-decision "accepted_not_implemented" if implementation-decision-score = 0 [ SRC-self-investment-decision-res ] if implementation-decision-score = 1 [ SRC-other-investment-decision-res ] if implementation-decision-score = 2 [ SRC-implementation-positive-res ] if implementation-decision-score = 3 [ SRC-implementation-continued-res ] end to SRC-self-investment-decision-res ; NEED TO INCORPORATE OTHER FACTORS HERE POSSIBLY, SUCH AS RISK, ETC. ifelse (pbc > 0.5) and (payback <= payback-threshold-self) ; and (total-BMP-cost < 0.005 * annual-income) [set implementation-decision-score 2] [set implementation-decision-score 1] end to SRC-other-investment-decision-res ; NEED TO CONSIDER MANY MORE/DIFFERENT FACTORS HERE ifelse ; (sia-updated > sia-threshold) ; or (payback <= payback-threshold-other) and (constraints-index <= constraints-threshold) [set implementation-decision-score 2] [set implementation-decision-score 1] ifelse (payback <= payback-threshold-other) and (count neighbors with [ green-infrastructure-practiced = true ] >= (neighbors-threshold - additional-neighbors-threshold)) [set implementation-decision-score 2] [set implementation-decision-score 1] end to SRC-implementation-positive-res ;NEED TO INCORPORATE A TIME DELAY TO SIMULATE THE TIME REQUIRED TO IMPLEMENT - SHOULD VARY NORMALLY AND SHOULD BE COMPRISED OF A CERTAIN NUMBER OF TICKS ; wait 1 set pcolor 55 set implementation-decision-score 3 set green-infrastructure-decision "implemented" set green-infrastructure-practiced true set credit-revenue-generated indexed-credit-price * gallons-runoff-generated end to SRC-implementation-continued-res ifelse (OM-BMP-Cost < credit-revenue) [set pcolor 55] [reassign-landuse-colors-and-properties] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;DECISION MAKING ROUTINES FOR NON-RESIDENTIAL;;;;;;;;;;;;;;;;;;;;;;;;;; ; Assumption here is that non-residential property owners will make decisions in a manner that is ; unique compared with residential property owners. Specifically, non-residential to run-decide-between-accept-and-implement-non-res if green-infrastructure-decision = "not_accepted" [ run-acceptance-decision-non-res ] if green-infrastructure-decision = "accepted_not_implemented" [ run-implementation-decision-non-res ] if green-infrastructure-decision = "implemented" [ SRC-implementation-continued-non-res ] end to run-acceptance-decision-non-res if acceptance-decision-score = 0 [ SRC-aware-non-res ] if acceptance-decision-score = 1 [ SRC-form-opinion-non-res ] if acceptance-decision-score = 2 [ run-implementation-decision-non-res ] end to SRC-aware-non-res ifelse ((innovation-index > innovation-threshold) or (public-outreach-agent-contact = "true")) ; or (count neighbors with [green-infrastructure-practiced = true] >= neighbors-threshold) [set acceptance-decision-score 1] [set acceptance-decision-score 0] end to SRC-form-opinion-non-res ; ask patches [ ifelse (sia-updated > sia-threshold - 0.1) [ run-implementation-decision-non-res ] [ SRC-aware-non-res ] ; ] end to run-implementation-decision-non-res set green-infrastructure-decision "accepted_not_implemented" if implementation-decision-score = 0 [ SRC-self-investment-decision-non-res ] if implementation-decision-score = 1 [ SRC-other-investment-decision-non-res ] if implementation-decision-score = 2 [ SRC-implementation-positive-non-res ] if implementation-decision-score = 3 [ SRC-implementation-continued-non-res ] end to SRC-self-investment-decision-non-res ; NEED TO INCORPORATE OTHER FACTORS HERE POSSIBLY, SUCH AS RISK, ETC. ifelse (pbc > 0.5) and (payback <= payback-threshold-self) ; and (total-BMP-cost < 0.005 * annual-income) [set implementation-decision-score 2] [set implementation-decision-score 1] end to SRC-other-investment-decision-non-res ; NEED TO CONSIDER MANY MORE/DIFFERENT FACTORS HERE ifelse ; (sia-updated > sia-threshold) ; or (payback <= payback-threshold-other) and (constraints-index <= constraints-threshold) [set implementation-decision-score 2] [set implementation-decision-score 1] ifelse (payback <= payback-threshold-other) and (count neighbors with [ green-infrastructure-practiced = true ] >= (neighbors-threshold - additional-neighbors-threshold)) [set implementation-decision-score 2] [set implementation-decision-score 1] end to SRC-implementation-positive-non-res ;NEED TO INCORPORATE A TIME DELAY TO SIMULATE THE TIME REQUIRED TO IMPLEMENT - SHOULD VARY NORMALLY AND SHOULD BE COMPRISED OF A CERTAIN NUMBER OF TICKS ; wait 1 set pcolor 55 set implementation-decision-score 3 set green-infrastructure-decision "implemented" set green-infrastructure-practiced true set credit-revenue-generated indexed-credit-price * gallons-runoff-generated end to SRC-implementation-continued-non-res ifelse (OM-BMP-Cost < credit-revenue) [set pcolor 55] [reassign-landuse-colors-and-properties] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to reassign-landuse-colors if landuse = "LDR" [set pcolor 108] if landuse = "LMDR" [set pcolor 107] if landuse = "MDR" [set pcolor 106] if landuse = "HDR" [set pcolor 105] if landuse = "MU" [set pcolor 104] if landuse = "S" [set pcolor 103] if landuse = "I" [set pcolor 102] if landuse = "O" [set pcolor 101] if landuse = "C" [set pcolor 100] end to reassign-landuse-colors-and-properties if landuse = "LDR" [set pcolor 108] if landuse = "LMDR" [set pcolor 107] if landuse = "MDR" [set pcolor 106] if landuse = "HDR" [set pcolor 105] if landuse = "MU" [set pcolor 104] if landuse = "S" [set pcolor 103] if landuse = "I" [set pcolor 102] if landuse = "O" [set pcolor 101] if landuse = "C" [set pcolor 100] set green-infrastructure-decision "not_accepted" set acceptance-decision-score 0 set green-infrastructure-practiced false set implementation-decision-score 0 end to assign-landuse-type ask patches[ if landuse = "LDR" [set landuse-type "residential"] if landuse = "LMDR" [set landuse-type "residential"] if landuse = "MDR" [set landuse-type "residential"] if landuse = "HDR" [set landuse-type "residential"] if landuse = "MU" [set landuse-type "residential"] if landuse = "S" [set landuse-type "non-residential"] if landuse = "I" [set landuse-type "non-residential"] if landuse = "O" [set landuse-type "non-residential"] if landuse = "C" [set landuse-type "non-residential"] ] end to see-implementation-decision-equal-greater-than-1 ask patches [if implementation-decision-score >= 1 [set pcolor 55] ] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;VIEW OPINION DISSIMENATION;;;;;;;;;;;;;;;;;;;;;;;; to see-RA-work ask patches with [sia-updated <= 0.15] [set pcolor 14 ] ask patches with [sia-updated > 0.15 and sia-updated <= 0.3] [set pcolor 15 ] ask patches with [sia-updated > 0.3 and sia-updated <= 0.45] [set pcolor 16 ] ask patches with [sia-updated > 0.45 and sia-updated <= 0.6] [set pcolor 17 ] ask patches with [sia-updated > 0.6 and sia-updated <= 0.75] [set pcolor 18 ] ask patches with [sia-updated > 0.75] [set pcolor 19 ] end to see-RA-work-turtles-patches ask patches with [sia-updated <= 0.15] [sprout-lowest-opinions 1 [set color 14 set shape "tree"]] ask patches with [sia-updated > 0.15 and sia-updated <= 0.3] [sprout-lower-opinions 1 [set color 15 set shape "tree"]] ask patches with [sia-updated > 0.3 and sia-updated <= 0.45] [sprout-low-opinions 1 [set color 16 set shape "tree"]] ask patches with [sia-updated > 0.45 and sia-updated <= 0.6] [sprout-moderate-opinions 1 [set color 17 set shape "tree"]] ask patches with [sia-updated > 0.6 and sia-updated <= 0.75] [sprout-higher-opinions 1 [set color 18 set shape "tree"]] ask patches with [sia-updated > 0.75] [sprout-highest-opinions 1 [set color 19 set shape "tree"]] end to see-RA-work-turtles ask turtles with [sia-updated <= 0.15] [hatch-lowest-opinions 1 [set color 14 set shape "tree"]] ask turtles with [sia-updated > 0.15 and sia-updated <= 0.3] [hatch-lower-opinions 1 [set color 15 set shape "tree"]] ask turtles with [sia-updated > 0.3 and sia-updated <= 0.45] [hatch-low-opinions 1 [set color 16 set shape "tree"]] ask turtles with [sia-updated > 0.45 and sia-updated <= 0.6] [hatch-moderate-opinions 1 [set color 17 set shape "tree"]] ask turtles with [sia-updated > 0.6 and sia-updated <= 0.75] [hatch-higher-opinions 1 [set color 18 set shape "tree"]] ask turtles with [sia-updated > 0.75] [hatch-highest-opinions 1 [set color 19 set shape "tree"]] end to see-clusters ask patches with [cluster-number != 0] [set pcolor 14 ] end to see-mid-income-residential ask patches with [ annual-income >= income-lower-threshold and annual-income < income-upper-threshold and (landuse = "LDR" or landuse = "LMDR") ] [set pcolor 14] end ;;;;;;;;;;;;;;;;; to assign-landuse-colors-invested-parcels ask patches with [landuse = "LDR"] [set pcolor 108] ask patches with [landuse = "LMDR"] [set pcolor 107] ask patches with [landuse = "MDR"] [set pcolor 106] ask patches with [landuse = "HDR"] [set pcolor 105] ask patches with [landuse = "MU"] [set pcolor 104] ask patches with [landuse = "S"] [set pcolor 103] ask patches with [landuse = "I"] [set pcolor 102] ask patches with [landuse = "O"] [set pcolor 101] ask patches with [landuse = "C"] [set pcolor 100] ask patches with [ sector = 0] [set pcolor 125] ask patches with [ green-infrastructure-practiced = true] [set pcolor 55] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;to neighbors-test ;; determining if neighbors are good for investment ;; repeat 10 ;; [ ; ask n-of 2 patches [ ; let added-self [pbc] of patch-at 0 0 ; let added-east [pbc] of patch-at 1 0 ; let added-west [pbc] of patch-at -1 0 ; let added-north [pbc] of patch-at 0 1 ; let added-south [pbc] of patch-at 0 -1 ; let added-southeast [pbc] of patch-at 1 -1 ; let added-northeast [pbc] of patch-at 1 1 ; let added-southwest [pbc] of patch-at -1 -1 ; let added-northwest [pbc] of patch-at -1 1 ; ; if added-self + added-east >= favorability-need ; and ; (any? turtles-here) ; and ; added-self >= favorability-threshold [ask patch-at 1 0 [set pcolor 55 ] ] ; ; if added-self + added-west >= favorability-need ; and ; (any? turtles-here) ; and ; added-self >= favorability-threshold [ask patch-at -1 0 [set pcolor 55 ] ] ; ; if added-self + added-north >= favorability-need ; and ; (any? turtles-here) ; and ; added-self >= favorability-threshold [ask patch-at 0 1 [set pcolor 55 ] ] ; ; if added-self + added-south >= favorability-need ; and ; (any? turtles-here) ; and ; added-self >= favorability-threshold [ask patch-at 0 -1 [set pcolor 55 ] ] ; ; if added-self + added-southeast >= favorability-need ; and ; (any? turtles-here) ; and ; added-self >= favorability-threshold [ask patch-at 1 -1 [set pcolor 55 ] ] ; ; if added-self + added-northeast >= favorability-need ; and ; (any? turtles-here) ; and ; added-self >= favorability-threshold [ask patch-at 1 1 [set pcolor 55 ] ] ; ; if added-self + added-southwest >= favorability-need ; and ; (any? turtles-here) ; and ; added-self >= favorability-threshold [ask patch-at -1 -1 [set pcolor 55 ] ] ; ; if added-self + added-northwest >= favorability-need ; and ; (any? turtles-here) ; and ; added-self >= favorability-threshold [ask patch-at -1 1 [set pcolor 55 ] ] ; ; if any? neighbors with [ pcolor = 55 ] ; and ; (any? turtles-here) ; and ; pbc >= favorability-threshold ; [set pcolor 55] ; ] ;; ] ; ask turtles [ ;; if one-of neighbors with [ pcolor = 55 ] ; if any? neighbors with [ pcolor = 55 ] ; and ; (any? turtles-here) ; and ; pbc >= favorability-threshold ; [hatch-investors 1 [set color 105 set shape "tree"]] ; if any? investors-here [die] ; ] ;end ; ; sweep-test ; ; this is an automated parameter sweeping test ; it runs num-tests interations of the various configurations ; and prints results to the console ; ;Least Favorable ; set growth-capacity 8 ; set investment-limit-radius 1 ; set num-turtles 25 ; set favorability-threshold 2 ; set favorability-need 4 ; set level-of-competition 1 ;Reasonable Scenario ; set growth-capacity 2 ; set investment-limit-radius 1 ; set num-turtles 25 ; set favorability-threshold 1 ; set favorability-need 2 ; set level-of-competition 2 ;Most Favorable ; set growth-capacity 0 ; set investment-limit-radius 5 ; set num-turtles 700 ; set favorability-threshold 0 ; set favorability-need 0 ; set level-of-competition 9 ;to sweep-test ; ; setup the configuration ; ;; set growth-capacity 1 ;; set investment-limit-radius 5 ;; set num-turtles 700 ;; set favorability-threshold 0 ;; set favorability-need 0 ;; set level-of-competition 9 ; let num-tests 10 ; let i 0 ; ; set i 0 ; while [i <= 10] ; [ ; setup ; print (Invested-parcels) ; set i (i + 1) ; ] ;end
