Model of Vaccinations on Covid19

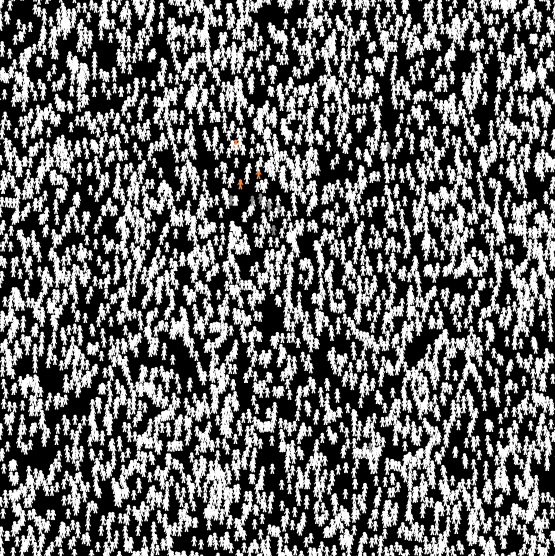

Model of Vaccinations on Covid19 preview image

1 collaborator

Default-person Alex Brown (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.2.0 • Viewed 70 times • Downloaded 3 times • Run 0 times
Download the 'Model of Vaccinations on Covid19' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [
  max-infected
  daily-delta
  total-infected
  avg-daily-delta
  total-delta
  moving-average
  day-1
  day-2
  day-3
  day-4
  day-5
  transmissibility ; what is the chance the healthy person becomes sick if they contact a carrier
  ;interactions ; total dialy interactions
  pop-density
  Ro


]


turtles-own[
  infected?
  immune?
  recovered?
  mask?
  dead? ; add superspeader?
  infectionDay?
  recoveryDay?
  quarantineDay?
  death?
  mouthBreather? ;how likely is this person to ifect others if they come into contact
  secondaryinfections?
  superspreader?
  lambda?
  movement? ;how much a turtle moves - also should account for frequency
  distanced?
  quarantine-if-sick?
  quarantined?
  interactions?
  num-neighbors?
  vaccinated?

]

to setup
  clear-all
  set-patch-size (275 / max-pxcor) ; just resets display size
  reset-ticks
  setup-turtles
  setup-masked
  setup-mouthBreather
  setup-distancers
  setup-quarantine
  setup-infected
  set max-infected (count turtles with [infected?])
  set transmissibility (probability-of-transmission)
  set pop-density (num-people / (((max-pxcor * 2) + 1) * ((max-pycor * 2) + 1) ) )
  set Ro (0)
  update-plots
  startingconditions
end

to setup-turtles
  create-turtles num-people [
    set color white
    set shape "person"
    set size 2
    set infected? false
    set immune? false
    set mask? false
    set dead? false
    set death? false
    set distanced? false
    set mouthBreather? 0
    set secondaryinfections? 0
    set superspreader? false
    set lambda? random-gamma shape-r ((sociability-prob) / (1 - sociability-prob) )
    set movement? 0
    set quarantine-if-sick? false
    set quarantineDay? 0
    set quarantined? false
    set recovered? false
    set interactions? 0
    set num-neighbors? 0
    set vaccinated? false
    setxy random-pxcor random-pycor
  ]
end

to setup-masked
  ask n-of ((percent-masked / 100) * num-people) turtles [
    set color white
    set shape "person business"
    set mask? true
  ]
end

to setup-distancers
  ask n-of((prop-distancers / 100) * num-people) turtles [
    set distanced? true
  ]
end

; this function makes some turtles become infected

to setup-infected
  ask n-of init-infected turtles [    ;n-of takes two inputs, an integer , and a group (turtles),
    set infected? true
    set color 26
    if mask?
      [set shape "person business"]
    recover-time
  ]
end

to-report random-beta [ #alpha #beta ]
  let XX random-gamma #alpha 1
  let YY random-gamma #beta 1
  report XX / (XX + YY)
end

to-report random-nbinom [ #r #p ]
  let lambda random-gamma #r ((#p) / (1 - #p) )
  report random-poisson lambda
end

to setup-mouthBreather
  let mu (Probability-of-Transmission)
  let v (Transmission-shape-parameter)
  let alpha (mu * v)
  let beta ((1 - mu) * v)

  ask turtles [
    set mouthBreather? ((random-beta alpha beta) * transmissibility-scalar)
  ]
end

to setup-quarantine
  ask n-of ((percent-who-quarantine / 100) * num-people) turtles [
  set quarantine-if-sick? true
  ]
end

to change-tendencies
  setup-masked
  setup-distancers
  setup-quarantine
end

to go
    ask turtles [
    set interactions? (0)
  ]
  no-display
  move-normal1
  ;infect-susceptibles
  quarantine
  recover-infected-die
  recolor
  calculate-daily-intereactions
  if (ticks >= 1) [
      calculate-max-infected
      calculate-daily-delta
      calculate-avg-daily-delta
      calculate-total-infected
      calculate-moving-average
      ]
  if (count turtles with [dead? or recovered?] ) >= 1 [
      set Ro (mean [secondaryinfections?] of turtles with [dead? or recovered?])
  ]
  if vaccinations = true [
    if (ticks < 31) [
    vaccinate
    ]
  ]
 ; if ( ((ticks mod 1) > 0.85) and ((ticks mod 1) < 0.95) ) [
    update-plots ;]

  tick-advance 1
  display
end

to vaccinate
  if (count turtles with [not vaccinated? and not dead? and not immune?] < (num-people * vaccinated-over-30-days) / 30)[
    ask turtles with [not vaccinated? and not dead? and not immune?] [
      set vaccinated? true
    ]
  ]
  if (count turtles with [not vaccinated? and not dead? and not immune?] >= (num-people * vaccinated-over-30-days) / 30)[
      ask n-of ((num-people * vaccinated-over-30-days) / 30) turtles with [not vaccinated? and not dead? and not immune?] [
        set vaccinated? true
      ]
]
end


; see social distancing model for implementing social distancing w/r turtles

to move-normal1

  ask turtles with [not dead? and not distanced? and not quarantined?] [
    set movement? (random-poisson lambda?)
    let y (0)
    let x (0)
    let z (0)
    while [y < ((movement?))][
      right random 360 ;;get a new random heading
      forward movement?

      set interactions? (interactions? + (count (turtles-on neighbors)))
      ;set neighbor-interactions? (count turtles-on neighbors + neighbor-interactions?)
       ;default socialbility is 3 integer becasue finite number of patches maybe change to long tail distribution,
      if (infected? and not immune?)
      [

      infect-susceptibles

      ]
      let foo (1)
      if vaccinated? [
        set foo (1 - vaccine-efficacy)
      ]


      if (not infected? and not immune? and z = 0 )
      [
        ask turtles-on neighbors [
          set interactions? (interactions? + 1)
         ; set neighbor-interactions? (neighbor-interactions? + 1)
          if (infected? and not quarantined?)[
            let infectivity ifelse-value (mask? = true)
            [(mouthBreather? * masked-transmissibility)]
            [mouthBreather?]


            if (random-float 1 < (infectivity * foo))[
              set secondaryinfections? (secondaryinfections? + 1)
              set z 1
            ]
          ]
          if z = 1 [stop]
        ]

        if (z = 1)[
          set infected? true
          set secondaryinfections? 0
          recover-time
        ]
      ]

     set y (y + 1)
     if (z = 1)[
          stop
      ]


    ; add quarantine metric, see social distance model - sociability distanced: how much do people who are social distances move- typically set at zero
  ]
  ]
end

to recover-time

  set infectionDay? (floor ticks) ; maybe remove this floor? but also dont if add incubation period
  let rv (7)
  set recoveryDay? (infectionDay? + rv)
   ifelse random-float 1 < 0.01
    [set death? true]
    [set death? false]
  set quarantineDay? (infectionDay? + 5) ; this should eventually be changed
end

to infect-susceptibles ;; S -> I version of Susceptible Infected Recover model
  ;ask turtles with [infected? and not dead? and not quarantined?][
    let x 0
    let infectivity ifelse-value (mask? = true)
    [(mouthBreather? * masked-transmissibility)]
    [mouthBreather?]
    ask turtles-on neighbors  [
    set interactions? (interactions? + 1)
    let foo (1)
    if vaccinated? [
        set foo (1 - vaccine-efficacy)
      ]
      if (not infected? and not immune?)[
        if (random-float 1 < (infectivity * foo))[
          set secondaryinfections? 0
          set infected? true
          recover-time
          set x (x + 1)
        ]
      ]
    ]
    set secondaryinfections? (secondaryinfections? + x)
    if (secondaryinfections? >= Super-Spreader-Threshold)[
      set superspreader? true
    ]
end

to quarantine ;
  ask turtles with [infected? and not dead? and quarantine-if-sick?]
  [
    if (ticks >= quarantineDay?)
    [set quarantined? true
    ]
  ]
end

to recover-infected-die ;;I -> R

  ;;avg case length is 2 weeks.
  ;;should have 50% chance of becoming immune at 2 weeks
  ;;if we are saying each tick equals 1 day,
  ;;daily odds of recovering should be (1-x)^14=.5, x= 0.0483 ;eventually change this to a Normal? distribution look into this


  ask turtles with [infected? and not dead?]
  [
    if (ticks >= recoveryDay?)
    [
      ifelse (death? = false)
      [
        set infected? false
        set recovered? true ;added
        ifelse (are-survivors-immune? = true)
        [
          set immune? true
          ;set color gray
        ]
        [
          ;set color white
        ]
      ]
      [ set dead? true
        ;set color green
        set infected? false

      ]
      set quarantined? false
    ]
  ]
end

to recolor

  ask turtles with [infected? and not dead? and (secondaryinfections? < Super-Spreader-Threshold)]
  [ set color 26]
  ask turtles with [infected? and not dead? and (secondaryinfections? >= Super-Spreader-Threshold)]
  [ set color red
  set superspreader? true]
  ask turtles with [not infected?]
  [set color white]
  ask turtles with [immune?]
  [set color gray]
  ask turtles with [dead?]
  [ set color green]
  ask turtles with [quarantined?]
  [ set color pink]
end

to calculate-max-infected
  let x (count turtles with [infected? and not dead?])
  if x > max-infected
  [set max-infected x]
end

to calculate-total-infected
  set total-infected ((count turtles with [infected? and not dead?])) ;double parenthesis not necessary
end

to calculate-daily-delta
  set daily-delta (count turtles with [infected? and not dead?] - total-infected)
end

to calculate-avg-daily-delta
  let y (daily-delta)
  set total-delta (total-delta + y)
  set avg-daily-delta (total-delta / ticks)
end

to calculate-moving-average

  set day-1 (day-2)
  set day-2 (day-3)
  set day-3 (day-4)
  set day-4 (day-5)
  set day-5 (daily-delta)
 if (ticks >= 5) [
  set moving-average ((day-1 + day-2 + day-3 + day-4 + day-5) / 5)
  ]
end

to calculate-daily-intereactions
  ask turtles [
    ;set interactions? (interactions? + (count turtles-on neighbors) )
    set num-neighbors? interactions? ; this is pretty dumb and can be cleaned up - but it works rn
  ]
end

to topdecilex
if ticks > 30 [

print("total infected") print(count(turtles with [infected? or recovered? or dead?]))

let mid (median[secondaryinfections?] of turtles with [infected? or recovered? or dead?])
print("median") print(mid)
print("count above median") print(count(turtles with [(infected? or recovered? or dead?) and secondaryinfections? > mid]))


set mid (median[secondaryinfections?] of turtles with [secondaryinfections? > mid])
print("second median")print(mid)
print("mean")print(mean[secondaryinfections?] of turtles with [secondaryinfections? > mid])
print("count above median")print(count(turtles with [(infected? or recovered? or dead?) and secondaryinfections? > mid]))


set mid (median[secondaryinfections?] of turtles with [secondaryinfections? > mid])
print("third median")print(mid)
print("mean")print(mean[secondaryinfections?] of turtles with [secondaryinfections? > mid])
print("count above median")print(count(turtles with [(infected? or recovered? or dead?) and secondaryinfections? > mid]))


set mid (median[secondaryinfections?] of turtles with [secondaryinfections? > mid])
print("fourth median")print(mid)
print("mean")print(mean[secondaryinfections?] of turtles with [secondaryinfections? > mid])
print("count above median")print(count(turtles with [(infected? or recovered? or dead?) and secondaryinfections? > mid]))


set mid (median[secondaryinfections?] of turtles with [secondaryinfections? > mid])
print("fifth median")print(mid)
print("mean")print(mean[secondaryinfections?] of turtles with [secondaryinfections? > mid])
print("count above median")print(count(turtles with [(infected? or recovered? or dead?) and secondaryinfections? > mid]))


  ]
end

to-report topdecile
if count(turtles with [infected? or recovered? or dead?]) > 10 [

;print("bloop")
let infectious (count(turtles with [infected? or recovered? or dead?]) / 10)
let avg ( mean ([secondaryinfections?] of max-n-of infectious turtles [secondaryinfections?]))
;print("average")print(avg)

;print("how many are in top 10%")print(count( max-n-of infectious turtles [secondaryinfections?]))
;print("that times average")print(avg * infectious)
;print("total infected recovered or dead")print(count(turtles with [infected? or recovered? or dead?]) - init-infected)
;print("total secondary infections")print(sum ([secondaryinfections?] of turtles))
;print((avg * infectious) / ((count(turtles with [infected? or recovered? or dead?]) - init-infected)))

let proportion ((avg * infectious) / (sum ([secondaryinfections?] of turtles)))

report proportion
  ]


;print (sum [secondaryinfections?] of turtles)
end

to startingconditions
  print("START")
  print ("num-people") print(num-people)
  print ("sociability-prob") print(sociability-prob)
  print ("shape-r") print(shape-r)
  print ("probability-of-transmission") print(Probability-of-Transmission)
  print ("Transmission-shape-parameter") print(Transmission-shape-parameter)
  print ("density") print(pop-density)
end

to-report max-infected-prop
  report max-infected / num-people
end

to-report prop-dead
  let y (count turtles with [dead?])
  report y / num-people
end

to-report prop-uninfected

  report (count turtles with [not infected? and not immune?]) / num-people
end

There is only one version of this model, created 3 months ago by Alex Brown.

Attached files

File Type Description Last updated
Model of Vaccinations on Covid19.png preview Preview for 'Model of Vaccinations on Covid19' 3 months ago, by Alex Brown Download

This model does not have any ancestors.

This model does not have any descendants.
