forest-seekers

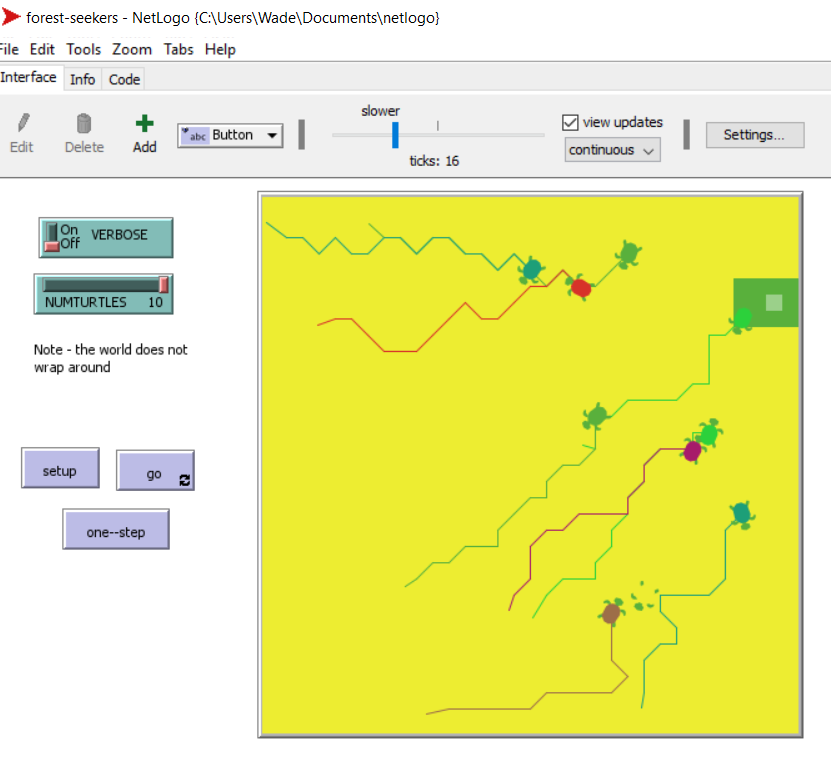

forest-seekers preview image

1 collaborator

Army_coat_pix R. Wade Schuette (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 6.2.0 • Viewed 118 times • Downloaded 3 times • Run 0 times
Download the 'forest-seekers' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [XC YC]


patches-own
[ R ]

to setup
  clear-all
  ;;set VERBOSE true;

  ;; make some patches, forest is all resistance <= 2
  ask patches [ set R  2.1 + random-float  5  set pcolor yellow]
  ask patches [ if pxcor > 12 and pycor  > 8 and pycor < 12 [set R 1 + random-float 1 set pcolor green]]

  ;; compute centroid of the green
  set XC   mean [pxcor] of patches with [ pcolor = green ]
  set YC   mean [pycor] of patches with [ pcolor = green ]
       if VERBOSE [ print (word " centroid of green is (" XC " , " YC " ) ") ]

  ask patch XC YC [ set pcolor ( green + 2 )  ]  ;; I'll use test of R to determine when to stop

  create-turtles NUMTURTLES [   set size 2 setxy random-xcor random-ycor set shape "turtle" ]
  ask turtles [pen-down]
  reset-ticks
end

to go
  if ( 0 = count turtles with [ R > 2 ] ) [ stop ]

  ;; since turtles don't own a variable R the next statement checks the patch each turtle is on for an R value
  ask turtles with [  R > 2 ]
  [
    ;; get my distance from the forest centroid
    let Z distancexy XC YC
           if VERBOSE [ print (word  " x: " xcor " y: " ycor "patch R: " R " Z = " Z ) ]

    ;; get a list of my neighbors
    let nearbylist [self] of neighbors
           if VERBOSE [ print ( word "neighbors of turtle " who "shows") ]

    ;; create a list of indices
    let listplace n-values (  length nearbylist) [ i -> i]

    ;; create a list of distance of each neighbor from the forest centroid
    let dlist [];
    foreach nearbylist [ x -> ask (patch xc yc) [ set dlist lput distance x dlist]  ]
           if VERBOSE [ show dlist ]

    ;; let's be sure we have this correctly, so report the patch and the distance
           if VERBOSE [ foreach listplace [ x -> print (word x " " ( item x nearbylist) " is " ( item x dlist) " from XC YC" )]]
           if VERBOSE [ print ( word " and I am now distance "  Z  " from XC YC " ) ]
           if VERBOSE [ print "so i need to discard items further away from me to get a new better short candiate list "]

    ;; create a list of just those neighbors closer to the forest centroid than I am
    let shortlist [];

    foreach listplace [ x ->      if item x dlist < Z [ set shortlist lput item x nearbylist shortlist ]]
           if VERBOSE [ show shortlist ]
           if VERBOSE [ print " and these patches have these resistances "]
           if VERBOSE [ foreach shortlist [ x -> ask x [ print R ]   ] ]

    ;; create a list of the resistances of those candidates for my next move
    let rlist [ ]
    foreach shortlist [ x -> ask x  [set rlist lput   R   rlist] ]
           if VERBOSE [ show rlist ]

    ;; find the smallest resistance  ( may be duplicated )
    let minr min rlist
           if VERBOSE [  print (word "min resistance is " minr )]

    ;; find the first neighbor with the minimum resistance ( stops looking when it finds one )
    set listplace n-values (length shortlist) [ i -> i]
           if VERBOSE [ print (word " listplace is now : " listplace) ]

    ;; initialize target to something in all cases so the compiler is happy
    let target patch 0 0
           if VERBOSE [ print "target initialized" ]

    foreach listplace [ x -> if ( item x rlist = minr )  [ set target ( item x shortlist ) ]  ]
           if VERBOSE [ print ( word "moving to "  target )]

    move-to target
  ]
tick
end


There is only one version of this model, created 4 months ago by R. Wade Schuette.

Attached files

File Type Description Last updated
forest-seekers.png preview Preview for 'forest-seekers' 4 months ago, by R. Wade Schuette Download

This model does not have any ancestors.

This model does not have any descendants.
