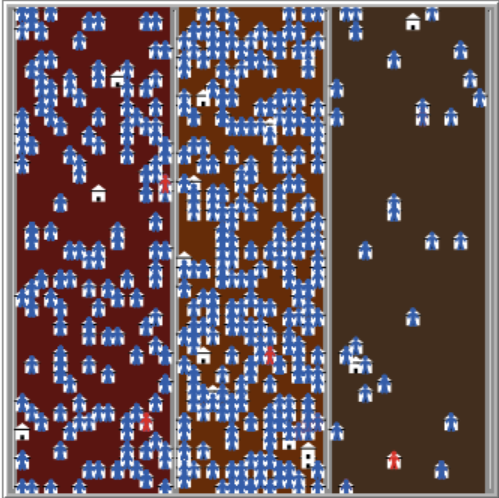

COVID 19 Model preview image

This model is seeking new collaborators — would you please help?

2 collaborators

Default-person Jonathan Huang (Author)
Berke Nuri (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 6.1.1 • Viewed 124 times • Downloaded 3 times • Run 0 times
Download the 'COVID 19 Model' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

This COVID-19 Model is an Agent-Based-Model looking at how different demographic factors and policy interventions impact COVID-19 transmission and health outcomes.

HOW IT WORKS

An initial population of agents (blue-colored humanoids) are randomly placed in the model space with an initial population of infected individuals (red). As time moves forward, agents move randomly through the model space according to specified parameters such as number of stationary individuals and mobility. Infected individuals transmit the virus to susceptible individuals by coming within a certain distance of each other. Whether the susceptible individual becomes infected is determined by a random probability, the likelihood of which increases as transmission rate increases. The model can be run with and without immune individuals; when ran with immunity, infected individuals will become immune (color changes to gray) according to a random probability, the liklihood of which increases with increasing recovery rate. Mortality rate can be adjusted. The ability of hospitals to cope with the proportion of infected individuals can be adjusted as well. Once the proportion of infected individuals is greater than health care capacity mortality increases an order of magnitude, as predicted by other current models.

HOW TO USE IT

After adjusting the parameters, described below, simply click the setup button and click go. The model will continue to run until there are either no more infected individuals or no more susceptible individuals.

THINGS TO NOTICE

THINGS TO TRY

EXTENDING THE MODEL

If you have any suggestions for things to add or change in the model feel free to contact me at jonathan.huang@richmond.edu.

RELATED MODELS

This model was inspired from these models:

SIR Model with random movement by Paul Smaldino http://smaldino.com/wp/

COVID-19 epidemics with Non-Pharmaceutical Interventions and zonal restraints by Sergio Rojas-Galeano and Lindsay Alvarez http://modelingcommons.org/browse/onemodel/6374#modeltabsbrowseinfo

Many Regions Example by Nicolas Payette http://www.netlogoweb.org/launch#http://ccl.northwestern.edu/netlogo/models/models/Code%20Examples/Many%20Regions%20Example.nlogo

CREDITS AND REFERENCES

CREATIVE COMMONS LICENSE This code is distributed by Nich Martin under a Creative Commons License: Attribution-ShareAlike 4.0 International (CC 4.0) https://creativecommons.org/licenses/by/4.0/

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [
  rich-population
  middle-population
  poor-population
  region-boundaries
  hospital-beds-occupied
  population-density
  dead-total-age
  dead-total-gdp
  number-vaccinated-once
  number-vaccinated-twice
  n-cases
  n-confirmed
  day
  hour
  vaccine-interval
  test-interval
  leave-time
  return-time
  one-dose-success
]

breed[ rich-houses rich-house ]
breed[ middle-houses middle-house ]
breed[ poor-houses poor-house ]
breed[ people person]
breed[ houses house ]

patches-own [
  region
]

turtles-own[
  homebase
  commute
  susceptible?
  infected?
  immune?
  stationary?
  hospitalized?
  vaccinated?
  one-dose?
  two-dose?
  sick-time
  age
  mobility
  infected-mortality
  chance-of-recovery
  income
  antivaxxer?
  household-size
  tested?
  tested-positive?
  quarantined?
  masked?
  dose-counter
  infection-rate
  area
]

to go
  if (count people with [infected?] = 0) [stop]
  move
  random-testing
  quarantine-positive-tested
  infect-susceptibles
  vaccinate
  illness
end -quarantine
  clock
  tick
end

to setup
  clear-all
  setup-globals
  setup-regions 3
  setup-people
  setup-houses
  setup-segregate
  setup-infected
  reset-ticks
end

to setup-globals
  set population-density initial-population
  set number-vaccinated-once 0
  set number-vaccinated-twice 0
  set dead-total-age 0
  set dead-total-gdp 0
  set n-cases 0
  set n-confirmed 0
  set hospital-beds-occupied 0
  (ifelse distribution-interval = "Every Hour" [set vaccine-interval 24]
      distribution-interval = "Once a Day" [set vaccine-interval 1]
      distribution-interval = "Once a Week" [set vaccine-interval 1 / 7])

  (ifelse testing-interval = "Every Hour" [set test-interval 24]
    testing-interval = "Once a Day" [set test-interval 1]
    testing-interval = "Once a Week" [set test-interval 1 / 7])

  (ifelse lockdown-end = "1:00 AM" [set leave-time 1]
  lockdown-end = "2:00 AM" [set leave-time 2]
  lockdown-end = "3:00 AM" [set leave-time 3]
  lockdown-end = "4:00 AM" [set leave-time 4]
  lockdown-end = "5:00 AM" [set leave-time 5]
  lockdown-end = "6:00 AM" [set leave-time 6]
  lockdown-end = "7:00 AM" [set leave-time 7]
  lockdown-end = "8:00 AM" [set leave-time 8]
  lockdown-end = "9:00 AM" [set leave-time 9]
  lockdown-end = "10:00 AM" [set leave-time 10]
  lockdown-end = "11:00 AM" [set leave-time 11]
  lockdown-end = "12:00 PM" [set leave-time 12])

  (ifelse lockdown-start = "1:00 PM" [set return-time 1]
    lockdown-start = "2:00 PM" [set return-time 2]
    lockdown-start = "3:00 PM" [set return-time 3]
    lockdown-start = "4:00 PM" [set return-time 4]
    lockdown-start = "5:00 PM" [set return-time 5]
    lockdown-start = "6:00 PM" [set return-time 6]
    lockdown-start = "7:00 PM" [set return-time 7]
    lockdown-start = "8:00 PM" [set return-time 8]
    lockdown-start = "9:00 PM" [set return-time 9]
    lockdown-start = "10:00 PM" [set return-time 10]
    lockdown-start = "11:00 PM" [set return-time 11]
    lockdown-start = "12:00 AM" [set return-time 12])
end

to setup-regions [ num-regions ] ;num-regions = 3
  if income-separation? [
  foreach region-divisions num-regions draw-region-division set region-boundaries calculate-region-boundaries num-regions
  let region-numbers (range 1 (num-regions + 1))
  (foreach region-boundaries region-numbers [ [boundaries region-number] ->
    ask patches with [ pxcor >= first boundaries and pxcor <= last boundaries ] [
      set region region-number
    ]
  ])
  ]

  ask patches with [ region != 0 ] [
   set pcolor 2 + region * 10
    set plabel-color pcolor + 1

  ]
end

to-report region-divisions [ num-regions ] ;num-regions = 3
  ; This procedure reports a list of pxcor that should be outside every region.
  ; Patches with these pxcor will act as "dividers" between regions.
  report n-values (num-regions + 1) [ n ->
    [ pxcor ] of patch (min-pxcor + (n * ((max-pxcor - min-pxcor) / num-regions))) 0
  ]
end

to draw-region-division [ x ]
  ask patches with [ pxcor = x ] [
    set pcolor grey
  ]
  create-turtles 1 [
    ; use a temporary turtle to draw a line in the middle of our division
    setxy x max-pycor
    set heading 0
    set color grey - 3
    pen-down
    forward world-height
    set xcor xcor + 1 / patch-size
    right 180
    set color grey + 3
    forward world-height
    die]
end

to-report calculate-region-boundaries [ num-regions ] ;num-regions = 3
  ; The region definitions are built from the region divisions:
  let divisions region-divisions num-regions
  ; Each region definition lists the min-pxcor and max-pxcor of the region.
  ; To get those, we use `map` on two "shifted" copies of the division list,
  ; which allow us to scan through all pairs of dividers
  ; and built our list of definitions from those pairs:
  report (map [ [d1 d2] -> list (d1 + 1) (d2 - 1) ] (but-last divisions) (but-first divisions))
end

to setup-people
  create-people initial-population [
    set color blue
    set shape "person"
    set size 2
    set commute commute-distance
    set heading random 360
    set susceptible? true
    set infected? false
    set immune? false
    set stationary? false
    set hospitalized? false
    set vaccinated? false
    set tested? false
    set tested-positive? false
    set quarantined? false
    set one-dose? false
    set two-dose? false
    set sick-time 0
    set dose-counter 0
    set antivaxxer? random 100 <= anti-vaccination-proportion
    set area 0

    let coinA random 100
      let coinB random 10
        ifelse (coinA < percent-age-ten )[
          set age coinB
          set infected-mortality 0.0001][
            ifelse (coinA < percent-age-twenty )[
              set age (coinB + 10)
              set infected-mortality 0.05][
                ifelse (coinA < percent-age-thirty )[
                  set age (coinB + 20)
                  set infected-mortality 0.105][
                    ifelse (coinA < percent-age-forty )[
                      set age (coinB + 30)
                      set infected-mortality 0.188][
                        ifelse (coinA < percent-age-fifty )[
                          set age (coinB + 40)
                          set infected-mortality 0.295][
                            ifelse (coinA < percent-age-sixty )[
                              set age (coinB + 50)
                              set infected-mortality 0.8][
                                ifelse (coinA < percent-age-seventy )[
                                  set age (coinB + 60)
                                  set infected-mortality 2.7][
                                    ifelse (coinA < percent-age-eighty )[
                                       set age (coinB + 70)
                                       set infected-mortality 7.98]
                                       [set age (coinB + 80)
                                        set infected-mortality 15.9]
                            ]
                           ]
                          ]
                         ]
                        ]
                       ]
                      ]

    set income random-normal average-household-income income-spread
    if (income < 0)[set income 0]

    set infection-rate  (transmission-rate + (population-density * 0.00004 ) - (income * 0.0000001))
    if (infection-rate > 1) [set infection-rate 1]

    set infected-mortality (infected-mortality + (-0.00004 * (income - 50577)))
    if (infected-mortality < 0) [set infected-mortality 0]

    set chance-of-recovery (100 - infected-mortality)
    if (chance-of-recovery < 0)[set chance-of-recovery 0]

    ifelse masks?
    [
      ifelse (random-float 100 < mask-effort)
      [set masked? true]
      [set masked? false]
    ]
    [
      set masked? false
    ]

    ifelse age < 15 [
      set mobility (age / 50)][
      ifelse age > 65[
        set mobility ((age - 50) / 50)]
      [set mobility ((100 - age) / 50)] ;15-65 year olds
    ]
  ]
end

to setup-infected

  let rich-count count people with [income > middle-class-income-end]
  let middle-count count people with [income > middle-class-income-start and income < middle-class-income-end]
  let poor-count count people with [income < middle-class-income-start]

  ifelse rich-count > initial-infected-rich
  [
    ask n-of initial-infected-rich people with [income > middle-class-income-end]
    [
      set color red
      set infected? true
    ]
  ]
  [
    ask n-of rich-count people with [income > middle-class-income-end]
    [
      set color red
      set infected? true
    ]
  ]

  ifelse middle-count > initial-infected-middle
  [
    ask n-of initial-infected-middle people with [income > middle-class-income-start and income < middle-class-income-end]
    [
      set color red
      set infected? true
    ]
  ]
  [
    ask n-of middle-count people with [income > middle-class-income-start and income < middle-class-income-end]
    [
      set color red
      set infected? true
    ]
  ]

  ifelse poor-count > initial-infected-poor
  [
    ask n-of initial-infected-poor people with [income < middle-class-income-start]
    [
      set color red
      set infected? true
    ]
  ]
  [
    ask n-of poor-count people with [income < middle-class-income-start]
    [
      set color red
      set infected? true
    ]
  ]
end

to setup-houses

    (ifelse housing? and income-separation? [

    set rich-population count people with [income > middle-class-income-end]
    set middle-population count people with [income > middle-class-income-start and income < middle-class-income-end]
    set poor-population count people with [income < middle-class-income-start]

    let r 0
    ifelse (rich-population < rich-household-size)
    [set r 1]
    [set r rich-population / rich-household-size]

    create-rich-houses r [
    let rich-patch patches with [ region = 3 ]
    move-to one-of rich-patch
    set color white set shape "house" set size 2]

    let m 0
    ifelse (middle-population < middle-class-household-size)
    [set m 1]
    [set m middle-population / middle-class-household-size]

    create-middle-houses m [
    let middle-patch patches with [ region = 2 ]
    move-to one-of middle-patch
    set color white set shape "house" set size 2
    ]

    let p 0
    ifelse (poor-population < poor-household-size)
    [set p 1]
    [set p poor-population / poor-household-size]

    create-poor-houses p [
      let poor-patch patches with [ region = 1 ]
      move-to one-of poor-patch
      set color white set shape "house" set size 2
    ]
  ]
    housing? and not income-separation? [
      create-houses initial-population / 4 [
      setxy random-xcor random-ycor
        set color white set shape "house" set size 2
      ]
    ]
    )
end

to setup-segregate
  ask people [
  (ifelse housing? and income-separation? [
      if (income > middle-class-income-end and count rich-houses > 0 )[set homebase one-of rich-houses move-to homebase]
      if (income < middle-class-income-end and income > middle-class-income-start and count middle-houses > 0) [set homebase one-of middle-houses move-to homebase]
      if (income < middle-class-income-start and count poor-houses > 0) [set homebase one-of poor-houses move-to homebase]
    ]
      housing? and not income-separation? [
        set homebase one-of houses move-to homebase
      ]
      not housing? and not income-separation? [
      setxy random-xcor random-ycor
      ]
    )
  ]
end

to move
  (ifelse housing? and lockdown?
    [
      ifelse ((hour mod 24) >= leave-time and (hour mod 24) <= (return-time + 12))
      [
        ask people with [not hospitalized? and not quarantined?]
        [
          forward mobility                                         ; move ahead
          if distance homebase > commute [ face homebase ]            ; if too far from home, head back
          if (any? patches in-radius 1 with [pxcor = max-pxcor or pxcor = min-pxcor or pycor = min-pycor or pycor = max-pycor]) [face homebase]
          set heading heading + (random-float 5 - random-float 5)
        ]
      ]
      [ask people with [not hospitalized? and not quarantined?]
        [
          ifelse patch-here = homebase [set heading random-float 360 forward 0] [face homebase forward mobility]
        ]
      ]                       ; once it is not commute time, ask people to return to homes and stay there until next day
    ]
    housing? and not lockdown?
    [
      ask people with [not hospitalized? and not quarantined?]
      [
        forward mobility                                         ; move ahead
        if distance homebase > commute [ face homebase ]            ; if too far from home, head back
        if (any? patches in-radius 1 with [pxcor = max-pxcor or pxcor = min-pxcor or pycor = min-pycor or pycor = max-pycor]) [face homebase]
        set heading heading + (random-float 5 - random-float 5)
      ]
    ]
    not housing? and lockdown?
    [
      ifelse ((hour mod 24) >= leave-time and (hour mod 24) <= (return-time + 12))
      [
        ask people with [not hospitalized? and not quarantined?]
        [forward mobility]
      ]
      [ask people with [not hospitalized? and not quarantined?]
        [forward 0]
      ]
    ]
    not housing? and not lockdown?
    [
      ask people with [not hospitalized? and not quarantined?]
      [forward mobility]
    ]
  )
end

to random-testing
  if testing?
  [
    let target turtle-set people with [not tested-positive?]
    ask n-of (count target * population-tested-percent) target
    [
      if (ticks mod (round(ticks-day / test-interval)) = 0 and ticks > 0)
      [
        set tested? true

        if infected?
        [
          ifelse (random-float 1 < false-negative-rate)
          [set tested-positive? false]
          [
            set tested-positive? true
            set n-confirmed n-confirmed + 1
          ]
        ]

        if not infected?
        [
          ifelse (random-float 1 < false-positive-rate)
          [
            set tested-positive? true
            set n-confirmed n-confirmed + 1
          ]
          [set tested-positive? false]
        ]
      ]
    ]
  ]
end

to quarantine-positive-tested
  if testing? and housing?
  [
    ask people with [tested? and tested-positive? and not hospitalized?]
    [
      if (random 100 < quarantine-effort)
      [set quarantined? true
        ifelse patch-here = homebase [forward 0] [face homebase forward mobility]
      ]
    ]
  ]
end

to vaccinate
  if vaccination?
  [
    let vaccinate-priority-people turtle-set people

    (ifelse vaccine-priority = "No Priority"
      [set vaccinate-priority-people turtle-set people with [not vaccinated? and not infected? and not immune? and not hospitalized? and not antivaxxer?]]

      vaccine-priority = "Ages 0-20"
      [set vaccinate-priority-people turtle-set people with [not vaccinated? and not infected? and not immune? and not hospitalized? and not antivaxxer? and age < 20]]

      vaccine-priority = "Ages 20-50"
      [set vaccinate-priority-people turtle-set people with [not vaccinated? and not infected? and not immune? and not hospitalized? and not antivaxxer? and age > 20 and age < 50]]

      vaccine-priority = "Ages 50 and up"
      [set vaccinate-priority-people turtle-set people with [not vaccinated? and not infected? and not immune? and not hospitalized? and not antivaxxer? and age >= 50]]
    )

    let vaccine-ready-people turtle-set people with [not vaccinated? and not infected? and not immune? and not hospitalized? and not antivaxxer?]
    let n count vaccine-ready-people
    let x count vaccinate-priority-people

    if (x = 0)
    [
      set vaccinate-priority-people turtle-set vaccine-ready-people
      set x n
    ]

    (ifelse dose-amount = 1
      [
        if (ticks mod (round(ticks-day / vaccine-interval)) = 0 and ticks > 0)
        [
          ;let n count vaccinate-people
          ifelse ((vaccinated-proportion * .01 * n) <= x)
          [
            ask (n-of (vaccinated-proportion * .01 * n) vaccinate-priority-people)
            [
              set number-vaccinated-once number-vaccinated-once + 1
              set vaccinated? true
              set one-dose? true
              set color green

              if (random-float 100 < one-dose-success)
              [
                set susceptible? false
                set immune? true
              ]
            ]
          ]
          [
            ask (vaccinate-priority-people)
            [
              set number-vaccinated-once number-vaccinated-once + 1
              set vaccinated? true
              set one-dose? true
              set color green

              if (random-float 100 < one-dose-success)
              [
                set susceptible? false
                set immune? true
              ]
            ]
          ]
        ]

        ask people with [one-dose?]
        [
          set dose-counter dose-counter + 1

          ifelse (dose-counter / ticks-day) > 14
          [
            set one-dose-success one-dose-success-after-14-days
          ]
          [
            set one-dose-success one-dose-success-first-14-days
          ]
        ]
      ]

      dose-amount = 2
      [
        if (ticks mod (round(ticks-day / vaccine-interval)) = 0 and ticks > 0)[
          ;let n count vaccinate-people
          ifelse ((vaccinated-proportion * .01 * n) <= x)
          [
            ask (n-of (vaccinated-proportion * .01 * n) vaccinate-priority-people)
            [
              set number-vaccinated-once number-vaccinated-once + 1
              set vaccinated? true
              set one-dose? true
              set color green

              if (random-float 100 < one-dose-success)
              [
                set susceptible? false
                set immune? true
              ]
            ]
          ]
          [
            ask (vaccinate-priority-people)
            [
              set number-vaccinated-once number-vaccinated-once + 1
              set vaccinated? true
              set one-dose? true
              set color green

              if (random-float 100 < one-dose-success)
              [
                set susceptible? false
                set immune? true
              ]
            ]
          ]
        ]

        let m people with [one-dose? and not two-dose?]
        let two count m
        ask n-of two m
        [
          set dose-counter dose-counter + 1

          ifelse (dose-counter / ticks-day) > 14
          [
            set one-dose-success one-dose-success-after-14-days
          ]
          [
            set one-dose-success one-dose-success-first-14-days
          ]
        ]

        ask (n-of (vaccine-completion * .01 * two) m)
        [
          if (dose-counter / ticks-day) > dose-wait-time
          [
            if (random-float 100 < two-dose-success)
            [
              set number-vaccinated-twice number-vaccinated-twice + 1
              set immune? true
              set vaccinated? true
              set susceptible? false
              set color green
              set two-dose? true
            ]
          ]
        ]
      ]
    )
  ]
end

to infect-susceptibles
  ;S -> I
  ask people with [susceptible?]
  [
    let infected-neighbors (count other people with [infected?] in-radius (0.12 - (0.06 * social-distancing-effort / 100)) )

    let mask-effect 1

    if (masked?)
    [
      set mask-effect (1 - (mask-effectiveness * 0.01))
    ]

    if (random-float 1 <  (1 - (1 - (infection-rate * mask-effect)) ^ infected-neighbors) and not immune? and not hospitalized? and not quarantined?)
    [
      set susceptible? false
      set infected? true
      set color red
      set n-cases n-cases + 1
    ]
  ]
end

to illness
  ask people with [infected? or (tested? and tested-positive?)]
  [
    set sick-time sick-time + 1
  ]

  ask people with [infected?]
  [

    ;I -> H
    if (not tested? and not hospitalized? and int(sick-time / ticks-day) > 5) or
       (tested? and tested-positive? and not hospitalized? and not vaccinated?)
    [
      if (hospital-beds-occupied < healthcare-capacity and age >= 50 and income > middle-class-income-start )
      [
        set hospitalized? true
        set color yellow
        set hospital-beds-occupied hospital-beds-occupied + 1
        set chance-of-recovery chance-of-recovery * 2

        if (chance-of-recovery > 100)
        [set chance-of-recovery 100]
      ]
    ]

    ;H -> Die during sickness
    if (int(sick-time / ticks-day) < duration and hospitalized?)
    [
      if (random-float 100 < ((infected-mortality / 2) / (duration * ticks-day)))
      [
        set dead-total-age dead-total-age + age
        set dead-total-gdp dead-total-gdp + income
        die
        set hospital-beds-occupied hospital-beds-occupied - 1
      ]
    ]

    ;I -> Die during sickness
    if (int(sick-time / ticks-day) < duration and not hospitalized?)
    [
      if (random-float 100 < ((infected-mortality) / (duration * ticks-day)))
      [
        set dead-total-age dead-total-age + age
        set dead-total-gdp dead-total-gdp + income
        die
        set hospital-beds-occupied hospital-beds-occupied - 1
      ]
    ]

    ;Sickness duration complete
    if (int(sick-time / ticks-day) >= duration)
    [
      ;I -> R
      ifelse (random-float 100 < chance-of-recovery)
      [
        if hospitalized?
        [
          set hospitalized? false
          set hospital-beds-occupied hospital-beds-occupied - 1
        ]

        set infected? false
        set immune? true
        set sick-time 0
        set susceptible? false
        set color gray
      ]

      ;I -> Die after sickness duration is complete
      [
        if hospitalized?
        [
          set hospitalized? false
          set hospital-beds-occupied hospital-beds-occupied - 1
          set dead-total-age dead-total-age + age
          set dead-total-gdp dead-total-gdp + income
          die
        ]
        set dead-total-age dead-total-age + age
        set dead-total-gdp dead-total-gdp + income
        die
      ]
    ]
  ]
end

to end-quarantine
  ask people with [quarantined?]
  [
    if (int(sick-time / ticks-day) >= duration)
    [set quarantined? false]
  ]
end

to clock                                    ; ticks-day refers to the total number of ticks in one day
  set day int (ticks / ticks-day)           ; track of number of days elapsed since beginning
  set hour int ((ticks / ticks-day) * 24)   ; track of number of hours elapsed since beginning
end

to-report prop-infected
  report ((count people with [infected?]) / initial-population)
end

to-report prop-uninfected
  report 1 - ((count people with [infected?]) / initial-population)
end

to-report num-dead
  report (initial-population - count people)
end

to-report prop-dead
  report (initial-population - count people) / initial-population
end

to-report population
  report count people
end

to-report immune
  report count people with [immune?]
end

to-report infected
  report count people with [infected?]
end

to-report hospitalized-proportion
  report count people with [hospitalized?]
end

to-report cumulative-infected
  report (n-cases + initial-infected-rich + initial-infected-middle + initial-infected-poor) / initial-population
end

to-report prop-hospital-beds-occupied
  report hospital-beds-occupied / healthcare-capacity
end

to-report dead-avg-age
  report (dead-total-age / (initial-population - count people))
end

to-report dead-avg-gdp
  report (dead-total-gdp / (initial-population - count people))
end

to-report total-cases
  report n-cases + initial-infected-rich + initial-infected-middle + initial-infected-poor
end

to-report confirmed-cases
  report n-confirmed
end

to-report total-vaccinated
  report count people with [vaccinated?]
end

to-report recieved-two-doses
  report count people with [two-dose?]
end

to-report recieved-one-dose
  report count people with [one-dose? and not two-dose?]
end

There are 3 versions of this model.

Uploaded by When Description Download
Jonathan Huang 3 months ago Population Settings Download this version
Jonathan Huang 3 months ago Division by zero error fixed Download this version
Jonathan Huang 3 months ago Initial upload Download this version

Attached files

File Type Description Last updated
COVID 19 Model.png preview Preview for 'COVID 19 Model' 3 months ago, by Jonathan Huang Download

This model does not have any ancestors.

This model does not have any descendants.
