Edge Effect on Frogs of Caqueta, Colombia

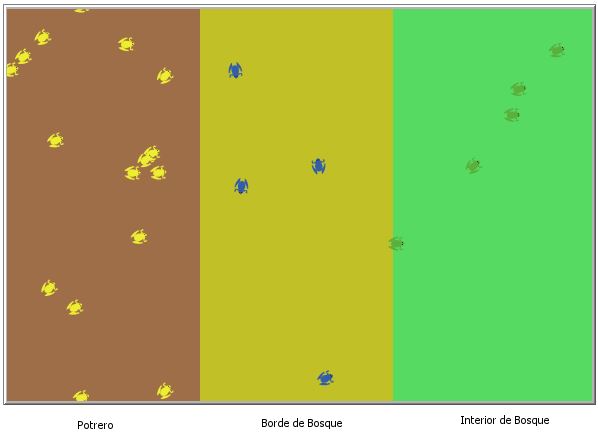

Edge Effect on Frogs of Caqueta, Colombia preview image

1 collaborator

Default-person Martín Otalora (Author)

Tags

colombia frogs

"Because this is the country from which the information comes from"

Tagged by Martín Otalora about 2 years ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 6.2.0 • Viewed 254 times • Downloaded 7 times • Run 0 times
Download the 'Edge Effect on Frogs of Caqueta, Colombia' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Esta Chevere

solo eso, esta chevere

Posted 6 months ago

Click to Run Model

; especies Dendropsophus mathiassoni,No bosque
; Amazophrynella minuta Leptodactylus petersii Pristimantis variabilis, borde
; Engystomops petersi Pristimantis acuminatus Pristimantis conspicillatus bosque

; Todas las tortugas poseen energia, pueden consumirla y recuperarla
turtles-own [energia]
;La tierra tiene tres estados, borde abandono y bosque. Cada estado tiene sus valores de temperatura, humedad relativa y dosel
patches-own
[bordear
abandono
reforestado
potrerizado
temperatura
humedad
dosel
]
breed [ potreros potrero ]  ; grupo 1: Dendropsophus mathiassoni,No bosque
breed [ bordes borde ] ; Grupo 2: Amazophrynella minuta, Leptodactylus petersii, Pristimantis variabilis, borde
breed [ bosques bosque ]; Grupo 3: Engystomops petersi, Pristimantis acuminatus, Pristimantis conspicillatus, bosque

To Valores_neutros

  set poblacion_potreros 15
  set poblacion_bordes 4
  set poblacion_bosques 5
  set tasa-restauracion 50
  set tasa-abandono 30
  set tasa-deforestacion 50
  set capacidad_huir_potrero 4
  set capacidad_huir_borde 5
  set capacidad_huir_bosque 2
  set tiempo_de_reproduccion_borde 10
end

to setup
  resize-world 0 90 0 60
  clear-all
;Se segmenta el mundo en potrero, borde y bosque. Se ponen colores para diferenciarlos
  ask patches with [
    pxcor <= 30 and
    pxcor >= min-pxcor and
    pycor <= 60 and
    pycor >= min-pycor ] [
    set pcolor 35
    set temperatura 26.5
    set dosel 1
   set humedad 90.4
  ]
 ;Potrero
  ask patches with [
    pxcor <= 60 and
    pxcor >= 30 and
    pycor <= 60 and
    pycor >= min-pycor ] [
    set pcolor 44
    set temperatura 29
    set dosel 84.3
   set humedad 79.3;
  ]
  ;Borde
  ask patches with [
    pxcor <= 90 and
    pxcor >= 60 and
    pycor <= 60 and
    pycor >= min-pycor ] [
    set pcolor 66
   set temperatura 26.3
   set dosel 85.2
   set humedad 94 ;
  ]
  ;Bosque

 ;se establece la forma de la rana
set-default-shape turtles "frog top"
 ; Se establecen las condiciones de las ranas, tamaño color y lugar de aparicion. La energia sera igual en todas las ranas en el set up.

   create-potreros poblacion_potreros

  [ set size 3        ;; easier to see
    set color yellow
setxy random xcor random ycor
move-to one-of patches with [pcolor = 35]
    set heading random 45 + 45
    set energia 50
 ]   ;; red = not carrying food

 ;Potrero

    create-bordes poblacion_bordes

  [ set size 3        ;; easier to see
    set color blue
setxy random xcor random ycor
move-to one-of patches with [pcolor = 44]
    set energia 50
    set heading random 360
 ]
; Borde

   create-bosques poblacion_bosques

  [ set size 3        ;; easier to see
    set color green
setxy random xcor random ycor
move-to one-of patches with [pcolor = 66]
    set energia 50
    set heading random 45 + 45
 ]
 ; Bosque
    reset-ticks
end

to iniciar
  ask potreros [
    morir-r
    if energia < 20 [descansar-potrero]
    if energia >= 20 and energia <= 80 [move-potrero]
    if energia > 80 [ if ticks mod 10 = 0 [reproducirse-potrero]]
    set heading random 360
      fd 1
 set energia energia - 2
  ]
ask bordes [
    morir
    if energia < 20 [descansar-borde]
    if energia >= 20 and energia <= 80 [move-borde]
    if energia > 80 [ if ticks mod 10 = 0 [reproducirse-borde]]
    set heading random 360
      fd 1
 set energia energia - 2
  ]

  ask bosques [
    morir
    if energia < 20 [descansar-bosque]
    if energia >= 20 and energia <= 80 [move-bosque]
    if energia > 80 [ if ticks mod 10 = 0 [reproducirse-bosque]]
    set heading random 360
      fd 1
 set energia energia - 2
  ]

  ask patches [restauracion]
 ask patches [deforestacion]
 ask patches [abandonacion]
 ask patches [borderizacion]



if ticks >= 500 [stop]
tick
end

to restauracion

  set reforestado 0
  if pcolor = 35 [
     set reforestado count neighbors with [pcolor = 44 or pcolor = 25 or pcolor = 75] ]
  if reforestado >= 3 [if random 100 <= tasa-restauracion and tasa-restauracion > 0 [
    set pcolor 75
    set temperatura 24.4 + random 3
    set humedad 91 + random 9
    set dosel 82 + random 5 ]
  ]
end

to deforestacion
  set potrerizado 0
  if pcolor = 44 or pcolor = 25 or pcolor = 75 or pcolor = 66 [
     set potrerizado count neighbors with [pcolor = 35] ]
  if potrerizado >= 3 [if random 100 <= tasa-deforestacion [
    set pcolor 35
    set temperatura 22.7 + random 5
    set humedad 84.5 + random 10
    set dosel 0 + random 10]
  ]
end

to abandonacion
  set abandono 0
  if tasa-deforestacion <= 0 and tasa-restauracion <= 0[
  if pcolor = 35 [
     set abandono count neighbors with [pcolor = 44 or pcolor = 25] ]
  if abandono >= 3 [if random 100 <= tasa-abandono [
    set pcolor 25
    set temperatura 24.6 + random 8
    set humedad 68 + random 14
    set dosel 79 + random 9]
  ]
  ]
end

to borderizacion
  set bordear 0
  if pcolor = 44 or pcolor = 25 or pcolor = 35 [
     set bordear count neighbors with [pcolor = 66] ]
  if bordear >= 3 [if random 100 <= (tasa-restauracion - tasa-deforestacion) [
    set pcolor 66
    set temperatura 24.4 + random 3
    set humedad 91 + random 9
    set dosel 82 + random 5 ]
  ]
end

to move-potrero
  ask turtles in-radius 4 [
   ifelse temperatura >= 28.6 or temperatura <= 22.6 or dosel >= 5 or humedad <= 84 [
     if any? patches with [temperatura >= 22.6  or dosel <= 5 or humedad >= 85 and pcolor = 35 or pcolor = 44 or pcolor = 25 or pcolor = 75][
      face one-of patches with  [temperatura >= 22.6  or dosel <= 5 or humedad >= 85 and pcolor = 35 or pcolor = 44 or pcolor = 25 or pcolor = 75]
     fd Capacidad_huir_Potrero
    set energia energia - 10
    ]]
     [descansar-potrero]
  ]
end

to descansar-potrero
  ifelse pcolor = 35 [
    set energia energia + 6]
  [set energia energia + 1]
end

to move-borde
     ask turtles in-radius 5 [ifelse temperatura >= 33.0 or temperatura <= 24.6 or dosel <= 80 or humedad <= 68 [
    if any? patches with [temperatura >= 24.6  or dosel >= 80 or humedad >= 70 and pcolor = 44 or pcolor = 66 or pcolor = 75 or pcolor = 25][
    face one-of patches with [temperatura >= 24.6  or dosel >= 80 or humedad >= 70 and pcolor = 44 or pcolor = 66 or pcolor = 75 or pcolor = 25]
      fd Capacidad_huir_borde
      set energia energia - 10]]
    [descansar-borde]
  ]
end

to descansar-borde
  ifelse pcolor = 44 or pcolor = 66 or pcolor = 75[
    set energia energia + 6]
  [set energia energia + 1]
end

to move-bosque
     ask turtles in-radius 2 [ifelse temperatura >= 28.3 or temperatura <= 24.3 or dosel <= 82 or humedad <= 91 [
     if any? patches with [temperatura >= 24.4 or dosel >= 82 or humedad >= 92 and pcolor = 66 or pcolor = 44 or pcolor = 70][
      face one-of patches with [temperatura >= 24.4 or dosel >= 82 or humedad >= 92 and pcolor = 66 or pcolor = 44 or pcolor = 70]
      fd Capacidad_huir_bosque
      set energia energia - 10]]

    [descansar-bosque]
  ]
end

to descansar-bosque
  ifelse pcolor = 66 or pcolor = 70 [
    set energia energia + 6]
  [set energia energia + 1]
end

to reproducirse-potrero
  if energia > 80 [ if random 100 > 50 [set energia energia - 60
      hatch 1 [ rt random-float 360 fd 2
      set energia energia / 3]]]
end

to reproducirse-borde
  if energia > 80 [ if random 100 > 50 [set energia energia - 73
      hatch 1 [ rt random-float 360 fd 2
      set energia energia / 3]]]
end

to reproducirse-bosque
  if energia > 80 [ if random 100 > 50 [set energia energia - 67
      hatch 1 [ rt random-float 360 fd 2
      set energia energia / 3]]]
end

to morir-r
  if ticks mod 10 = 0 [if random 100 > 80[die]]
  if energia < 1 [die]
end

to morir
  if ticks mod 10 = 0 [if random 100 > 95[die]]
  if energia < 1 [die]
end
