Turtles and Conditional Probability

1 collaborator

Roger Day (Author)

WHAT IS IT?

Demo of independence, conditional independence and failure of contditional independence.

Pure independence: set stepsize to 0.

Conditional independence (one back): set stepsize > 0 and angle = 180 The current position is the starting point for a random step. This is a "random walk" (Brownian motion).

Conditional independence (two back): set stepsize > 0 and angle < 180 The current and previous positions determine the direction from which the turtle swivels.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [ turtle-my-color my-turn]
directed-link-breed [ paths path]
breed [ turtle-starts turtle-start ]
breed [ turtle-ends turtle-end ]

to setup
  clear-all
  set-default-shape turtles "turtle"
  create-turtle-starts number [
    set turtle-my-color  15 + 10 * who
    set color turtle-my-color
    setxy 0 0
    set size turtle-size
  ]
  reset-ticks
end

to go
  ;; if not any? turtles [ stop ]
  ask turtle-starts [
    ifelse label-on? [ set label who + 1] [ set label "" ]
    ifelse do-stamp [ stamp ] [  ]
    ifelse is-pen-down [ pen-down ] [pen-up]
    move ]
  ;;ask links [ connect-turtles ]
  tick
end

to move  ;; turtle procedure
  set my-turn  2 * (random angle) - angle / 2
  rt random angle  ;; right turn
  ;;lt random angle  ;; left turn
  ifelse stepsize = 0
     [ setxy random-xcor random-ycor ] ;; random jump
     [fd stepsize ]   ;; forward
end

There are 2 versions of this model.

		Uploaded by	When	Description	Download
		Roger Day	over 3 years ago	Turtles teach us about Conditional Probability	Download this version
		Roger Day	over 3 years ago	Initial upload	Download this version

Attached files

File	Type	Description	Last updated

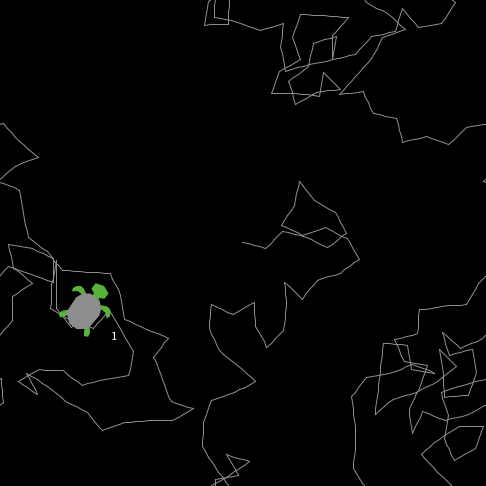

Turtles and Conditional Probability.png	preview	Preview for 'Turtles and Conditional Probability'	over 3 years ago, by Roger Day	Download
