Election Thing

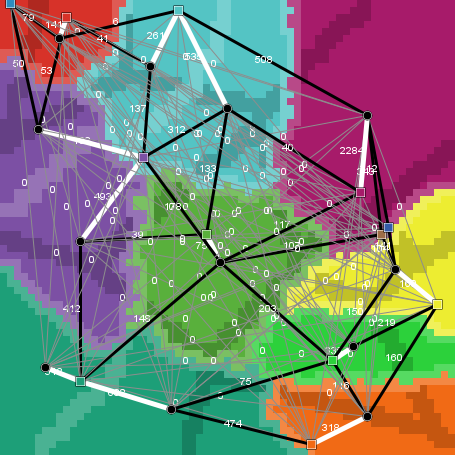

Election Thing preview image

1 collaborator

Turtlezero2-white-048 James Steiner (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.2.2 • Viewed 129 times • Downloaded 14 times • Run 0 times
Download the 'Election Thing' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals
[
district-count
  candidate-count
]

patches-own [ patch-district nearest-candidate patch-board votes patch-winner ]

breed [ boards board]
boards-own
[ board-district
  district-patches
  winner-tally
  winner-candidate
]

undirected-link-breed [ tallies tally ]
tallies-own
[ tally-board
  tally-candidate
  tally-votes
  is-winner?
]

breed [ candidates candidate ]
candidates-own
[ districts-won
  boards-won
]

to setup
  clear-all

  setup-districts
  setup-boards
  setup-candidates
  setup-tallies
  select-nearest-candidates
  setup-votes

  find-district-winners
  show-results
  reset-ticks
end

to setup-districts
  set district-count $districts
  let d 1
  ask n-of district-count patches [ set patch-district d set d d + 1 ]
  while [ any? patches with [ patch-district = 0 ] ]
  [ ask patches with [ patch-district = 0 and any? neighbors4 with [ patch-district != 0 ] ]
    [ set patch-district [ patch-district ] of one-of neighbors4 with [ patch-district != 0 ] ]
  ]
end

to setup-boards
  foreach range district-count
  [ i ->
    create-boards 1
    [ set board-district i + 1
      set district-patches patches with [ patch-district = [board-district ] of myself ]
      ask district-patches [ set patch-board myself ]
      set shape "token"
      set color pcolor
      set size max (list 1 (10 / patch-size) )

      ;; place the board near the geometric center of the district
      let mx mean [ pxcor ] of district-patches
      let my mean [ pycor ] of district-patches
      let mp min-one-of district-patches [ distancexy mx my ]
      move-to mp
    ]
  ]
end

to setup-candidates
  set candidate-count $candidates
  create-candidates candidate-count
  [ set shape "token-2"
    set color red + 10 * (who mod candidate-count)
    set size max (list 1 (20 / patch-size) )
    setxy random-pxcor random-pycor
  ]
end

to setup-tallies
  ask boards
  [
    let this-district  board-district
    create-tallies-with candidates
    [ set tally-board one-of both-ends with [ breed = boards ]
      set tally-candidate one-of both-ends with [ breed = candidates ]
      hide-link
      set is-winner? false
    ]
  ]
end

to setup-votes
  ask patches
  [
    set votes 10 + random 1000
  ]
end

to select-nearest-candidates
  ask patches
  [ set nearest-candidate min-one-of candidates [ distance myself ]
  ]
end

to find-district-winners
  ask tallies
  [ let this-board tally-board
    let this-candidate tally-candidate
    set tally-votes sum [ votes ] of patches with [ patch-board = this-board and nearest-candidate = this-candidate ]
    set is-winner? false
  ]
  ask boards
  [ ;; sort tallies by votes
    ;; break ties in favor of "older" candidate
    let sorted-tallies
    sort-by
    [ [ a b ] ->
      ( [ tally-votes ] of a > [ tally-votes] of b )
      or
      ( [ who ] of [ tally-candidate ] of a < [ who ] of [ tally-candidate ] of b )
    ]
    ( my-tallies with [ tally-votes > 0 ])
    if length sorted-tallies > 0
    [ set winner-tally first sorted-tallies
      ask winner-tally [ set is-winner? true ]
      set winner-candidate [ tally-candidate ] of winner-tally
      ask district-patches [ set patch-winner [ winner-candidate ] of myself ]
    ]
  ]
end

to-report differing [ property ]
  report run-result property != [ run-result property ] of myself
end

to show-results
  ifelse show-tally-links?
  [ let fat-line 5 / patch-size ;; 5 pixels
  let med-line 3 / patch-size ;; 3 pixels
  ask tallies
  [ ifelse tally-votes = 0
    [ hide-link ]
    [ ifelse not is-winner?
      [ set color black
        set thickness med-line
      ]
      [ set color white
        set thickness fat-line
      ]
      show-link
    ]
  ]
  ]
  [ ask tallies [ hide-link ]
  ]
  ask patches
  [ ;; color of district is for patch-winner
    ifelse is-candidate? patch-winner
    [ ;; outline of districts
      ifelse ( any? neighbors4 with [ differing [-> patch-district ] ] )
      [ set pcolor 1 + [ color ] of patch-winner ]
      [ set pcolor [ color ] of patch-winner ]

      ;; outline around candidate showing patches that is is the nearest-candidate for
      if  ( any? neighbors4 with [ differing [-> nearest-candidate ] ] )
      [ set pcolor [ color - 2 ] of patch-winner
      ]
          ]
    [ set pcolor black
      ;; outline around the nearest candidate
      if  ( any? neighbors with [ differing [-> nearest-candidate ] ] )
      [ set pcolor 3
      ]
    ]

  ]
end

to move-candidates
  ask candidates
  [ rt random 360
    jump 1
    setxy pxcor pycor
  ]
end

to migrate-candidates
  move-candidates
  select-nearest-candidates
  setup-votes
  find-district-winners
  show-results
end

to go
end
