This is the BehaviorSearch benchmarking version of the classic NetLogo Fire model.

Reference: Stonedahl, F. Doctoral Thesis. [Genetic Algorithms for the Exploration of Parameter Spaces in Agent Based Models] (http://forrest.stonedahl.com/thesis/forreststonedahlthesis.pdf). Northwestern University.

MODIFICATIONS

December 2022: Converted to NetLogo 6.3.0 format.

March 2011: Uses smaller world-size than original, for increased speed.

WHAT IS IT?

This project simulates the spread of a fire through a forest. It shows that the fire's chance of reaching the right edge of the forest depends critically on the density of trees. This is an example of a common feature of complex systems, the presence of a non-linear threshold or critical parameter.

HOW IT WORKS

The fire starts on the left edge of the forest, and spreads to neighboring trees. The fire spreads in four directions: north, east, south, and west.

The model assumes there is no wind. So, the fire must have trees along its path in order to advance. That is, the fire cannot skip over an unwooded area (patch), so such a patch blocks the fire's motion in that direction.

HOW TO USE IT

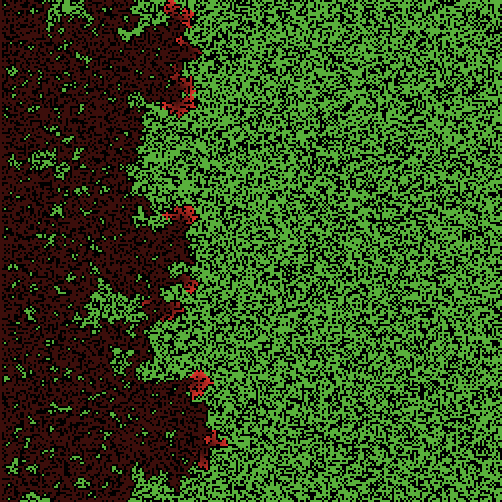

Click the SETUP button to set up the trees (green) and fire (red on the left-hand side).

Click the GO button to start the simulation.

The DENSITY slider controls the density of trees in the forest. (Note: Changes in the DENSITY slider do not take effect until the next SETUP.)

THINGS TO NOTICE

When you run the model, how much of the forest burns. If you run it again with the same settings, do the same trees burn? How similar is the burn from run to run?

Each turtle that represents a piece of the fire is born and then dies without ever moving. If the fire is made of turtles but no turtles are moving, what does it mean to say that the fire moves? This is an example of different levels in a system: at the level of the individual turtles, there is no motion, but at the level of the turtles collectively over time, the fire moves.

THINGS TO TRY

Set the density of trees to 55%. At this setting, there is virtually no chance that the fire will reach the right edge of the forest. Set the density of trees to 70%. At this setting, it is almost certain that the fire will reach the right edge. There is a sharp transition around 59% density. At 59% density, the fire has a 50/50 chance of reaching the right edge.

Try setting up and running a BehaviorSpace experiment (see Tools menu) to analyze the percent burned at different tree density levels. Plot the burn-percentage against the density. What kind of curve do you get?

Try changing the size of the lattice (max-pxcor and max-pycor in the Model Settings). Does it change the burn behavior of the fire?

EXTENDING THE MODEL

What if the fire could spread in eight directions (including diagonals)? To do that, use neighbors instead of neighbors4. How would that change the fire's chances of reaching the right edge? In this model, what "critical density" of trees is needed for the fire to propagate?

Add wind to the model so that the fire can "jump" greater distances in certain directions.

Add the ability to plant trees where you want them. What configurations of trees allow the fire to cross the forest? Which don't? Why is over 59% density likely to result in a tree configuration that works? Why does the likelihood of such a configuration increase so rapidly at the 59% density?

The physicist Per Bak asked why we frequently see systems undergoing critical changes. He answers this by proposing the concept of [self-organzing criticality] (https://en.wikipedia.org/wiki/Self-organized_criticality) (SOC). Can you create a version of the fire model that exhibits SOC?

NETLOGO FEATURES

Unburned trees are represented by green patches; burning trees are represented by turtles. Two breeds of turtles are used, "fires" and "embers". When a tree catches fire, a new fire turtle is created; a fire turns into an ember on the next turn. Notice how the program gradually darkens the color of embers to achieve the visual effect of burning out.

The neighbors4 primitive is used to spread the fire.

You could also write the model without turtles by just having the patches spread the fire, and doing it that way makes the code a little simpler. Written that way, the model would run much slower, since all of the patches would always be active. By using turtles, it's much easier to restrict the model's activity to just the area around the leading edge of the fire.

See the "CA 1D Rule 30" and "CA 1D Rule 30 Turtle" for an example of a model written both with and without turtles.

RELATED MODELS

Percolation
Rumor Mill

CREDITS AND REFERENCES

https://en.wikipedia.org/wiki/Forest-fire_model

HOW TO CITE

If you mention this model or the NetLogo software in a publication, we ask that you include the citations below.

For the model itself:

Wilensky, U. (1997). NetLogo Fire model. http://ccl.northwestern.edu/netlogo/models/Fire. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

Please cite the NetLogo software as:

Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

COPYRIGHT AND LICENSE

CC BY-NC-SA 3.0

This work is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License. To view a copy of this license, visit https://creativecommons.org/licenses/by-nc-sa/3.0/ or send a letter to Creative Commons, 559 Nathan Abbott Way, Stanford, California 94305, USA.

Commercial licenses are also available. To inquire about commercial licenses, please contact Uri Wilensky at uri@northwestern.edu.

This model was created as part of the project: CONNECTED MATHEMATICS: MAKING SENSE OF COMPLEX PHENOMENA THROUGH BUILDING OBJECT-BASED PARALLEL MODELS (OBPML). The project gratefully acknowledges the support of the National Science Foundation (Applications of Advanced Technologies Program) -- grant numbers RED #9552950 and REC #9632612.

This model was developed at the MIT Media Lab using CM StarLogo. See Resnick, M. (1994) "Turtles, Termites and Traffic Jams: Explorations in Massively Parallel Microworlds." Cambridge, MA: MIT Press. Adapted to StarLogoT, 1997, as part of the Connected Mathematics Project.

This model was converted to NetLogo as part of the projects: PARTICIPATORY SIMULATIONS: NETWORK-BASED DESIGN FOR SYSTEMS LEARNING IN CLASSROOMS and/or INTEGRATED SIMULATION AND MODELING ENVIRONMENT. The project gratefully acknowledges the support of the National Science Foundation (REPP & ROLE programs) -- grant numbers REC #9814682 and REC-0126227. Converted from StarLogoT to NetLogo, 2001.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [
  initial-trees   ;; how many trees (green patches) we started with
  burned-trees    ;; how many have burned so far
]

breed [fires fire]    ;; bright red turtles -- the leading edge of the fire
breed [embers ember]  ;; turtles gradually fading from red to near black

to setup
  clear-all
  set-default-shape turtles "square"
  ;; make some green trees
  ask patches with [(random-float 100) < density]
    [ set pcolor green ]
  ;; make a column of burning trees
  ask patches with [pxcor = min-pxcor]
    [ ignite ]
  ;; set tree counts
  set initial-trees count patches with [pcolor = green]
  set burned-trees 0
  reset-ticks
end

to go
  if not any? turtles  ;; either fires or embers
    [ stop ]
  ask fires
    [ ask neighbors4 with [pcolor = green]
        [ ignite ]
      set breed embers ]
  fade-embers
  tick
end

;; creates the fire turtles

to ignite  ;; patch procedure
  sprout-fires 1
    [ set color red ]
  set pcolor black
  set burned-trees burned-trees + 1
end

;; achieve fading color effect for the fire as it burns

to fade-embers
  ask embers
    [ set color color - 0.3  ;; make red darker
      if color < red - 3.5     ;; are we almost at black?
        [ set pcolor color
          die ] ]
end

to-report percent-burned
  ifelse initial-trees = 0 [ report 0 ]
  [
    report (burned-trees / initial-trees) * 100
  ]
end
