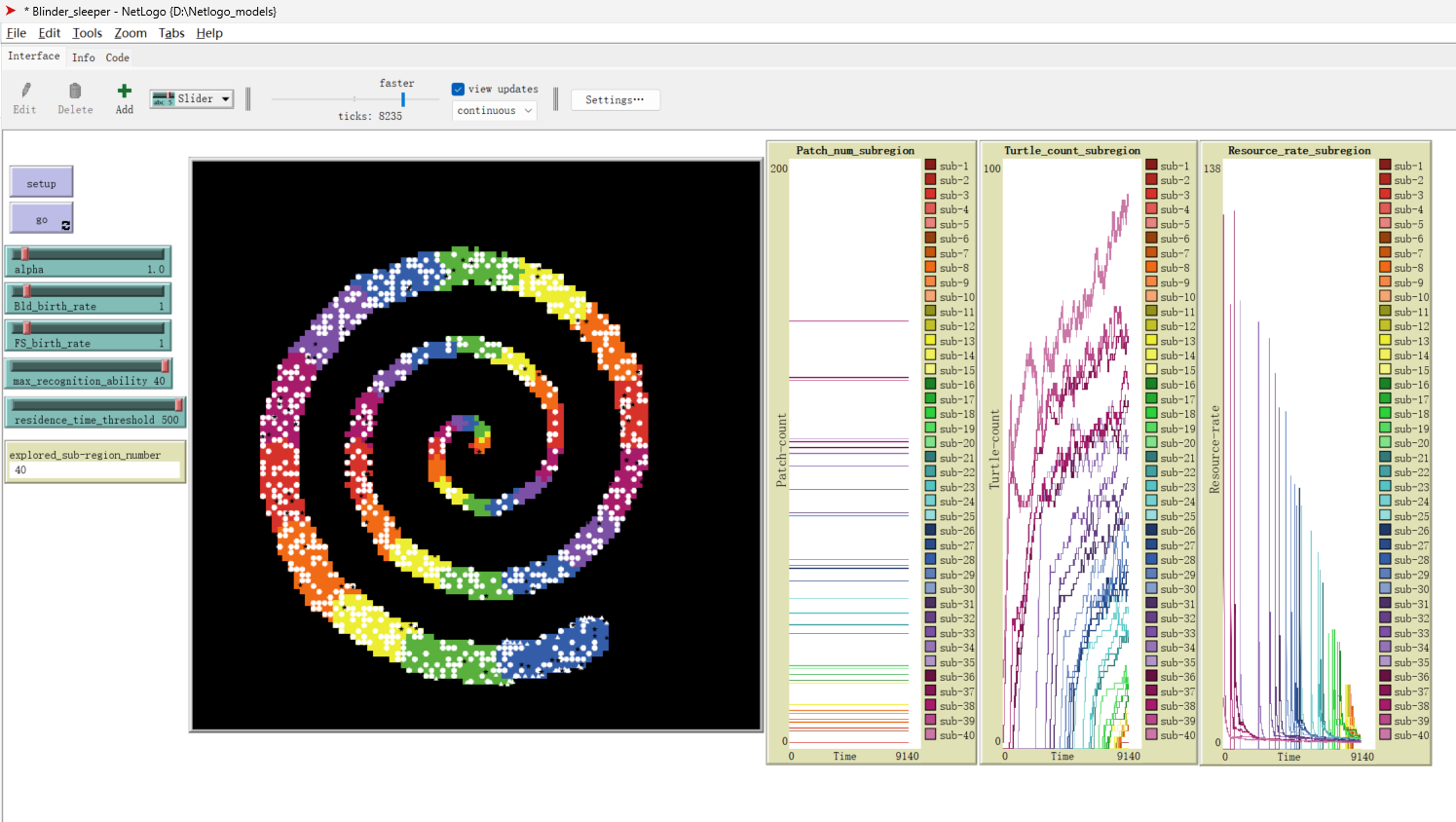

Blinders and the fake sleepers

globals [ explored_sub-region_number ]  ;;set the global variable to receive results for the sub-region number being explored
patches-own [on-path? sub-region turtle-reached? resource-rate num-patches num-turtles] ;;set the patch own properties
turtles-own [current-region residence-time initial-heading recognition-ability has-settled? ] ;;set the turtle own properties

;;create three groups of turtles
breed [Blds Bld]
breed [FSs FS]
breed [Insts Inst]

;; Setup procedure

to setup
  clear-all      ;;clear all sets from previous run
  resize-world -50 50 -50 50  ;; Enlarge the world

  ;; Initialize all patches
  ask patches [
    set on-path? false ;;set all patches with on-path property false
    set pcolor black   ;;set the color
  ]
  ;; Set up the cycling path as a spiral loop
  let radius 0
  let angle 0
  let max-radius 40
  let angle-increment 5.13  ;; Adjust this value to change the spiral tightness, the value is set to let the color of the circles from a specific angle to the center point is approximately the same.

  ;; Define sub-regions based on radius intervals
  let sub-region-interval 1  ;; Each sub-region covers a 1-unit radius interval
  let current-sub-region 1  ;; Start with the first sub-region

  ;; Create the spiral path
  while [radius < max-radius] [
    let px round (radius * cos angle)
    let py round (radius * sin angle)
    if (px >= min-pxcor and px <= max-pxcor and py >= min-pycor and py <= max-pycor) [
      ;; Mark the central path patch
      let width max list 1 (radius / 10)  ;; Adjust the width dynamically
      ask patches with [distancexy px py <= width] [
        set on-path? true
        set sub-region current-sub-region ;;Assign the sub-region
        set-sub-region-color sub-region  ;; Set the color based on sub-region
        set turtle-reached? false  ;; Initialize turtle-reached as false
        set resource-rate 0  ;; Initialize resource rate to 0
        set num-patches 0  ;; Initialize num-patches to 0
        set num-turtles 0  ;; Initialize num-turtles to 0
      ]
    ]

    set angle (angle + angle-increment)
    set radius (radius + 0.2)  ;; Increment the radius gradually

    ;; Check if we need to move to the next sub-region
    if radius >= (current-sub-region * sub-region-interval) [
      set current-sub-region current-sub-region + 1
    ]
  ];;end of while

  ;; Get a list of unique sub-regions
  ;;let unique-subregions remove-duplicates [sub-region] of patches
  ;; Initialize an index for the while loop
  ;;let i 0
  ;; Calculate the number of patches for each sub-region using a while loop
  ;;while [i < length unique-subregions] [
  ;;  let region item i unique-subregions
  ;;  let count-in-region count patches with [sub-region = region]
  ;;  table:put subregion-patch-counts region count-in-region
  ;; set i i + 1
  ;;]

    ;; Extract keys and sort them
  ;;let sorted-subregions sort table:keys subregion-patch-counts

    ;; Print the counts for each sub-region in sorted order
  ;;foreach sorted-subregions [ region ->
  ;;  show (word region ": " table:get subregion-patch-counts region)
  ;;]

  ;; Create 10 Bld turtles with random initial directions
  create-Blds 10 [
    set color white
    set shape "triangle"
    let target-patch one-of patches with [sub-region = 40]  ;;let the initial position of the turtle in sub-region #40
    if target-patch != nobody [
      move-to target-patch
    ]
    set current-region [sub-region] of patch-here ;;set the current-region property to the sub-region code where the turtle locates
    set heading random 360
    set initial-heading heading
    set residence-time 0 ;;initialize the residence time to 0
  ]

  reset-ticks
end ;; End of setup procedure

;;Go procedure

to go
  ;; Create a number of Blds every 10 ticks
  if (ticks mod 10 = 0) [
    create-Blds Bld_birth_rate  [
      set color white
      set shape "triangle"
      let target-patch one-of patches with [sub-region = 40] ;;let the initial position of the turtle in sub-region #40
      if target-patch != nobody [
        move-to target-patch
      ]
      set current-region [sub-region] of patch-here
      set heading random 360 ;;random moving direction
      set initial-heading heading
      set residence-time 0
    ]
  ]

  ;; Create a number of FSs every 10 ticks
  if (ticks mod 10 = 0) [
    create-FSs FS_birth_rate [
      set color white
      set shape "circle"
      set recognition-ability random max_recognition_ability + 1  ;; Assign a random recognition-ability between 1 and max_recognition_ability
      set has-settled? false;; Initialize has-settled? to false
      set residence-time 0


      ;;set angle1 0
      ;;let target-patch one-of patches with [sub-region = 40]
      ;;if target-patch != nobody [
      ;;  move-to target-patch

      ;;set initial-x xcor
      ;;set initial-y ycor
      ;;code to set initial position at a single point
      ;;setxy inital_pxcor inital_pycor
      ;; Ensure the initial position is on the path
      ;;while [not on-path?] [
      ;;  setxy inital_pxcor inital_pycor
      ;;]
      ;;set current-region [sub-region] of patch-here
      ;;set heading random 360
      ;;set initial-heading heading
      ]
    ]


  ;; Create 1 instinctor every 100 ticks
  if (ticks mod 100 = 0) [
    create-Insts 1 [
      set color black
      set shape "star"
      let target-patch one-of patches with [sub-region = 40]
      if target-patch != nobody [
        move-to target-patch
      ]
      set current-region [sub-region] of patch-here
      set heading random 360
      set residence-time 0
    ]
  ]


  ;; Move Bld turtles within the path
  ask Blds [
    ;; Move in the initial direction
    set heading initial-heading
    let target-patch patch-ahead 1
    ;; Check if the target patch is within bounds and on the path
    if (target-patch != nobody and [on-path?] of target-patch and [sub-region] of target-patch <= current-region) [
      forward 1
       ;; Update the current sub-region if moved to a lower/inner one
      if [sub-region] of target-patch < current-region [
        set current-region [sub-region] of target-patch
      ]
    ]
     ;; If hitting the edge of the path, turn in the opposite direction
    if (target-patch = nobody or not [on-path?] of target-patch or [sub-region] of target-patch > current-region) [
      reflect-heading
    ]

    let current-patch patch-here
    let current-sub-region1 [sub-region] of current-patch ;; Store the sub-region of the current patch

    ;; If a turtle reaches this patch, mark the entire sub-region as reached
    ask patches with [sub-region = current-sub-region1] [
      set turtle-reached? true
    ]

    ;; Increment residence-time and check if it reaches the threshold
    set residence-time residence-time + 1
    if residence-time >= residence_time_threshold [
      die
    ]


  ]

  ;; Locate FSs within the path
  ask FSs with [has-settled? = false] [ ;;initialize has-settled property to be false
    ;;Identify recognized sub-regions based on recognition-ability
    let recognized-regions sublist (range 1 41) (40 - recognition-ability) 40
    ;;Find the sub-region with the maximum resource-rate
    let max-resource-region max-one-of patches with [
      member? sub-region recognized-regions and turtle-reached? = true
    ] [resource-rate]
    if max-resource-region != nobody [
      ;; Place FS in a random patch in the sub-region with the maximum resource-rate
      let target-patch one-of patches with [sub-region = [sub-region] of max-resource-region]
      if target-patch != nobody [
        move-to target-patch  ;; Move the FS to the target patch
        set has-settled? true  ;; Mark the FS as settled, preventing further movement
      ]
    ]

    let current-patch patch-here
    let current-sub-region1 [sub-region] of current-patch ;; Store the sub-region of the current patch

    ;; If a turtle reaches this patch, mark the entire sub-region as reached
    ask patches with [sub-region = current-sub-region1] [
      set turtle-reached? true
    ]

    ;; Increment residence-time and check if it reaches the threshold
    set residence-time residence-time + 1
    if residence-time >= residence_time_threshold [
      die
    ]
  ]

  ;; Move Insts turtles randomly within the path
  ask Insts [
    right random 360
    let target-patch patch-ahead 1
    ;; Check if the target patch is within bounds and on the path
    if (target-patch != nobody and [on-path?] of target-patch and [sub-region] of target-patch <= current-region) [
      forward 1
    ;; Update the current sub-region if moved to a lower one
      if [sub-region] of target-patch < current-region [
        set current-region [sub-region] of target-patch
      ]
    ]

    let current-patch patch-here
    let current-sub-region1 [sub-region] of current-patch ;; Store the sub-region of the current patch

    ;; If a turtle reaches this patch, mark the entire sub-region as reached
    ask patches with [sub-region = current-sub-region1] [
      set turtle-reached? true
    ]

    ;; Increment residence-time and check if it reaches the threshold
    set residence-time residence-time + 1
    if residence-time >= 1000000 [
      die
    ]
  ]


  ;; Create lists to store the data for plotting
  let patch-counts []
  let turtle-counts []
  let resource-rates []
  let valid-sub-regions []  ;; List to track sub-regions that are actually being plotted


  ;; Update num-patches, num-turtles, and resource-rate for each sub-region
  let all-sub-regions remove-duplicates [sub-region] of patches
  foreach all-sub-regions [
    current-sub-region ->
    if current-sub-region != 0 [  ;; Ensure the sub-region is valid
      let patch-count count patches with [sub-region = current-sub-region]
      let turtle-count count turtles with [sub-region = current-sub-region]

      let rate 0  ;; Initialize rate to 0
      if turtle-count > 0 [
        set rate alpha * patch-count / turtle-count  ;; Calculate rate if turtles are present
      ]

      ;; Update num-patches, num-turtles, and resource-rate for all patches in the sub-region
      ask patches with [sub-region = current-sub-region] [
        set num-patches patch-count
        set num-turtles turtle-count
        set resource-rate rate
      ]

      ;; Collect the data for this sub-region
      set patch-counts lput patch-count patch-counts
      set turtle-counts lput turtle-count turtle-counts
      set resource-rates lput rate resource-rates
      set valid-sub-regions lput current-sub-region valid-sub-regions
    ]
  ]

;; Identify unique sub-regions with turtle-reached? = true
  let explored-sub-regions remove-duplicates [sub-region] of patches with [turtle-reached? = true]

  ;; Count the number of these sub-regions
  set explored_sub-region_number length explored-sub-regions

  ;; Plot the values for each sub-region
  set-current-plot "Patch_num_subregion"

  ;; Iterate over each valid sub-region to plot the collected data
  let sub-region-index 0
  foreach valid-sub-regions [
    current-sub-region ->
    ;; Plot for num-patches
    set-current-plot-pen (word "sub-" current-sub-region)
    plotxy ticks item sub-region-index patch-counts

    set sub-region-index sub-region-index + 1
  ]

  ;; Plot the values for each sub-region
  set-current-plot "Turtle_count_subregion"

  ;; Iterate over each valid sub-region to plot the collected data
  let sub-region-index1 0
  foreach valid-sub-regions [
    current-sub-region ->
    ;; Plot for turtle-counts
    set-current-plot-pen (word "sub-" current-sub-region)
    plotxy ticks item sub-region-index1 turtle-counts

    set sub-region-index1 sub-region-index1 + 1
  ]


    ;; Plot the values for each sub-region
  set-current-plot "Resource_rate_subregion"

  ;; Iterate over each valid sub-region to plot the collected data
  let sub-region-index2 0
  foreach valid-sub-regions [
    current-sub-region ->
    ;; Plot for resource-rates
    set-current-plot-pen (word "sub-" current-sub-region)
    plotxy ticks item sub-region-index2 resource-rates

    set sub-region-index2 sub-region-index2 + 1
  ]

  tick
end
;;end of Go procedure

;;funtion to set sub-region color

to set-sub-region-color [sub-region1]
  ;; Use a color scale based on the sub-region number
  let color-map [red orange yellow green blue violet magenta]
  let color-index (sub-region1 - 1) mod length color-map
  set pcolor item color-index color-map
end

;;function to reflect heading of Blds

to reflect-heading
  ;; Calculate the normal to the edge
  let normal (towardsxy (pxcor + 1) pycor) - 90
  set heading (2 * normal - heading) mod 360
  set initial-heading heading
end

;;====================================================================================================================================================================================
;;Temporal codes for tests
;;====================================================================================================================================================================================

;; Helper function to check if a patch exists
;;to-report patch-exists? [x y]
;;  report (x >= min-pxcor and x <= max-pxcor and y >= min-pycor and y <= max-pycor)
;;end


;; Calculate and mark the middle patch for each angle
;;to calculate-middle-patches
;;  ask patches [
;;    set middle-patch? false  ;; Reset all patches
;;  ]
;;  let angles (list 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265 270 275 280 285 290 295 300 305 310 315 320 325 330 335 340 345 350 355)
;;  foreach angles [
;;    angle ->
;;    let patches-at-angle patches with [round towardsxy 0 0 = angle and on-path?]
;;    if any? patches-at-angle [
;;      let sorted-patches sort-by [distancexy 0 0] patches-at-angle
;;      let middle-index (length sorted-patches / 2)
;;      let middle-patch item middle-index sorted-patches
;;      ask middle-patch [
;;        set middle-patch? true
;;        set pcolor blue  ;; Mark the middle patch for visualization
;;      ]
;;    ]
;;]
;;end

;;to go
;;  ask Blds [
;;    let moved? false
;;    let attempts 0
;;    while [not moved? and attempts < 8] [
;;     right random 360 / 8  ;; Try different directions in 45-degree increments
;;      let target-patch patch-ahead 1
      ;; Check if the target patch is valid, on the path, and within the allowed sub-region
;;      if (target-patch != nobody and [on-path?] of target-patch and [sub-region] of target-patch <= current-region) [
;;        move-to target-patch
;;        set moved? true
        ;; Update the current sub-region if moved to a lower one
;;        if [sub-region] of target-patch < current-region [
;;          set current-region [sub-region] of target-patch
;;        ]
;;      ]
;;      set attempts attempts + 1
;;    ]
;;  ]

;;  tick
;;end
